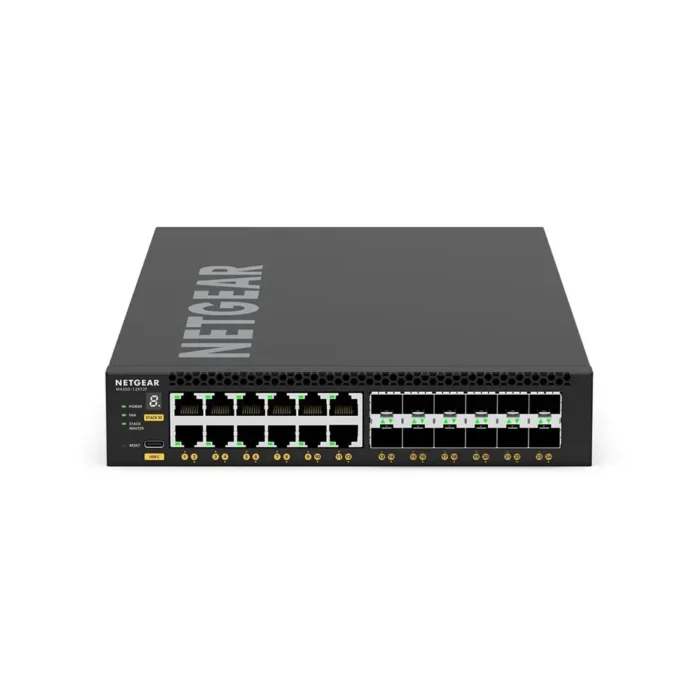

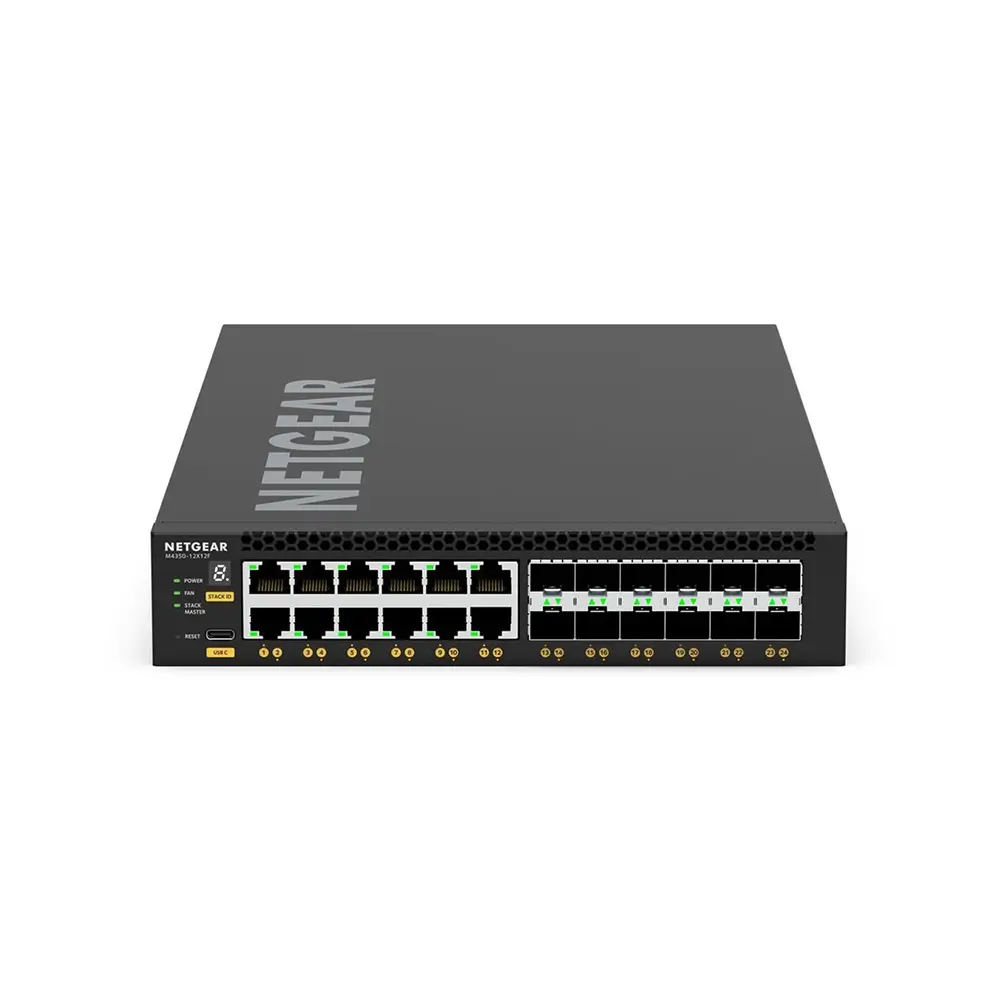

NETGEAR XSM4324-100NES (M4350-12X12F) Managed Switch
- 12 x 10G RJ45 Ethernet Ports
- 12 x 10G SFP+ Ports
- 480 Gb/s Switching Capacity
- 357.12 Mpps Forwarding Rate
- Half-Width Rackmount Design
- Intelligent Fan Cooling
- Optimized for AV-Over-IP Multicasts
- Netgear Engage Controller Support
Grow your business by expanding your network capacity with the Netgear M4350-12X12F 24-Port 10G RJ45 / SFP+ Managed AV Network Switch. Designed primarily for high-bandwidth AV and IT applications, this network switch includes 12 RJ45 Ethernet ports alongside 12 SFP+ fiber ports, each of which support up to 10 Gb/s connections.
With Netgear’s IGMP Plus, the M4350-12X12F switch delivers smooth video-over-IP multicasts with little to no setup required. The half-width design allows you to install up to two switches in a single rack space for redundancy. This switch works with Netgear’s Engage Controller management platform, in addition to standard command line and web-based interfaces.
Performance
With a 480 Gb/s switching capacity and 357.12 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.
Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design

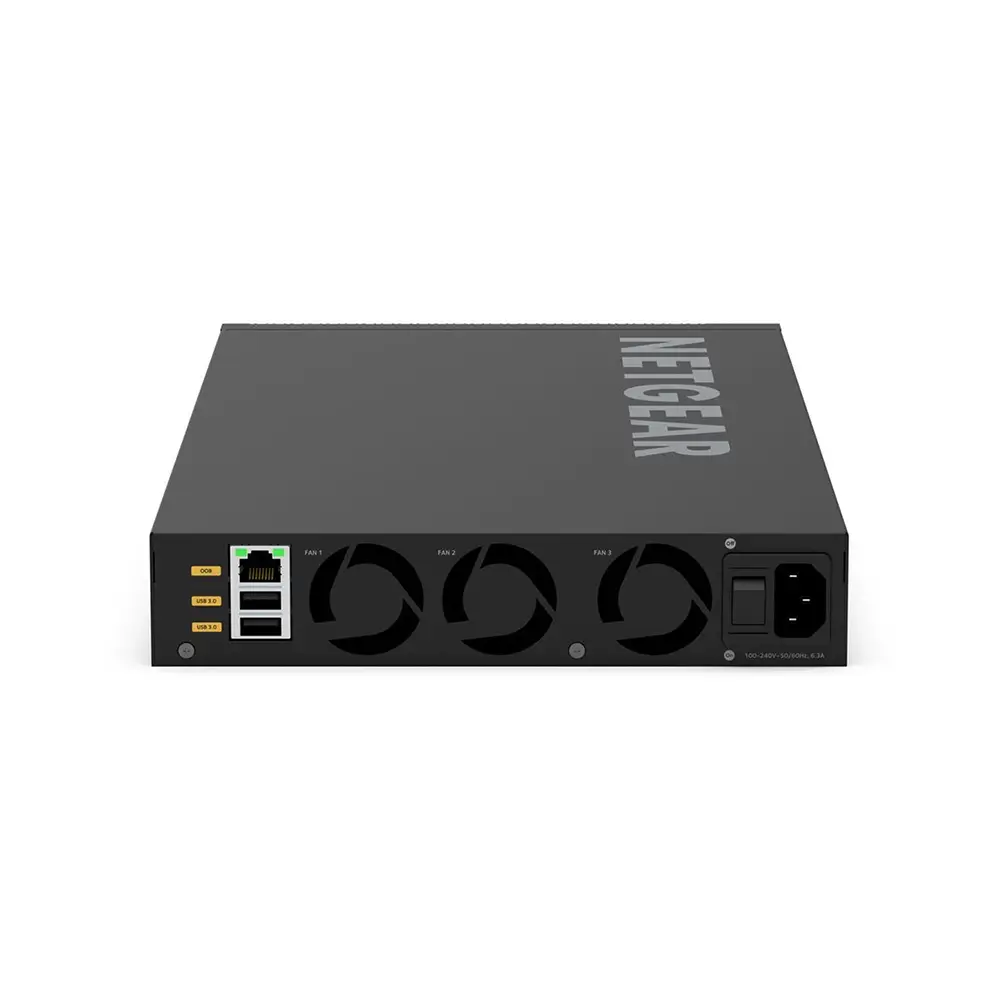

The intelligent fans may be configured in Quiet Mode to help minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.
Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
| Weight | 7.64 kg |
|---|---|
| Dimensions | 55.12 × 33.27 × 14.22 cm |
| Number of Ports | Number of Ports: 24 (12 Pieces 10G/Multi-Gig, 12 Pieces 10G SFP+) PoE Ports / Budget: Not available |
| Other | Priority Port Speed: 10 Gigabit / Multi-Gig IGMP Support: Advanced (NETGEAR IGMP Plus?) Jumbo Frame Support: Yes, up to 12 KB AVB Support: Yes, included Acoustics: Silent Mode 34.3dB@25?C |
| Power | Power Consumption: 95.8W/hour Idle without any port connection: 34W/hour |
