NETGEAR XSM4324CS-100NES (M4300-24X) Managed Switch
- 24 x 10G Ethernet Ports
- 4 x 10G Shared SFP+ Ports
- 480 Gb/s Switching Capacity
- 357 Mpps Forwarding Rate
- 800 MHz Processor | 1GB RAM
- Rackmount Design
- 250W Power Supply
Expand your small to medium-sized business’s network capacity with the M4300-24X 48-Port 10G Managed Network Switch from Netgear. This fully managed rackmount network switch includes Layer 2, 3, and 4 feature sets, such as hot-swappable mixed stacking, with up to eight switches in a single logical switch, but no license requirements to support video broadcast and other high-bandwidth applications. With 24 10G Ethernet ports, you can connect computers and other devices for high-bandwidth applications. The M4300-24X also includes four shared 10G SFP+ ports for fiber uplinks.
Designed for smooth data transfers, this switch supports a 960 Gb/s non-blocking switching capacity and 714 Mpps forwarding rate. Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection. A 250W power supply is included.
- Reliability
- High Availability (HA)
- Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack.
- Multi-Resiliency
- Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities.
- PVST+ Interoperability
- Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP).
- Link Dependency
- Enables or disables ports based on link state of different ports.
- Advanced IPv4/IPv6 Security
- Malicious code detection, DHCP Snooping, IP Source Guard protection, and DoS attacks mitigation.
- Easy to Manage
- Simple GUI
- Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface.
- Flexible & Efficient
- Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
- Mix & Match Stacking
- Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit.
- Room to Grow
- With PoE+, plug-and-play ports, and hot-swap, you’re ready to grow whenever you need to.
- Ready for AV-over-IP
- Zero-Touch AV-over-IP
- Preconfigured for out-of-box L2 multicast (SDVoE-ready).
- No Delay
- Non-blocking fabric for near-zero switch latency.
- Netgear IGMP Plus
- Prevent network flooding with multicast implementation of Layer 2 multicast.
| Weight | 5.69 kg |
|---|---|
| Dimensions | 58.67 × 35.05 × 8.89 cm |
| Ports | Ports: 24 x Copper 100M / 1G / 10G ports, 4 x shared SFP+ 1G / 10G ports |
| Power | 1 Pieces 250W modular PSU (APS250W) including 1 Pieces modular slot 480 Gbps switching fabric Fixed fan (front-to-back, 37dB) |

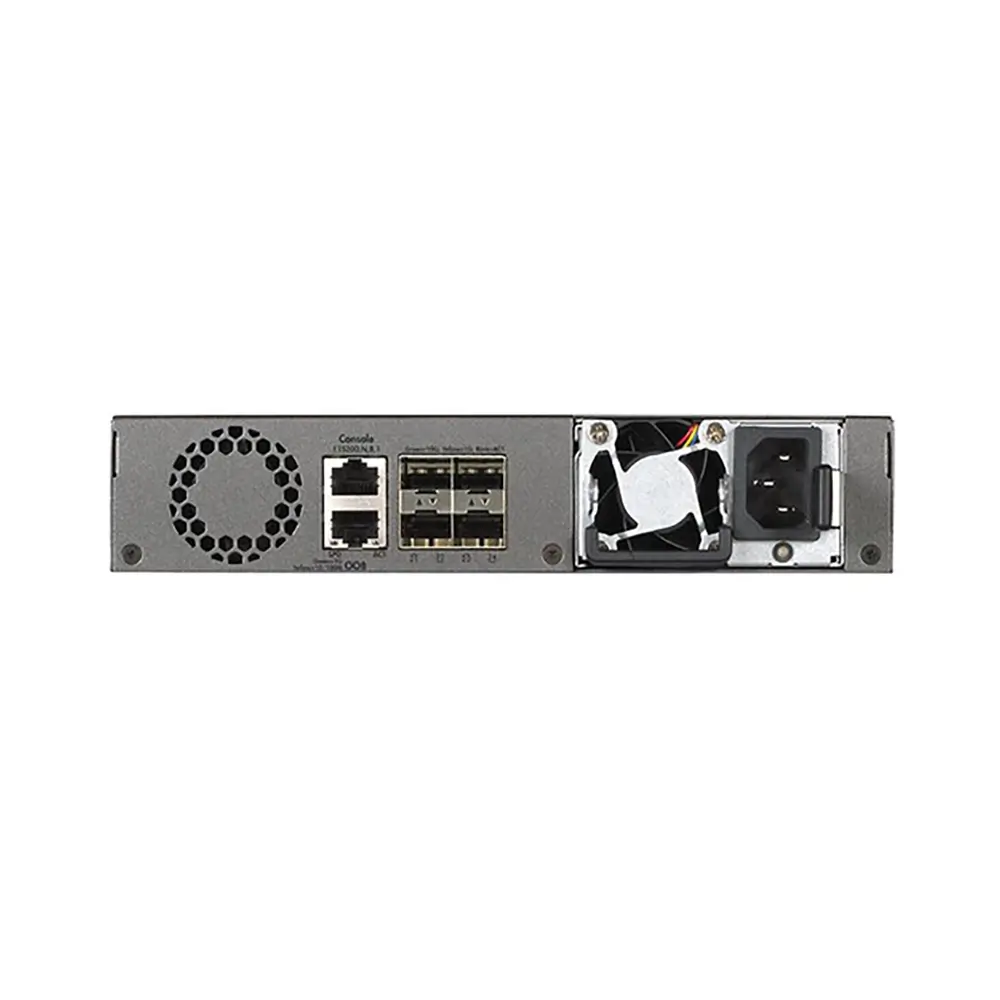

| management | Management Options:Out-of-band management on the rear side for 1G Ethernet port, Rear RJ45 RS232 console port, Front Mini-USB console port, Front USB storage port NMS300 single-panel management platform with bulk configuration support |
