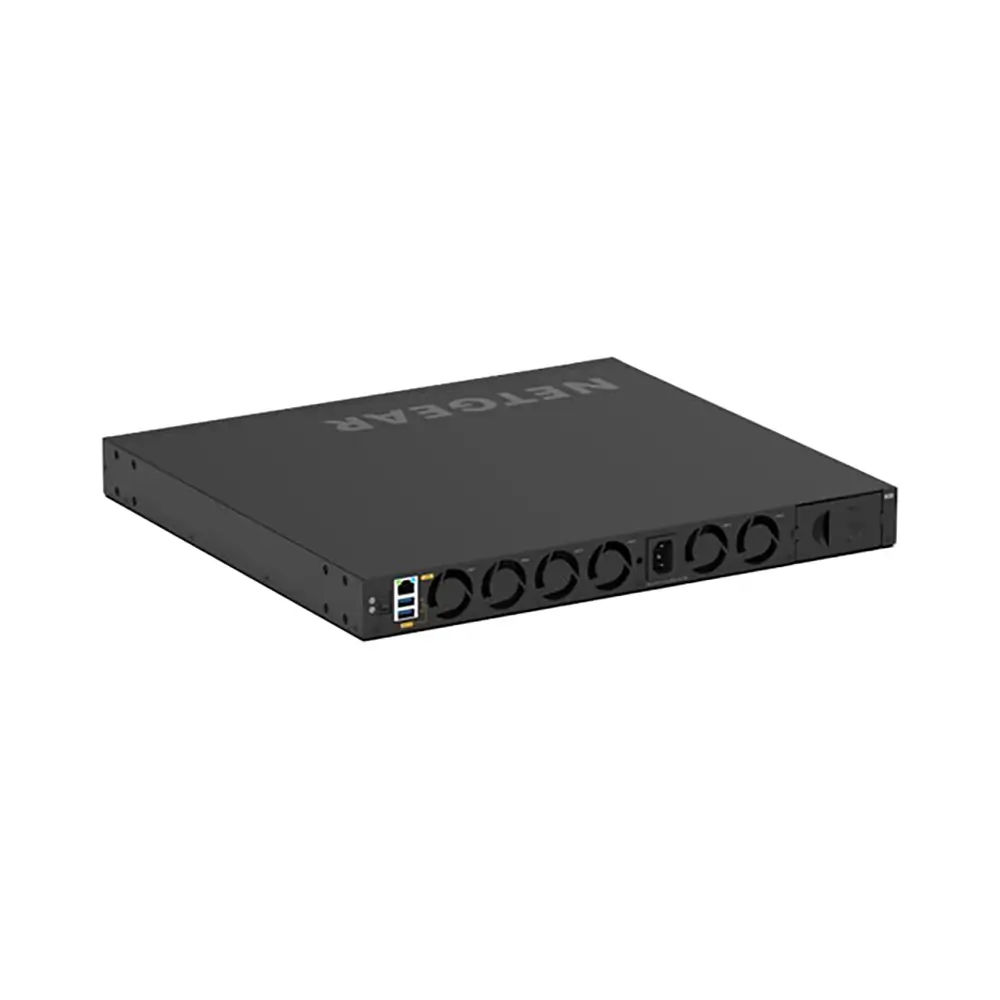

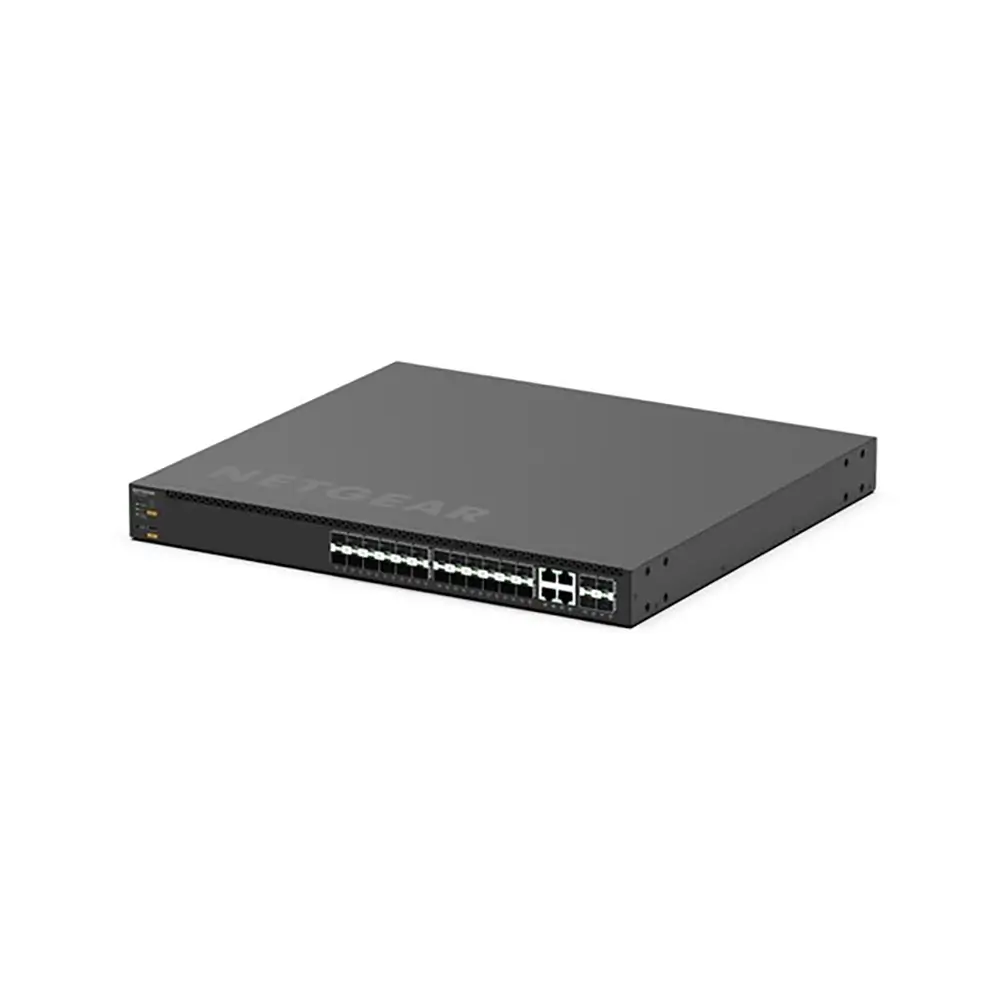

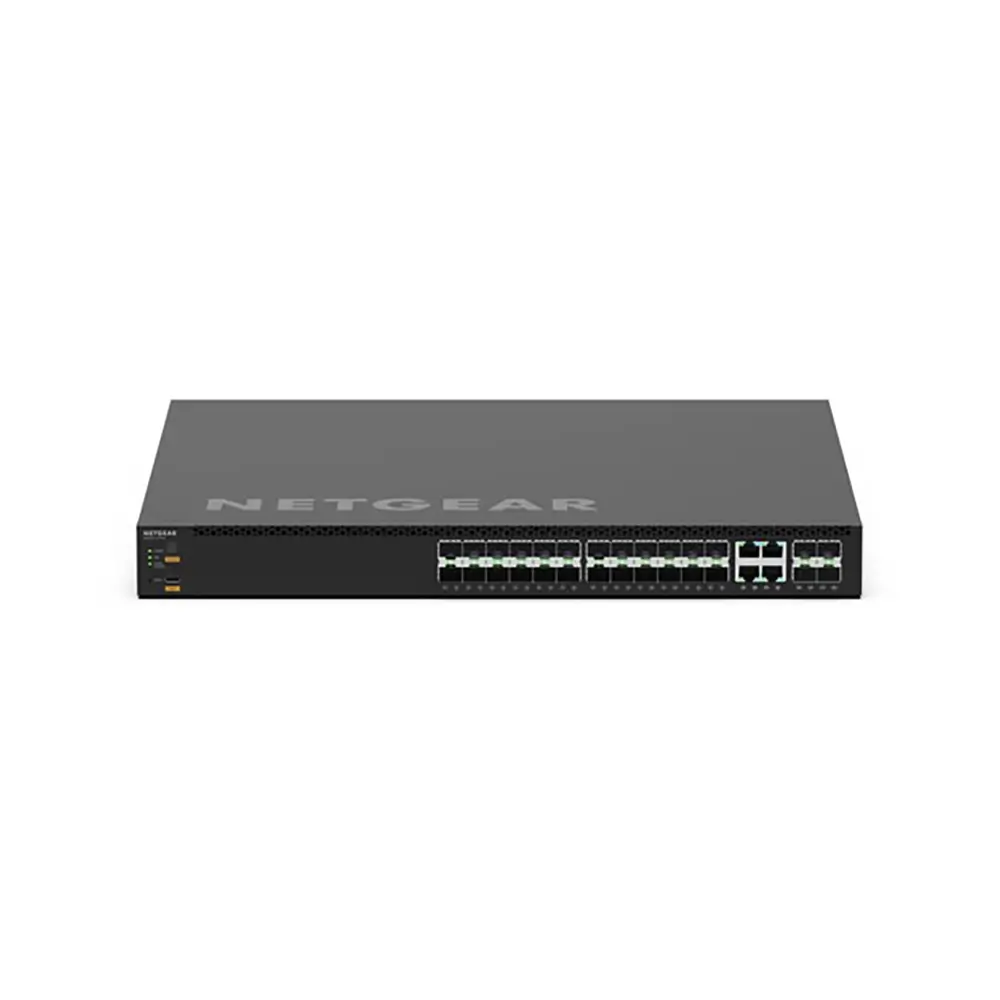

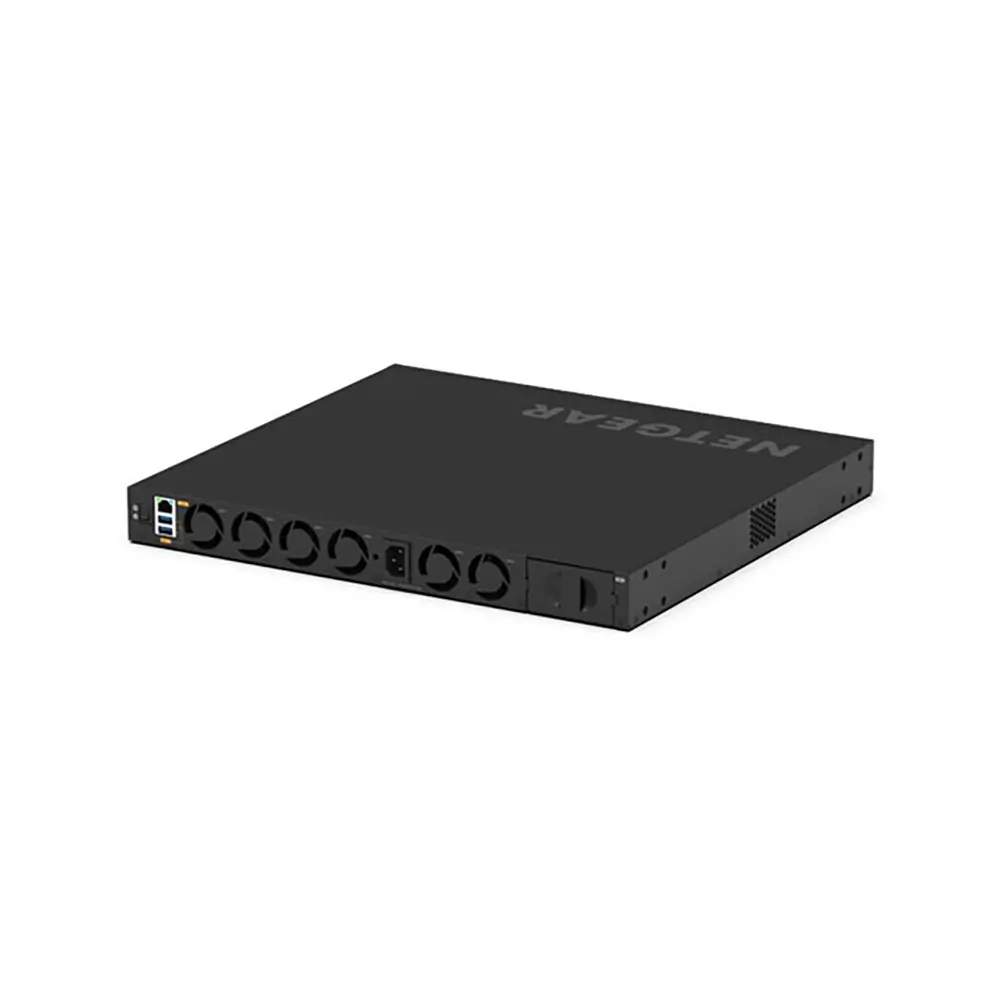

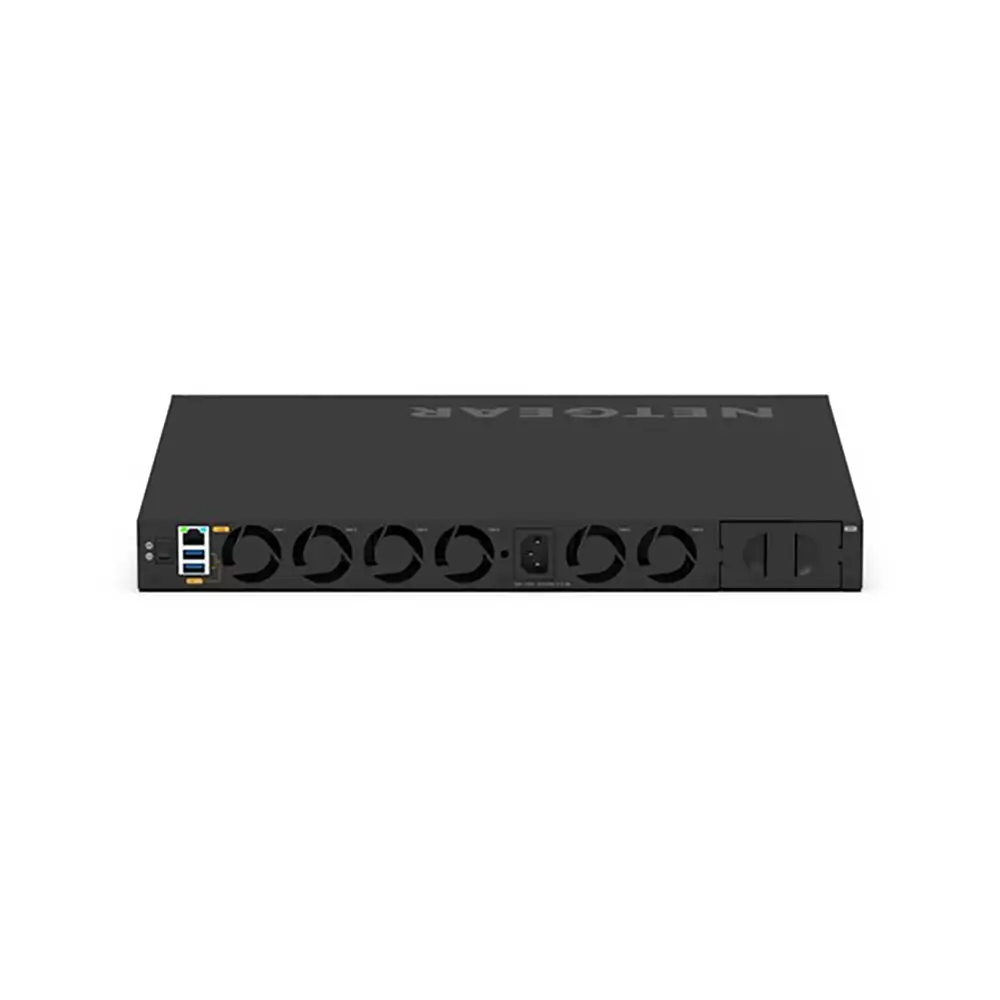

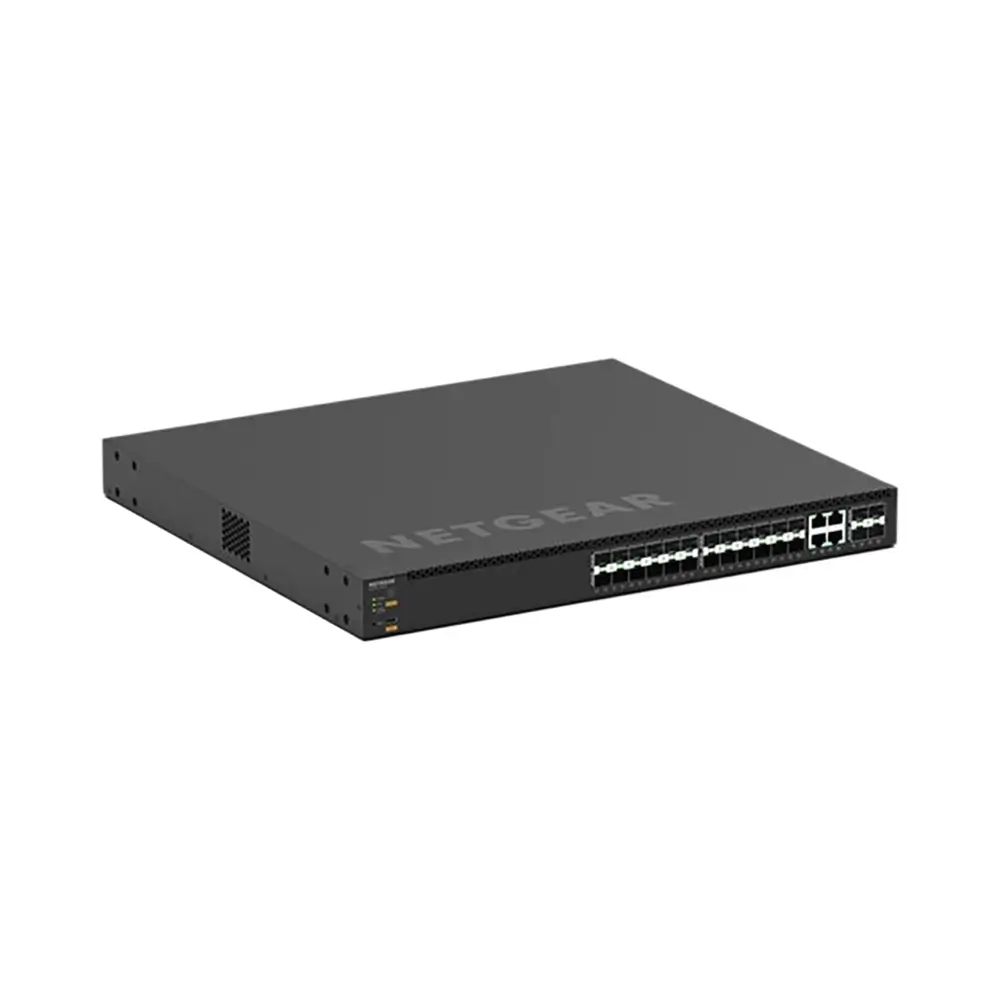

NETGEAR MSM4328F-100NES (M4350-24F4X) Managed Switch
- 24 x Gigabit SFP Ports
- 4 x 10G SFP+ / RJ45 Combo Ports
- Certified for AV over IP
- 200 Gb/s Switching Capacity
- 148.8 Mpps Forwarding Rate
- 1.8 GHz Cortex A57 Quad-Core CPU
- 4GB RAM
- Desk & Rack Mountable Design
Designed for AV over IP applications, the AV Line M4350-24F4X 24-Port Gigabit SFP Managed Switch from Netgear allows you to quickly get up and running. It features 24 SFP slots, delivering up to Gigabit speeds to compatible Fiber equipment.
Additionally, its four SFP+ fiber / RJ45 copper combo slots support up to 10 Gb/s uplinks. Equipped with 1.8 GHz Cortex A57 Quad-Core processor and 4GB of DDR4 memory, this Layer 3 rack mountable switch supports a 200 Gb/s switching capacity and 148.8 Mpps forwarding rate.
Manage the switch through the Netgear AV user interface and ENGAGE Controller, which includes preconfigured profiles for most major audio, video, and lighting protocols.
Designed for AV Over IP
With NETGEAR IGMP Plus built in, there’s little to no setup required for clear audio and video delivery. Multicasting is enabled right out of the box.
Quiet Design
Intelligent fans with a configurable quiet mode allow you to broadcast without disruptions.
Automatic Configuration
Auto-LAG and Auto-Trunk functionality automatically configure uplinks between multiple M4350 and M4250 switches.
Stacking Mode
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
Compatibility
AVB, Dante, Q-SYS, AES67, NVX, AMX, IPMX, NDI 4/5/6, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and more.
SMTP
SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
| Weight | 9.49 kg |
|---|---|
| Dimensions | 59.69 × 21.84 × 14.73 cm |
| Number of Ports | 28 (24 Pieces 1G/2.5G SFP, 4 Pieces Combo 10GBASE-T Copper / 10G SFP+) |
| Other | Priority Port Speed: 1 / 2.5 Gigabit IGMP Support: Advanced (NETGEAR IGMP Plus?) Jumbo Frame Support: Yes, up to 12 KB AVB Support: Yes, included Acoustics: Silent Mode 30dB@25?C |
| Power | Power Consumption: Maximum: 115.5W/hour Idle without any port connection: 39W/hour |
