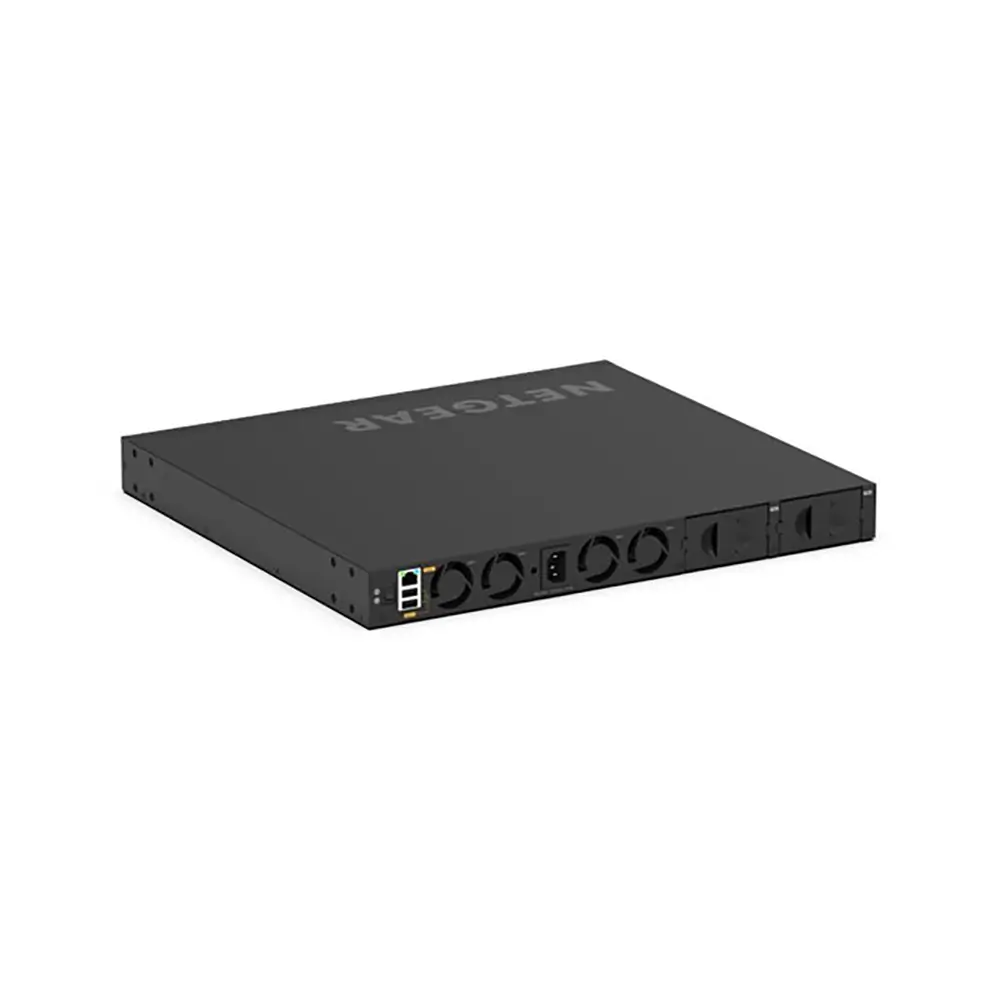

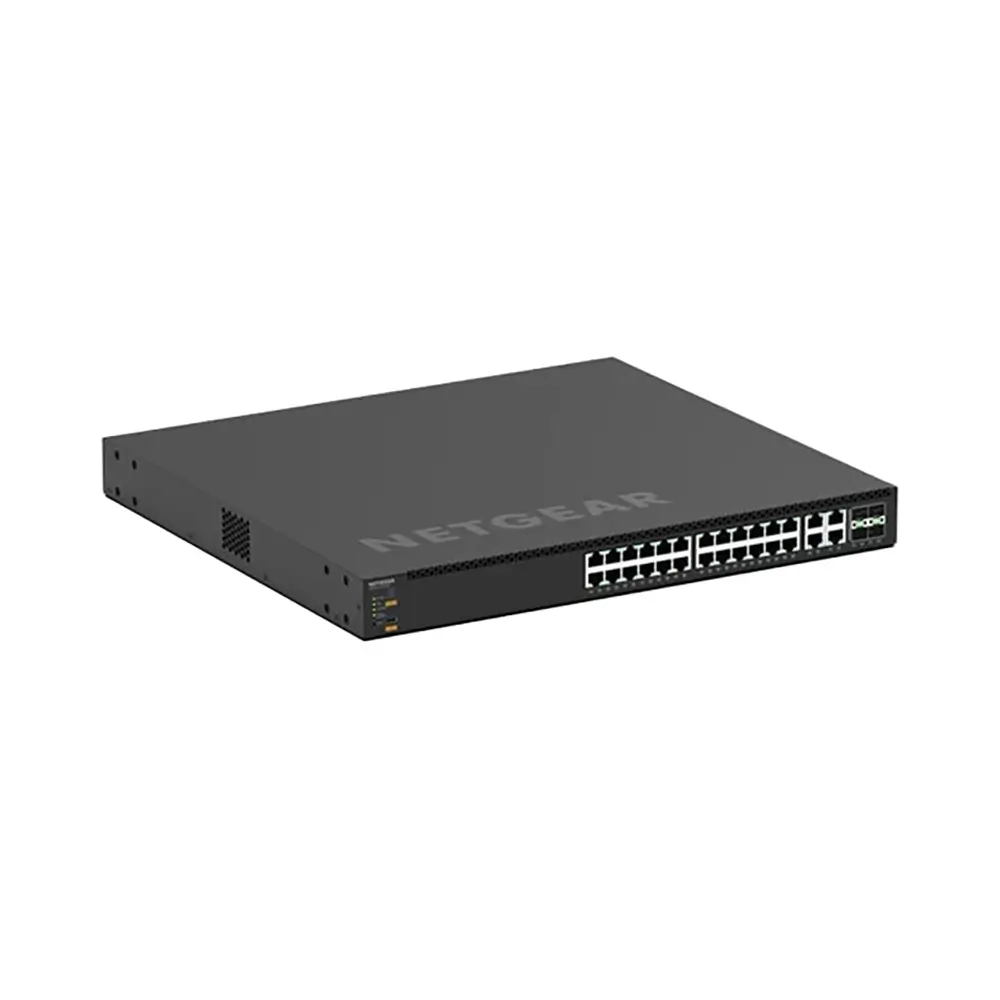

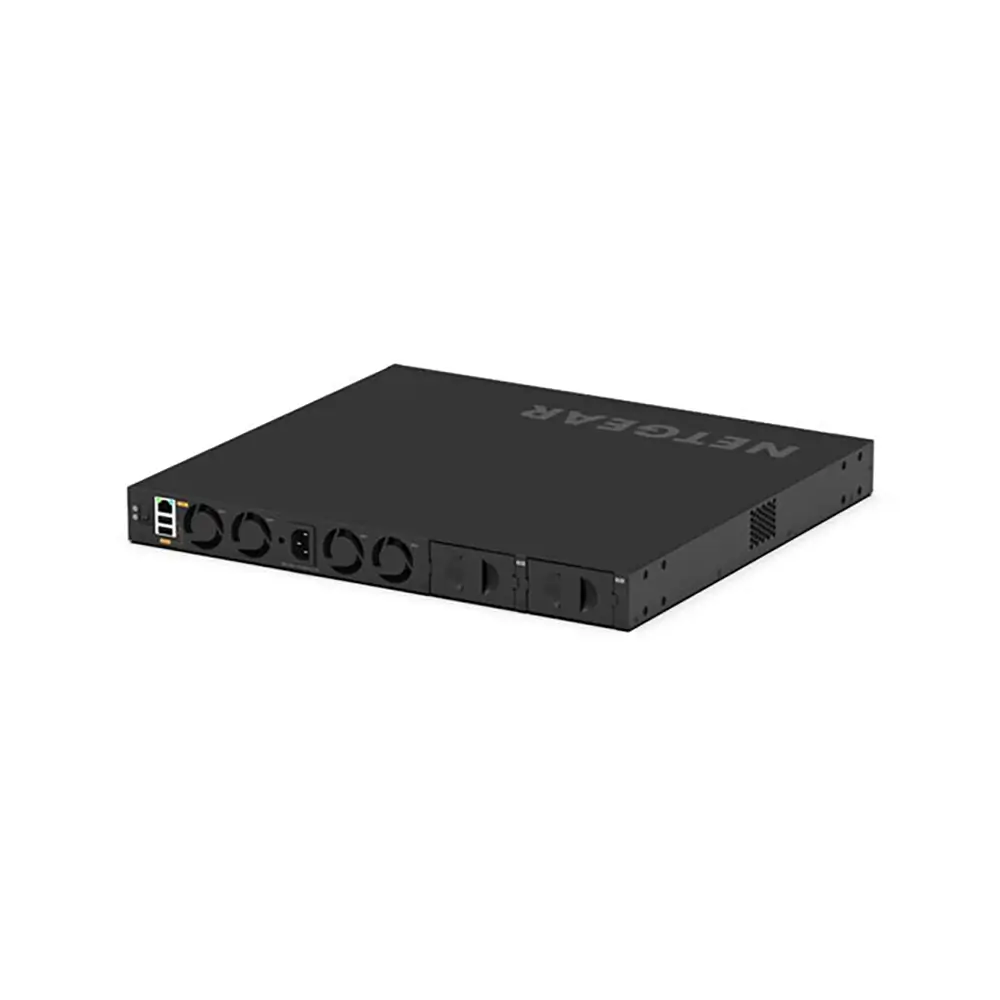

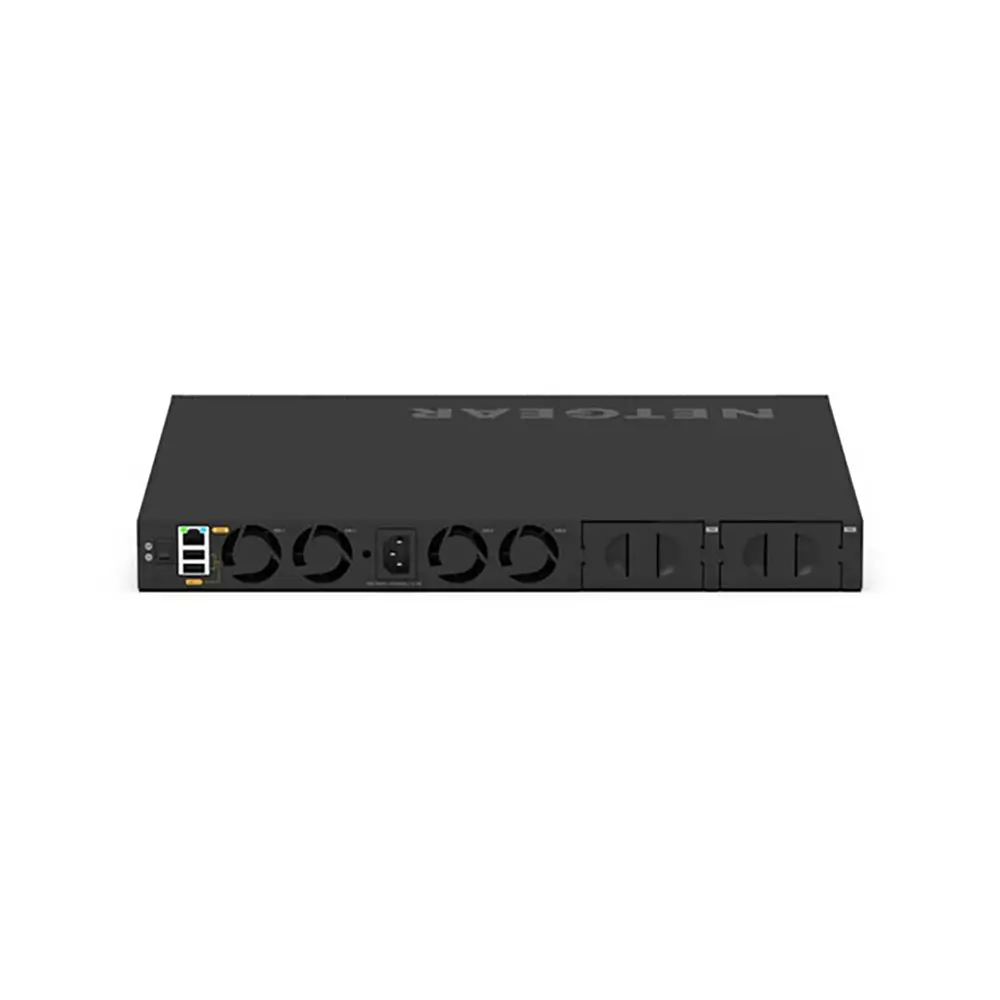

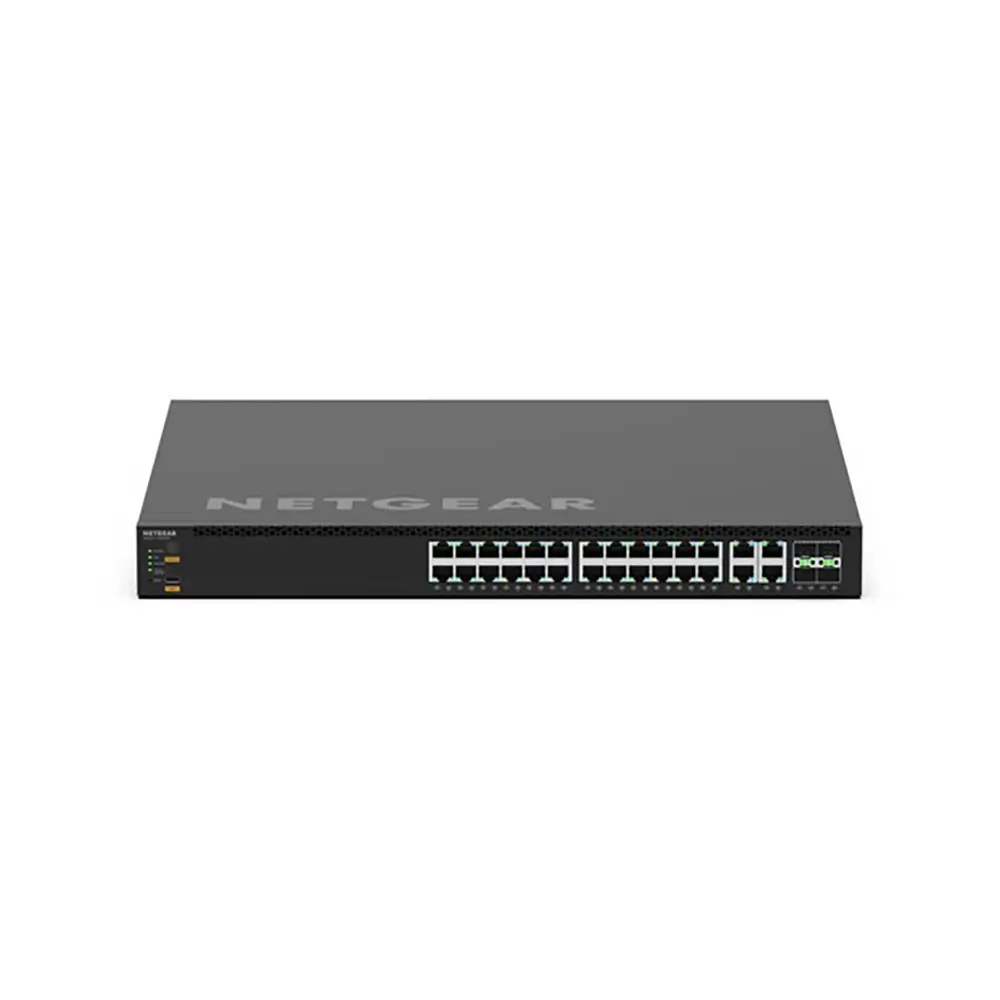

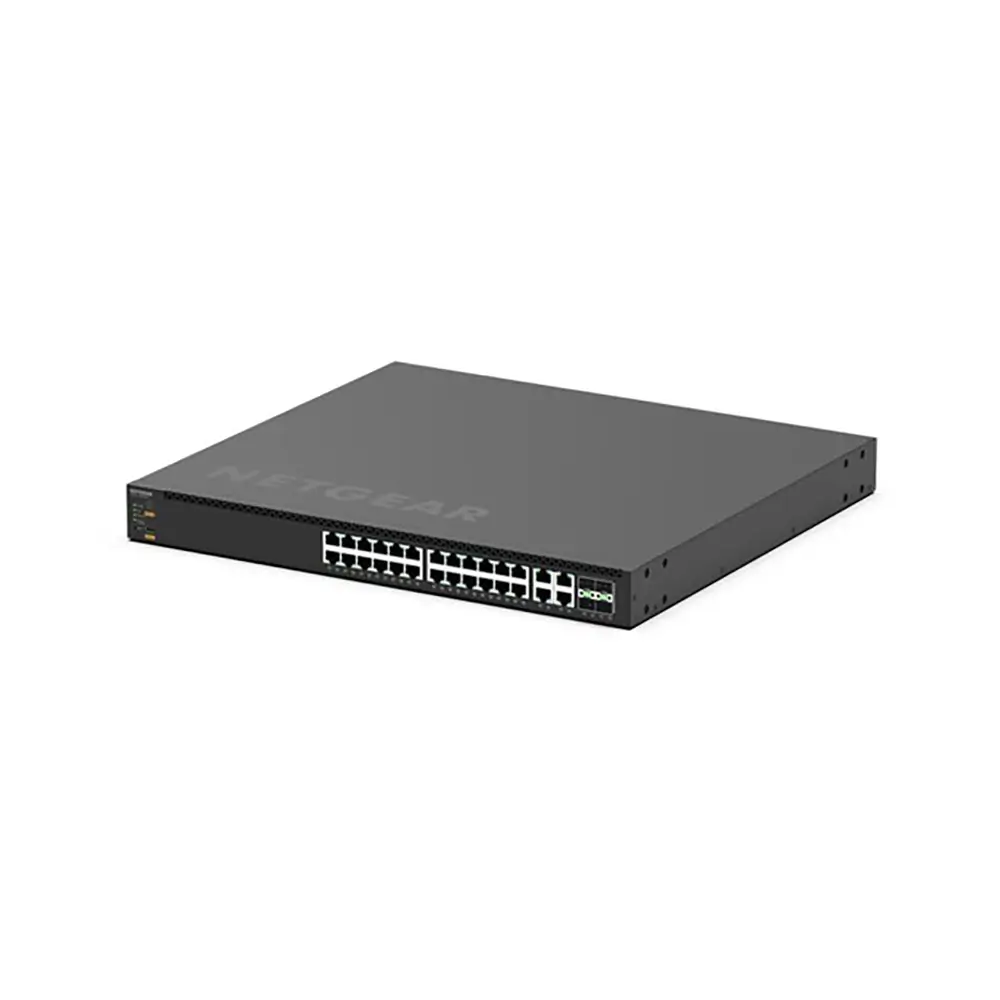

NETGEAR MSM4332-100NES (M4350-24M4X4V) Managed Switch
- 24 x 2.5G RJ45 Ethernet PoE++ Ports
- 4 x 10G RJ45 Ethernet PoE++ Ports
- 4 x 25G SFP28 Port
- Certified for AV over IP
- 400 Gb/s Switching Capacity
- 297.6 Mpps Forwarding Rate
- 1.8 GHz Cortex A57 Quad-Core CPU
- Desk & Rack Mountable Design
- 522W Base Power Budget
Designed for AV over IP applications, the AV Line M4350-24M4X4V 24-Port Multi-Gig PoE++ Compliant Managed Switch from Netgear allows you to quickly get up and running. It features twenty-four 2.5G RJ45 ports alongside four 10G ports, all of which deliver up to 60W to PoE++ compliant devices with a 522W base budget. Four SFP28 slots support up to 25 Gb/s fiber uplinks.
Equipped with 1.8 GHz Cortex A57 Quad-Core processor and 4GB of DDR4 memory, this Layer 3 rack mountable switch supports a 400 Gb/s switching capacity and 297.6 Mpps forwarding rate. Manage the switch through the Netgear AV user interface and ENGAGE Controller, which includes preconfigured profiles for most major audio, video, and lighting protocols.
Designed for AV Over IP
With NETGEAR IGMP Plus built in, there’s little to no setup required for clear audio and video delivery. Multicasting is enabled right out of the box.
PoE Expansion
The included power supply enables an up to 522W PoE budget. Outfitting both PSU slots with up to 2000W modules increases the budget to 2520W, or 1972W with failover redundancy.
Quiet Design
Intelligent fans with a configurable quiet mode allow you to broadcast without disruptions.
Automatic Configuration
Auto-LAG and Auto-Trunk functionality automatically configure uplinks between multiple M4350 and M4250 switches.
Stacking Mode
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
Compatibility
AVB, Dante, Q-SYS, AES67, NVX, AMX, IPMX, NDI 4/5/6, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and more.
SMPTE ST 2110
SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
| Weight | 10.16 kg |
|---|---|
| Dimensions | 61.47 × 58.93 × 9.91 cm |
| Number of Ports | Number of Ports: 32 (24 Pieces 2.5G PoE++, 4 Pieces 10G/Multi-Gig PoE++, 4 Pieces 25G SFP28) Total PoE++ Number of Ports: 28 |
| Other | Priority Port Speed: 2.5 Gigabit Total PoE++ Budget: 522W Basic, 2.520W’a up to budget IGMP Support: Advanced (NETGEAR IGMP Plus?) Jumbo Frame Support: Yes, up to 12 KB AVB Support: Yes, included Acoustics: Silent Mode 34.8dB@25?C |
| Power | Power Consumption: Maximum PoE with: 2.845W/hour Without PoE: 123.4W/hour Idle without any port connection: 53W/hour |
