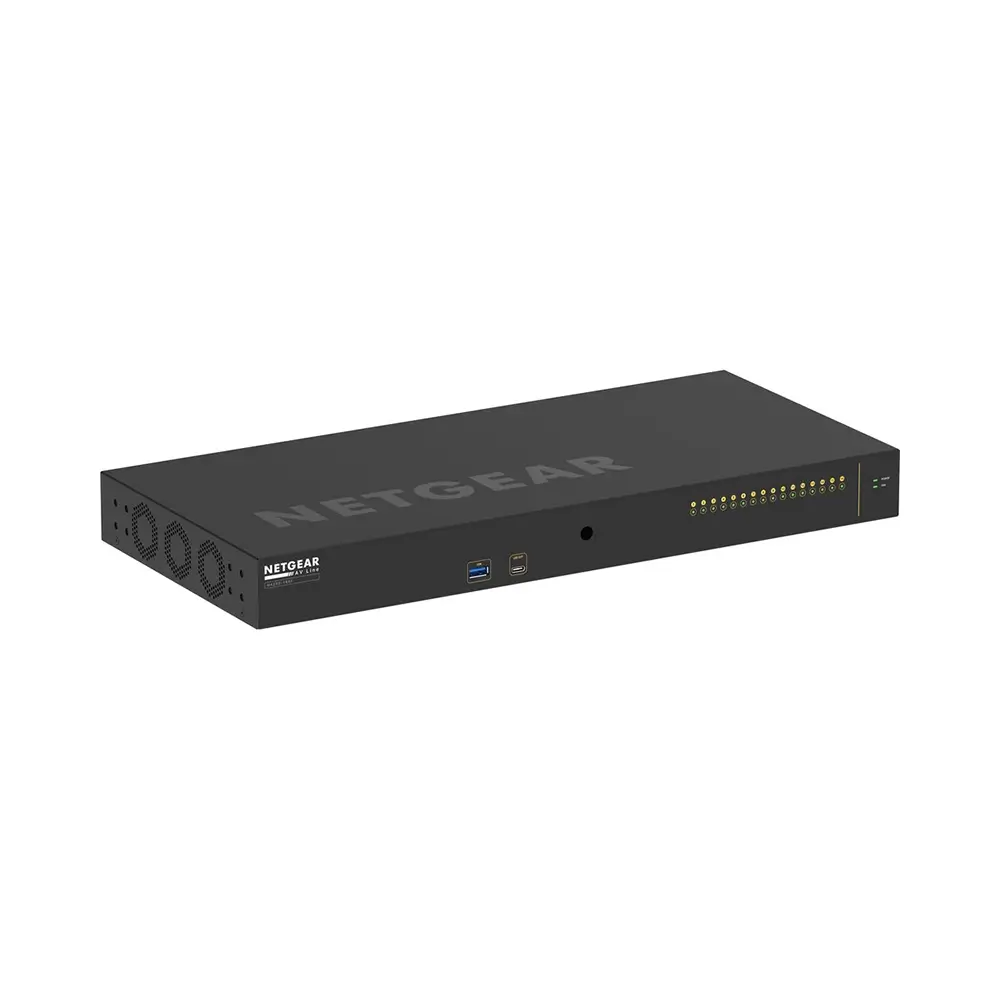

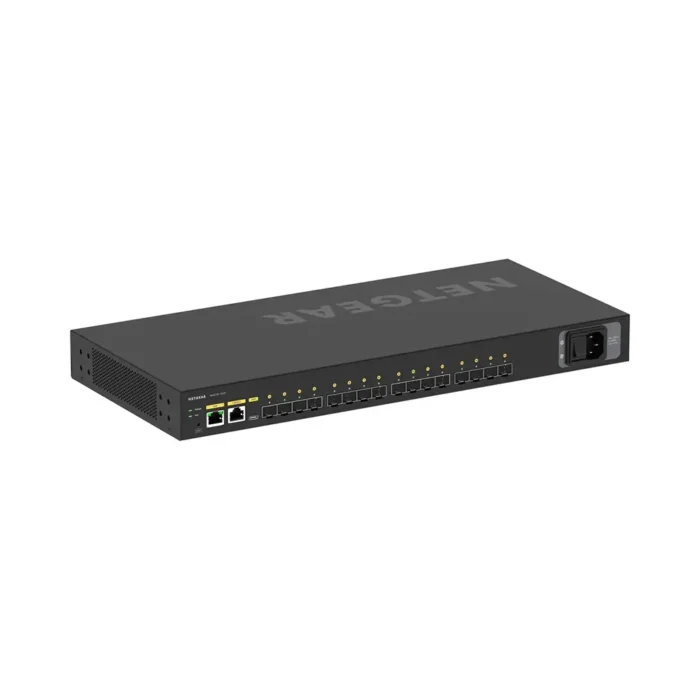

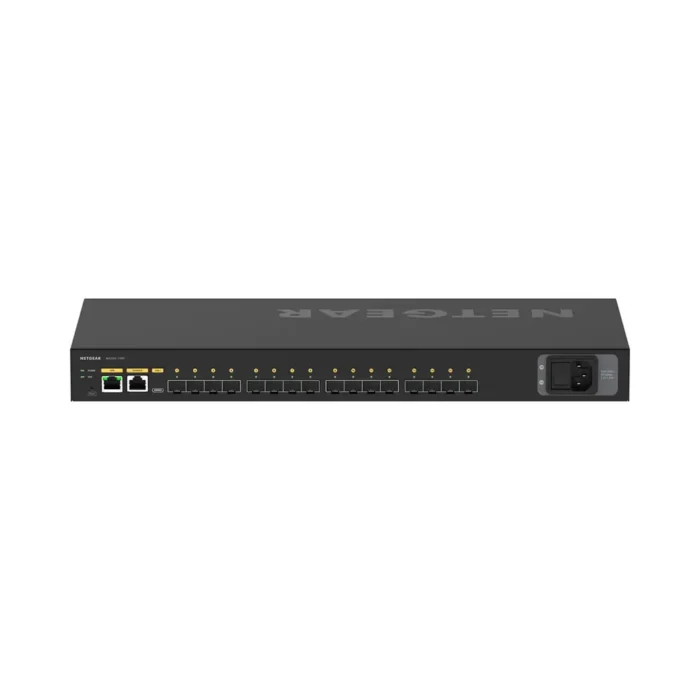

NETGEAR XSM4216F-100EUS (M4250-16XF) Managed Switch
- 16 x 10Gb SFP Ports
- 320 Gb/s Switching Capacity
- 238.08 Mpps Forwarding Rate
- Rack-Mountable Design
- AVB Support
Description
Designed with input from industry professionals, the AV Line M4250 XSM4216F 16-Port Gigabit SFP+ Managed Network Switch from Netgear is engineered for 1G AV over IP.

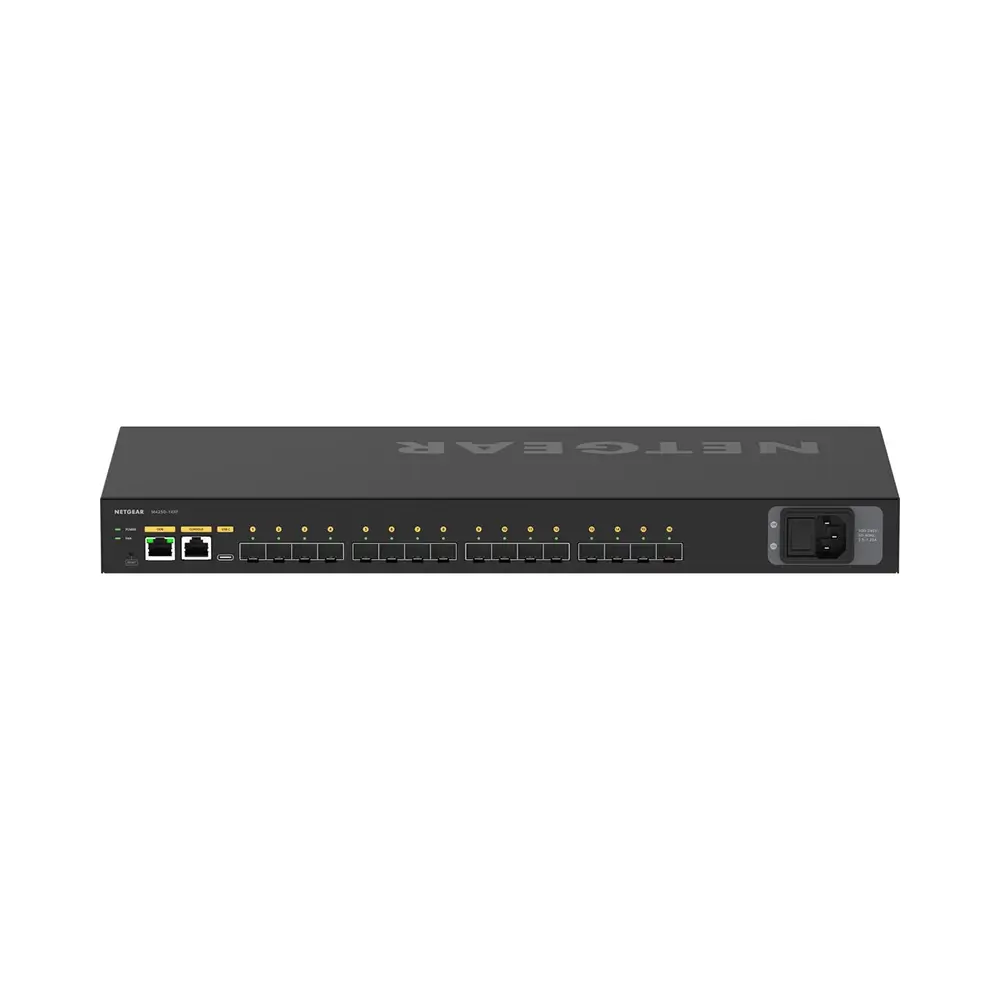

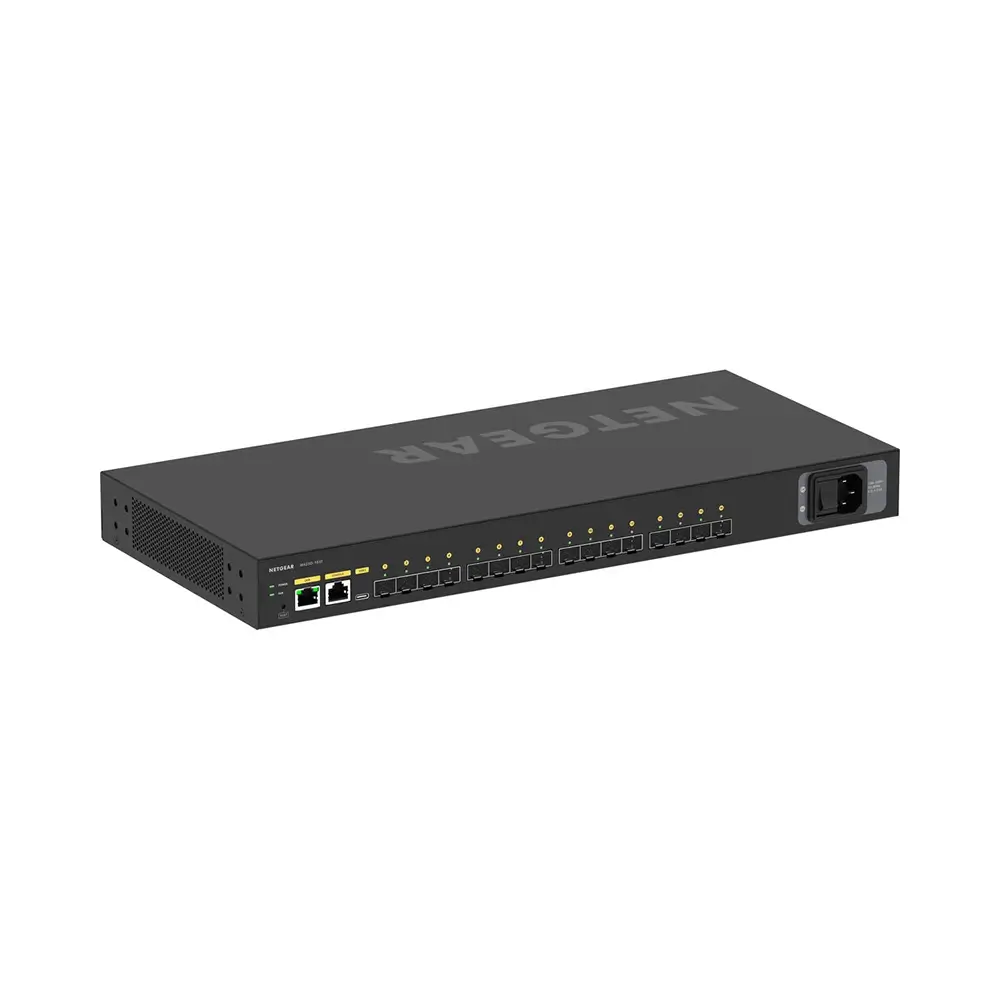

Enjoy 16 rear-facing SFP+ fiber ports that ensure a clean integration in AV racks and pre-configuration for out-of-the-box functionality.
- Built for AV over IP
- Pre-Configured for Out-of-the-Box Use
- NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations.
- Dedicated AV Web-Based Interface
- Unique interface designed for the AV professional with color-coded, port-based profiles.
- Profiles for Common Audio Protocols
- Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB requires a separate license.
- Video Profiles Built-In
- Special profiles for NVX, SVSI, Q-SYS, and Dante video profiles can be easily assigned to ports as needed.
- Mounting Flexibility
- Rackmount Versatility

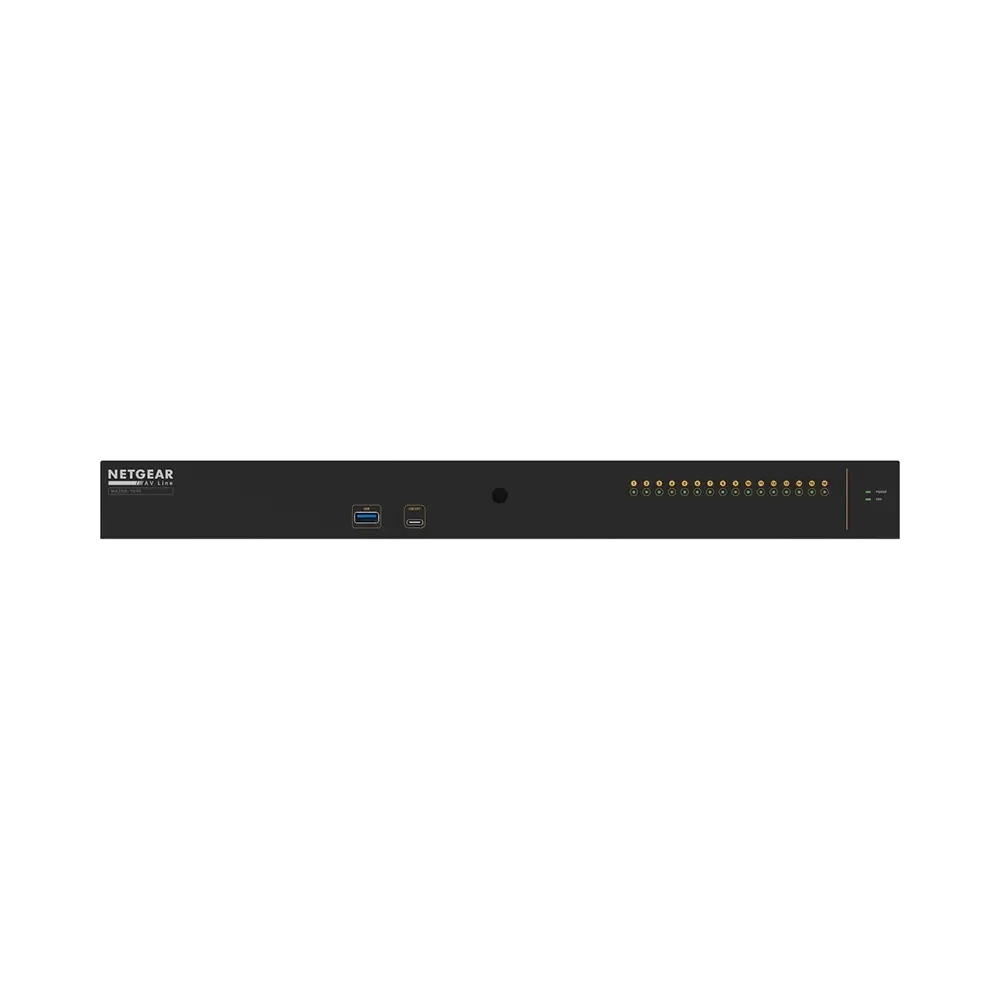

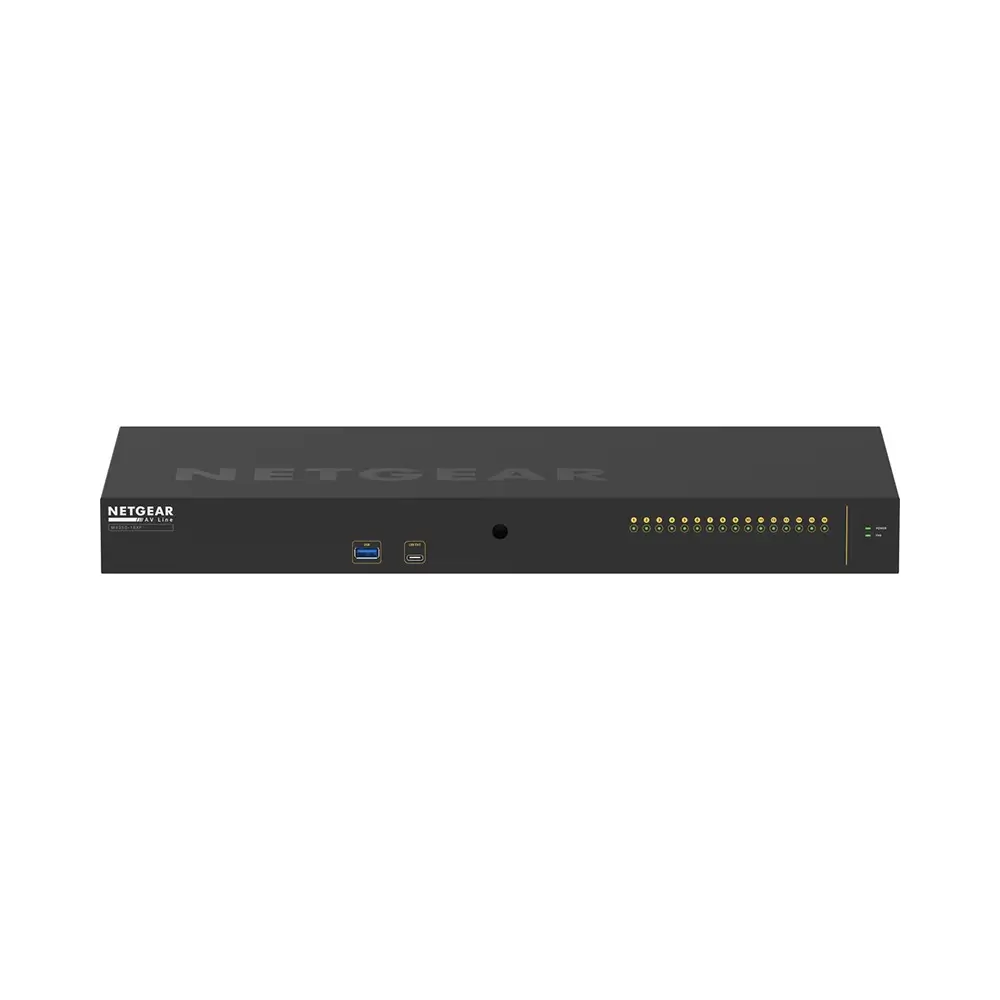

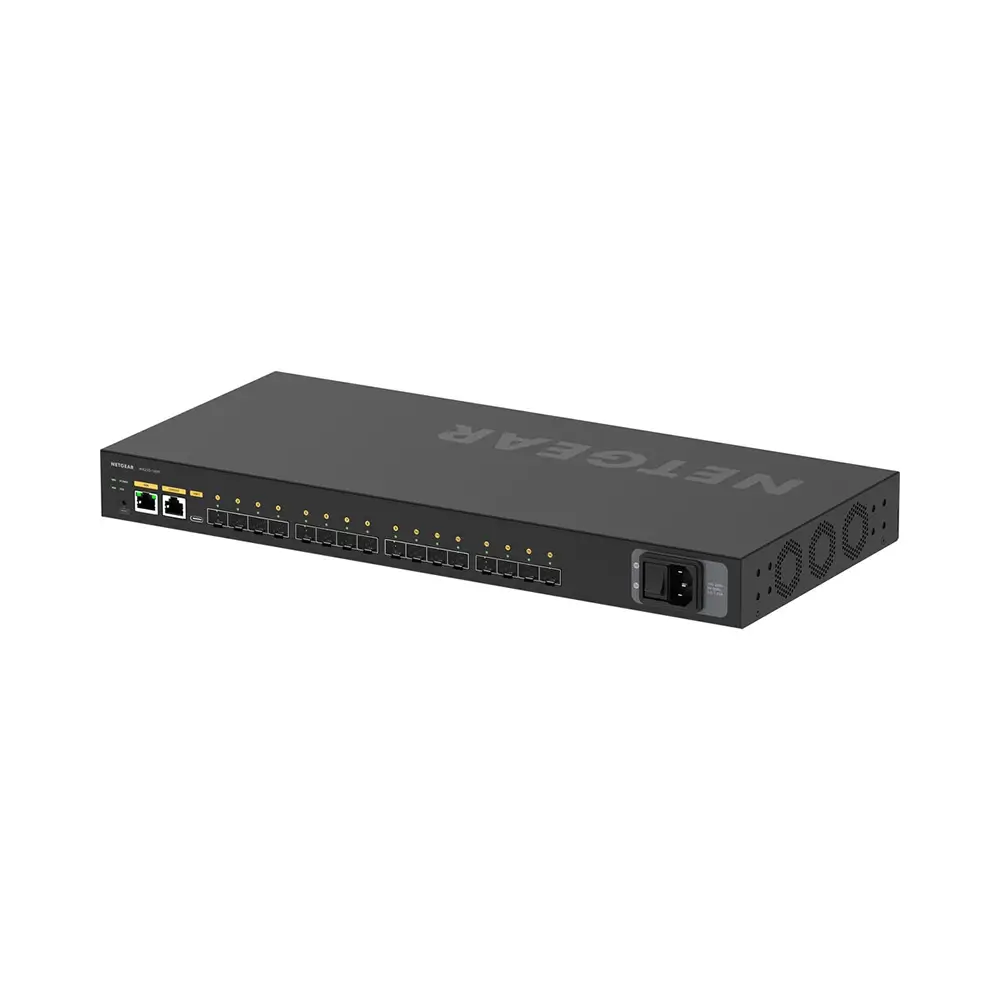

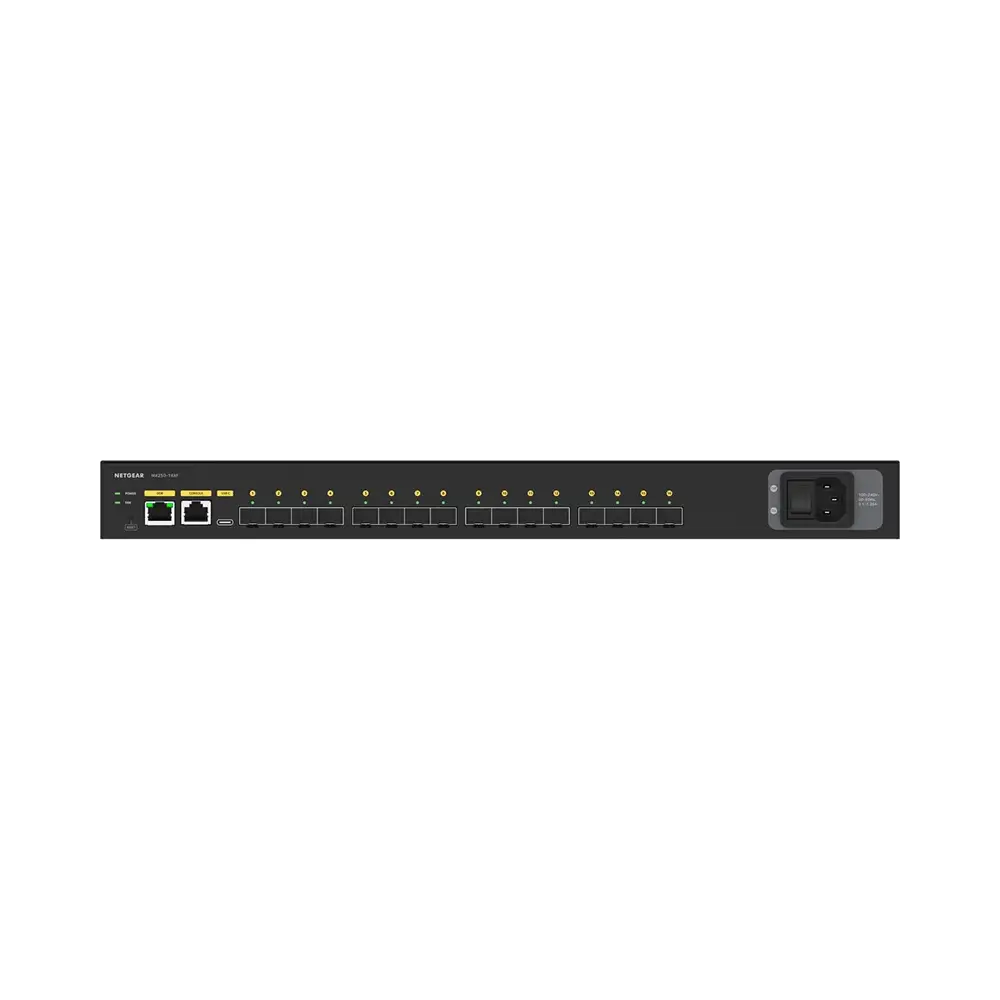

- 1 RU, 7.9″ deep rackmount with all power and Ethernet ports on the back.
- Reversed Mounting Possibility

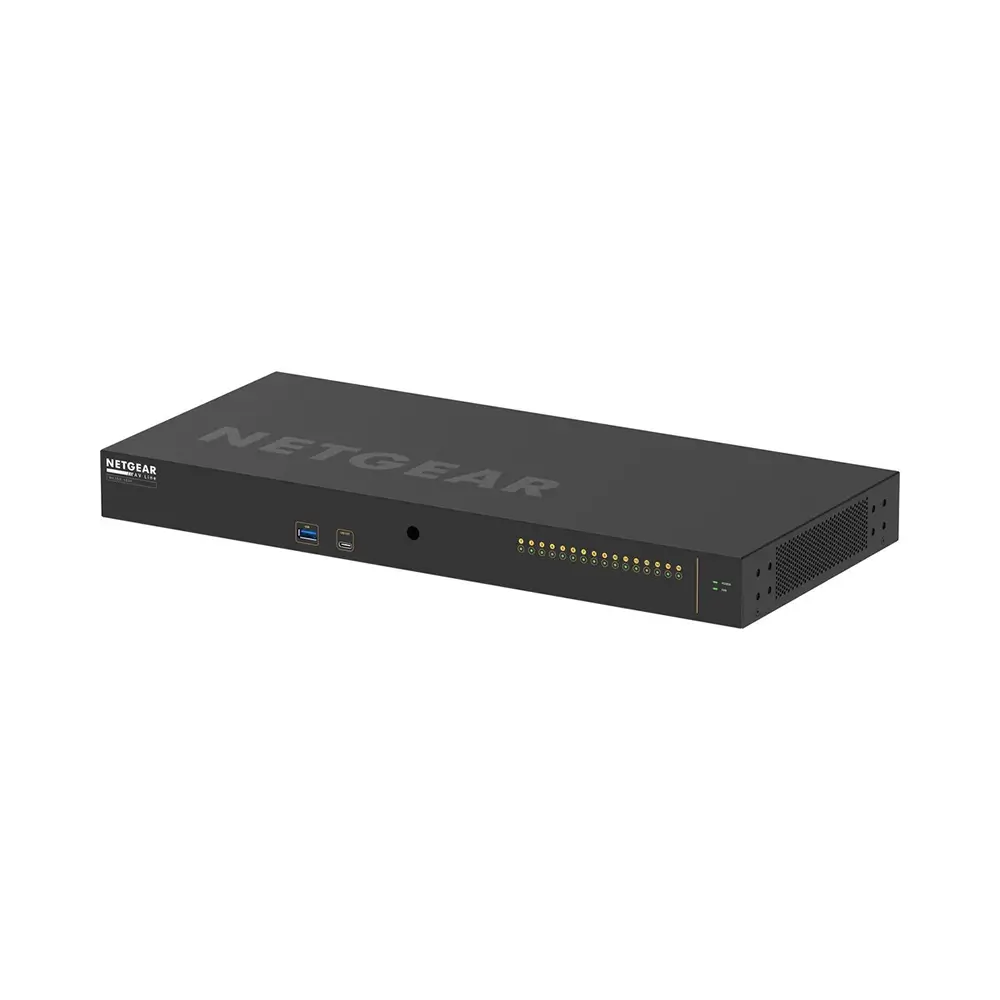

- Possible reversed mounting with ports in the front including recessed mounting to protect cables.
- Universal Mounting Availability
- Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.
- Advanced Features
- Layer 2 / Layer 3 Switching
- Common Layer 2 and Layer 3 switching engine across all M4250 models.
- Control Methods Abound
- Built-in IT web GUI, console, telnet, and SSH.
- Standard Network Features
- Feature set includes static, RIP and PIM routing, DHCP Server, and PTPv2.
Additional information
| Weight | 4.42 kg |
|---|---|
| Dimensions | 53.85 × 28.45 × 11.94 cm |
| Number of Ports | Number of Ports: 16 (1G/10G Fiber SFP+) PoE Ports / Budget: Not available |
| Other | Priority Port Speed: 1 Gigabit IGMP Support: Advanced (NETGEAR IGMP Plus?) Jumbo Frame Support: Yes, up to 12 KB Acoustics: Fanless or 25?C at 56.7dB |
| Power | Power Consumption: System Full Load: 47.84W/hour; Idle without any port connection: 19.269W/hour |
