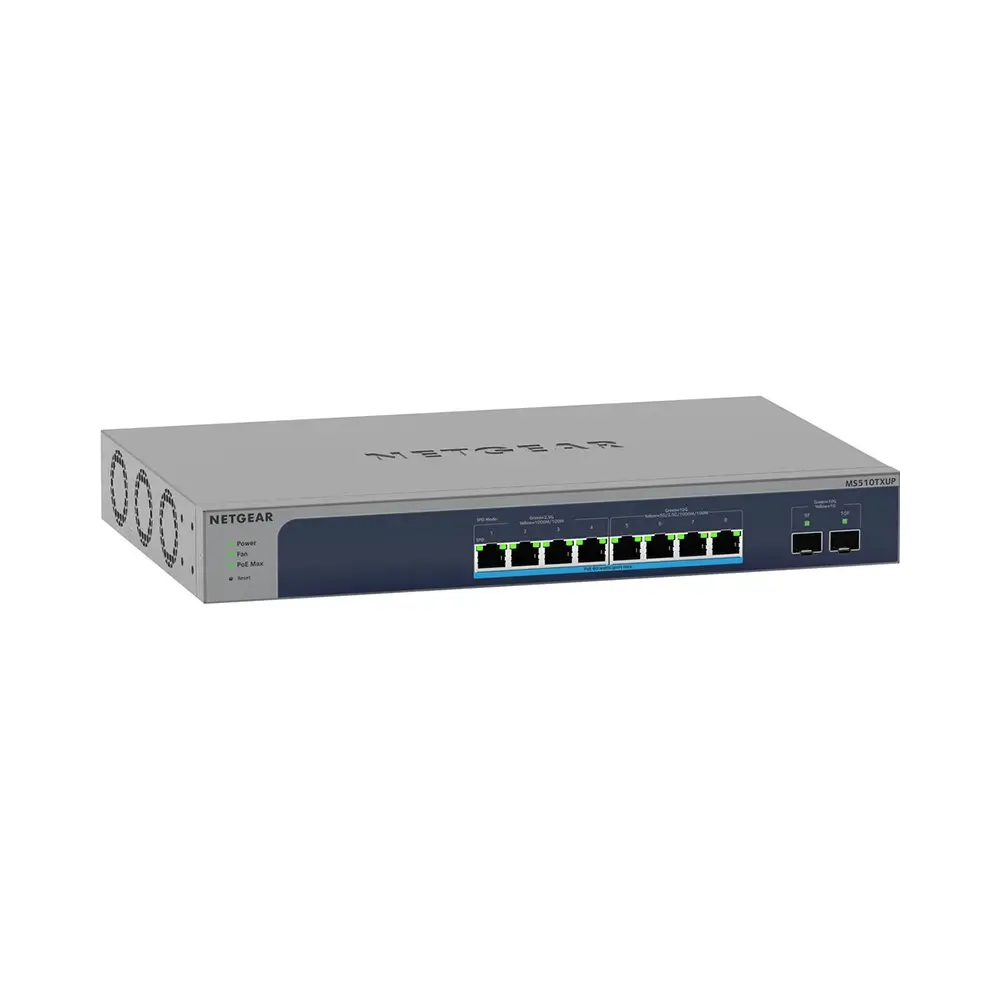

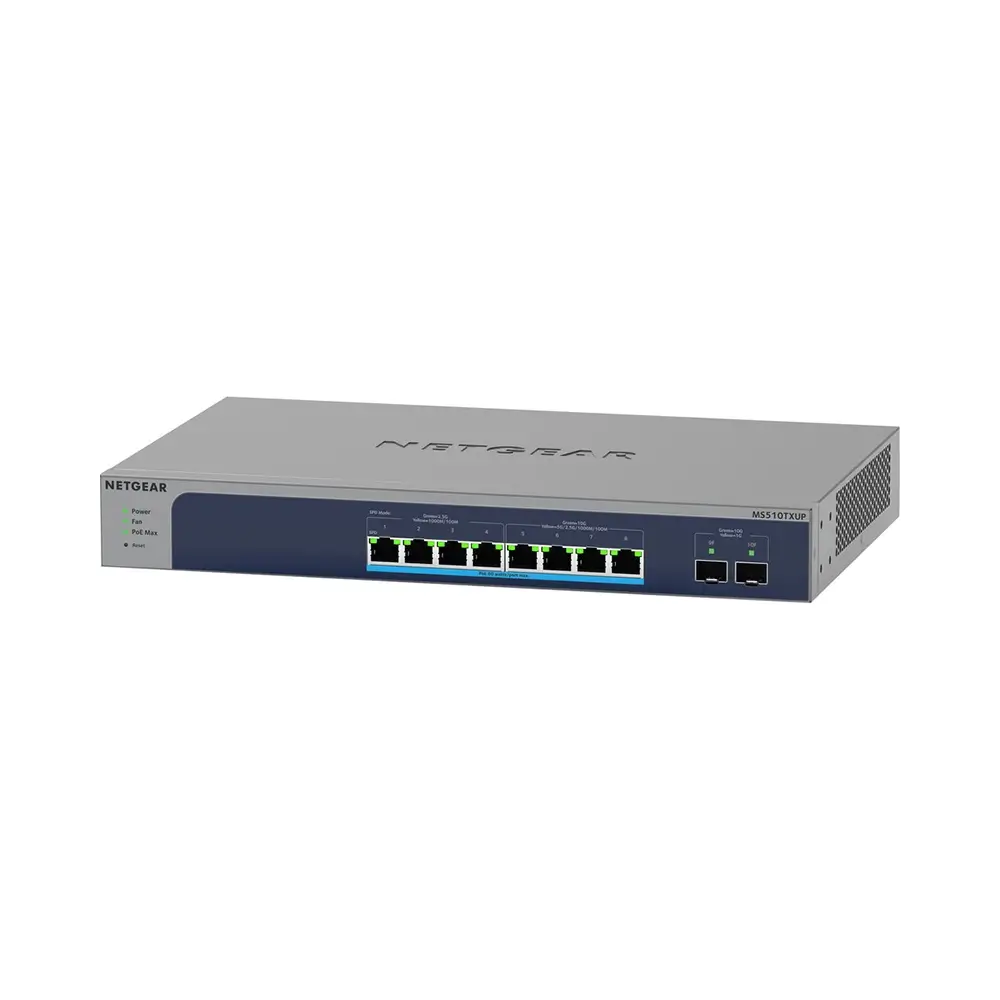

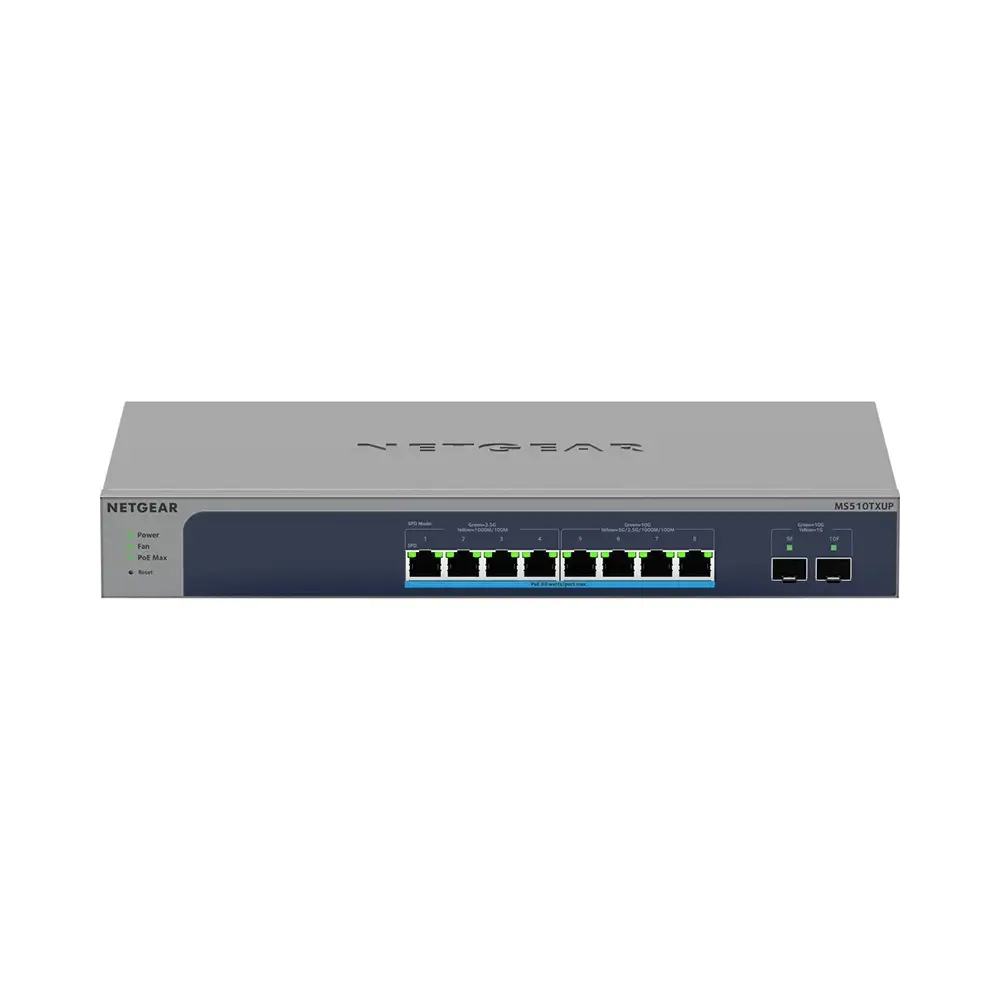

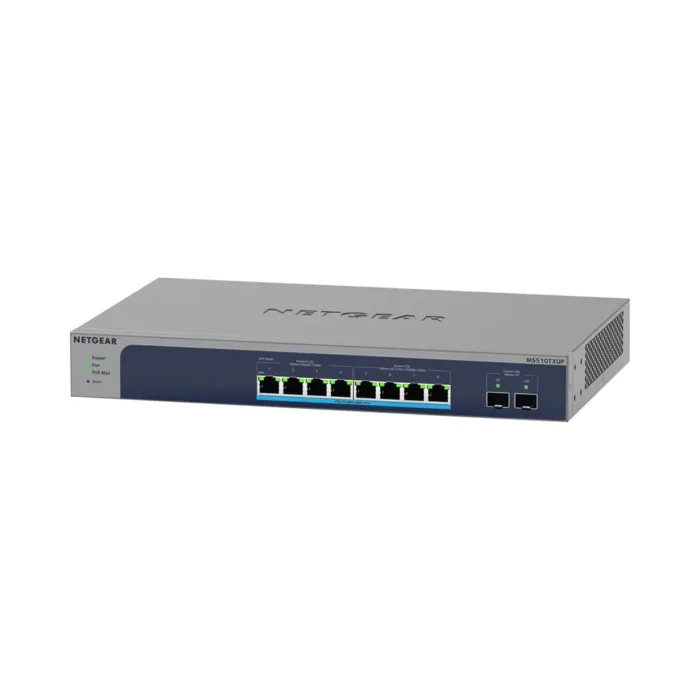

NETGEAR MS510TXUP – 10P MG U60 POE++ Smart Switch
- 4 x 2.5G Ethernet Ports
- 4 x 10G Ethernet Ports
- 8 x PoE++ Compliant Ports
- 2 x 10G SFP+ Ports
- 140 Gb/s Switching Capacity
- 14.8 Mpps Forwarding Rate
- 1 GHz Dual-Core CPU | 256MB RAM
- Desktop & Rack Mountable Design
- 295W Power Budget
- Netgear Insight Cloud Management Support
Expand your business’s network to support high-bandwidth applications and demanding power-over-Ethernet devices such as advanced IP security cameras, Wi-Fi 6 access points, and more with the Netgear Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch. This eight-port managed switch includes four 2.5G Ethernet ports alongside four 10G Ethernet ports for high-volume data transfers with compatible devices such as computers and network storage drives. All eight Ethernet ports are 60W PoE++ compliant with a total power budget of 295W.
Two 10G SFP+ ports are also available for high-speed fiber uplinks and device connections. Equipped with a 1 GHz dual-core processor with 256MB of memory and featuring a 140 Gb/s switching capacity and 14.8 Mpps forwarding rate, this switch delivers fast and reliable performance. With three cooling fans, the MS510TXUP is designed to operate quietly in a desktop or rackmount installation, even when at full power.
Activating the included 1-year Netgear Insight Cloud Management platform subscription allows you to configure, manage, and monitor connected devices using powerful Layer 2+ and Layer 3 Lite features from almost anywhere in the world.
Netgear Insight Cloud Management Features
- Remote monitoring and management features with performance dashboards and troubleshooting capabilities.
- Multi-device, multi-network, and multi-site remote monitoring and notifications using the Netgear Insight app.
- The Netgear Insight Cloud Portal enables local or remote access for configuration, management, and monitoring using a tablet, laptop, or desktop computer.
- Configurable in-app and email alerts and notifications
- Zero-touch provisioning allows you to quickly add and configure additional Insight Managed devices added to the network.
- Centralized network policies across Insight managed switches, access points, network storage devices, and more.
- Cloud-based network administration, monitoring, and firmware management.
| Weight | 3.58 kg |
|---|---|
| Dimensions | 45.21 × 26.92 × 9.14 cm |
| Connection Points | Multi-Gigabit Copper Connection Points: 4 (1G/2.5G) Multi-Gigabit/10 Gigabit Copper Connection Points: 4 (1G/2.5G/5G/10G) SFP+ Connection Points: 2 PoE++ (802.3bt) Number of Ports: 8 |
| PoE | Total PoE Power Budget: 295 W att Continuous PoE: Yes |
| VLAN | VLAN (Number of Designated): 256 VLAN Routing: Yes Dynamic VLAN Assignment: Yes |
| Other | Maximum MAC Input port: 32K Buffer Size: 16Mbit MLD Snooping: Yes Static Routing: Yes (32) Host ARP Table: 512 ARP EEE: Yes DoS Prevention: Yes |
| Power: | includedi/External PSU: includedi Maximum Power (worst-case scenario, all ports in use, line-rate traffic): 380W Fanlar: 3 Acoustic Noise Level:@25C: 33.0 dBA Operating Temperature: 0?to 50? C |
