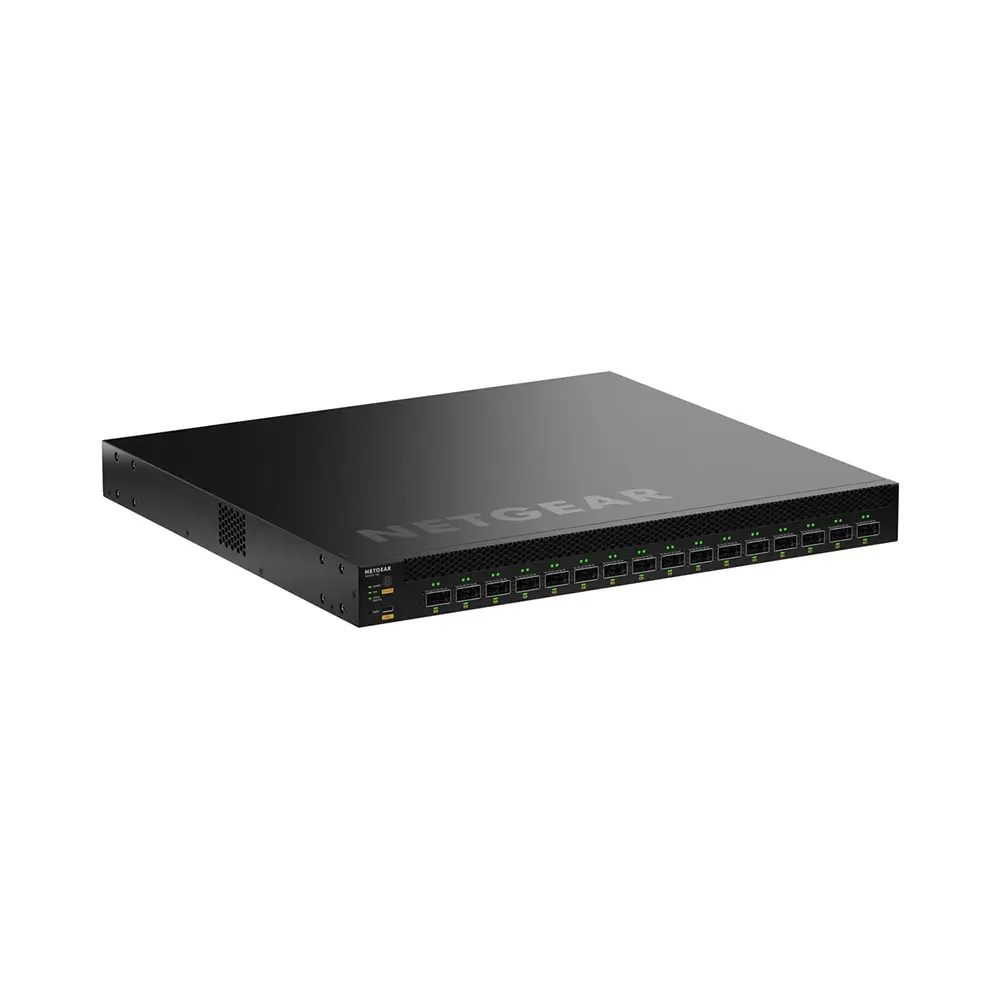

NETGEAR M4350-16C 16-Port QSFP28 100G Managed Network Switch
- Certified for AV over IP
- 16 x 100G QSFP28 Ports
- 3.2 Tb/s Switching Capacity
- 2380.8 Mpps Forwarding Rate
- 1.8 GHz Cortex A57 Quad-Core CPU
- 4GB RAM
- Stacking Support
- Desk & Rack Mountable
- Engage Controller
Designed for AV over IP applications, the M4350-16C 16-Port QSFP28 100G Managed Network Switch from Netgear allows you to quickly get up and running with ease. It features 16 QSFP28 connectors that each support up to 100 Gb/s links with compatible fiber devices.
Equipped with 1.8 GHz Cortex A57 Quad-Core processor and 4GB of DDR4 memory, this Layer 3 rack mountable switch supports a 3.2 Tb/s switching capacity and 2380.8 Mpps forwarding rate. Manage the switch through the Netgear AV user interface and Engage Controller, which includes preconfigured profiles for most major audio, video, and lighting protocols.
Designed for AV Over IP
With NETGEAR IGMP Plus built in, there’s little to no setup required for clear audio and video delivery. Multicasting is enabled right out of the box.
Quiet Design
Intelligent fans with a configurable quiet mode allow you to broadcast without disruptions.
Automatic Configuration
Auto-LAG and Auto-Trunk functionality automatically configure uplinks between multiple M4350 and M4250 switches.
Stacking Mode
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
Compatibility
AVB, Dante, Q-SYS, AES67, NVX, AMX, IPMX, NDI 4/5/6, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and more.
SMTP ST 2110
SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
| Weight | 8.03 kg |
|---|---|
| Dimensions | 43.94 × 39.88 × 4.32 cm |
| Networking I/O: | 16x QSFP28 100 GbE |
| Other I/O: | 1x USB-C 2x USB-A |
| Stackable: | Yes |
| Layer Services Supported: | Layer 3 |
| Supported Protocols: | Auto-MDIX/MDI DHCP Server IGMP Snooping IPv4 IPv6 |
| Jumbo Frames Support: | 12, 000 Bytes |
| MAC Address Table Size: | 16K |
| Security Features: | DHCP Snooping |
| Forwarding Rate: | 2380.8 Mpps |
| Switching Bandwidth: | 3.2 Tb/s |
| Packet Buffer: | 256 Mb |
| Flash Memory: | No |
| CPU: | Quad-Core: Up to 1.8 GHz Cortex A57 |
| Memory: | 4 GB DDR4 |
| Power Supply Type: | Internal |
| Cooling System: | Fan (Noise Level 30.4 dB) |
| Indicator Lights: | Yes |
| Rack Mountable: | Yes 1 U |
