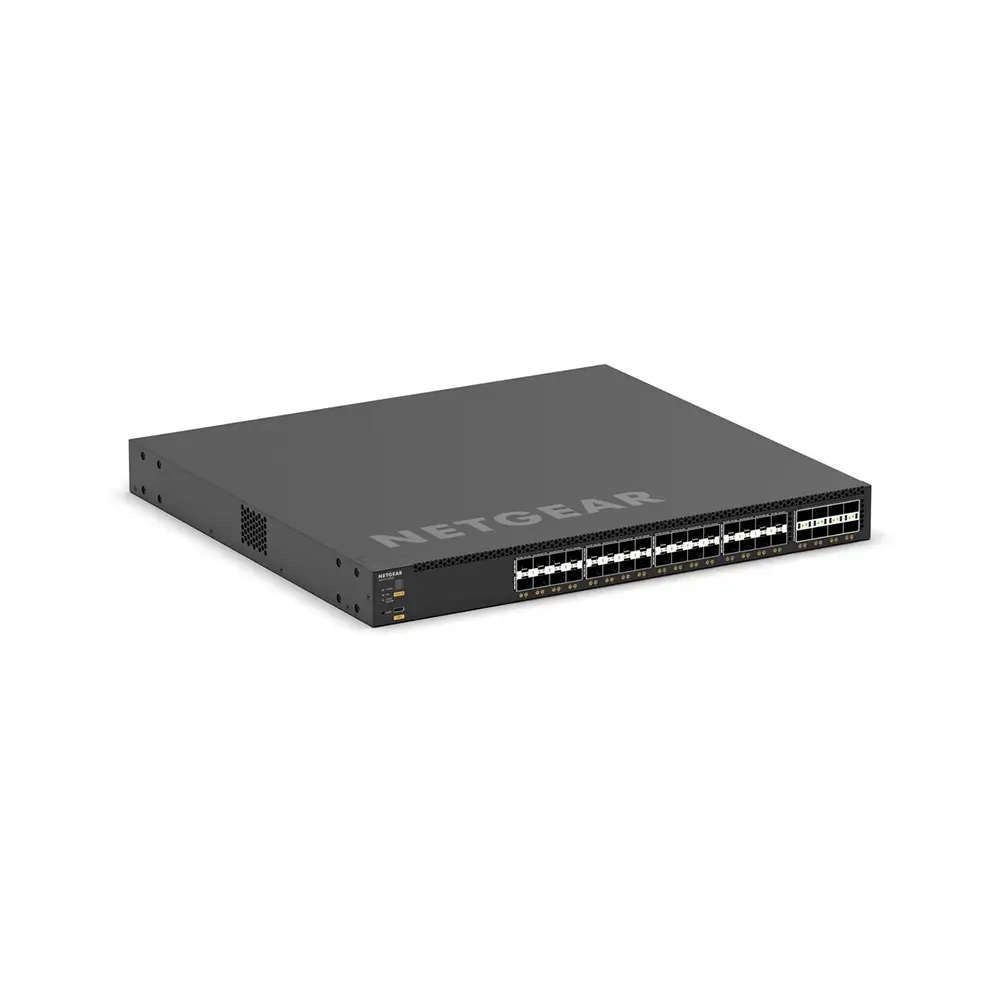

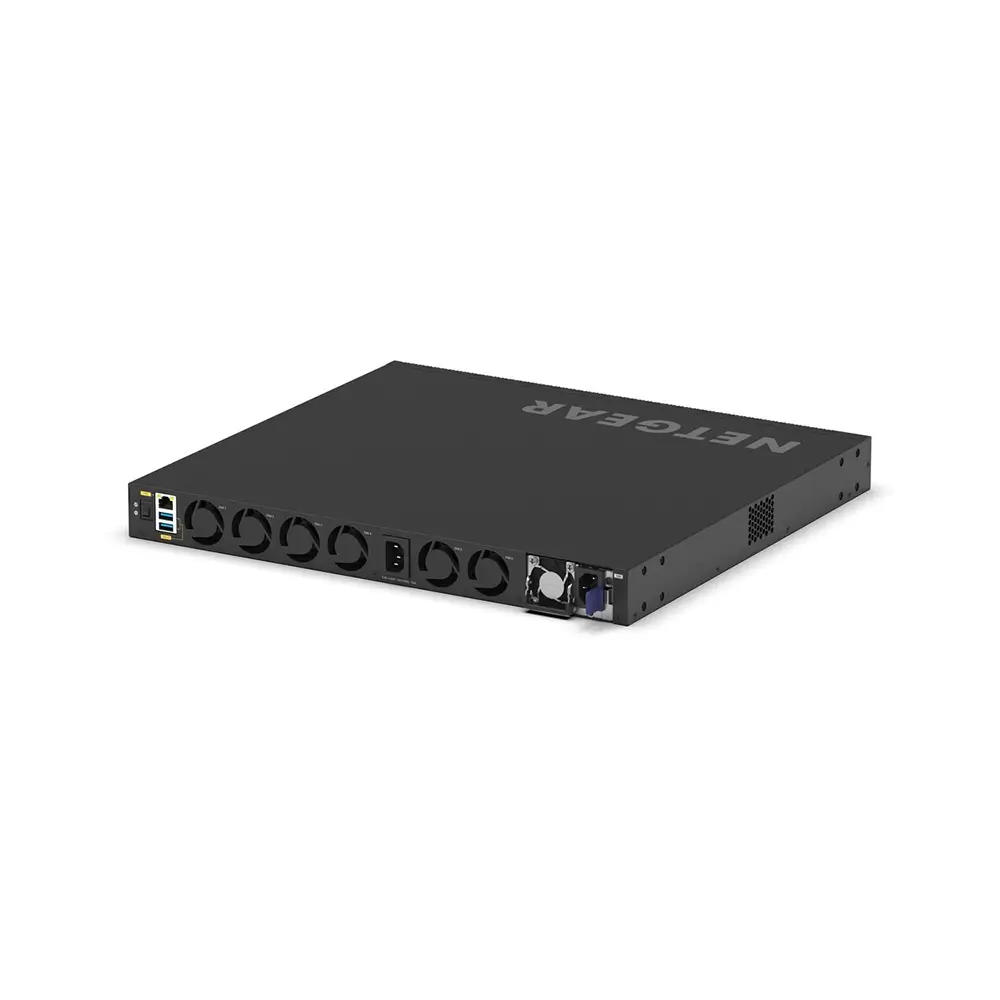

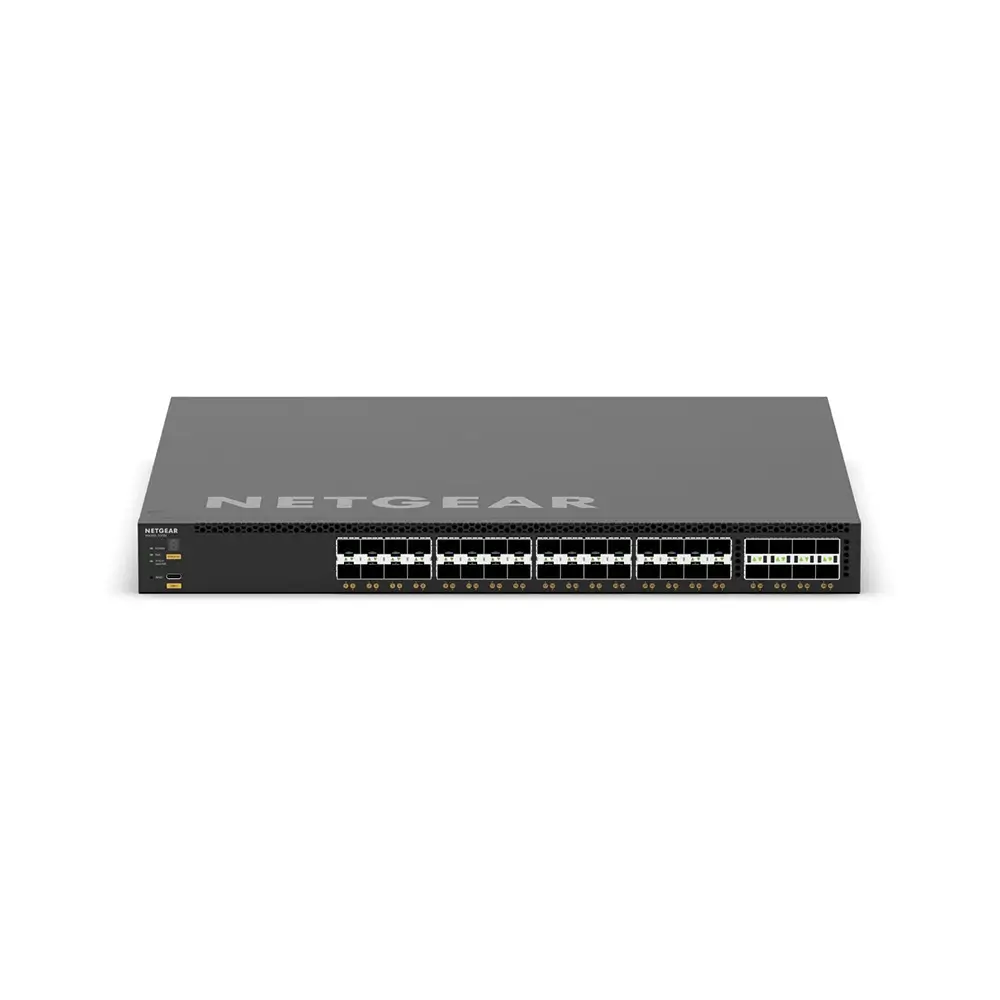

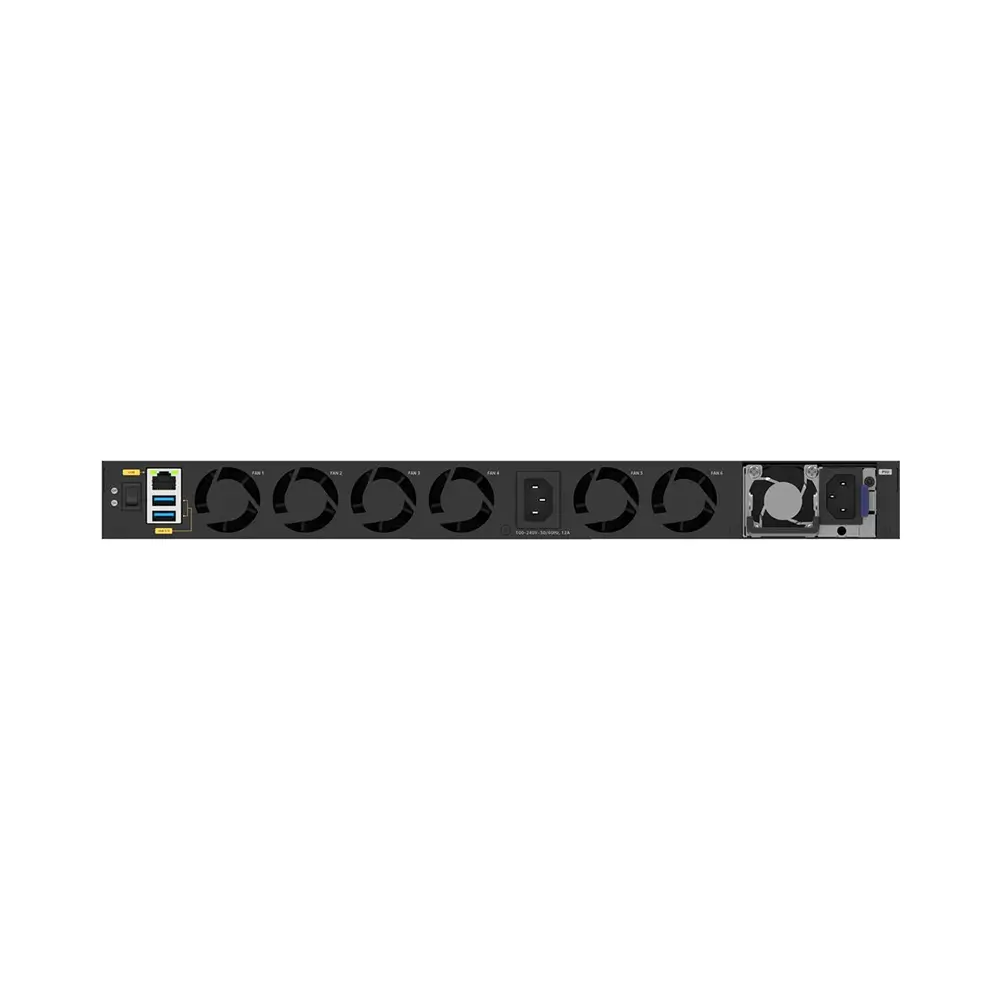

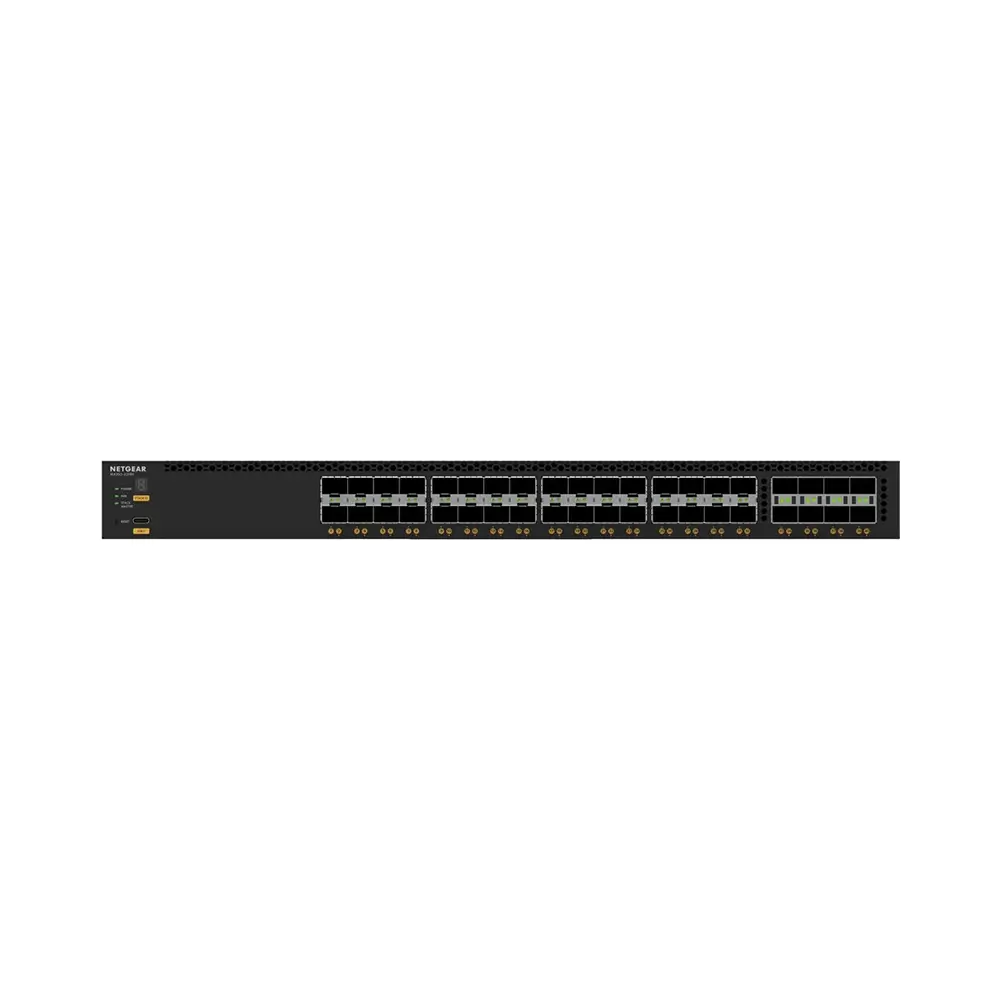

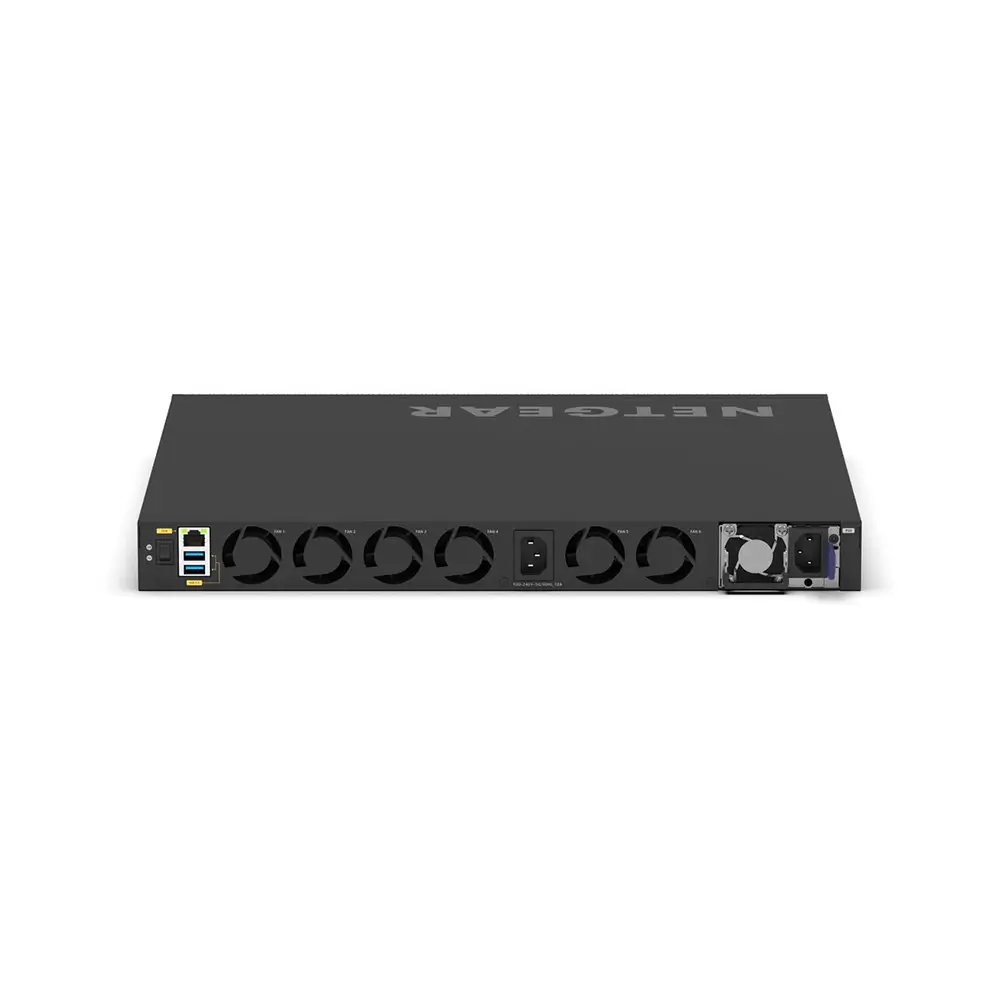

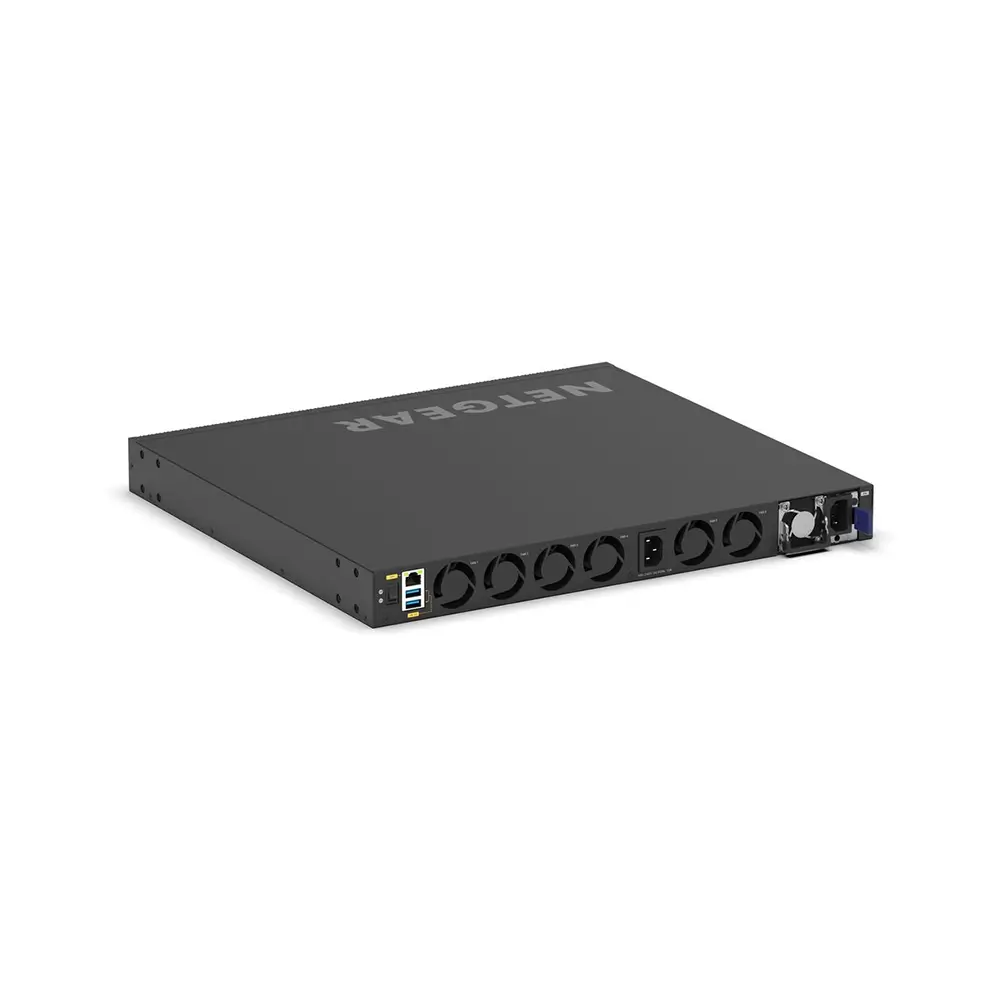

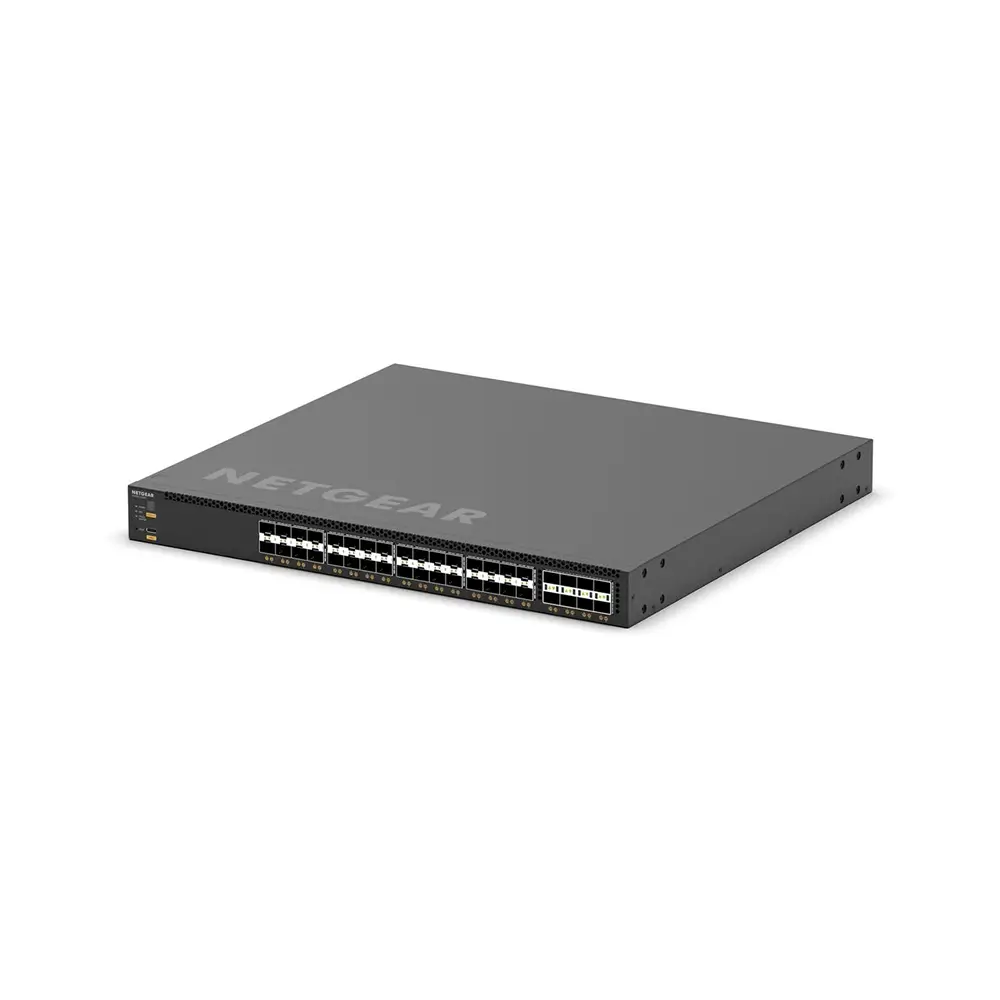

NETGEAR XSM4340FV-100NES (M4350-32F8V) Managed Switch
- 32 x 10G SFP+ Ports
- 8 x 25G SFP28 Ports
- 1.04 Tb/s Switching Capacity
- 773.76 Mpps Forwarding Rate
- Rackmount Design
- Intelligent Fan Cooling
- Secondary PSU Support
- Optimized for AV-Over-IP Multicasts
- Netgear Engage Controller Support
Grow your business by expanding your network capacity with the Netgear M4350-32F8V 32-Port 10G SFP+ Managed AV Network Switch. Designed primarily for high-bandwidth AV and IT applications, this network switch includes 32 SFP+ ports that support up to 10 Gb/s fiber connections.
With Netgear’s IGMP Plus, the M4350-32F8V switch delivers smooth video-over-IP multicasts with little to no setup required. Eight 25G SFP28 ports are available for uplinks and stacking.
Installing a separately purchased second power supply provides 1+1 redundancy. This switch works with Netgear’s Engage Controller management platform, in addition to standard command line and web-based interfaces.
Performance
With a 1.04 Tb/s switching capacity and 773.76 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.
Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode help to minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.
Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
| Weight | 10 kg |
|---|---|
| Dimensions | 59.44 × 57.4 × 9.91 cm |
| Number of Ports | 40 (32 Pieces 10G SFP+, 8 Pieces 25G SFP28) |
| PoE | Not available |
| Other | Priority Port Speed: 10 Gigabit IGMP Support: Advanced (NETGEAR IGMP Plus?) Jumbo Frame Support: Yes, up to 12 KB AVB Support: Yes, included Acoustics: Silent Mode 32.7dB@25?C |
| Power | Power Consumption: 156.4W/hour Idle without any port connection: 42.6W/hour |
