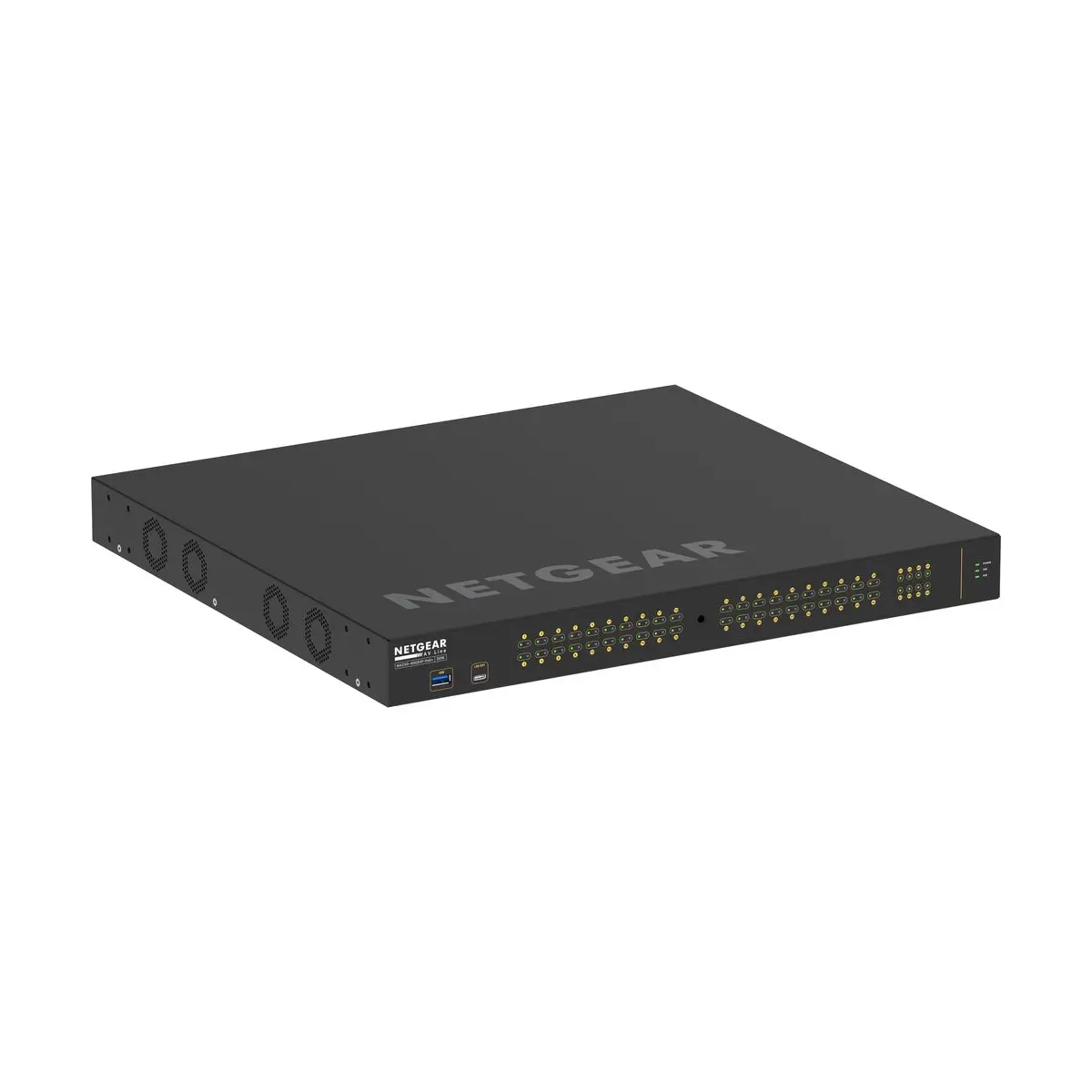

NETGEAR GSM4248PX-100EUS (M4250-40G8XF-POE+) Managed Switch
- 40 x Gigabit Ethernet PoE+ Ports
- 8 x 10G Gigabit SFP Port
- 240 Gb/s Switching Capacity
- 178.56 Mpps Forwarding Rate
- 1.8 GHz ARM Cortex-A57 Quad-Core CPU
- 2GB RAM
- Rack-Mountable Design
- 960W Power Budget
- AVB Support
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Description
Designed with input from industry professionals, the AV Line M4250 GSM4248PX 40-Port Gigabit PoE+ Compliant Managed AV Switch from Netgear is engineered for 1G AV over IP. Enjoy 40 PoE+ compliant rear-facing ports with a 960W budget and pre-configuration for out-of-the-box functionality.
There are also eight 10G SFP+ fiber slots that ensure a clean integration in AV racks
- Built for AV over IP
- Pre-Configured for Out-of-the-Box Use
- NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations.
- Dedicated AV Web-Based Interface
- Unique interface designed for the AV professional with color-coded, port-based profiles.
- Profiles for Common Audio Protocols
- Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations.
- Video Profiles Built-In
- Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed.
- Mounting Flexibility
- Rackmount Versatility
- 1 RU, 7.9″ deep rackmount with all power and Ethernet ports on the back.
- Reversed Mounting Possibility
- Possible reversed mounting with ports in the front including recessed mounting to protect cables.
- Universal Mounting Availability
- Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.
- Advanced Features
- Layer 2 / Layer 3 Switching
- Common Layer 2 and Layer 3 switching engine across all M4250 models.
- Control Methods Abound
- Built-in IT web GUI, console, telnet and SSH.
- Standard Network Features
- Feature set includes static, RIP and PIM routing, DHCP Server, and PTPv2.
Additional information
| Weight | 8.55 kg |
|---|---|
| Dimensions | 53.85 × 46.23 × 12.19 cm |
| Number of Ports | Number of Ports: 48 (40 Pieces 1G PoE+, 8 Pieces SFP+) PoE Ports / Budget: 40 PoE+ (Per port 30W), 960W Budget |
| Other | Priority Port Speed: 1 Gigabit IGMP Support: Advanced (NETGEAR IGMP Plus?) Jumbo Frame Support: Yes, up to 12 KB AVB Support: Yes (Electronic license required; activ ation key will be sent via email – AVB4248PX-10000S) Acoustics: Fanless or 25?C at 59dB |
| Power | Power Consumption: PoE with: 1197W/hour Without PoE: 89.2W/hour Idle without any port connection: 74.5W/hour |
