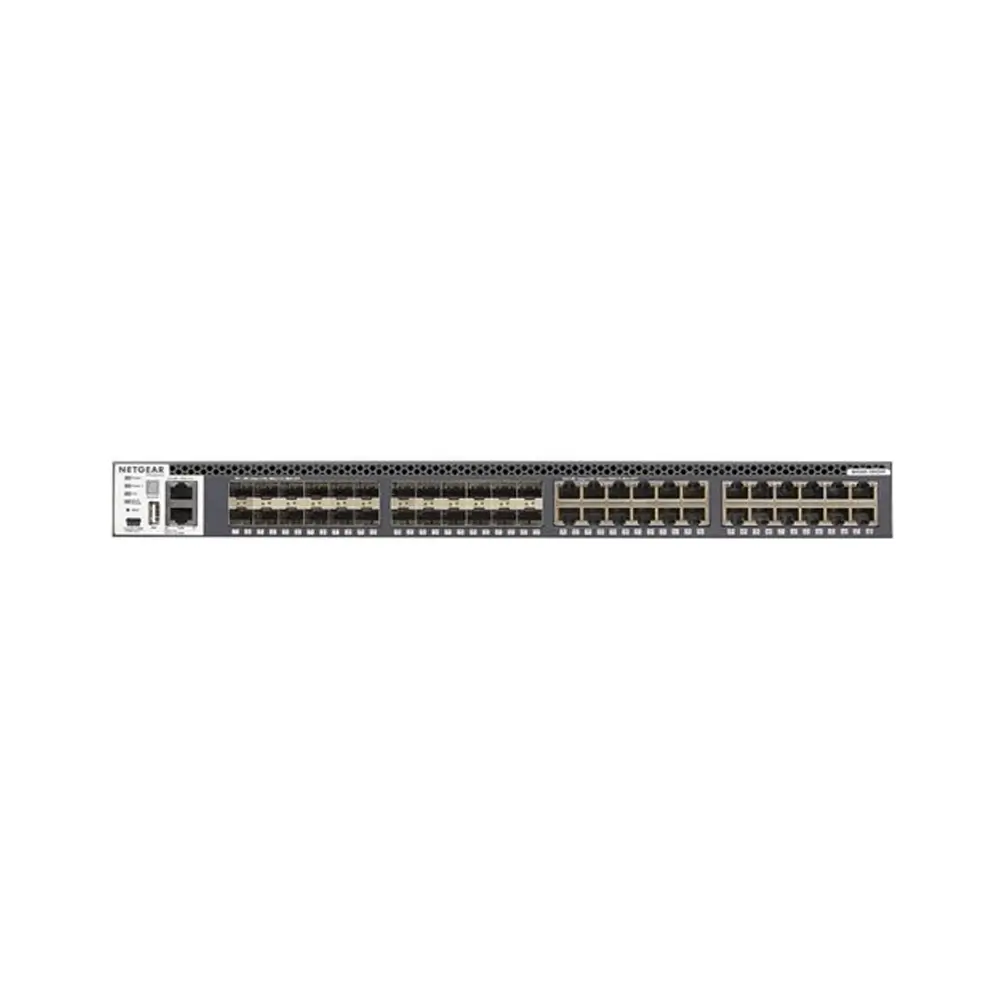

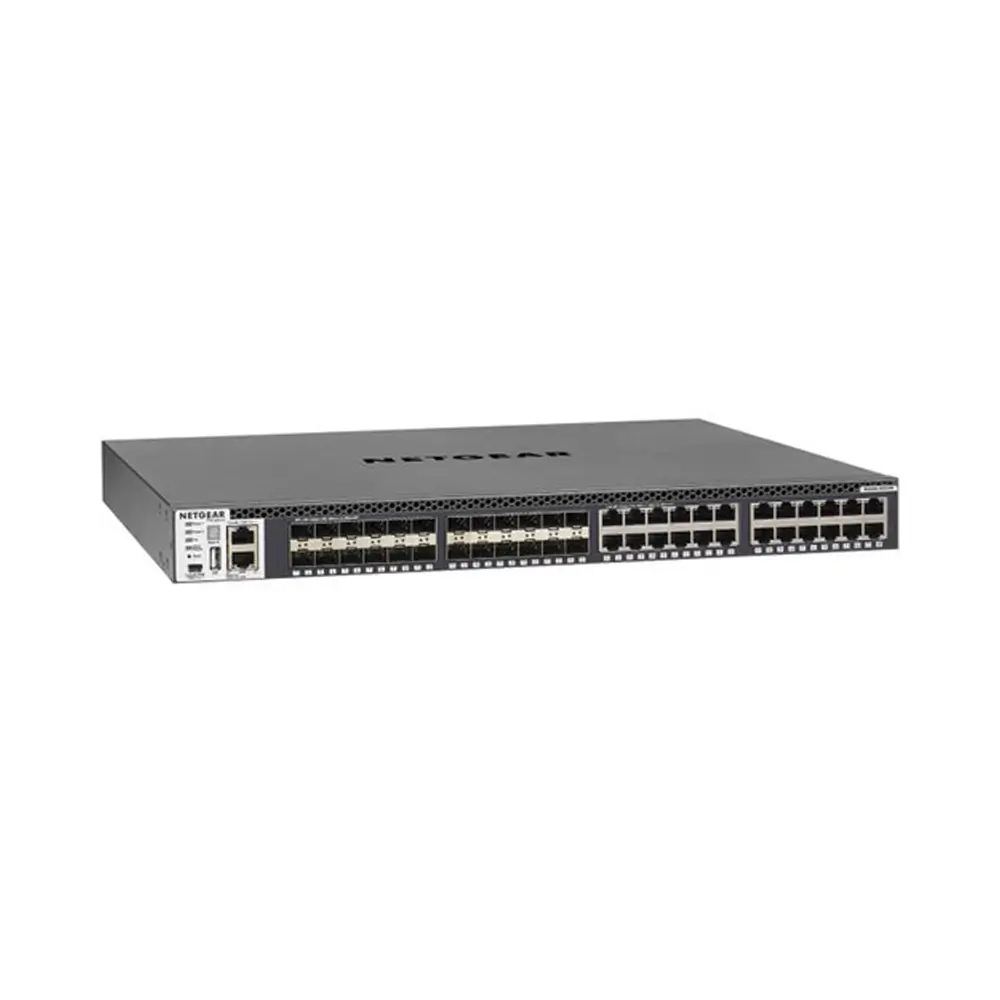

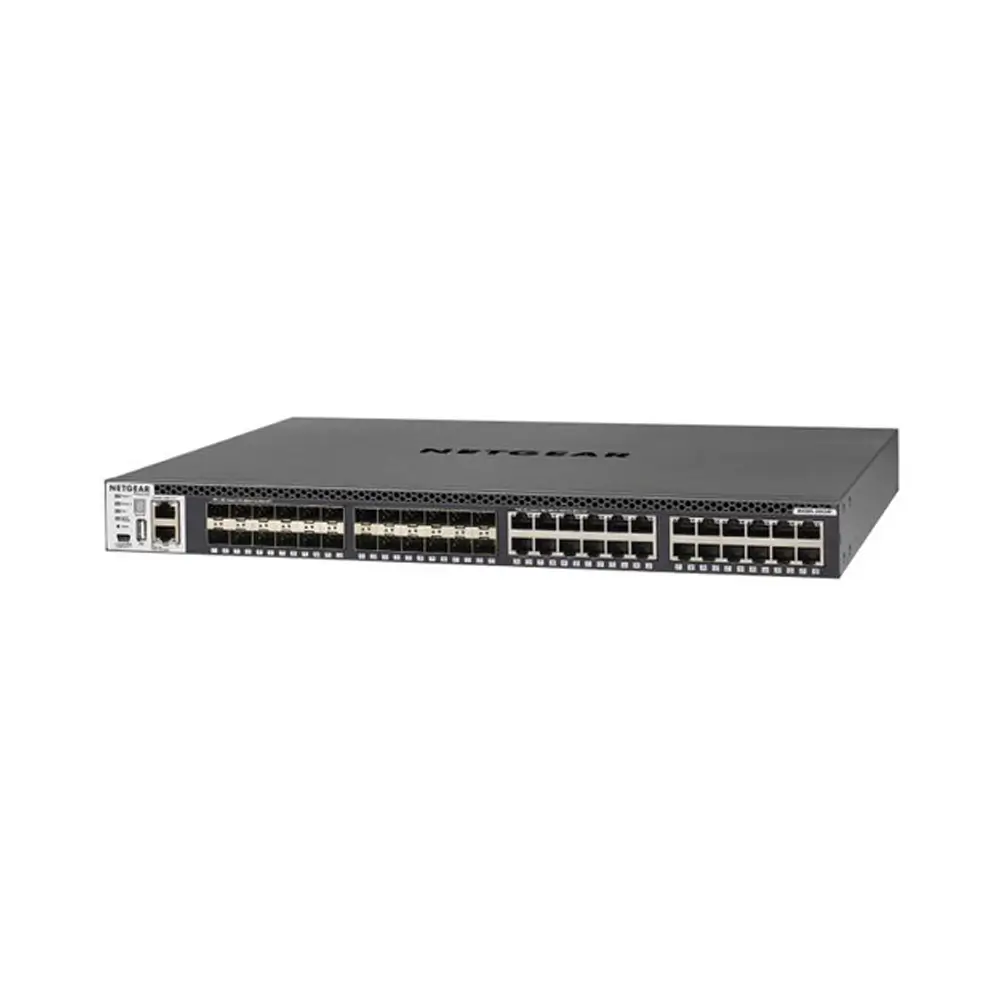

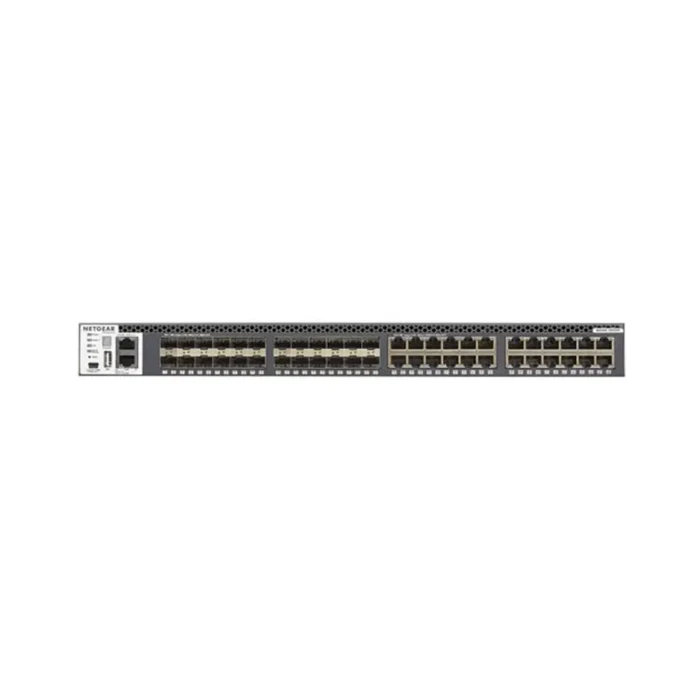

NETGEAR XSM4348S-100NES (M4300-24X24F) Managed Switch
- 24 x 10G RJ45 Ports
- 24 x 10G SFP+ Slots
- 960 Gb/s Switching Capacity
- 714 Mpps Forwarding Rate
- Rackmount Design
- Includes Modular 250W PSU
- Fan Cooled
- Pre-Configured for AV-Over-IP
- License-Free Layer 2 & 3 Features
Enjoy high speed, reliability, and flexibility by expanding your business’s network capacity with the M4300-24X24F 48-Port RJ45/SFP+ 10G Managed Network Switch from Netgear. Pre-configured for AV-over-IP, this fully managed switch includes Layer 2, 3, and 4 feature sets, such as hot-swappable mixed stacking, with up to eight switches in a single logical switch.
However, there are no license requirements to support video broadcast and other high-bandwidth applications. The M4300-24X24F features forty-eight 10G ports, comprised of 24 RJ45 copper wire connectors and 24 SFP+ fiber optic transceiver slots. This switch is designed to smoothly transfer data with a 960 Gb/s switching capacity and 714 Mpps forwarding rate.
Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection. A modular 250W power supply is included with space for a second redundant PSU.
- Reliability
- High Availability (HA)
- Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack.
- Multi-Resiliency
- Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities.
- PVST+ Interoperability
- Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP).
- Link Dependency
- Enables or disables ports based on link state of different ports.
- Advanced IPv4/IPv6 Security
- Malicious code detection, DHCP Snooping, IP Source Guard protection, and DoS attacks mitigation.
- Easy to Manage
- Simple GUI
- Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface.
- Flexible & Efficient
- Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
- Mix & Match Stacking
- Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical or horizontal, manage it as one unit.
- Industry Standard
- SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN, and PTPv2 1-step transparent clock implementation.
- Ready for AV-over-IP
- Zero-Touch AV-over-IP
- Preconfigured for out-of-box L2 multicast (SDVoE-ready).
- No Delay
- Non-blocking fabric for near-zero switch latency.
- Netgear IGMP Plus
- Prevent network flooding with multicast implementation of Layer 2 multicast.
| Weight | 7.61 kg |
|---|---|
| Dimensions | 56.9 × 44.2 × 9.14 cm |
| Connection Points | 24 Pieces Copper 100M / 1G / 10G Connection Point 24 Pieces SFP+ 1G / 10G Connection Point |
| Other | 1Pieces 250W modular PSU (APS250W) including 1 Pieces modular slot 960 Gbps switching fabric Fixed fan (front-to-back, 35.8dB) |
| management | Management Options:Out-of-band management i?in Front 1G Ethernet Connection Point, Front RJ45 RS232 console Connection Point, Front Mini-USB console Connection Point, Front USB storage Connection Point single-pane providing bulk configuration support NMS300 management platform |
