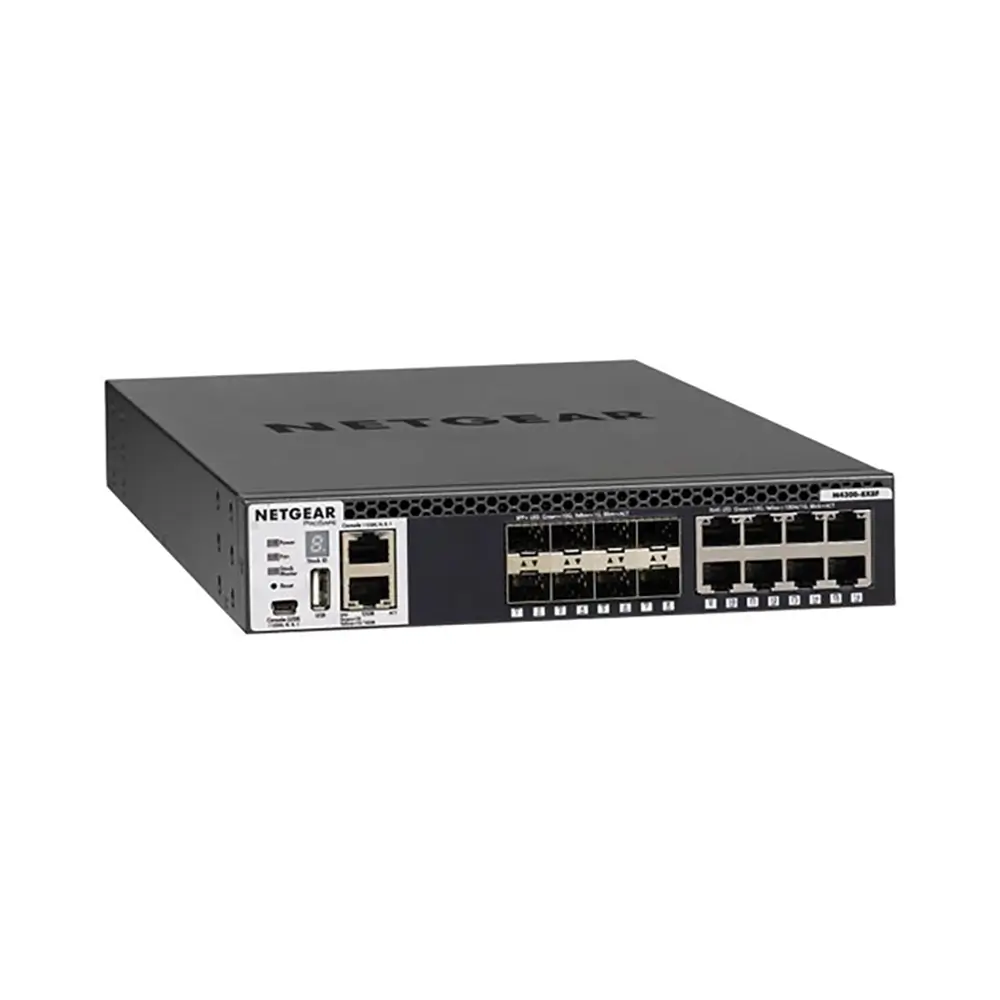

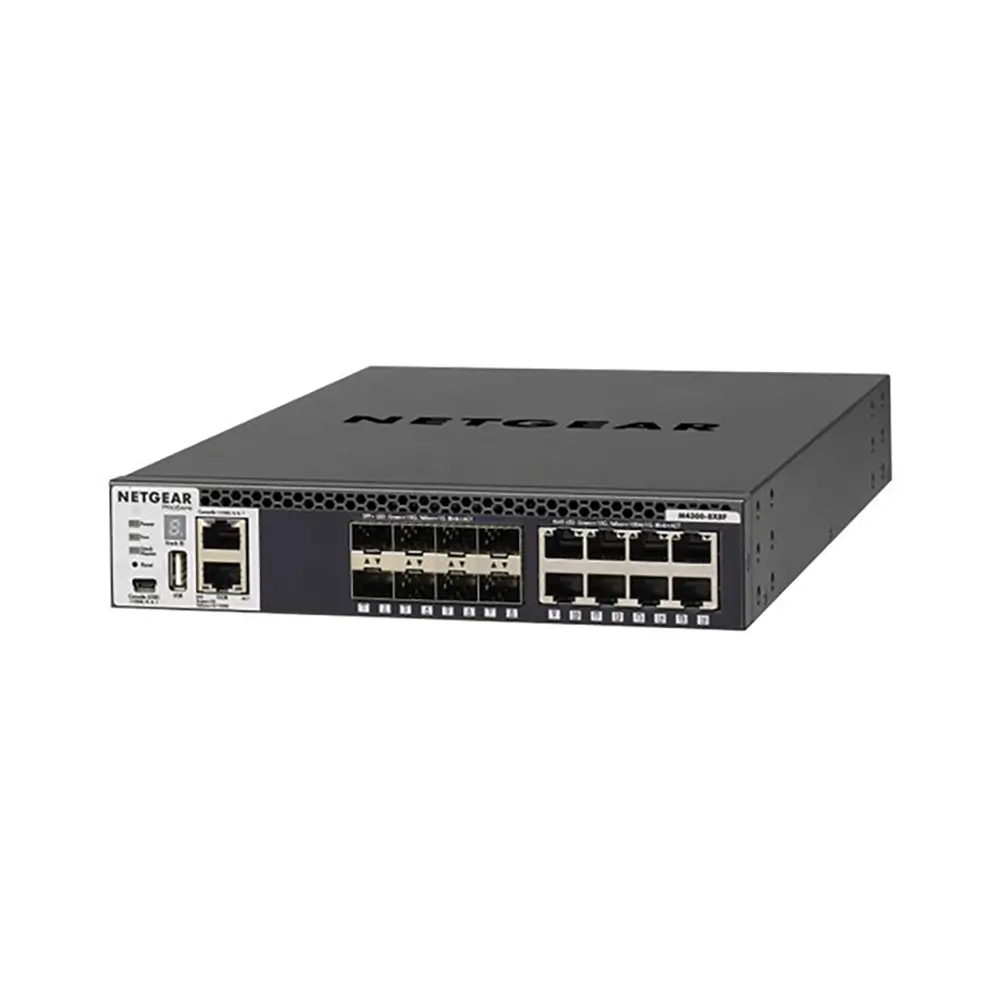

NETGEAR XSM4316S-100NES (M4300-8X8F) Managed Switch

Enjoy high speed, reliability, and flexibility by expanding your business’s network capacity with the M4300-8X8F 16-Port RJ45/SFP+ 10G Managed Network Switch from Netgear. Pre-configured for AV-over-IP, this fully managed switch includes Layer 2, 3, and 4 feature sets, such as hot-swappable mixed stacking, with up to eight switches in a single logical switch.

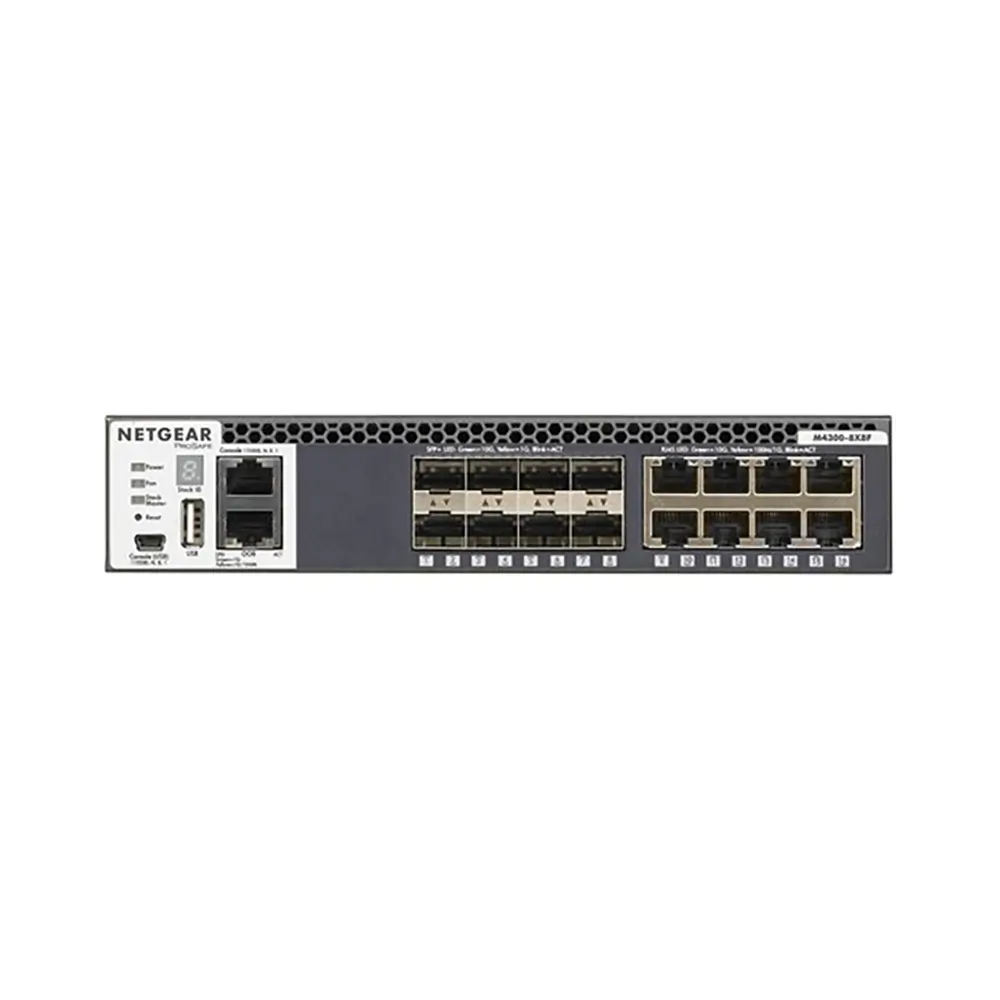

However, there are no license requirements to support video broadcast and other high-bandwidth applications. The M4300-8X8F features sixteen 10G ports, comprised of eight RJ45 copper wire connectors and eight SFP+ fiber optic transceiver slots. This switch is designed to smoothly transfer data with a 320 Gb/s switching capacity and 238 Mpps forwarding rate.

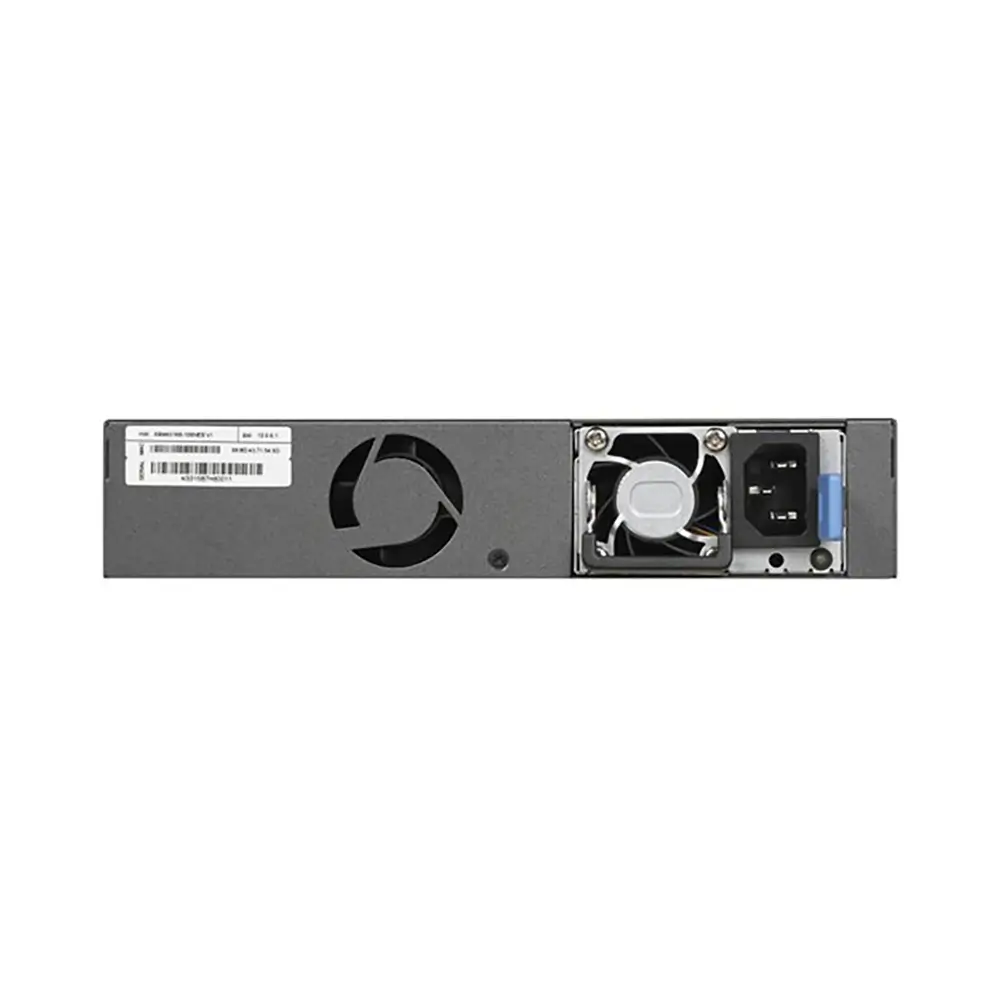

Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection. The half-width design allows you to install two switches into the same rackmount space for redundancy. A modular 250W power supply is included.

• Reliability
• High Availability (HA)
• Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack.
• Multi-Resiliency
• Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities.
• PVST+ Interoperability
• Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP).
• Link Dependency
• Enables or disables ports based on link state of different ports.
• Advanced IPv4/IPv6 Security
• Malicious code detection, DHCP Snooping, IP Source Guard protection, and DoS attacks mitigation.
• Easy to Manage
• Half-Width ToR
• Combine two half-width models in a single rack space for redundant Top-of-Rack.
• Simple GUI
• Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface.
• Flexible & Efficient
• Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
• Mix & Match Stacking
• Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical or horizontal, manage it as one unit.
• Industry Standard
• SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN, and PTPv2 1-step transparent clock implementation.
• Ready for AV-over-IP
• Zero-Touch AV-over-IP
• Preconfigured for out-of-box L2 multicast (SDVoE-ready).
• No Delay
• Non-blocking fabric for near-zero switch latency.
• Netgear IGMP Plus
• Prevent network flooding with multicast implementation of Layer 2 multicast.
