Matrox Matrox Monarch EDGE Encoder
- Single 4K / Multi-HD H.264 Video Decoder
- Low-Latency Video Transport
- 12G & 3G-SDI Outputs, SFP28 I/O
- Single Clock Sync for all Connections
- SRT, RTSP, UDP Streaming Support
- Recording via SDI and USB Outputs
- Tally and Talkback Support
- Genlock, CC, HDR, VITC Support
- Supports 16 x Audio Channels per Output
- 1 RU Half-Rack Rackmount Size
Exceptionally low latency
In live productions, long encode, transmission, and decode latencies can have adverse effects on production. With glass-to-glass latencies as low as 100ms between encoding and decoding, Monarch EDGE D4 when paired with the E4 delivers exceptionally low latency over standard 1 GbE networks.
Keep it in-sync
All channels decoded by Monarch EDGE D4 are referencing timestamps from the Monarch EDGE E4 encoder to align streams on output. For optimal synchronization, Monarch EDGE D4 provides a built-in genlock input ensuring it aligns perfectly with other in-house production equipment.
Simple, easy-to-use tally and talkbalk
The Monarch EDGE D4 decoder paired with the Monarch EDGE E4 encoder enables tally and bi-directional talkback communication between camera operators and in-studio personnel. Eight tally signals can be sent from the production switcher to the decoder and relayed to the encoder for camera output, while two balanced analog inputs and outputs on each unit integrate seamlessly with local and remote intercom systems.
Flexible protocols
There are a variety of streaming protocols available to Monarch EDGE users. On closed networks, MPEG-2 TS or RTSP streams can be selected for delivery. For cloud-based destinations, or when the network is congested, SRT may be more appropriate. SRT streams can also be encrypted if security is a concern. The Monarch EDGE D4 decoder supports the processing of MPEG-2 TS, RTSP, and SRT.
Ancillary data for automation and viewer experience
Monarch EDGE D4 supports contribution and distribution workflows by sending and receiving ancillary data, including closed captioning and SCTE messaging. Easily integrate into automated workflows for playout and ad insertion and transmit closed captions to enhance audience engagement. Monarch EDGE improves operational efficiency and strengthens the overall viewer experience, all with the highest video quality, making it a trusted choice for broadcasters.
Robust and practical design

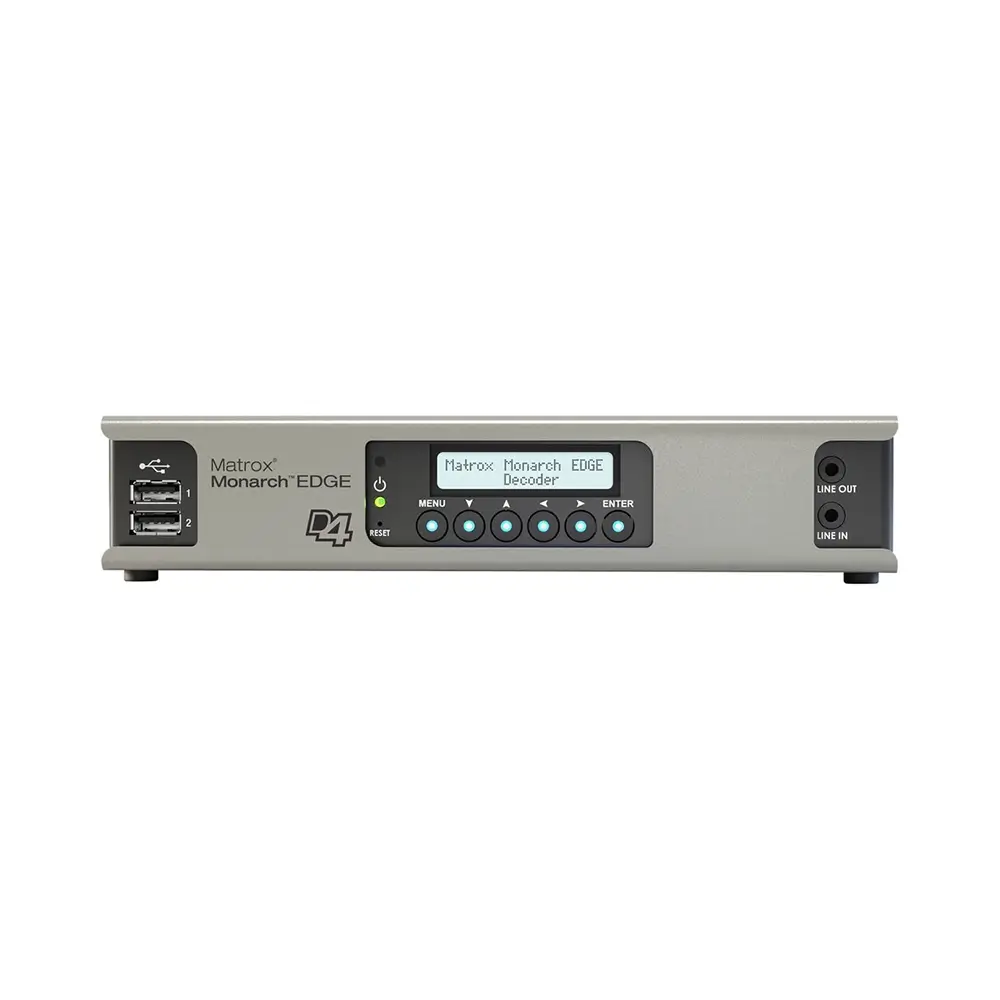

The Monarch EDGE D4 decoder was built with reliability in mind. An LCD screen on the front of th

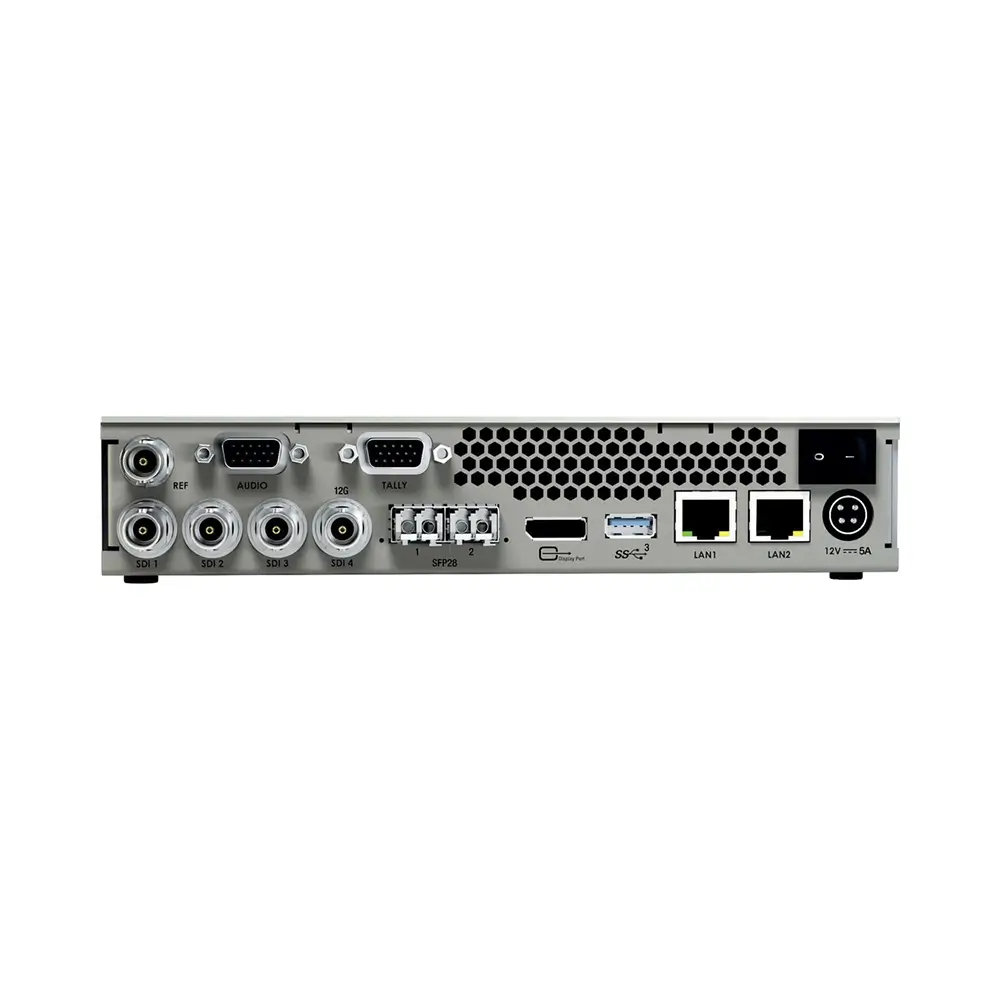

e appliance allows the user to quickly access its status and basic configuration settings. A locking power connector safeguards against connection loss during production. Redundant 1Gbe Ethernet ports allow for media and control. Monarch EDGE’s compact design ensures it can be installed in a fly-pack or with a second Monarch EDGE unit in a 1RU-rack space.
Remote production encoding and decoding workflow
Decode live, multi-camera video streams at resolutions up to 4K or quad HD with confidence using the powerful Matrox Monarch EDGE decoder. This compact, robust, and low-power remote production decoder has made producing live, multi-camera events more affordable than ever by keeping talent in-house. Monarch EDGE securely decodes REMI streams to your master control room with remarkably low latency. Allowing for 4:2:0 8-bit or 4:2:2 10-bit encode/ decode, the Monarch EDGE encoder and decoder pairing is Ideal for demanding REMI broadcast workflows or providing backhaul feeds to your broadcast network.
| Weight | 3.16 kg |
|---|---|
| Dimensions | 33.53 × 26.92 × 17.78 cm |
| Input connections: | 1x 12G SDI per SMPTE ST 2082 3x 3G SDI per SMPTE ST 425 (Level A and B mapping) UHD support using 4x SDI per SMPTE ST 425-5 Square division 2x sample interleave1 Capture up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-71 |
| Resolutions: | 2160p at 50, 59.94, 60 fps 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 25, 29.97, 30 fps 720p at 50, 59.94, 60 fps |
| Genlock: | Bi-level genlock output (encoder) |
| Digital audio: | 16x channels of embedded SDI audio is supported per input 16x channels of audio support per encode using SRT or MPEG2-TS |
| Analog audio2: | 2x channels of balanced analog audio input via XLR connector |
| USB ports: | 2x USB 2.0 (front) 1x USB 3.0 (back) |
| Confidence preview: | 1x DisplayPort 1.1 Maximum resolution: 1920×1080 |
| Multi-unit synchronization support: | Yes |
| Access: | Matrox Monarch EDGE Command Center (web UI) Monarch EDGE Control Hub dedicated Windows application RESTful HTTP API3 |
| Codecs: | Video: H.264/MPEG-4 part 10 (AVC) Audio: AAC-HE, AAC-LC, and PCM S302M |
| Bitrate per stream: | Video: Up to 120 Mbps Audio: From 32 to 256 Kbps |
| Chroma sub-sampling: | 4:2:2 (8-bit and 10-bit), 4:2:0 (8-bit and 10-bit) ? MDG4/E10/I2 4:2:0 (8-bit only) ? MDG4/E8/I2 |
| Encoding controls: | Up to 5.2 level support GOP size and structure Variable and constant bit rate support Average max/min data rate controls Encoding frame rates offered independent of input frame rates |
| Latency: | Encode latency as low as 100ms glass- to-glass (network transfers not included in value) |
| Tally4: | ? 8x tally signals (sent to cameras – encoder) ? Tally ports available via a 15-pin D-SUB Connector |
| Power: | Line voltage: 12 volts Total power consumption: 45 watts [avg.] Connector: DIN 4 |
| Power supply: | Line voltage: 100-240 VAC Frequency: 50-60 Hz Input: external AC/DC adapter – IEC320-C14 DIN4 locking power connector |
| Operating conditions: | 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing) |
| Network: | 2x RJ45, 100/1000BASE-T Ethernet 2x MSA-compatible SFP28 cage supporting 10 GbE and 25 GbE modules1 |
| VANC ancillary data transport as per ST-2038: | Closed captioning (CC) embedded as CEA-608/708 SCTE-104 messages (Matrox encoder to decoder) SCTE-104 to SCTE-35 translation SCTE-35 to SCTE-104 translation Vertical interval timecode (ST 12-2)1 HDR and colorimetry metadata |
| Streaming protocols: | MPEG-2 TS over UDP or RTP RTP/RTSP Native RTP (unicast or multicast) SRT (Caller, Listener and Rendez-Vous and Stream ID modes) RTMP (encoder only) |
| Control and management: | Matrox Monarch EDGE Command Center (web UI) Monarch EDGE Control Hub dedicated Windows application RESTful HTTP API3 |
| Physical: | On-device buttons and screen for basic set up and monitoring operations |
