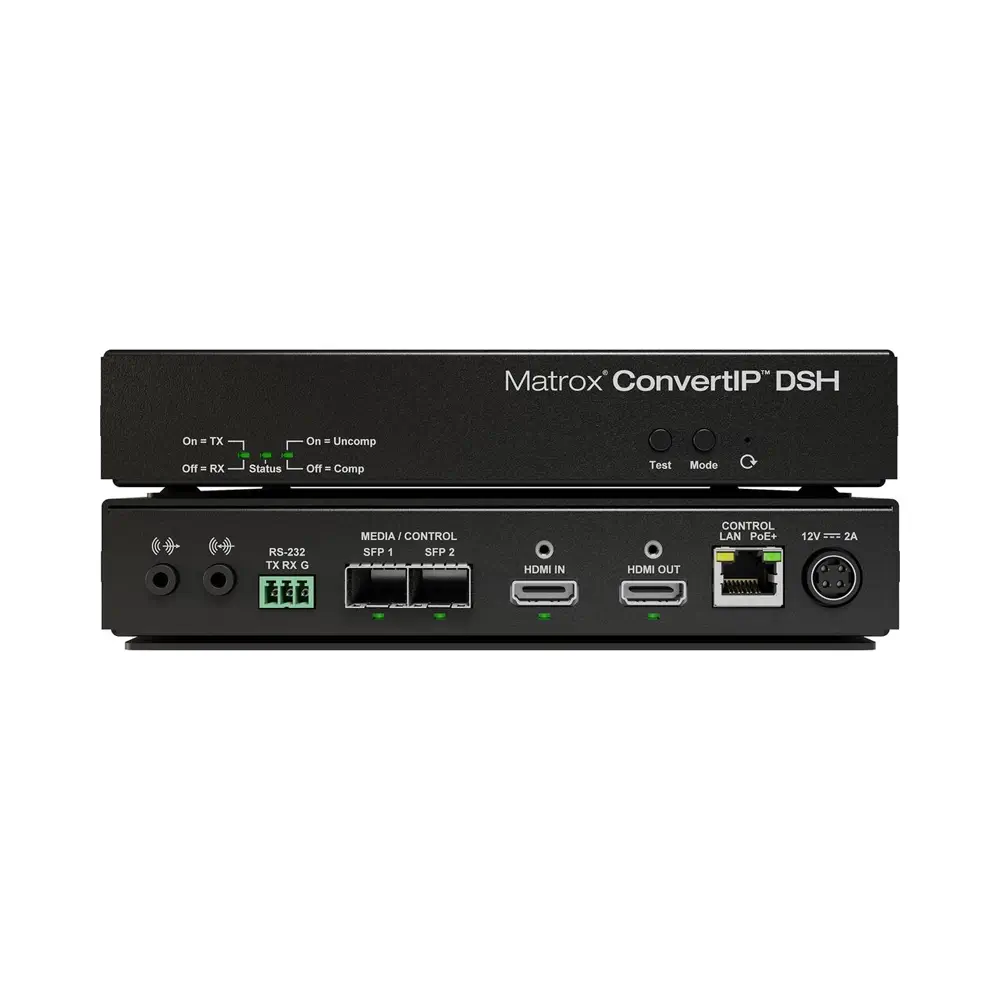

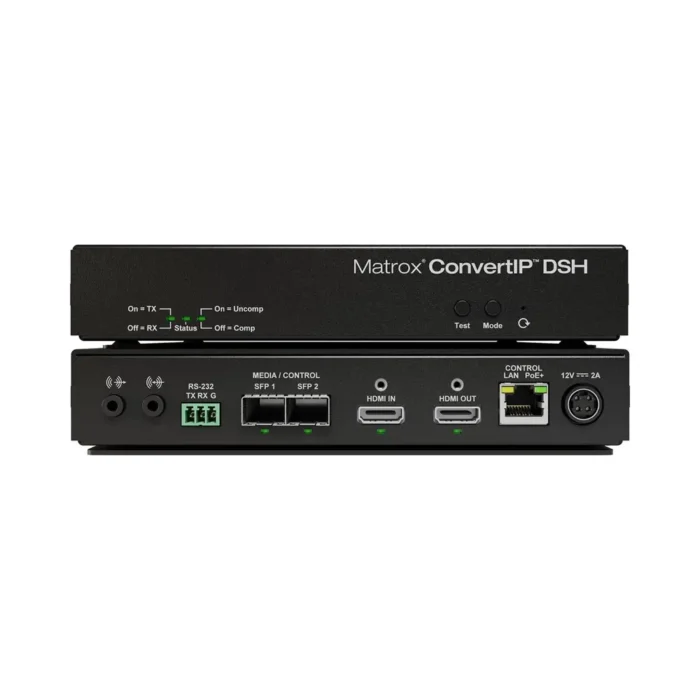

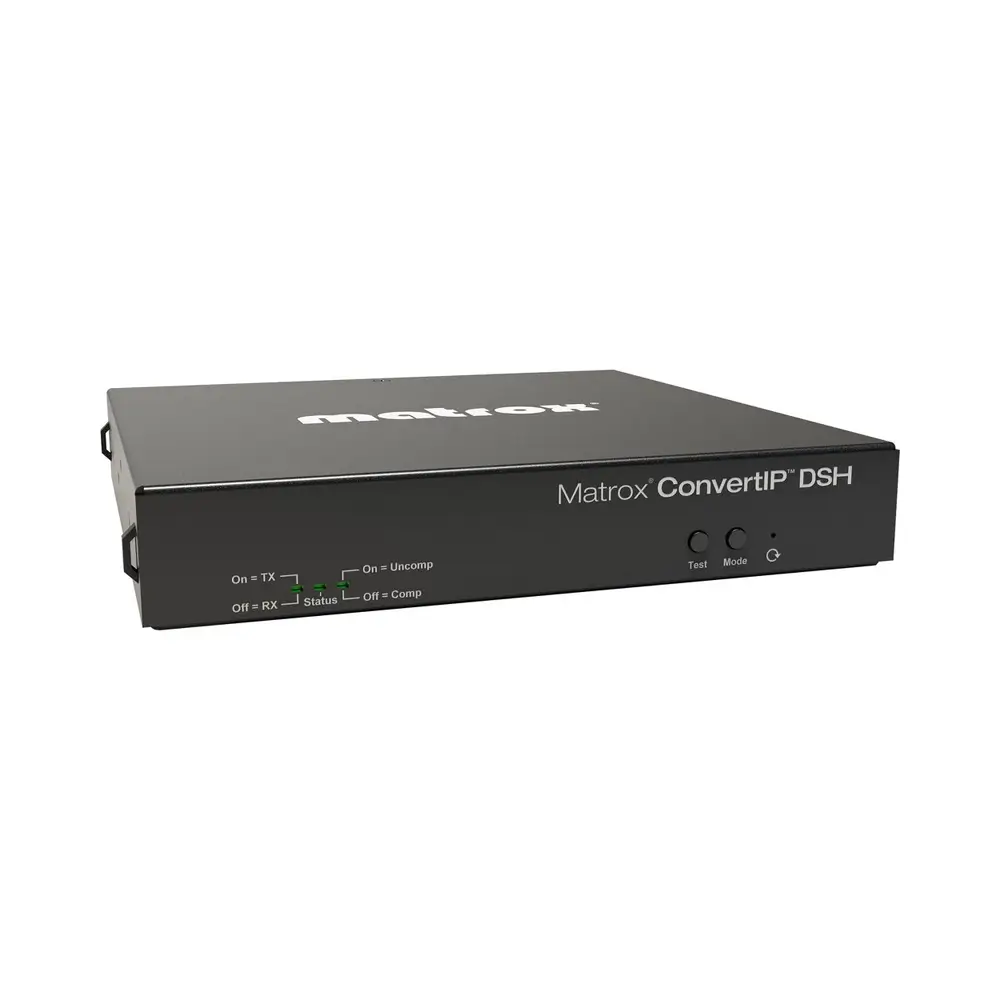

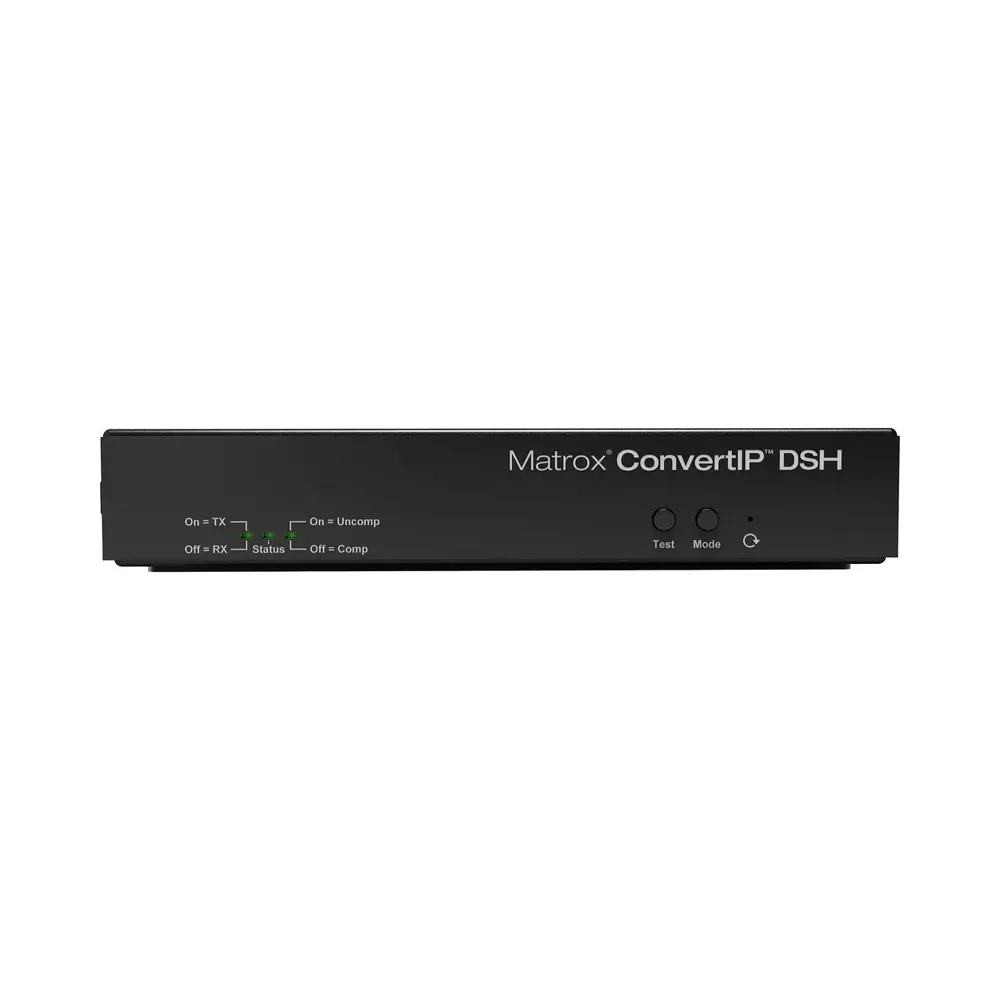

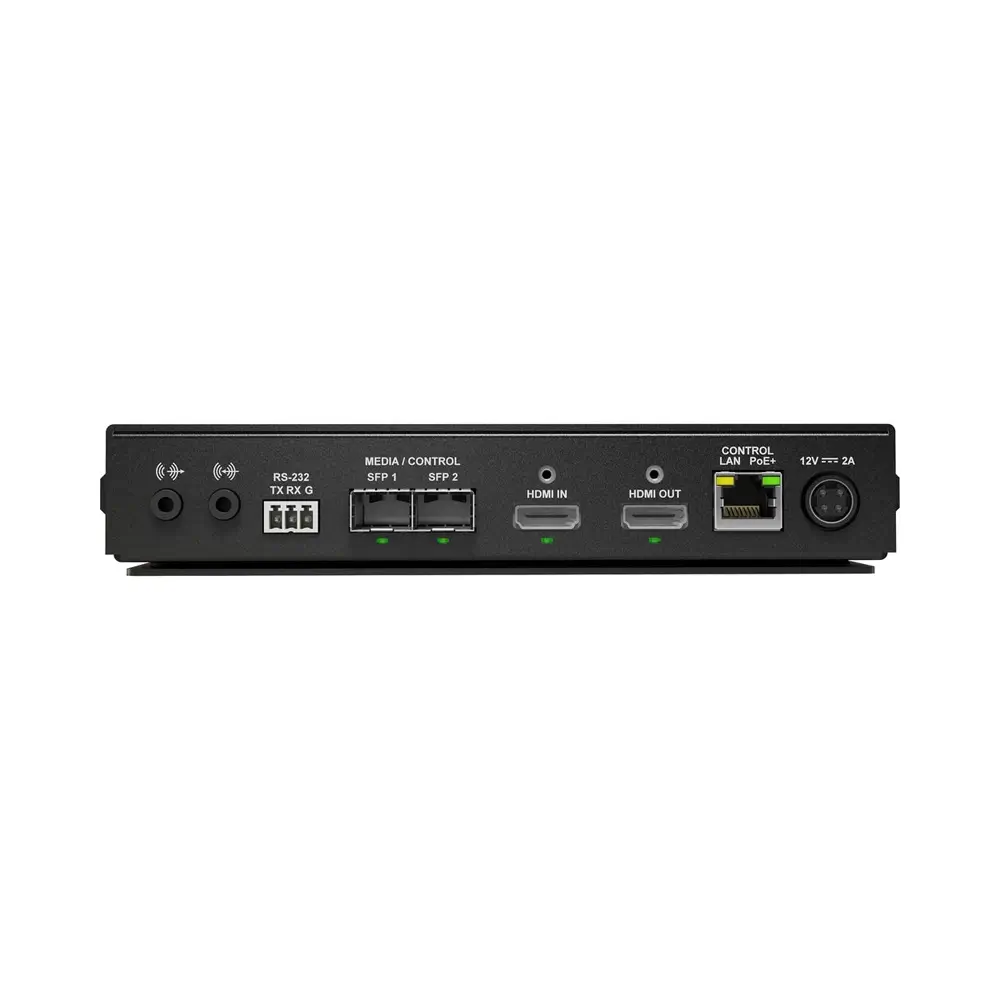

Matrox ConvertIP DSH Transmitter / Receiver and IP Video Gateway
- Transmits and Receives IP Signals
- HDMI I/O Capabilities
- Ultralow Latency Network
- Supports Multiple SFP28 & RJ45 Networks
- Zero Latency HDMI Loop-Out
- Quiet Cooling Capabilities
- Daisy Chain Features
- Easily Mountable to Monitors
The ConvertIP DSH Transmitter and Receiver from Matrox is a compact ST 2110 and IPMX device that transports HD and UHD footage with a unique IP video gateway feature. Its HDMI input and output capabilities feature a zero latency HDMI loop-out that transport compressed and uncompressed workflows of audio, video, and metadata up to 25GB. With the capacity to support multiple SFP28 and RJ45 networks and its daisy chaining capabilities, the ConvertIP drives multiple displays using a single network to ensure uninterrupted work. The device’s ultralow latency provides consistency in quality and workflow with minimal delay. The device features a fan-free design that keeps it cool quietly, and its slim design can easily be mounted to the back of monitors for discrete storage.
Transport Format Compatibility
Daisy Chaining Features
| Weight | 0.66 kg |
|---|---|
| Dimensions | 19.1 × 18.1 × 3.6 cm |
| Housing material: | Metal |
| Supported chroma subsampling: | 4:2:2, 4:4:4, 4:2:0 |
| Colour space supported: | RGB, YUV |
| Maximum refresh rate: | 61 Hz |
| DC-in jack: | Yes |
| Input voltage: | 13 V |
| Power consumption (typical): | 19 W |
| Operating temperature (T-T): | 1 – 45 ?C |
