Matrox ConvertIP SMPTE 2110 and IPMX Transmitter/Receiver
- Maximum refresh rate: 60 Hz
- DC-in jack
- 18 W

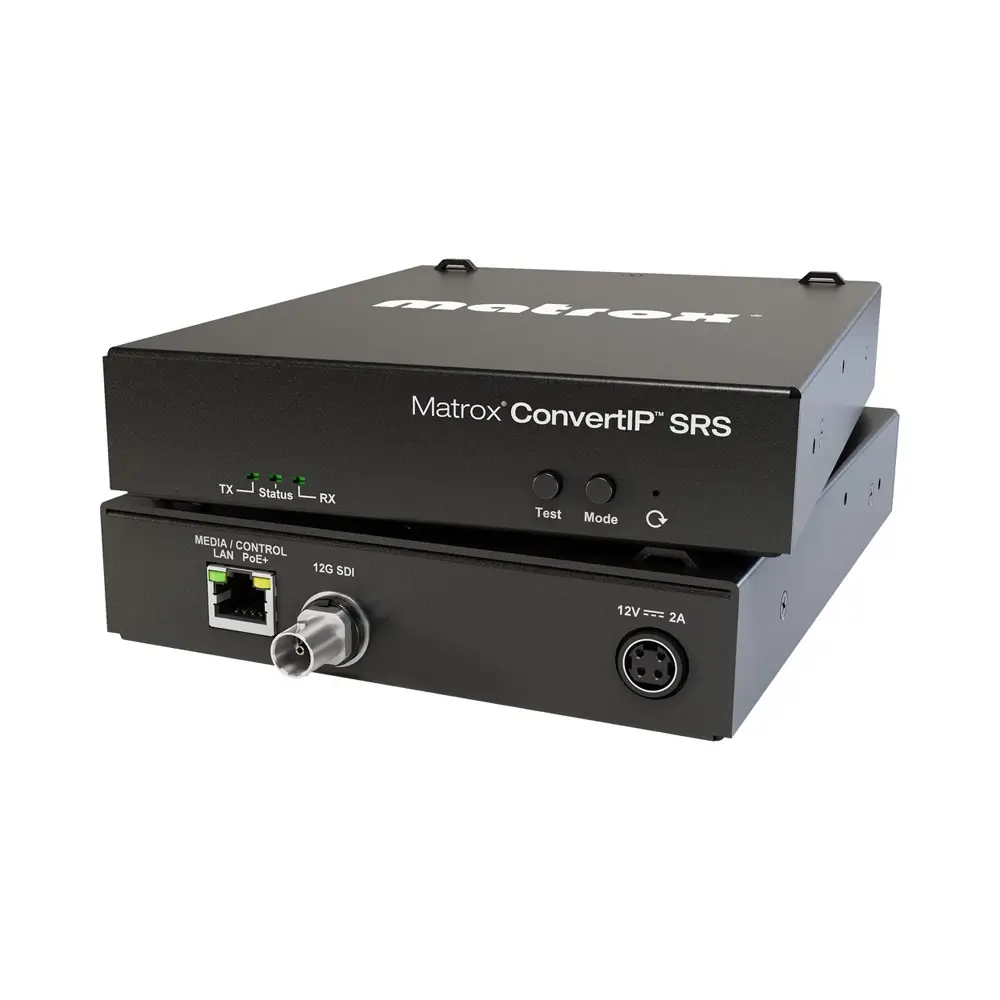

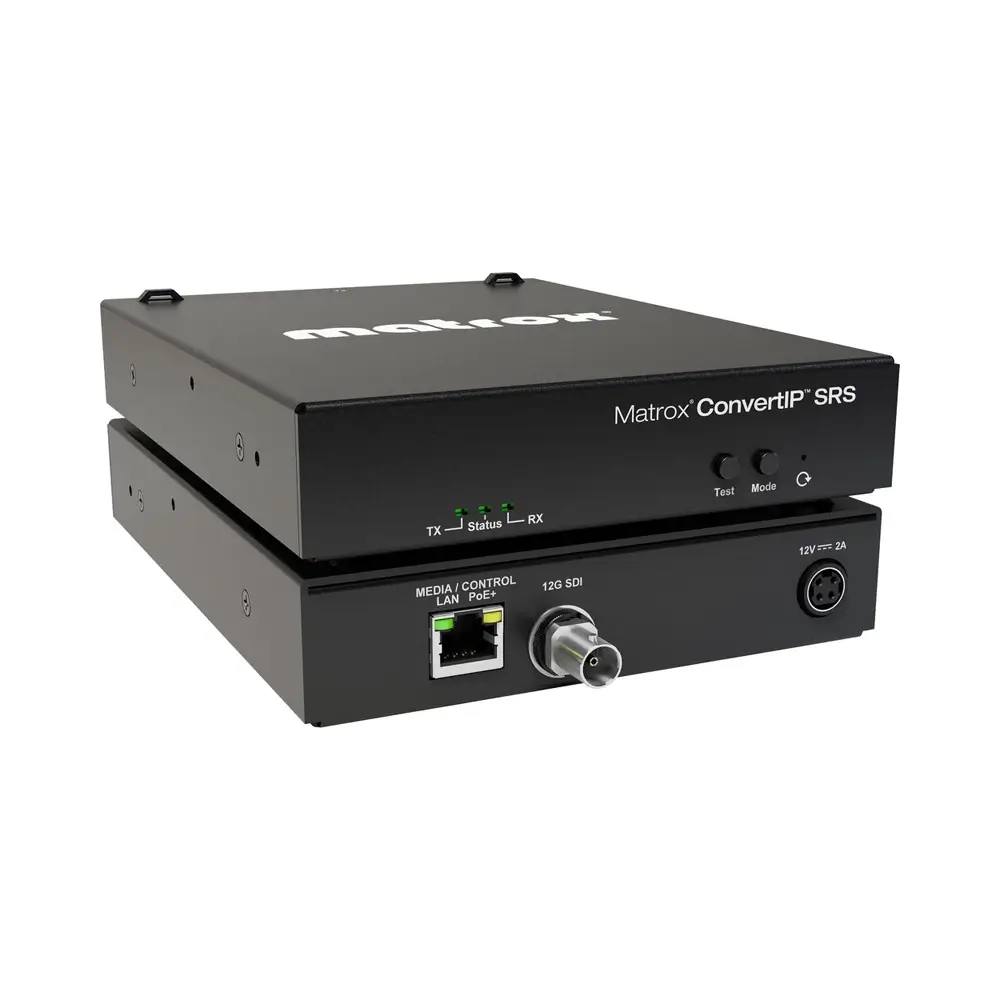

Matrox ConvertIP SRSÂ is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Delivering up to 4K60 image quality and featuring one RJ45 port, ConvertIP SRS is designed for both 1G and 2.5G AV workflows and is optimal for an ultra-low latency experience. ConvertIP SRS supports Power over Ethernet through its RJ45 connection, and power redundancy through an optional power supply unit.
Key features
• 12G-SDI I/O
• 1G and 2.5G support over RJ45
• Transmit or Receive IP signals from a single device
• Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
• Fanless design for quiet cooling
• Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
• Compact form factor mounts easily to the back of a monitor
• Web-based user interface for managing ConvertIP devices
• Complimentary ConvertIP Manager Windows application for simple commission and deployment
Transport formats
• IPMX ready
• Colibri codec for visually lossless transmission of compressed of media over 1G network
• Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
• Glass-to-glass latencies of 1ms achievable
| Weight | 0.5 kg |
|---|---|
| Dimensions | 13.8 × 20 × 3.6 cm |
| Housing material: | Metal |
| Supported chroma subsampling: | 4:2:2, 4:4:4, 4:2:0 |
| Colour space supported: | RGB, YUV |
| Maximum refresh rate: | 60 Hz |
| DC-in jack: | Yes |
| Input voltage: | 12 V |
| Power consumption (typical): | 18 W |
| Operating temperature (T-T): | 0 – 45 ?C |
