Matrox Maevex MGX Series

4K60 H.265/H.264 IPMX-Ready Video Encoders and Decoders

Matrox Maevex MGX Series encoders and decoders deliver industry-leading low-latency performance for 4K60 AV-over-IP distribution while achieving the same image quality as traditional ProAV codec solutions at nearly 20 times lower bit rates with H.265 4:4:4 image quality.

Its highly efficient streaming architecture significantly reduces network traffic, infrastructure complexity, and network costs, providing a new approach to video transmission over IP.

Designed for enterprise and mission-critical applications, the Maevex MGX Series supports both open-standard IPMX and Matrox IQ Mode. This allows organizations to choose maximum interoperability through open standards or the highest performance with Matrox IQ Mode, depending on their requirements.

With advanced codec support, multiple streaming protocols, and integrated USB support for interactive workflows, Maevex MGX goes beyond traditional video distribution, enabling real-time collaboration, remote access, and scalable AV-over-IP infrastructures while significantly reducing bandwidth requirements.

Key Benefits

Superior Image Quality and Low Latency with Significantly Lower Bandwidth

Delivers 4K60 resolution and 4:4:4 chroma subsampling with extremely low latency while significantly reducing the data load on the network.

Key benefits include:

• H.265 and H.264 codec support for high image quality and bandwidth efficiency
• Ultra-low latency of as little as 1 frame for real-time applications
• Significantly lower bandwidth consumption compared to similar ProAV 1GbE lightly compressed solutions
• Reduced network traffic for lower infrastructure costs and easier system scalability

Flexible Streaming Modes and Multi-Protocol Support

Offers multiple streaming options to accommodate different distribution scenarios through a single device.

Features include:

• Choice between IPMX and Matrox IQ Mode
• Ability to use both modes simultaneously with multi-stream support
• Local HDMI output for feeding on-site displays while simultaneously streaming over IP
• Support for RTSP, MPEG-TS, and SRT protocols for compatibility with different AV infrastructures

This flexible architecture allows a single device to handle both local display and IP-based distribution simultaneously.

Integrated USB Support for Interactive and Collaborative Workflows

Maevex MGX does more than transmit video. Its USB Extension capability enables full interaction with remote systems.

Supported features include:

• Keyboard extension
• Mouse extension
• Webcam extension
• Control and management of remote desktop content

With industry-leading low-latency performance, it provides a real-time user experience at up to 20 times lower bit rates compared to other USB-enabled ProAV solutions.

This makes it particularly well suited for applications such as:

• Meeting rooms
• Collaboration spaces
• Control rooms
• Operations centers
• Secure remote work environments

Which Maevex MGX Device Is Right for You?

1. Encoder Models

These models encode signals from video sources for transmission over the network:

• Maevex MGX E1
  • Channel Configuration: Features 1 HDMI input.
  • Performance: Supports encoding of up to 4K60 resolution on a single channel.
  • Latency: Delivers just 2 frames of glass-to-glass latency in Matrox IQ Mode.
  • Multiview Support: No.

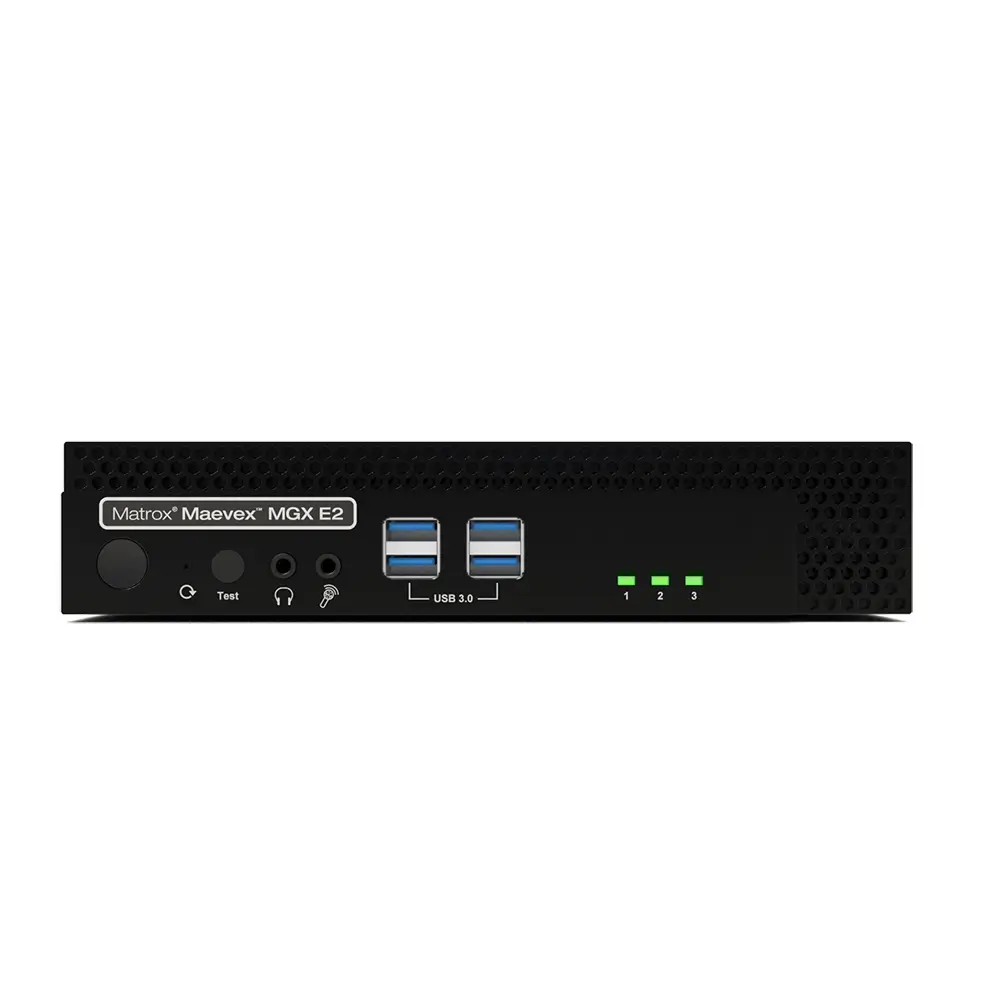

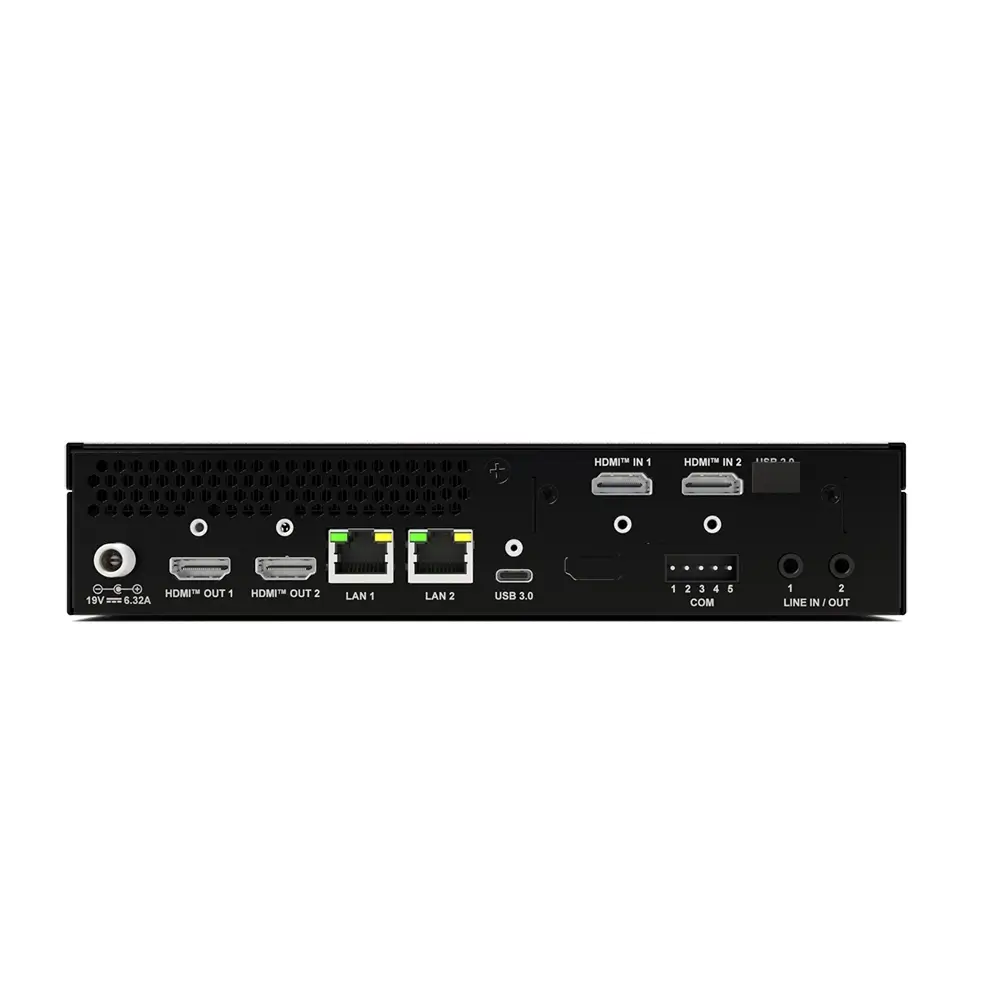

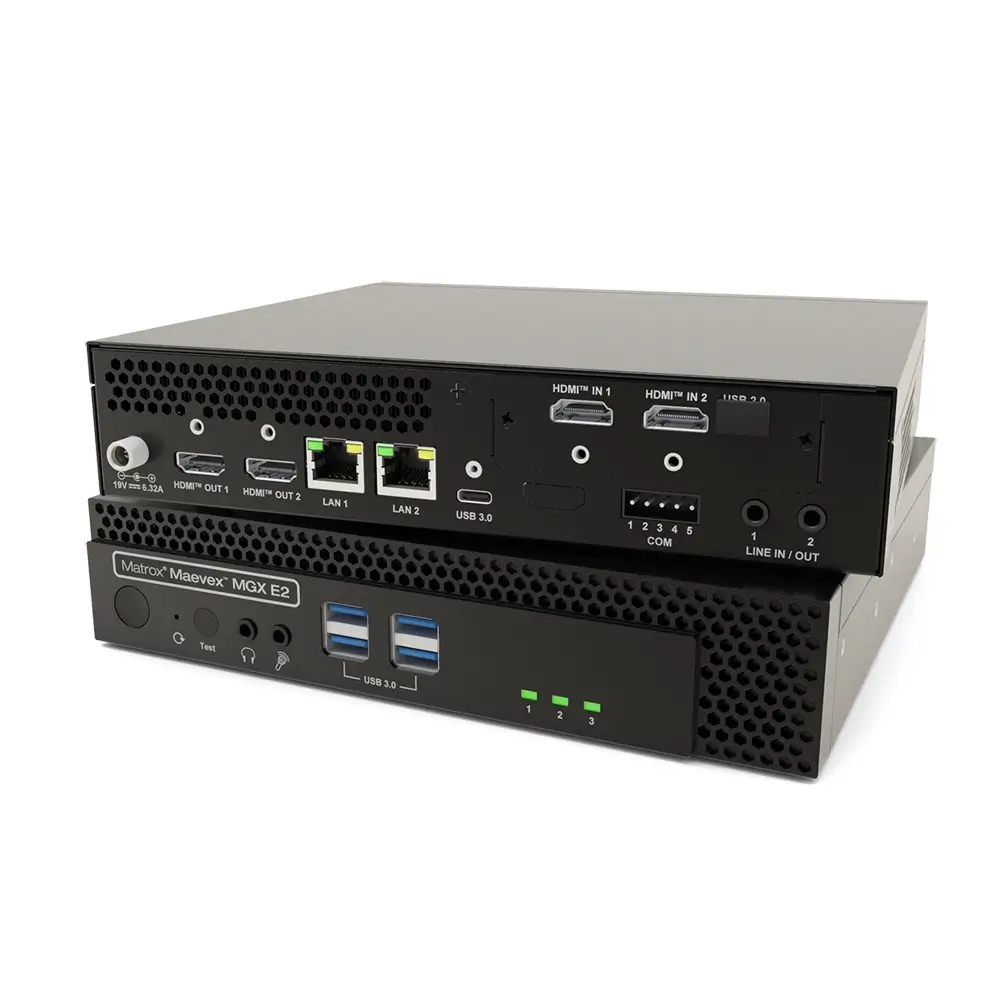

• Maevex MGX E2
  • Channel Configuration: Features 2 HDMI inputs.
  • Performance: Can simultaneously encode 2 different channels at 4K60 resolution.
  • Latency: Delivers the lowest latency in the series at just 1 frame.
  • Multiview Support: Yes, supporting a 2×1 layout.

2. Decoder Models

These models decode encoded video streams received over the network and output them to displays:

• Maevex MGX D1
  • Channel Configuration: Features 2 HDMI outputs.
  • Performance: Can decode 1x 4K60 stream or simultaneously decode 2x 1080p60 streams.
  • Latency: Between 1–2 frames, depending on the connected encoder.
  • Multiview Support: Yes, supporting 2×1 and 2×2 display layouts.
• Maevex MGX D2
  • Channel Configuration: Features 2 HDMI outputs.
  • Performance: Can simultaneously decode 2x 4K60 streams for high-performance applications.
  • Latency: Delivers 1–2 frames of latency depending on the encoder being used.
  • Multiview Support: Yes, supporting 2×1 and 2×2 display layouts.

Enterprise AV Distribution

Maevex MGX enables the distribution of executive presentations, company-wide town halls, and corporate events with exceptionally high image quality.

Designed with reliability in mind, the system ensures that employees receive the same clear and consistent content whether they are in a conference hall, additional viewing rooms, regional offices, or working remotely.

Ideal for corporate campuses, headquarters, and hybrid work environments, Maevex MGX delivers industry-leading low-latency 4K60 video with synchronized audio and video, creating a natural and seamless viewing experience both in-room and remotely.

HEVC (H.265) 4:4:4 encoding technology significantly reduces network load by using up to 20 times lower bandwidth than traditional ProAV solutions. This makes it easy to distribute high-quality AV content even across enterprise networks with heavy data traffic.

Content Contribution and Distribution for Control Rooms

Maevex MGX enables high-quality content contribution to control rooms and secure distribution of content within the control room or across different locations.

Developed with enterprise-level security features, the system delivers reliable performance for mission-critical applications where reliability and uninterrupted operation are essential.

Key applications include:

• Government institutions
• Defense applications
• Industrial facilities
• Security and surveillance centers
• Real-Time Crime Centers
• Critical operations centers

Maevex MGX combines industry-leading low-latency 4K60 video transmission, precise real-time control, and ultra-low bandwidth usage to deliver reliable AV-over-IP performance for mission-critical applications.
