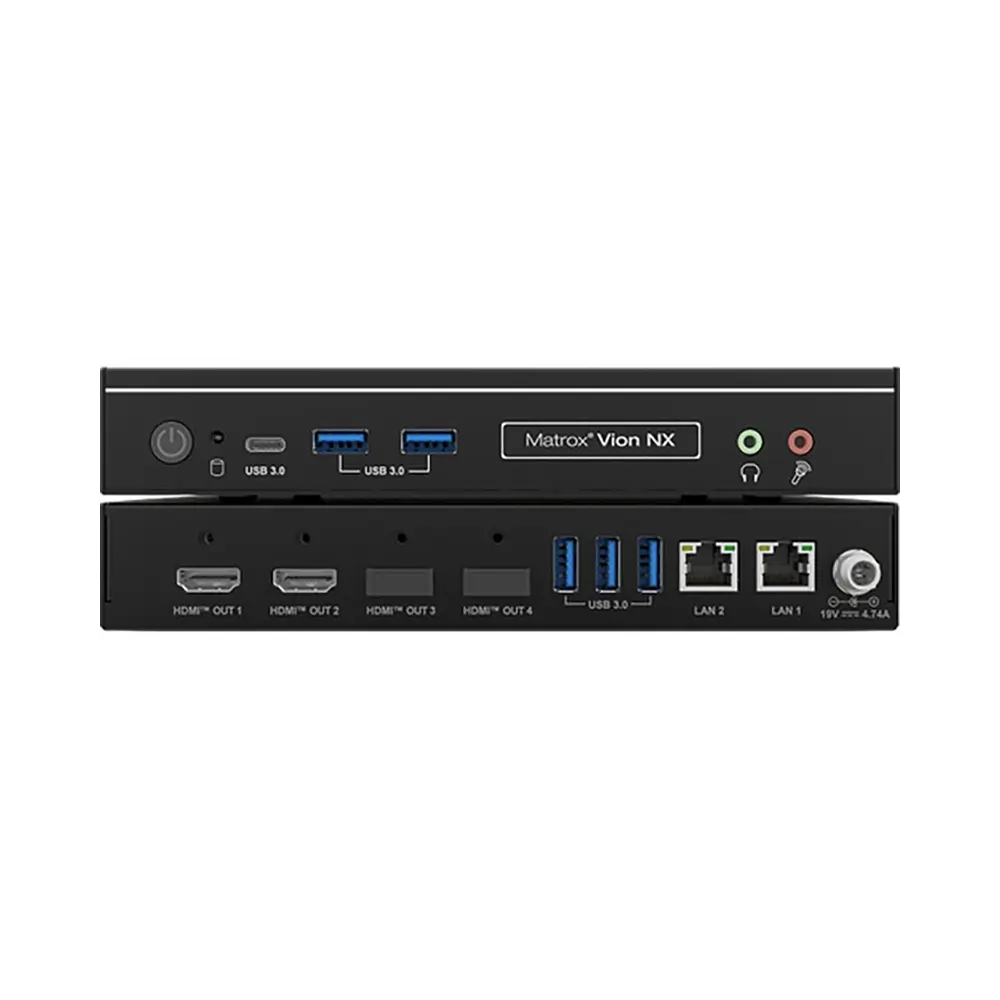

Matrox Vion NX Compact IP Video Gateway with IP Inputs
- IP Signal and Protocol Conversion
- Multichannel 4K
- Low-Latency Multichannel Encoding
- 4:4:4 Color Precision
- Encode from Baseband Inputs
Description
The Vion NX Compact IP Video Gateway with IP Inputs from Matrox provides IP signal and protocol conversion with support for multichannel 4K60, low-latency multichannel encoding, and 4:4:4 color precision. It allows encoding from baseband inputs and also performs transcoding and cross-conversion of IP video formats.
IP Signal and Protocol Conversion
Efficiently convert, transcode, transmux, transrate, and transceive compressed IP signals to ensure seamless media distribution. With Vion, you can facilitate NDI media and protocol conversion, including seamless conversion between NDI and SRT, as well as NDI and IPMX.
Multichannel Processing
Deliver multiple concurrent and bidirectional streams with advanced multichannel encoding, decoding, transcoding, and cross-conversion.
4:4:4 Color Precision with Low Bit Rate Transmission
The Vion supports 4:4:4-capable codecs (HEVC and JPEG XS) to provide maximum image quality and maximum equipment compatibility. HEVC 4:4:4 ensures low bit rate transmission of high-quality desktop content over IP, making it ideal for applications that require color accuracy, compression efficiency, and high performance.
Encode from Baseband Inputs
The device processes more than IP-only sources, acquiring video and audio baseband signals from two SDI, two HDMI, and a balanced analog input.
Open Standards
Ensure compatibility across devices and future-proof your infrastructure with support for ST 2110-22, IPMX, and JPEG XS.
Content Preview I/O Options
Instantly preview content locally with SDI/HDMI I/O options.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 19.05 × 14.73 × 3.05 cm |
| Video I/O: | Input 2x Mini-HDMI 2x Micro BNC (12G-SDI) Output 2x HDMI |
| Audio I/O: | Input 1x Block 5-Pin Stereo 1x 1/8″ / 3.5 mm TRS Output 1x 1/8″ / 3.5 mm TRS |
| Other I/O: | Input/Output 1x RJ45 (10/100/1000 Ethernet) 1x RJ45 (2.5 GbE) 5x USB-A 1x USB-C |
| Embedded Audio: | HDMI/SDI: 8-Channel |
| Internal Recording: | No |
| Reclocking: | No |
| IP Video: | Encoding/Decoding via H.264/H.265/JPEG-XS/NDI 4096 x 2160 to 1920 x 1080 at 60fps |
| Transport Protocols: | NDI/HX3, RTP, RTSP, SRT, TS-MPEG |
| Simultaneous Streams: | 8 Streams |
| Media/Memory Card Slot: | No |
| Wireless: | No |
| Cellular Support: | No |
| Power I/O: | 1x Barrel (19 VDC at 4.5 A) Input |
| Power Consumption: | Power Supply: 120 to 240 VAC (90 W) |
| Operating Conditions: | 32 to 95?F / 0 to 35?C |
| Certifications: | CE, FCC, ICES-003, KC, RCM, REACH, RoHS |
