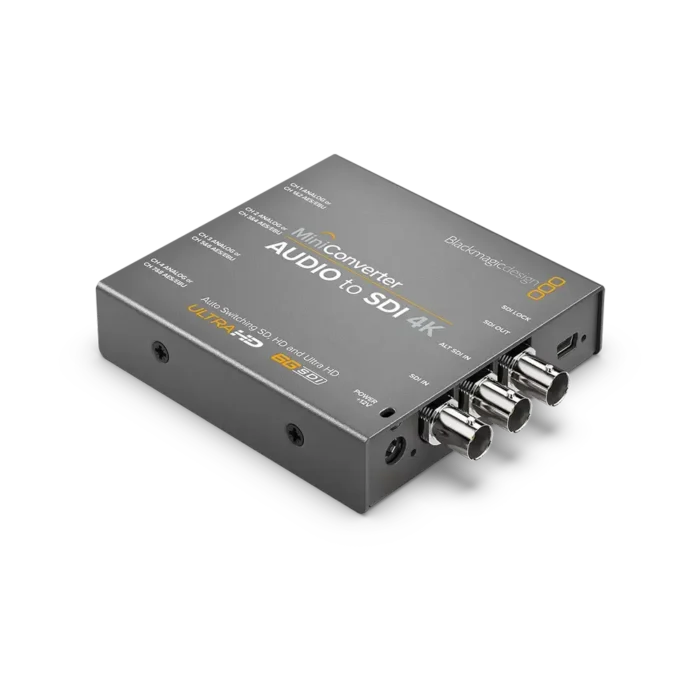

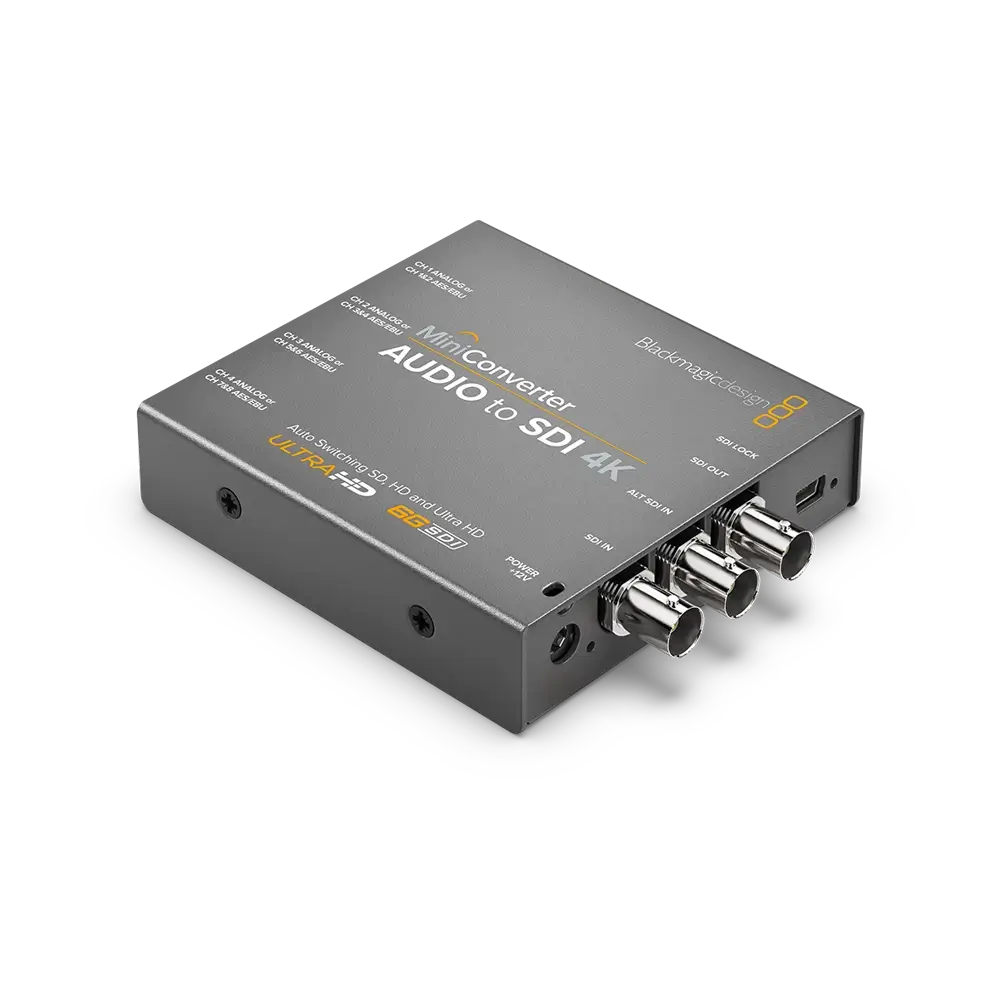

Blackmagic Mini Converter – Audio to SDI 4K
1,527.00 Excl. VAT
- Embeds Audio into SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 4x 1/4″ Audio Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio
Available on backorder
Blackmagic Design Mini Converter – Audio to SDI 4K Overview

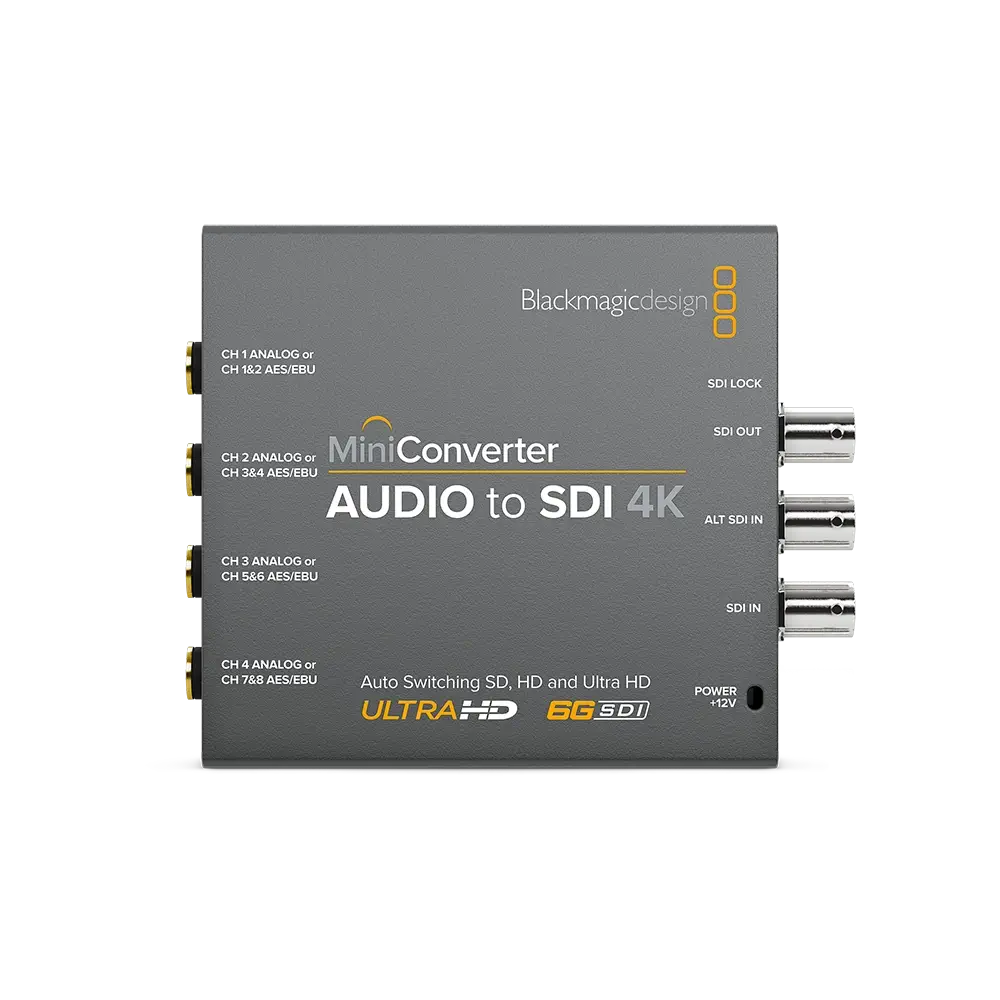

The Mini Converter Audio to SDI 4K from Blackmagic Design allows you to embed four channels of analog audio or eight channels of AES/EBU digital audio into any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840×2160) and DCI 4K (4096×2160), and provides four 1/4″ audio jack connectors for inputting and embedding your analog or digital audio channels. The SDI signal with embedded audio is output over a single 6G-SDI connector, with the resolution and frame rate matching the original input source.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

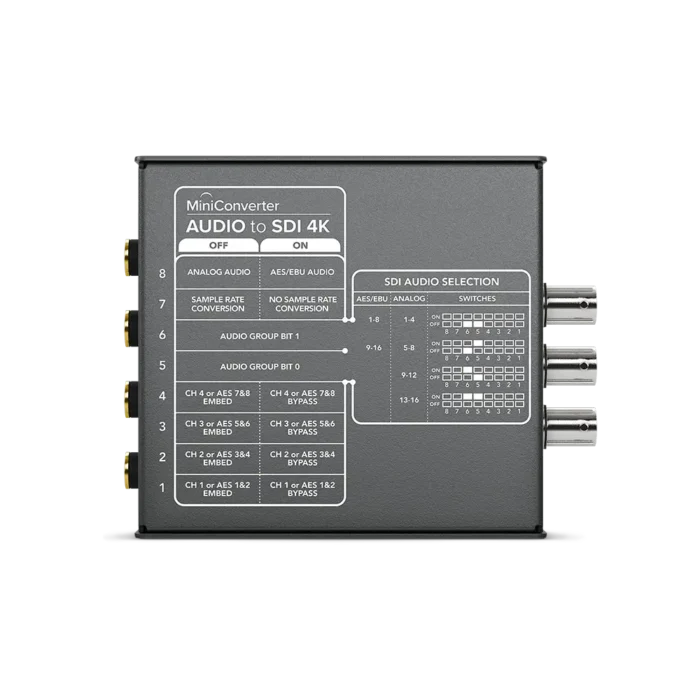

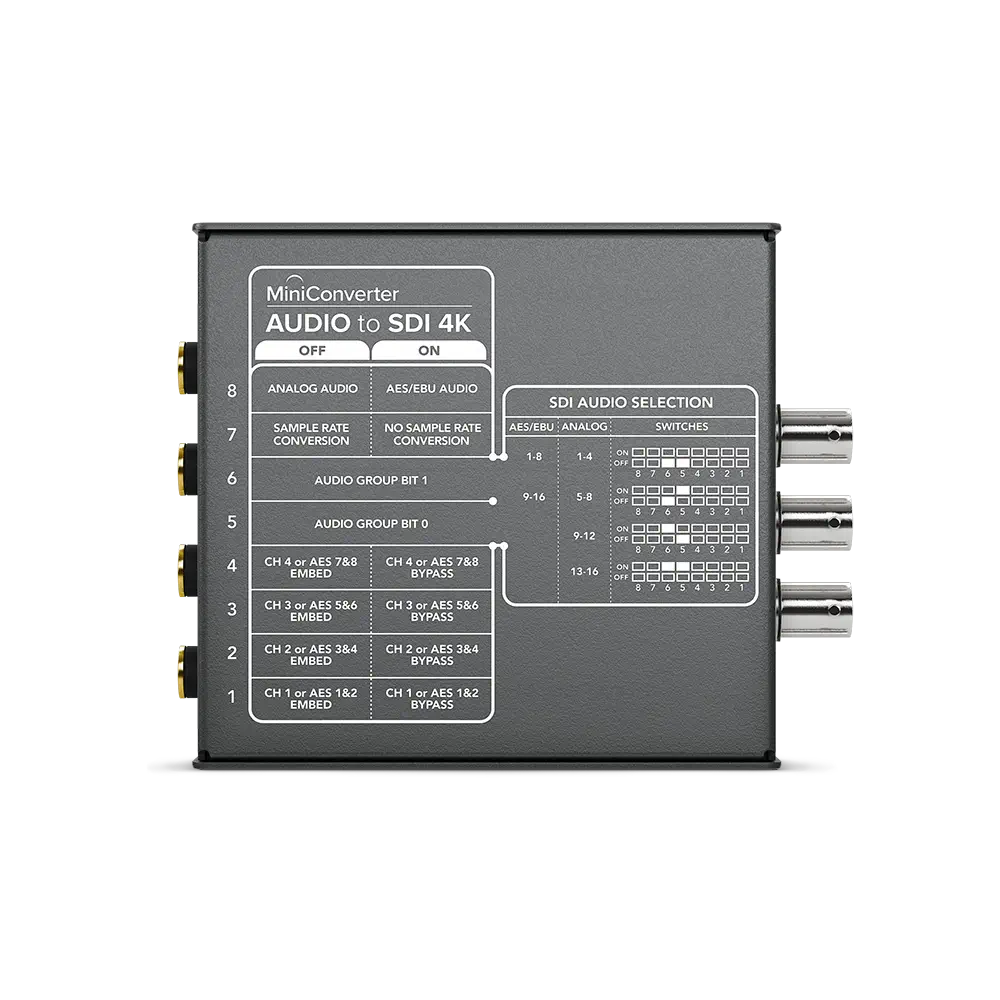

The Mini Converter’s settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12 VDC power supply is included with international socket adapters.
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
| Weight | 0.541 kg |
|---|---|
| Dimensions | 14.86 × 14.35 × 6.86 cm |
| SDI Video Input: | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
| SDI Video Output: | 1 x SD/HD/3G/6G-SDI |
| Audio Input: | 4 x 1/4″ jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
| Multi-Rate Support: | Auto detection of SD, HD, 2K, UHD, and 4K signals |
| Reclocking: | Yes |
| Format Support: | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
| SDI Compliance: | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates: | Switchable between SD, HD, 3G, and 6G-SDI |
| SDI Video Sampling: | 4:2:2, 4:4:4 |
| SDI Audio Sampling: | 24-bit, 48 kHz |
| SDI Color Precision: | 4:2:2, 4:4:4: |
| SDI Color Space: | YUV, RGB |
| Settings Control: | DIP switches or USB software for Mac OS X and Windows |
| Firmware Upgradeable: | Via USB 2.0 |
| Power Supply: | 12 VDC |
| Power Consumption: | 8.4 W |
| Operational Voltage Range: | 12 to 31 VDC |
| Operating Temperature: | 32 to 104° F (0 to 40 ° C) |
| SDI Auto Switching: | Automatically detects SD, HD, 3G, or 6G-SDI |
| Storage Temperature: | -4 to 113°F / -20 to 45°C |
| Relative Humidity: | 0 to 90% non-condensing |
