Blackmagic Mini Converter – HDMI to SDI 6G
681.00 Excl. VAT
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output

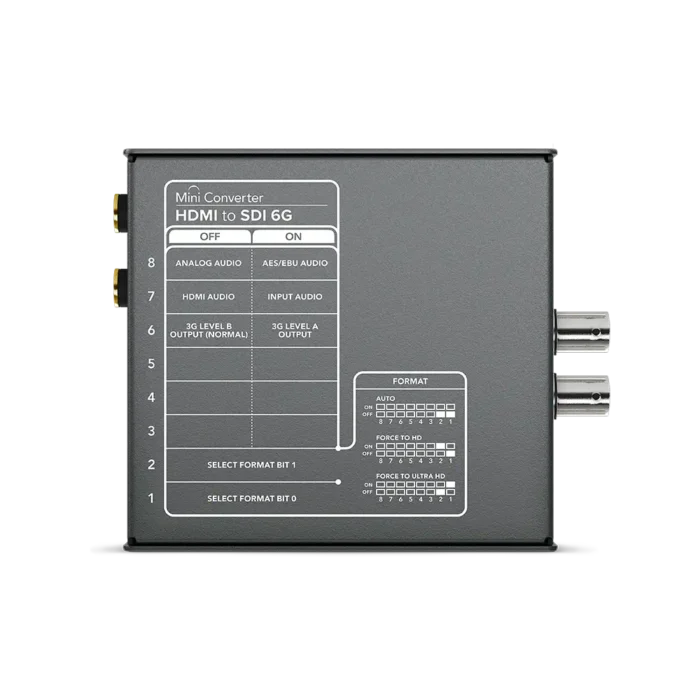

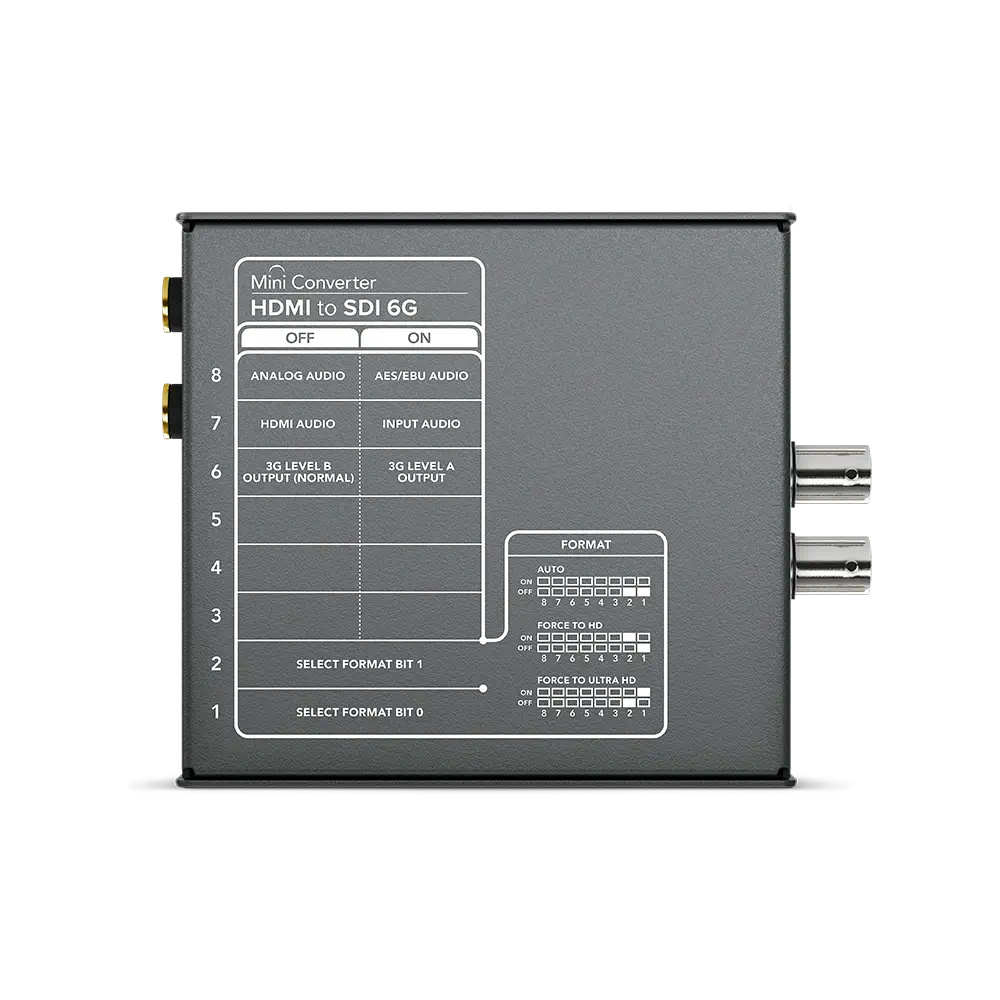

- Settings via Mini Switches or Software
In stock

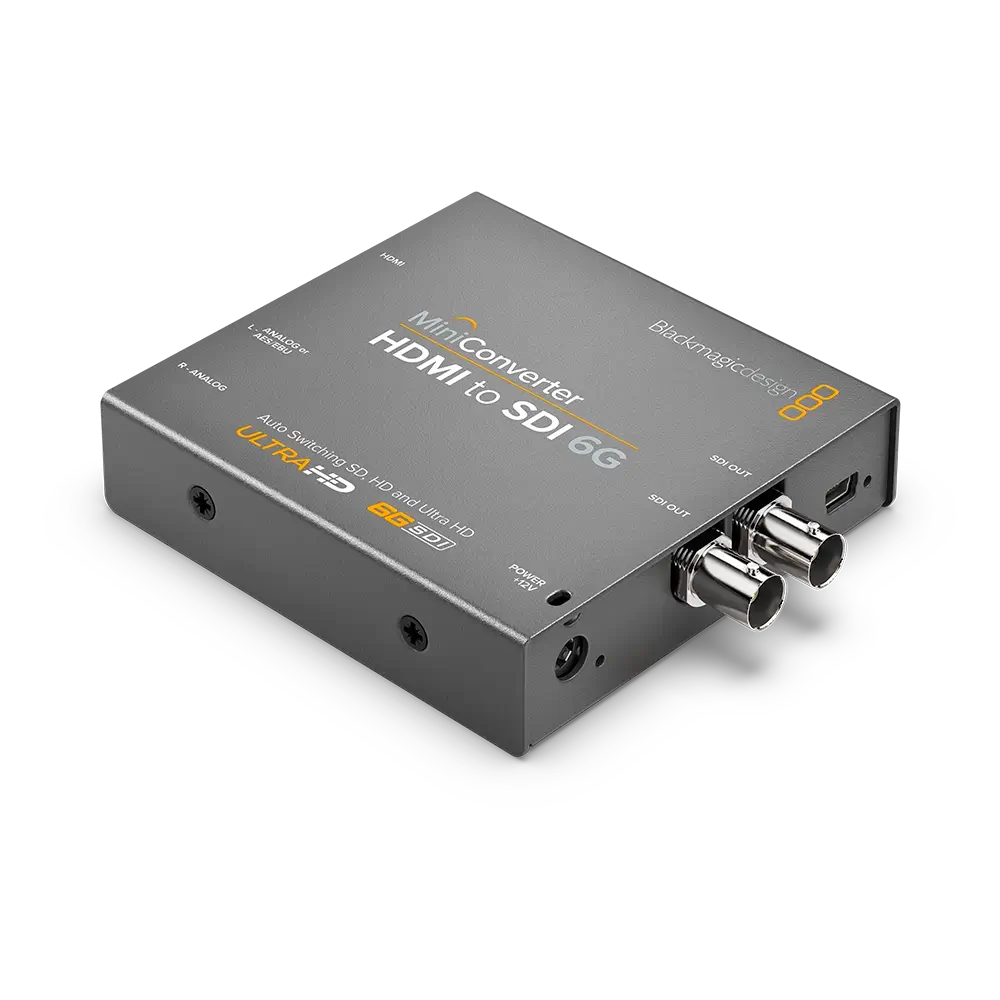

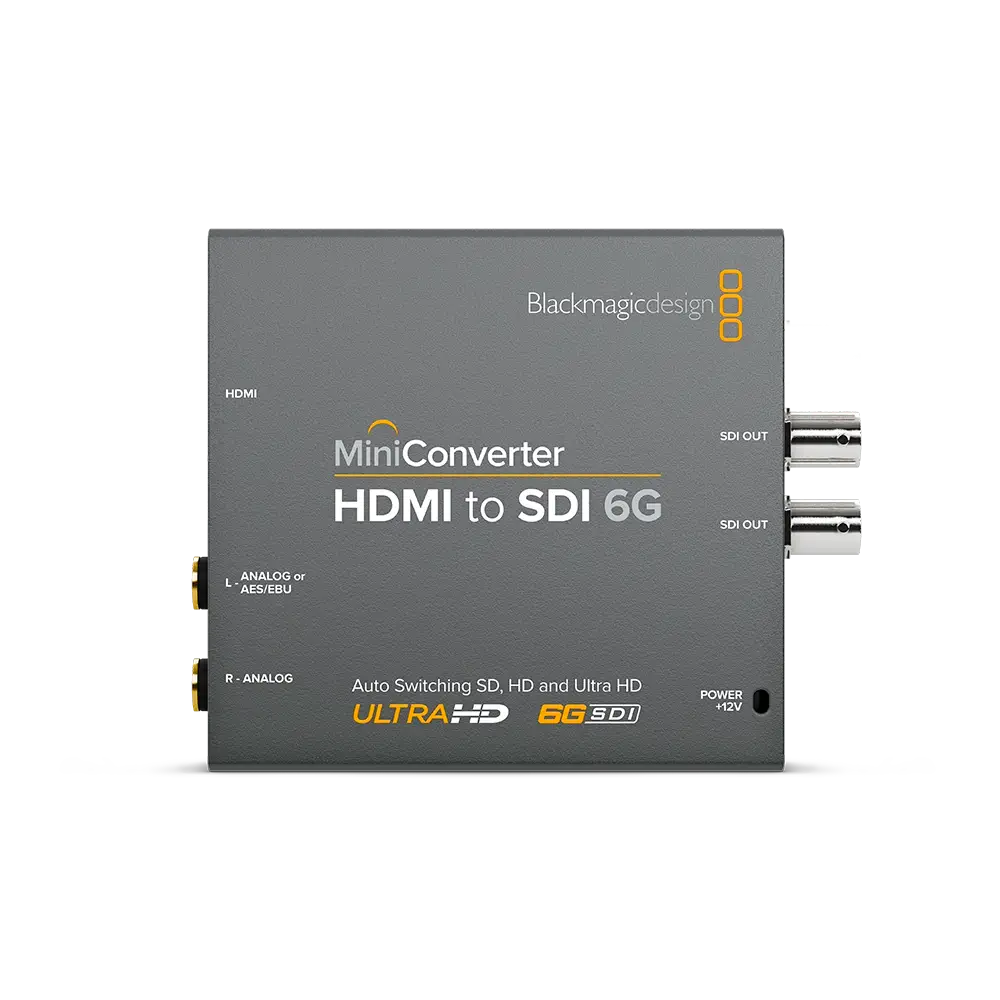

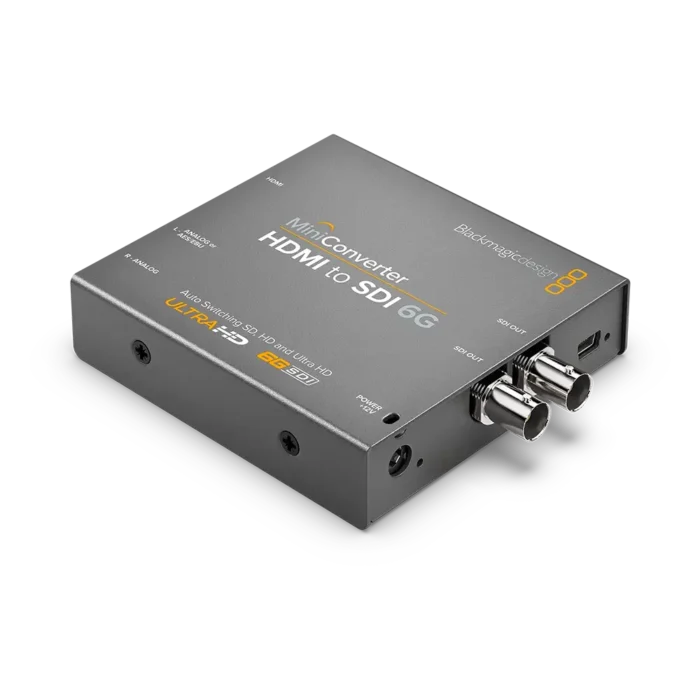

Blackmagic Design Mini Converter – HDMI to SDI 6G Overview
The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4″ input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
| Weight | 0.461 kg |
|---|---|
| Dimensions | 16.26 × 15.75 × 6.6 cm |
| Video Inputs: | 1 x HDMI, Type A |
| Video Output: | 2 x 6G-SDI |
| Multi-Rate Support: | Auto detection of SD, HD, 3G, or 6G-SDI signals |
| Reclocking: | Yes |
| Audio Input: | Analog: 2 channels with 1 x 1/4″ jack per channel AES/EBU: 4 channels with 1 x 1/4″ jack |
| Format Support: | DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
| SDI Compliance: | SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates: | Switchable between SD, HD, Ultra HD and DCI 4K |
| SDI Video Sampling | 4:02:02 |
| SDI Color Precision: | 4:02:02 |
| SDI Color Space: | YUV |
| SDI Audio Sampling: | 24-bit, 48 kHz |
| SDI Auto Switching: | Automatically detects SD, HD, or 6G-SDI |
| HDMI Format Support: | UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
| HDMI Color Space: | YUV and RGB |
| HDMI Color Precision: | 4:2:2 4:4:4 |
| HDCP Compliance: | No. HDMI input is unable to capture from copy-protected HDMI sources |
| Format Conversion: | HD down-conversion |
| Settings Control: | Mini switches or USB software |
| Firmware Upgradeable: | Via USB |
| Power Supply: | 12 VDC |
| Power Consumption: | 4.44 W |
| Operational Voltage Range: | 12 to 31 VDC |
| Operating Temperature: | 32 to 104°F / 0 to 40 °C |
| Storage Temperature: | -4 to 113°F / -20 to 45 °C |
| Relative Humidity: | 0 to 90% non-condensing |
