Blackmagic Micro Converter SDI to HDMI 12G
585.00 Excl. VAT
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
Available on backorder
Blackmagic Design Micro Converter SDI to HDMI 12G Overview

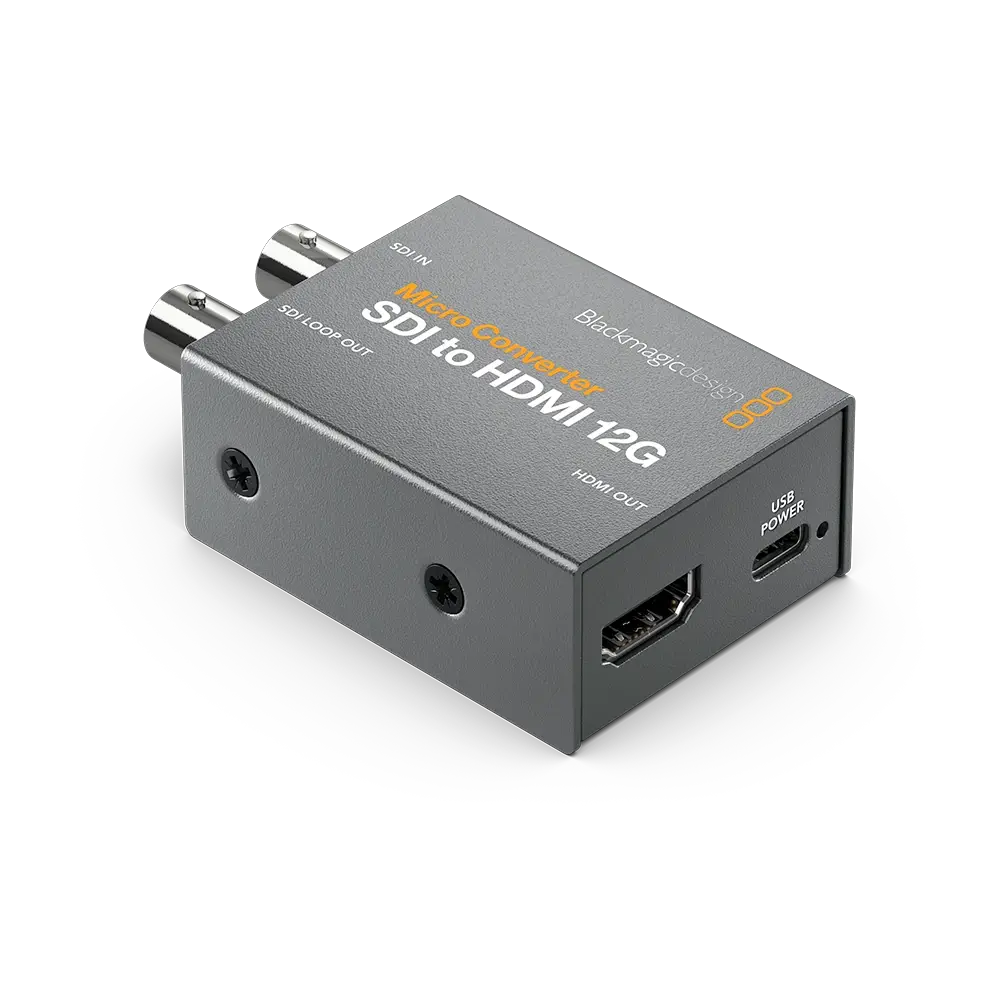

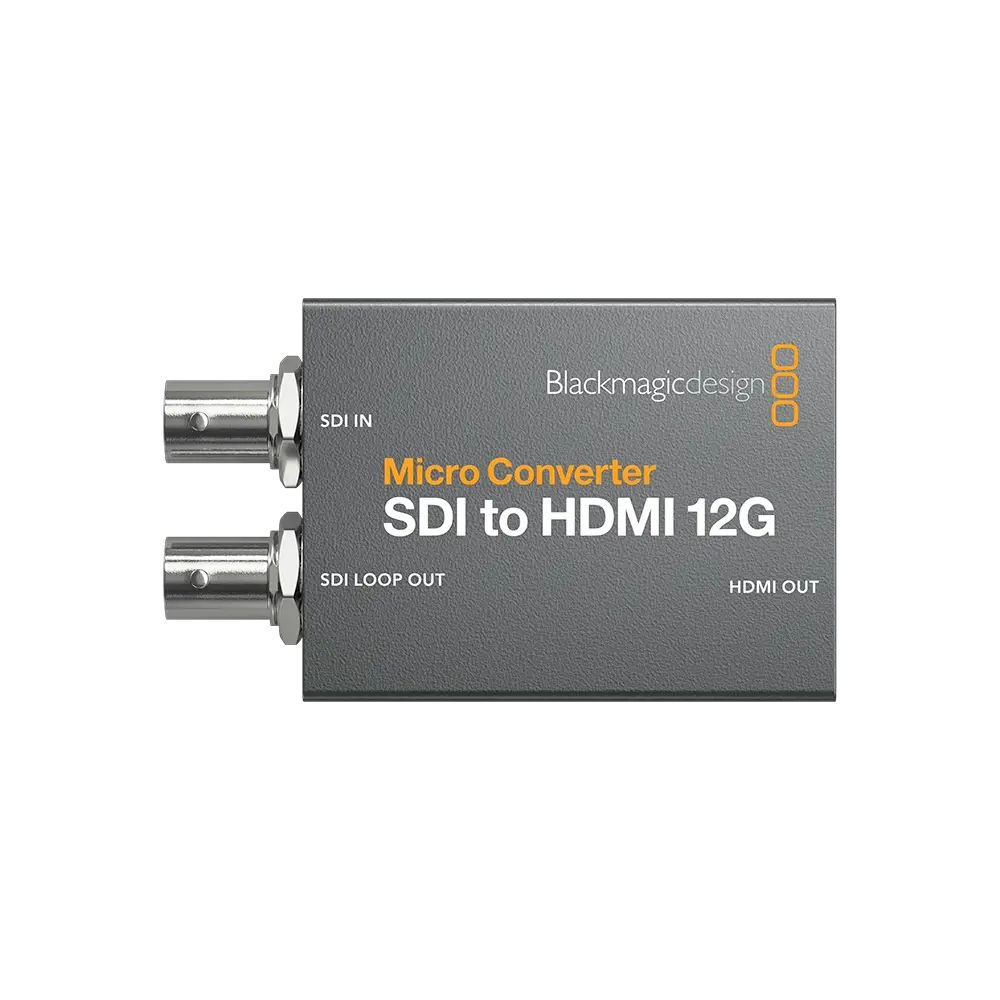

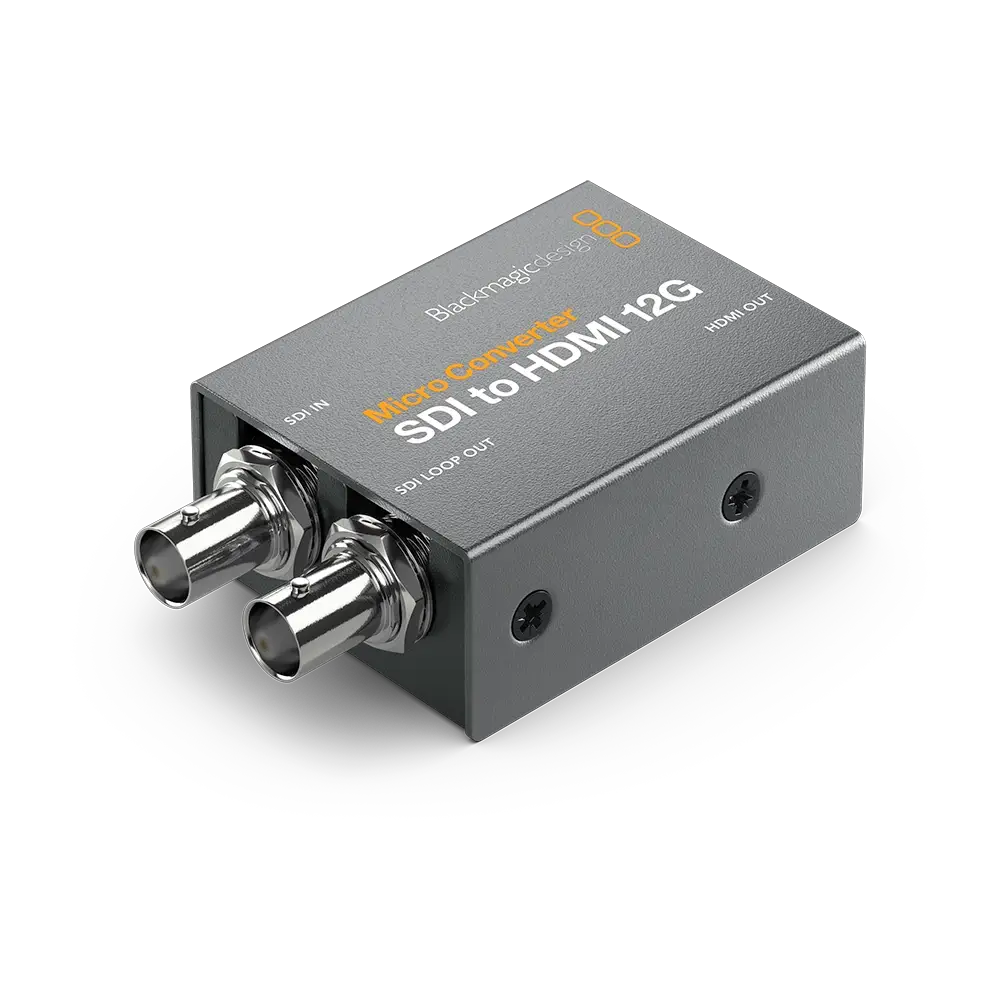

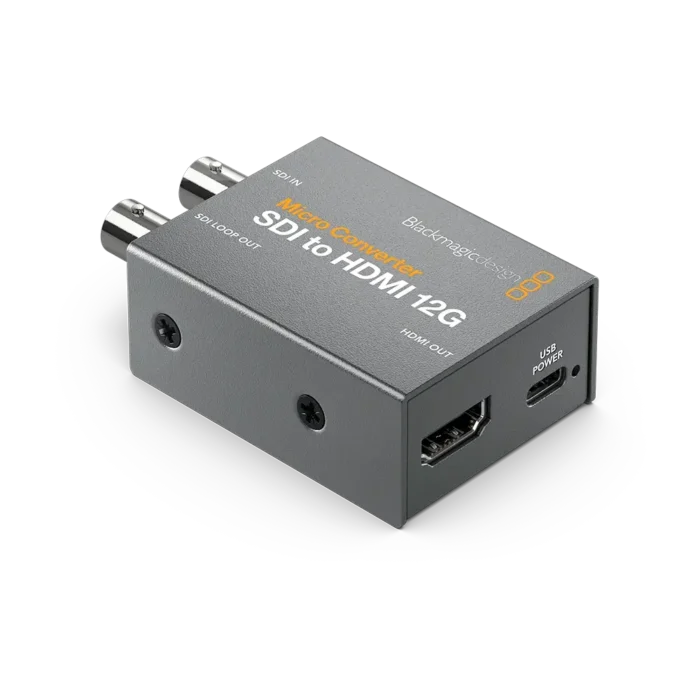

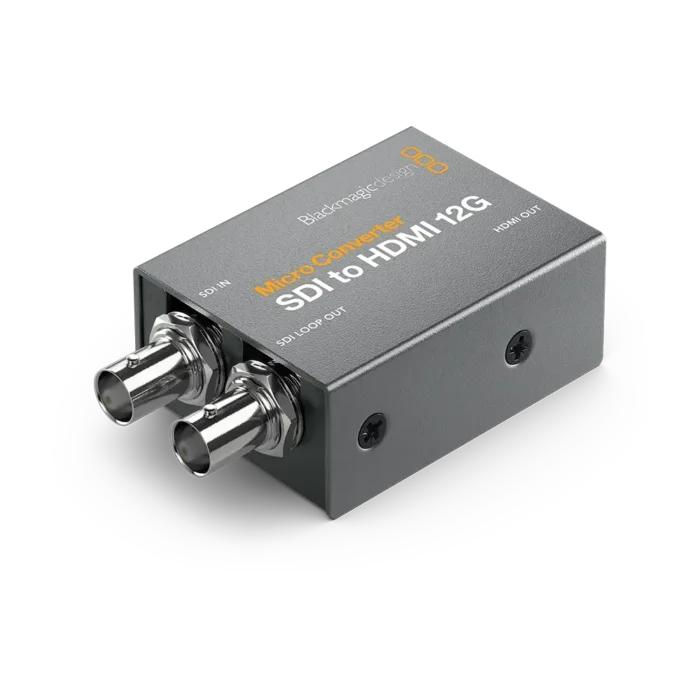

The Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.
The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.
- One 12G-SDI input
- One HDMI output
- One 12G-SDI loop output
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
- Built-in re-clocking on HDMI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
- Supports embedded SDI input and embedded HDMI output
- LED indicators for video and power signals
- Power from a monitor, laptop, or other component using the USB Type-C port
- Powered using a separately available power supply
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
| Weight | 0.165 kg |
|---|---|
| Dimensions | 14.48 × 10.16 × 7.11 cm |
| Video Inputs: | 1x BNC (12G-SDI) Female |
| Audio Inputs: | No |
| Video Outputs: | 1x HDMI (2.0) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Audio Outputs: | No |
| Other I/O: | 1x USB-C Control, Firmware Input |
| Expansion Slots: | No |
| Input Video Format: | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Output Video Format: | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio: | HDMI/SDI |
| Video Standard Compliance: | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
| HDCP Support: | Yes: Version 2.2 |
| HDR Support: | Not Specified by Manufacturer |
| OS Compatibility: | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 |
| Power I/O: | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption: | Device: 4 W |
| Operating Temperature: | 32 to 72°F / 0 to 40°C |
| Storage Temperature: | -4 to 140°F / -20 to 60°C |
| Operating Humidity: | 0 to 90% |
