Blackmagic Mini Converter – Audio to SDI 2
1,012.00 Excl. VAT
- Embed Audio into up to 1080p SDI Signals
- Four 1/4″ Audio Input Jacks
- Supports 4 Channels of Analog Audio
- Supports 8 Channels of AES/EBU Audio
- Redundant SDI Backup Input
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Description

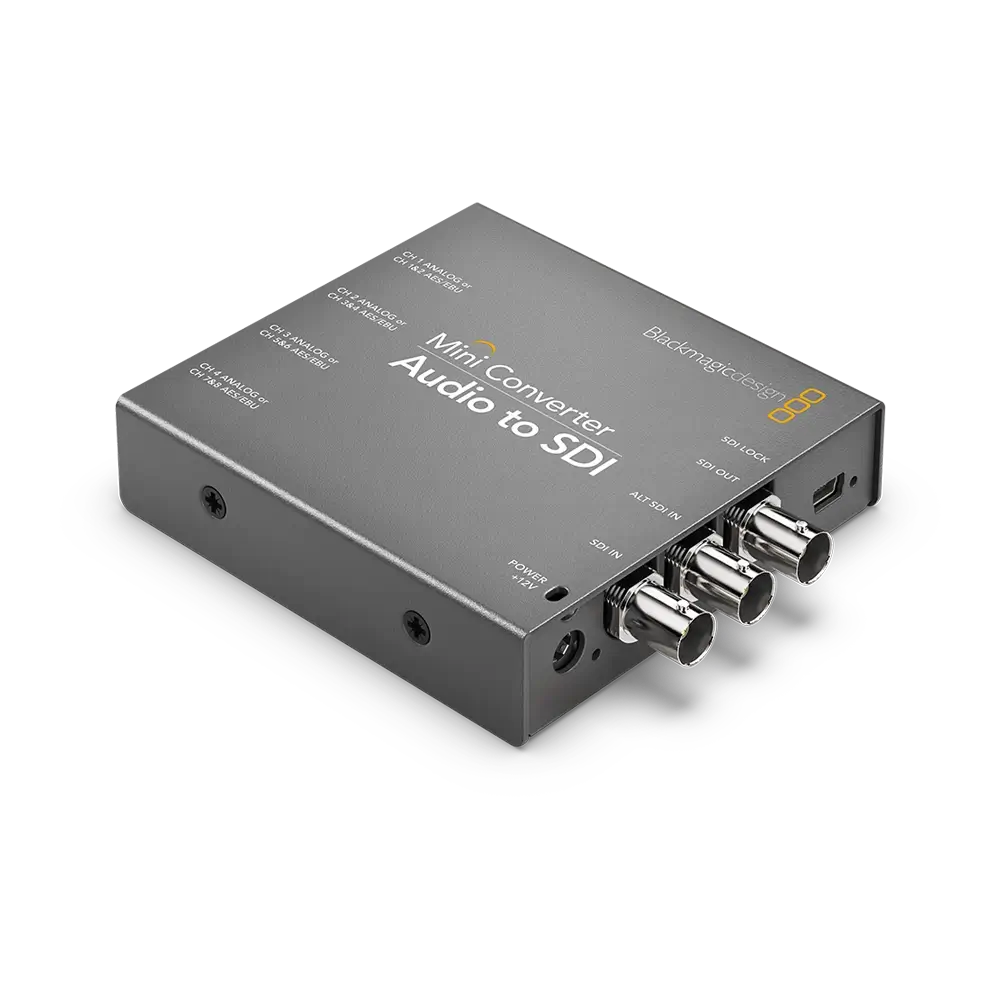

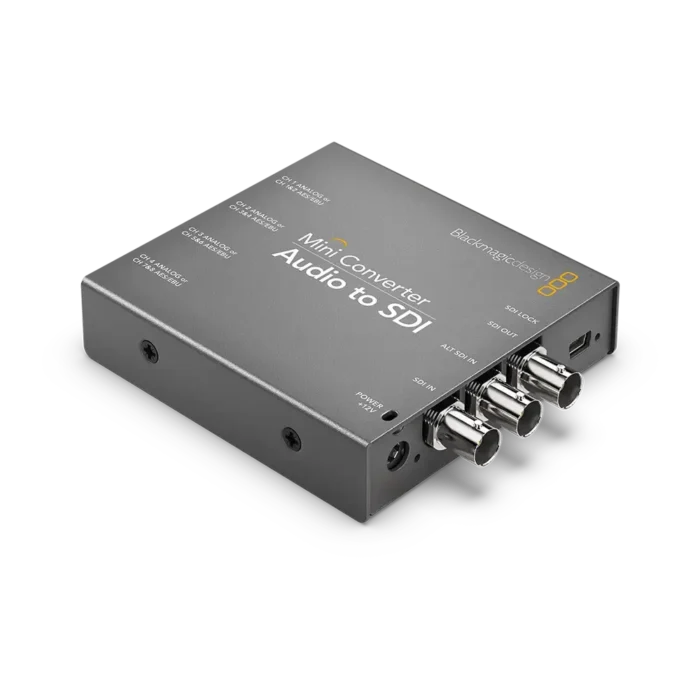

Blackmagic Design Mini Converter – Audio to SDI 2 Overview

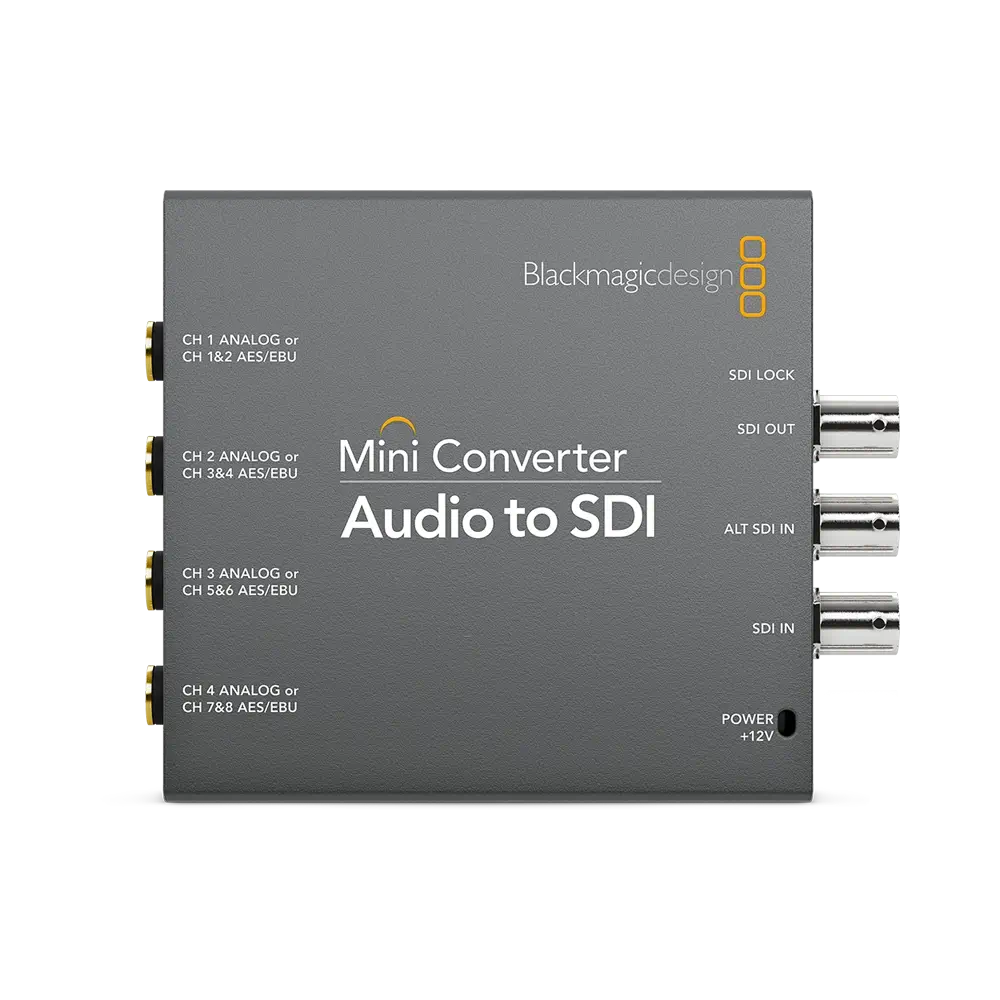

Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4″ jacks.
In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.
Additional information
| Weight | 0.48 kg |
|---|---|
| Dimensions | 14.73 × 14.73 × 6.86 cm |
| SDI Input: | 1 x SDI on BNC (switchable between 3G/HD/SD) 1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost) |
| Audio Inputs: | 4 x 1/4″ jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio |
| SDI Output: | 1 x SDI on BNC (switchable between 3G/HD/SD) |
| Updates and Configuration: | Via USB 2.0 high-speed (480 Mb/s) |
| Reclocking: | Yes |
| SDI Compliance: | SMPTE 292M/259M/296M/372M/424M-B/425M ITU-R BT.656/BT.601 |
| SDI Video Rates: | SDI video connections are switchable between HD and SD |
| SDI Video Sampling: | 4:2:2, 4:4:4 |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit: |
| SDI Color Precision: | 4:2:2, 4:4:4: |
| SDI Color Space: | YUV, RGB |
| SDI Auto Switching: | Automatically selects between 3G/HD/SD |
| SDI Format Support: | 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 525i: 59.94 NTSC 625i: 50 PAL |
| 2K Format Support: | 2K DCI 25p/24p/23.98p 2K DCI 25PsF/24PsF/23.98PsF |
| Software Control: | Mac OS X and Windows software upgrade via USB |
| Internal Software Upgrade: | Via included updater application |
| Operating System: | Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10 |

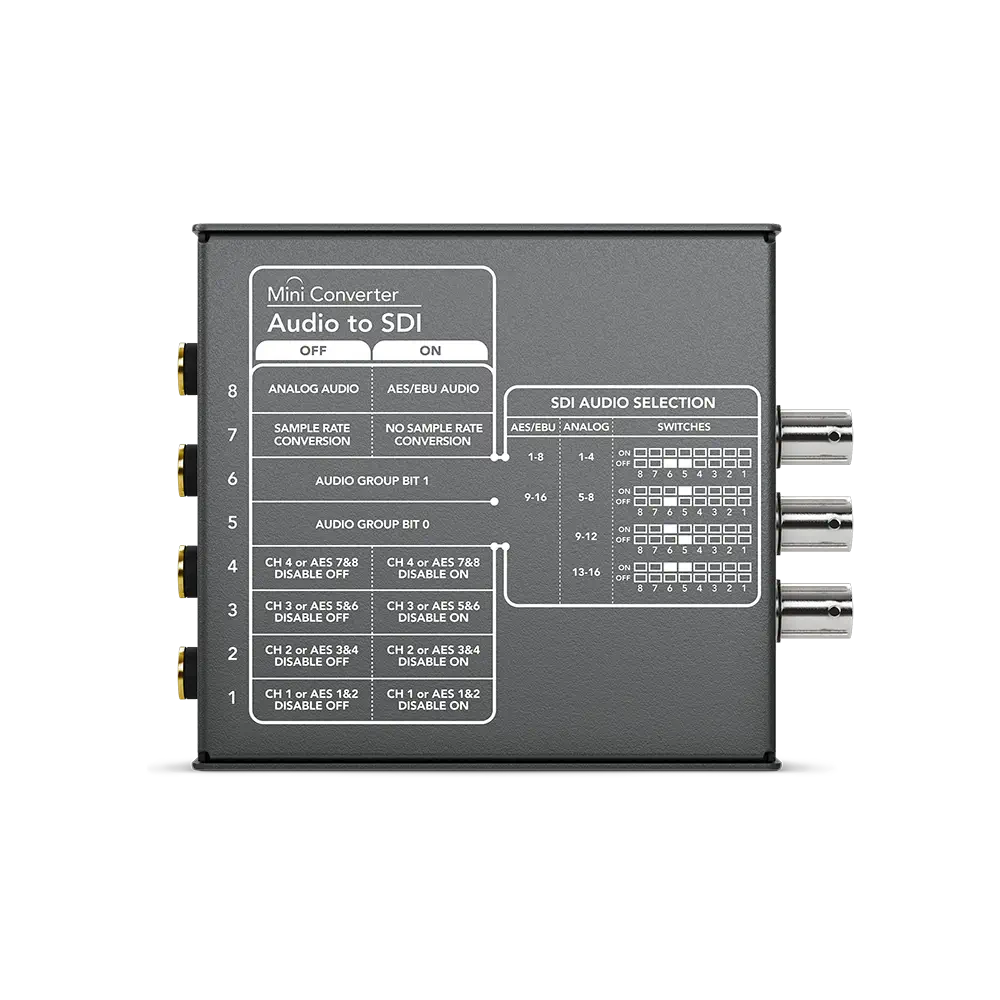

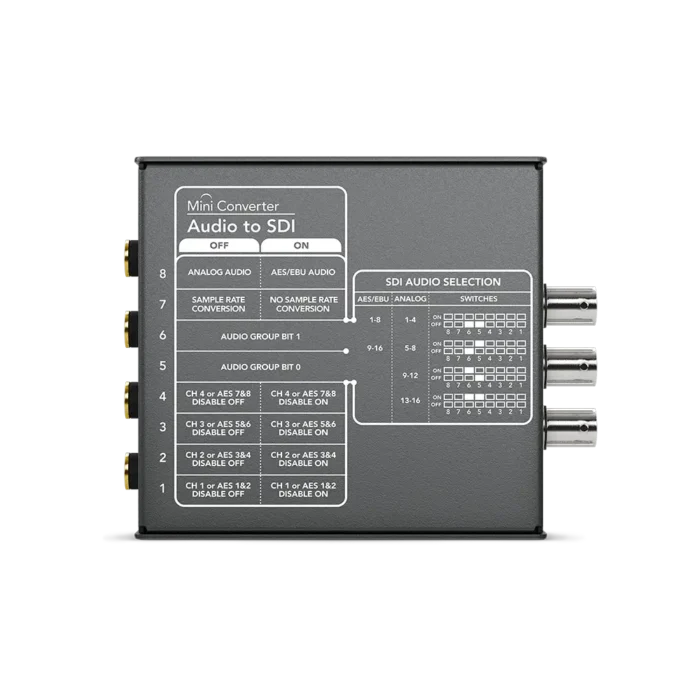

| Settings Control: | Mini switches or USB software |
| Power Supply: | +12 CF9V universal power supply included, with international socket adapters for all countries and cable tie point |
| Power Consumption: | 8.4 W |
| Operational Voltage Range: | 12 VDC |
| Operating Temperature: | 32 to 104°F / 0 to 40°C |
| Storage Temperature: | -4 to 113°F / -20 to 45°C |
| Relative Humidity: | 0 to 90% non-condensing |
