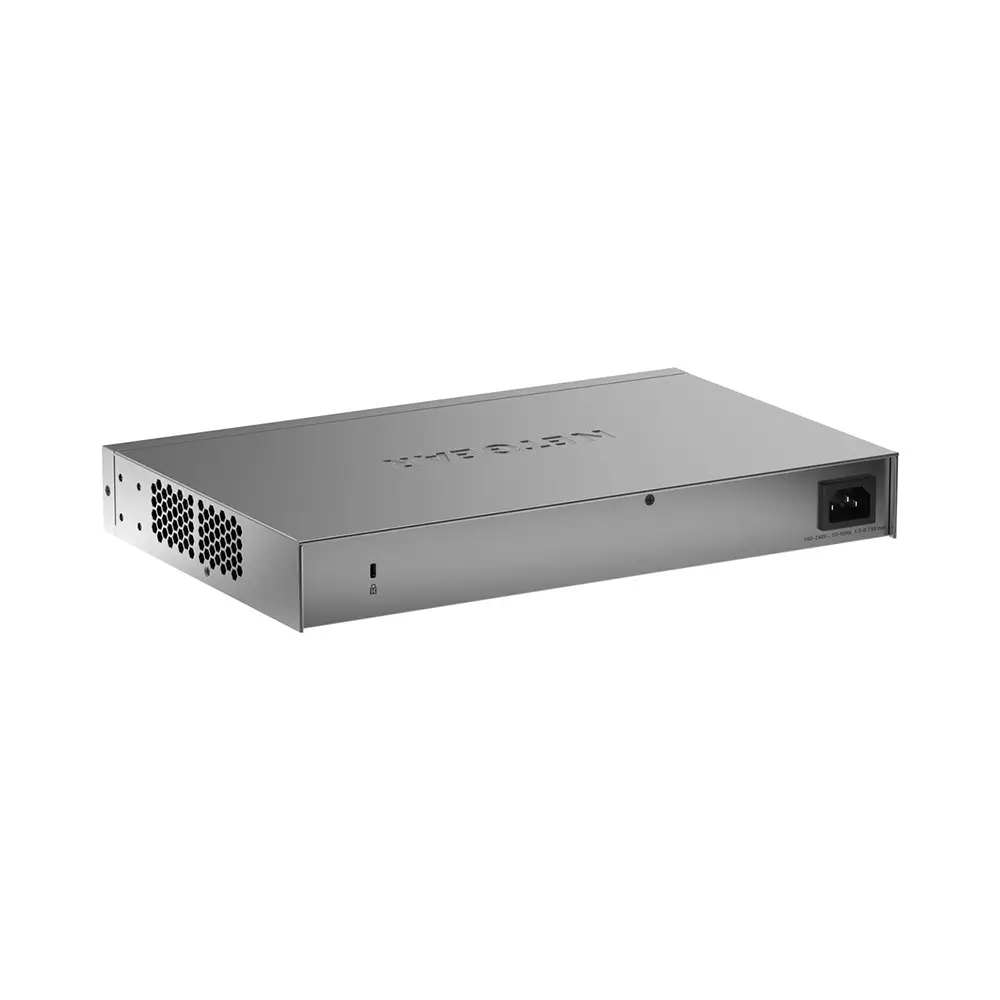

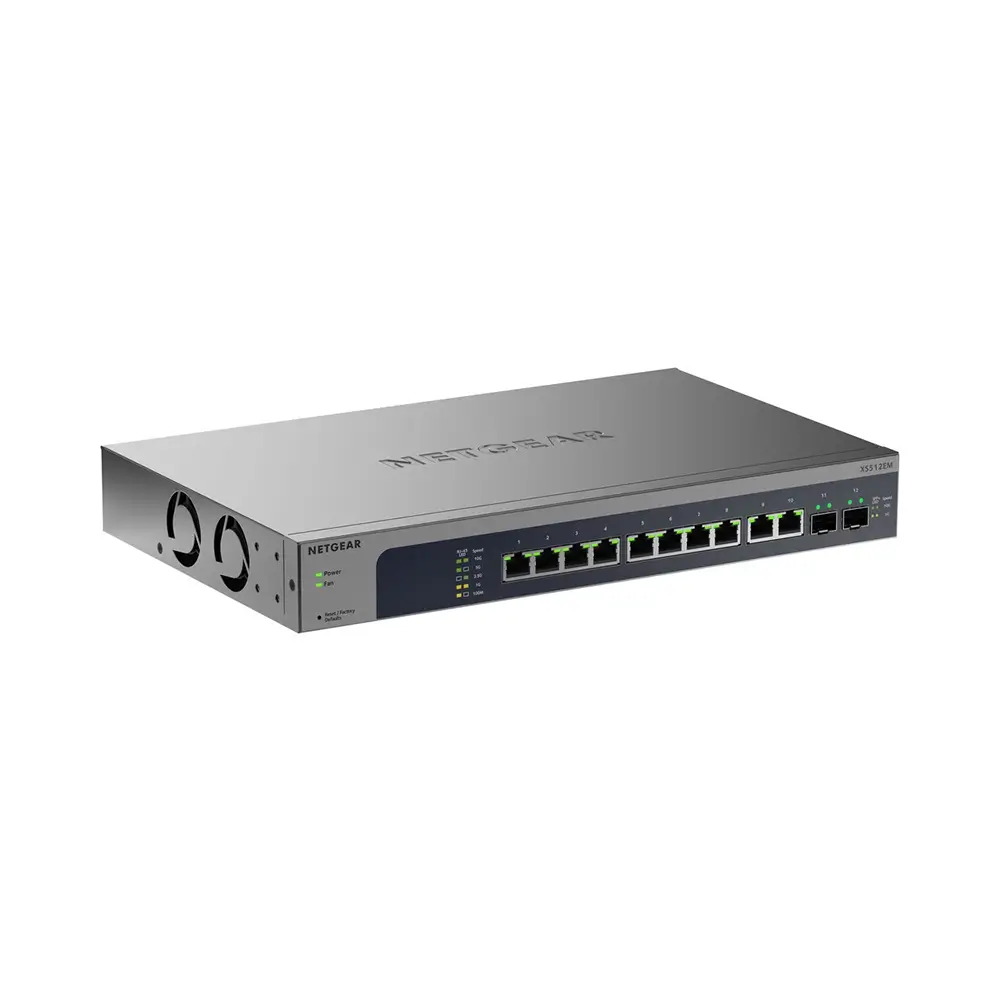

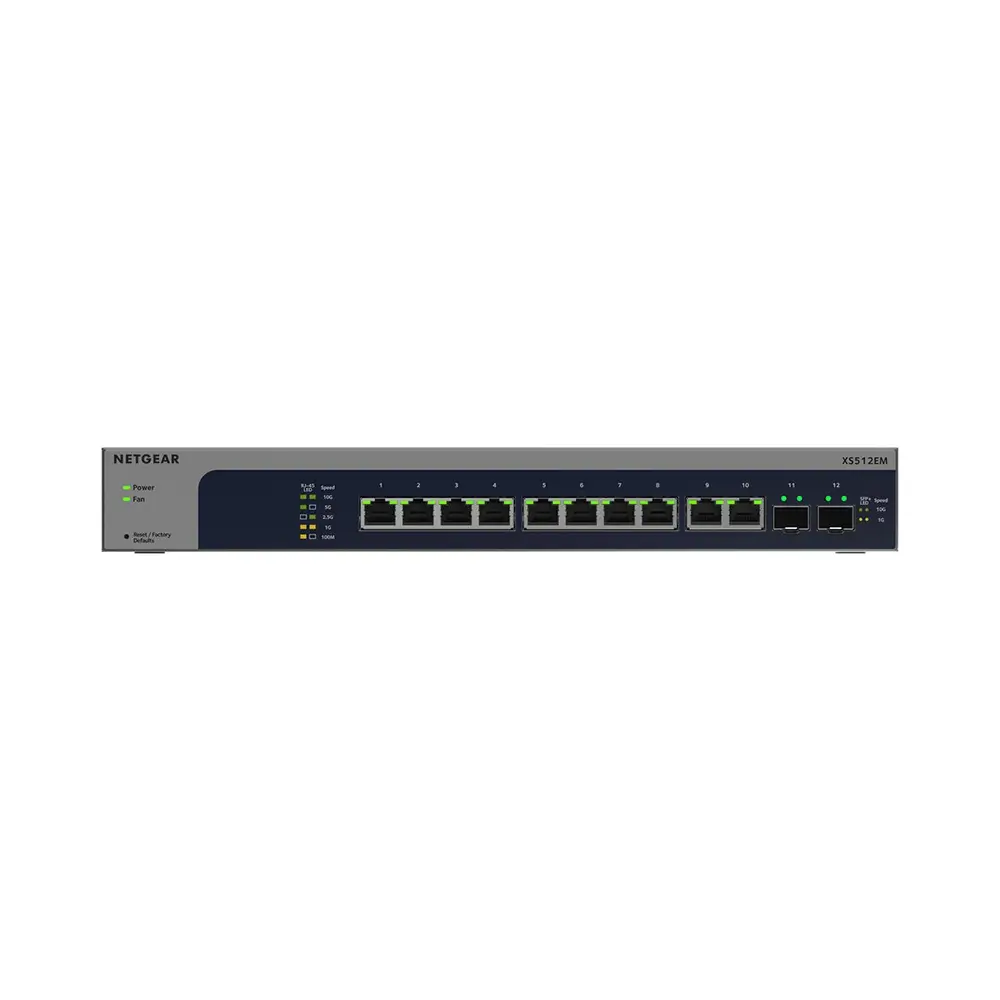

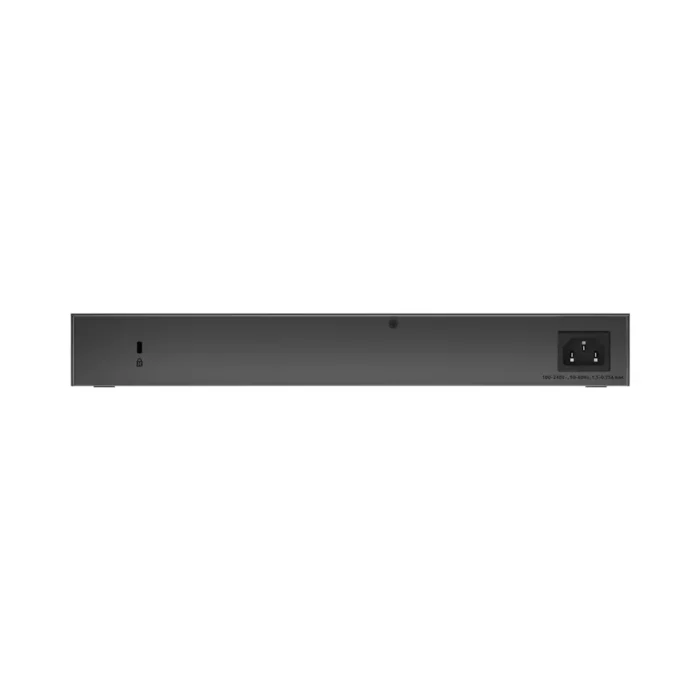

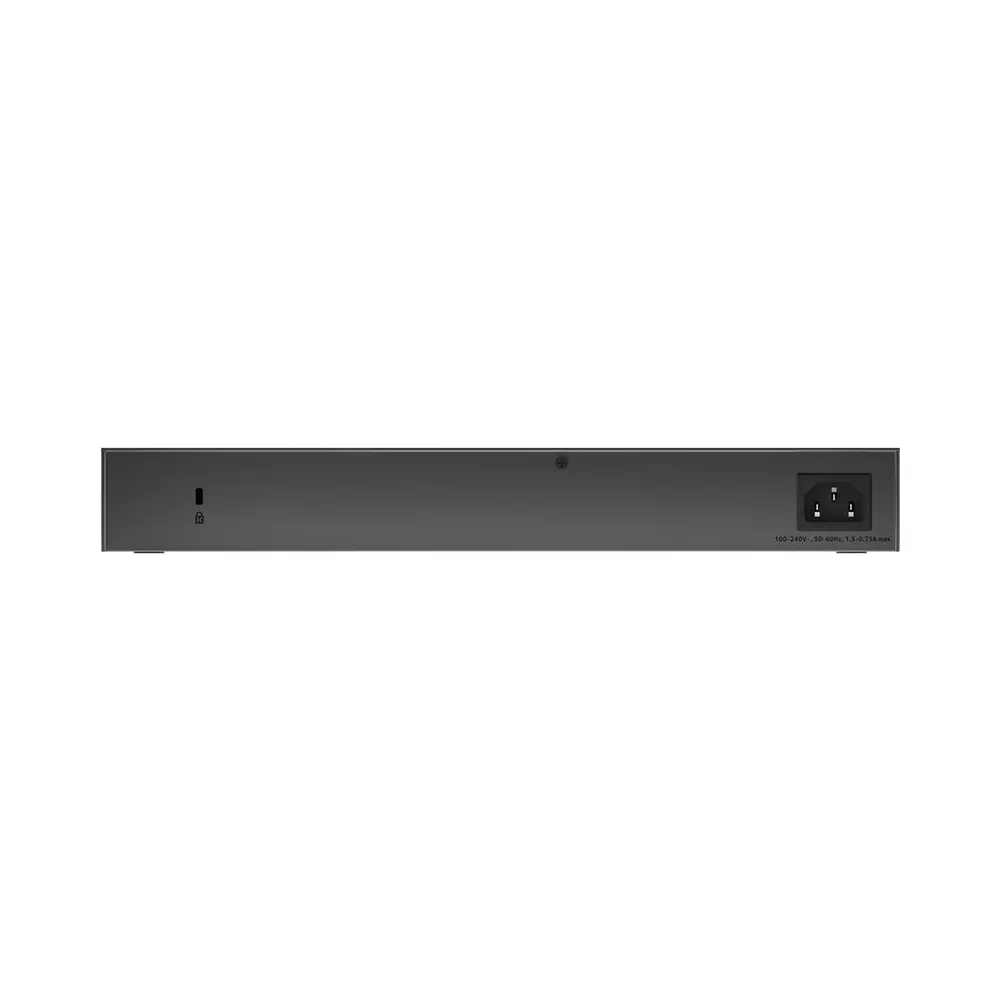

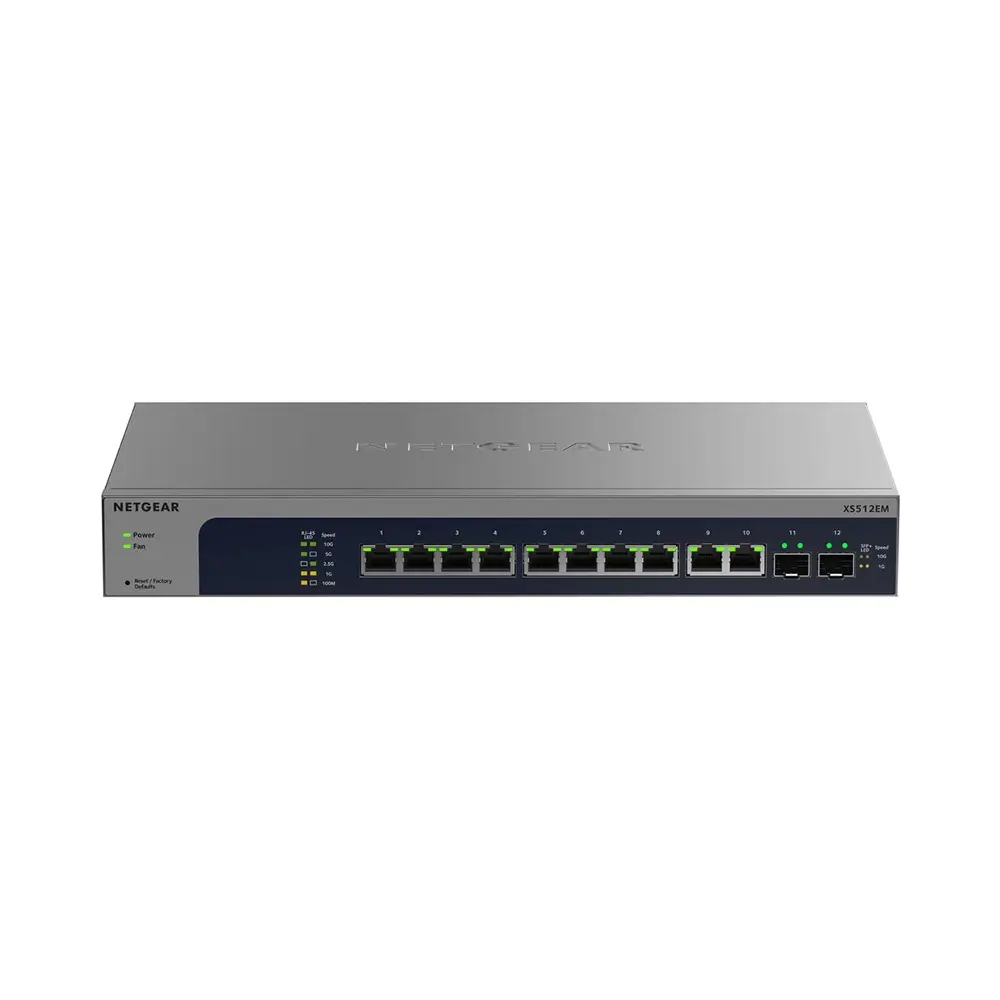

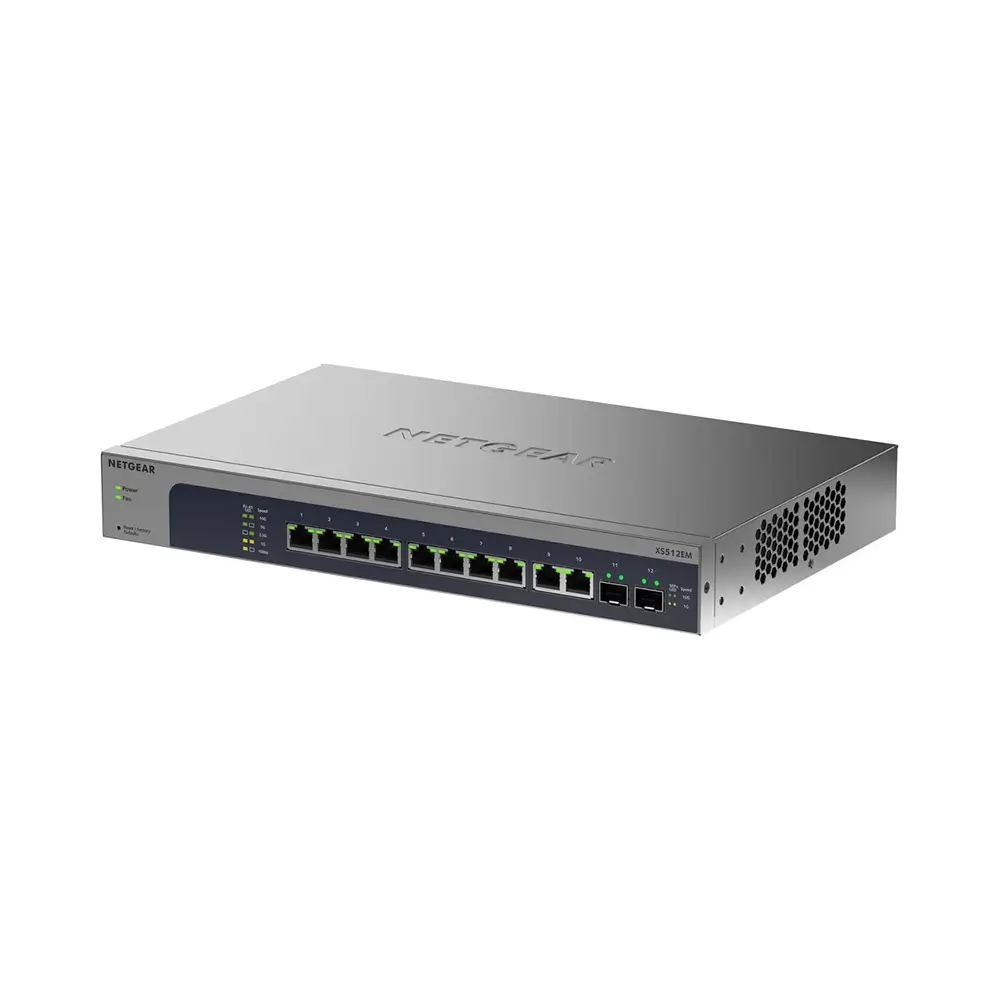

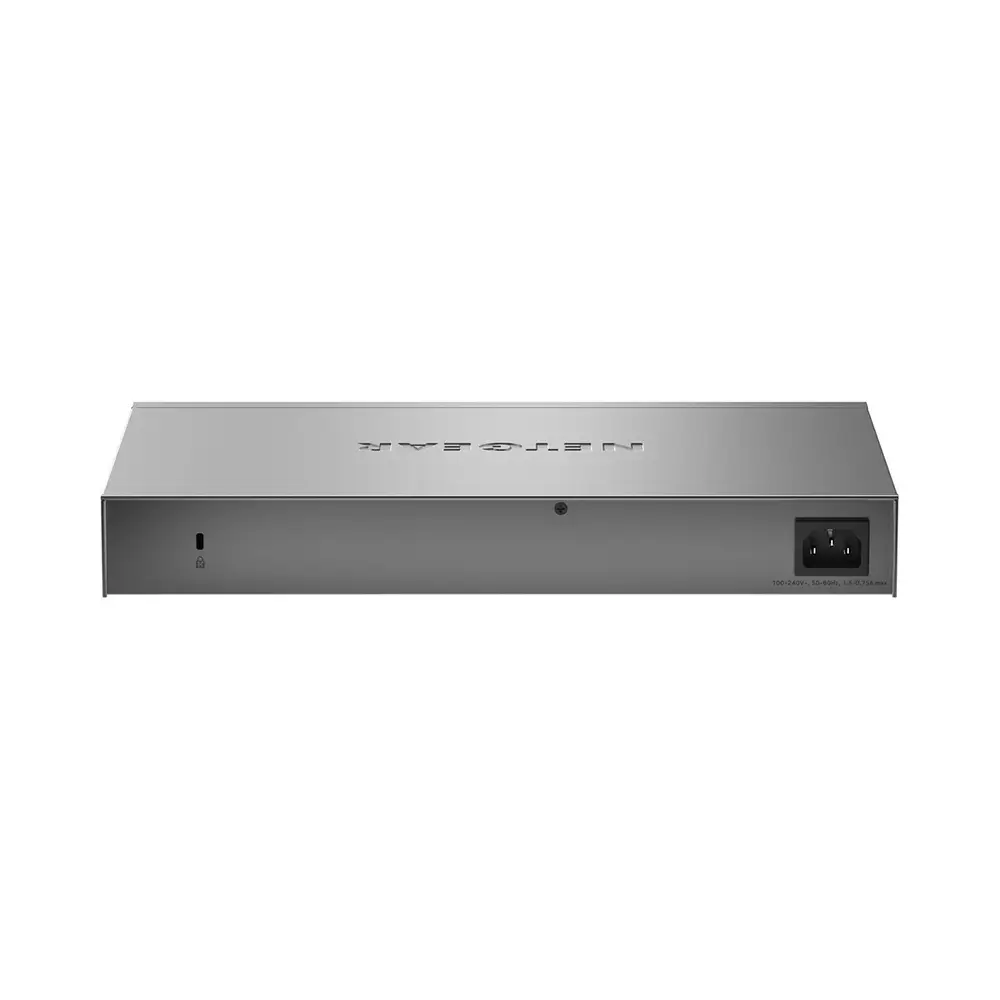

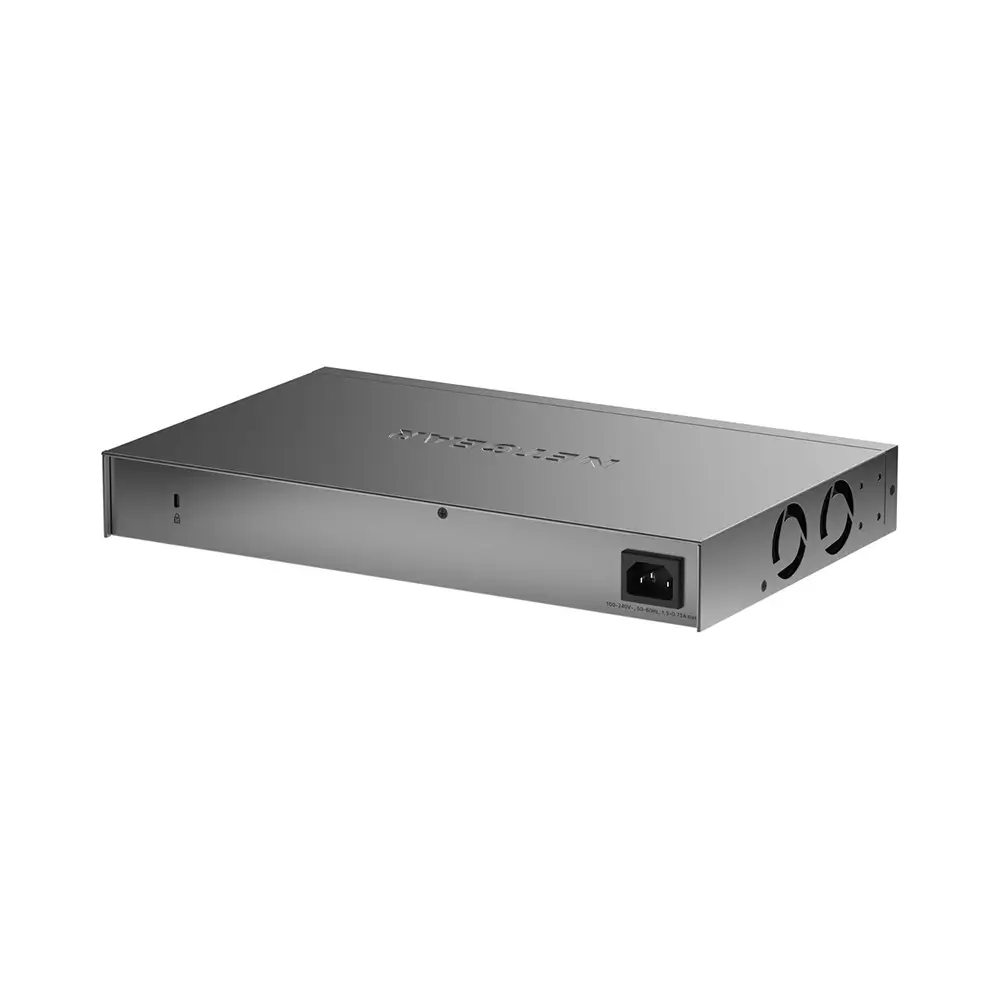

NETGEAR XS512EMv2 – 12PT 10G/MULTI-GIG EASY Smart Switch
- 10 x 10G RJ45 Ethernet Ports
- 2 x 10G SFP+ Ports
- 240 Gb/s Switching Capacity
- 178.6 Mpps Forwarding Rate
- Rack Mountable Design
- Fan Cooling
- Layer 2 Features
- Web-Based Management
Description
Expand your business with high-bandwidth devices by integrating the Netgear XS512EMv2 10-Port 10G Managed Network Switch. Supporting Layer 2 features, this rack mountable managed network switch features ten 10G RJ45 Ethernet ports.
There are also two SFP+ ports available for up to 10 Gb/s fiber uplinks. With a 240 Gb/s switching capacity and 178.6 Mpps forwarding rate, this switch is ready for applications such as video streaming and multicast traffic.
It also protects your network from threats, including Denial of Service (DoS) attacks. You can configure, manage, and monitor your network with the web-based interface.
- Port-Based and 802.1Q-Based VLANs
- Segment network into smaller groups for more secure and efficient use of network resources.
- Comprehensive QoS Features
- Port-based or 802.1p-based prioritization
- Layer 3-based (DSCP) prioritization
- Port-based ingress and egress rate limiting
- IGMP Snooping
- Improved network efficiency on delivering multicast traffic.
- Link Aggregation (Static LAG and LACP)
- Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s) using Static Manual LAGs or LACP.
- Voice VLAN
- Enables automatic assignment of voice traffic (based on OUI) to a special VLAN (AKA Voice VLAN), allowing the assignment of special QoS parameters to that traffic for high priority services. Ports must be MANUALLY configured as members of the Voice VLAN before the automatic OUI-based voice traffic assignment.
- Loop detection and Auto DoS Prevention
- Detect accidental network loops and protect against DoS attacks.
- Port Mirroring
- Better and quicker network diagnostics and troubleshooting.
- Cable Test
- Easily identify bad Ethernet cables.
Additional information
| Weight | 3.45 kg |
|---|---|
| Dimensions | 40.89 × 35.05 × 10.67 cm |
| Speed | 1G/2.5G/5G/10G |
| Number of Ports | 100M/1G/2.5G/5G/10G RJ-45 Copper Ports: 10 SFP+ Ports: 2(supports 2 x 10G copper modules) |
| Other | Form Fakt?r?: Masa?st?/Raf tipi Bant Geni?li?i: 240 Gbps MAC Table Size:32K Packet Buffer Size: 2MB IEEE 802.1p QoS: Yes |
| VLAN | VLAN (Number of Designated): 64 LAG Count and Member Count: Up to 6 LAGs, up to 8 members per LAG Designated Multicast Groups:256 |
| Power: | Designated Multicast Groups:256 Maximum Power Consumption: 60W Energy Efficient Ethernet Support (IEEE 802.3az):Yes Fanlar: 2 Acoustic Noise Level @ 25?C:28.2 dBA LEDs: Power, Speed, Fan, Link/Activity Operating Temperature: 0-50?C |
