NETGEAR PR60X – 10G/Multi-Gigabit Dual WAN Pro Router w/Insight Cloud Management
- 1 x 10G RJ45 Ethernet LAN/WAN Port
- 3 x 2.5G RJ45 Ethernet LAN Ports
- 1 x 2.5G RJ45 Ethernet WAN Port
- 1 x 10G SFP+ Port
- Rack Mountable
- IPSec Site-to-Site VPN
- Up to 32 VLAN Support
- Up to 32 DHCP Servers
- SPI Firewall
- Netgear Insight Remote Cloud Management
SPI Firewall
NETGEAR Insight Remote Cloud Management
Designed for residential and commercial applications, the Netgear PR60X 6-Port 10G / 2.5G Dual-WAN Pro Router offers fast, secure, and reliable connectivity with remote management. With a 10 Gb/s Ethernet LAN/WAN port alongside a 2.5G WAN port, you have high-speed connectivity and failover support. There are also three 2.5G LAN ports in addition to an SFP+ port for up to 10 Gb/s fiber uplinks.

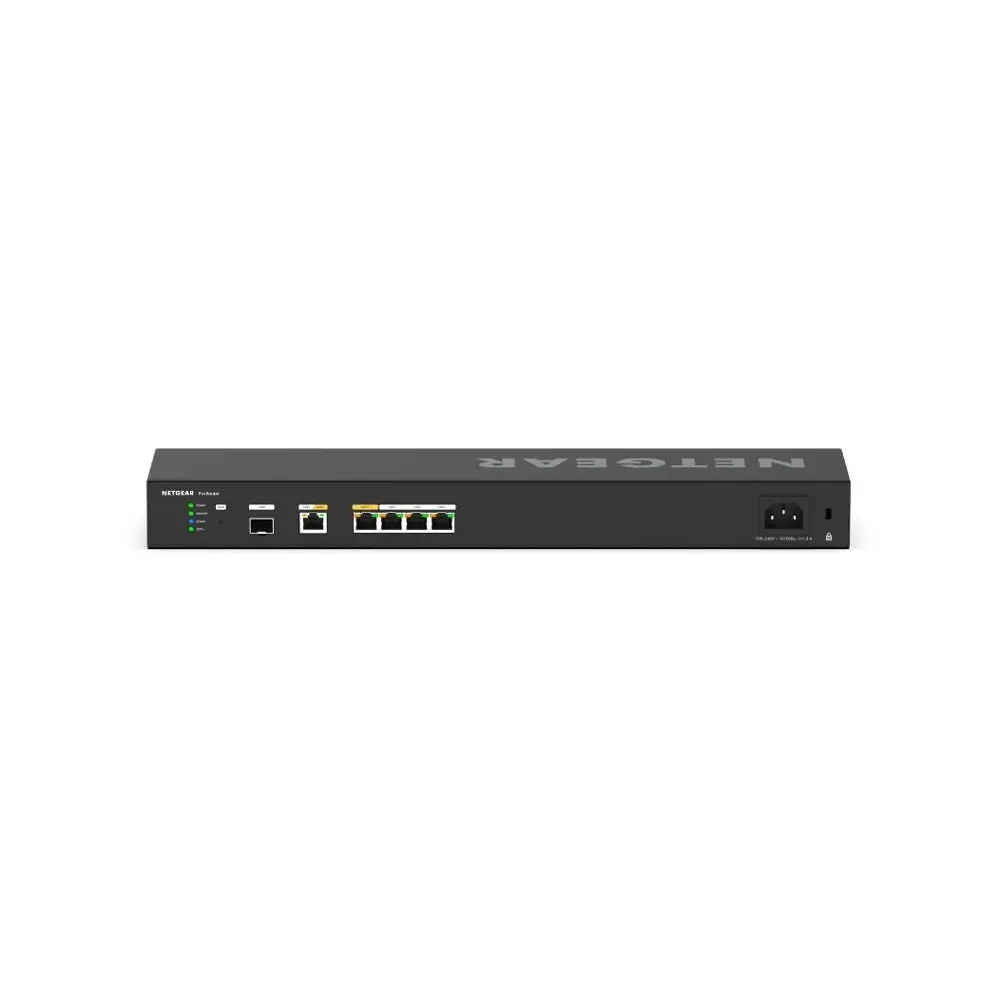

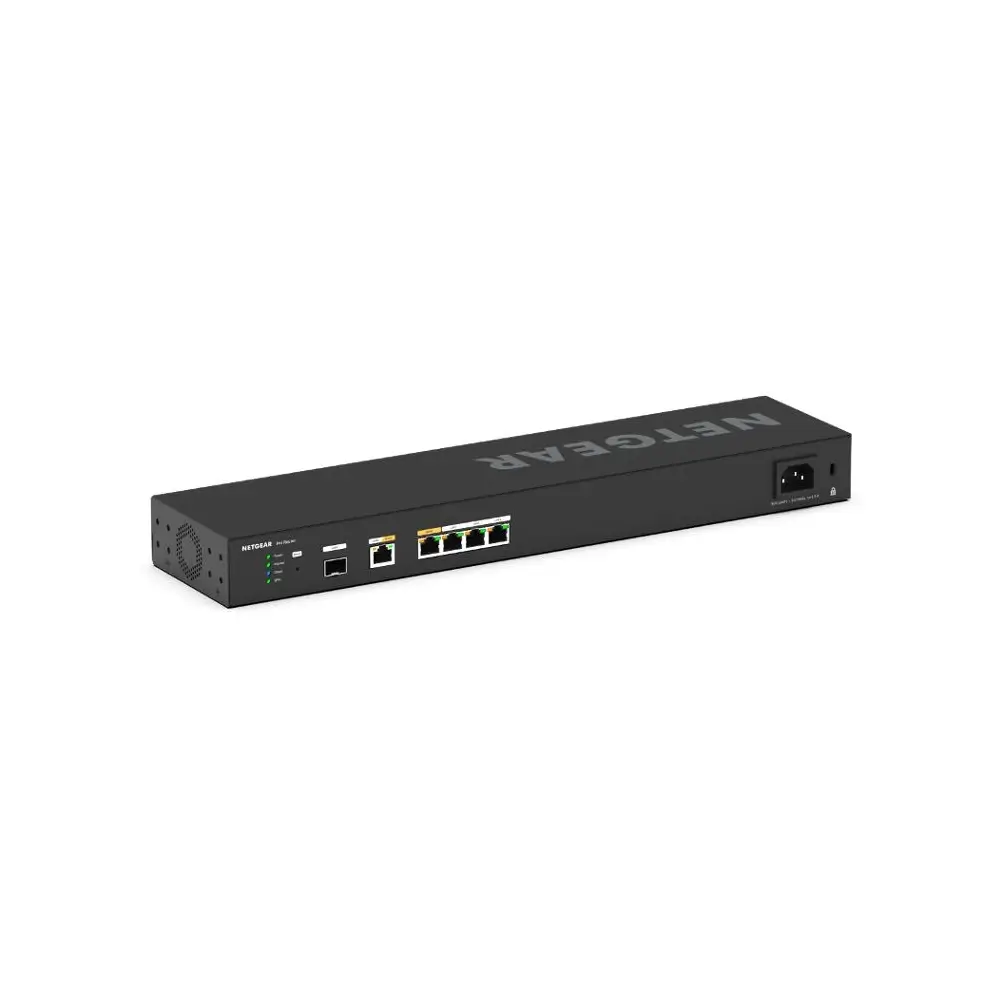

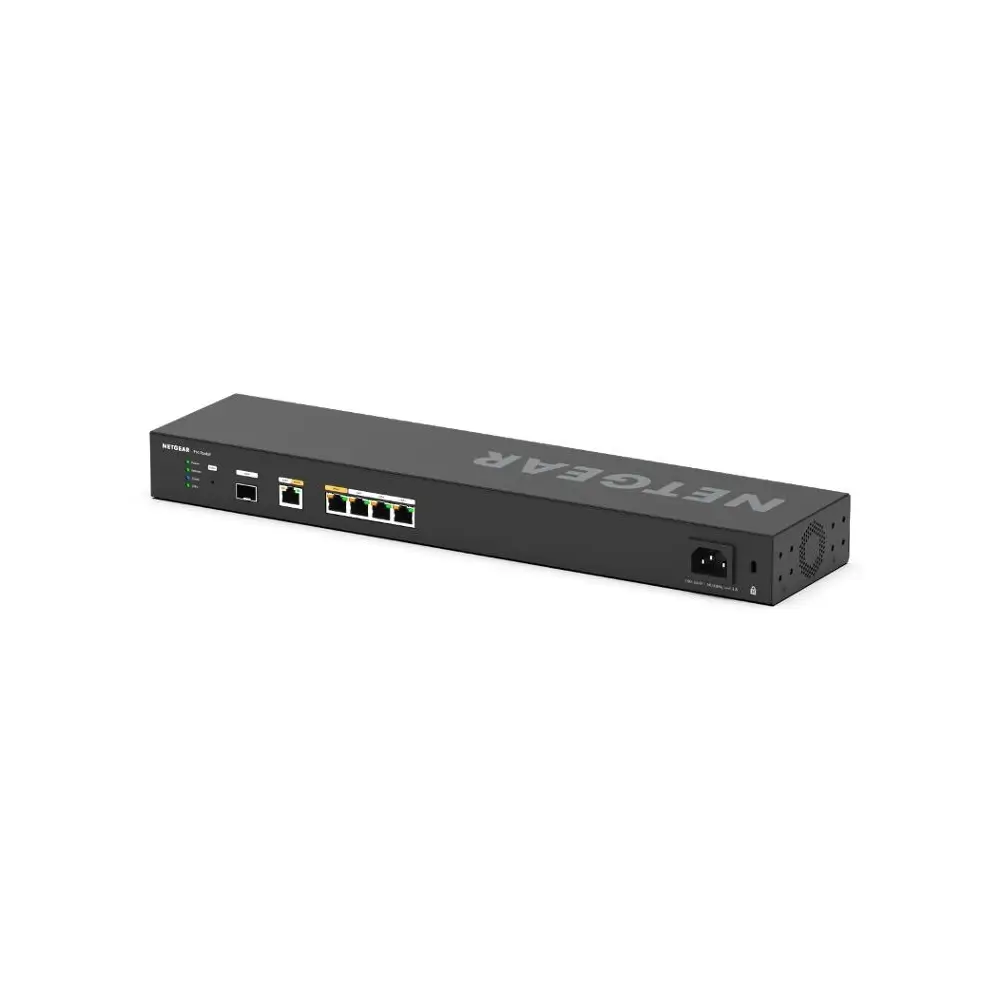

All ports are located on the rear panel, but the PR60X is designed with the option to be installed onto your rack in reverse using the included kit. IPSec site-to-site VPN support allows you to connect networks across multiple locations. Configure up to 32 VLANs to separate groups. You can also simplify your network administration with up to 32 DHCP servers that automatically assign IP addresses.
A 1-year subscription to Insight Remote Cloud Management is included.
Remote Management
The NETGEAR Insight Remote Management platform offers visibility and access to the routing features from a single pane of glass. Register, configure, manage, and monitor your router with just a few taps from your Insight mobile App or web portal. A 1-year subscription is included.
WAN-to-LAN Throughput
- WAN2 Port: 10 Gb/s max WAN with 17.5 Gb/s max LAN
- WAN1 Port Only: 2.5 Gb/s max WAN with 27.5 Gb/s max LAN
Multiple VLANs
Separate the network into smaller groups for more secure and efficient use of network resources.
DHCP Servers
Allows for automatic assignment of IP addresses, simplifying network administration.
Firewall Protection
Prevents unauthorized access to the network and monitors the communications between the network and the outside world
Versatile Rackmount Design
Reverse mounting rack ears included for front-facing or rear-facing ports as desired for a clean or traditional look.
IPSec Site-to-Site VPN
Provides up to 30 VPN tunnels for secure multi-site connections.
| Weight | 2.23 kg |
|---|---|
| Dimensions | 48.26 × 19.81 × 9.91 cm |
| Connection Points | Gigabit Ports WAN/LAN: 1 Pieces 10G/Multi-Gigabit Copper (configurable as LAN/WAN) 1 Pieces 2.5G/1G RJ-45 (WAN) 3 Pieces 2.5G/1G RJ-45 (LAN) 1 Pieces 10G/1G SFP+ (LAN) DMZ Interfaces (Configurable): Yes Dual WAN Failover: Yes Dual WAN Load Balancing: Yes |
| Performance | LAN-to-WAN Veri Ak?? Speed?: 2.5G WAN port i?in: 2.4 Gbps 10G WAN port i?in: 9.4 Gbps Maximum VLAN Say?s?: 32 E? Zamanl? BNetworklant? Limiti: 60.000 E? Zamanl? ?stemci Limiti: 2.000 |
| G?venlik | Firewall Functions: Firewall traffic rules/scheduling, port forwarding, port triggering, stateful packet inspection (SPI), port/service blocking, denial-of-service (DoS) prevention, stealth mode, TCP flood protection, UDP flood protection, respond to ping on the Internet port VoIP SIP ALG:Yes |
| Network | ISP Address Assignment: DHCP, Static IP assignment, PPPoE NAT Modes: NAT Routing: Static, Dynamic, RIPv1, RIPv2 DHCP Server: 32 Concurrent Clients: 2, 000 Concurrent Connections: 60, 000 VLANs (up to 32): 802.1Q Basic Network Features: MAC address cloning/spoofing, NTP support, UPnP, automatic port forwarding on switch ports QoS: Intelligent queue management mDNS Gateway: Yes Concurrent Clients: Yes Link Aggregation (LAG): Yes LLDP: Yes |
| VPN: | Maximum VPN Throughput: Site-to-Site: 2.5G WAN with 4,42 Gbps; 10G WAN with 8,92 Gbps Client-to-Site:500 Mbps Protocols: IPSec Site-to-Site, IPSec Client-to-Site, OpenVPN Client-to-Site, WireGuard IPsec Encryption/Authentication: 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256 bit), MD5 Key Exchange:IKEv1, IKEv2, shared key Access Modes: Remote access via Insight cloud-based management |
| management: | Management Options: Insight Remote Cloud Management Logging: Accepted packets, dropped packet statistics, system logs, source MAC filtering, session limit, bandwidth limit, IPsec VPN logs Log Delivery: Insight log reporting Troubleshooting Diagnostics: Ping, DNS lookup, traceroute, speed test Maintenance: Save/restore configuration, factory reset, firmware upgrades, view and monitor statistics |
| Hardware: | Processor: Quad-core ARM A73 @ 2.2 GHz; Packet Processing Engine (PPE) processor Flash Memory / RAM: 2 GB DDR4 / 4 GB eMMC Key Regulatory Compliance: Environmental: RoHS Safety: CE/LVD, CSA EMI: FCC Part 15 Class B, CE marking |
| Power: | AC Input port: 100-240V, 50/60Hz, 1.3A |
