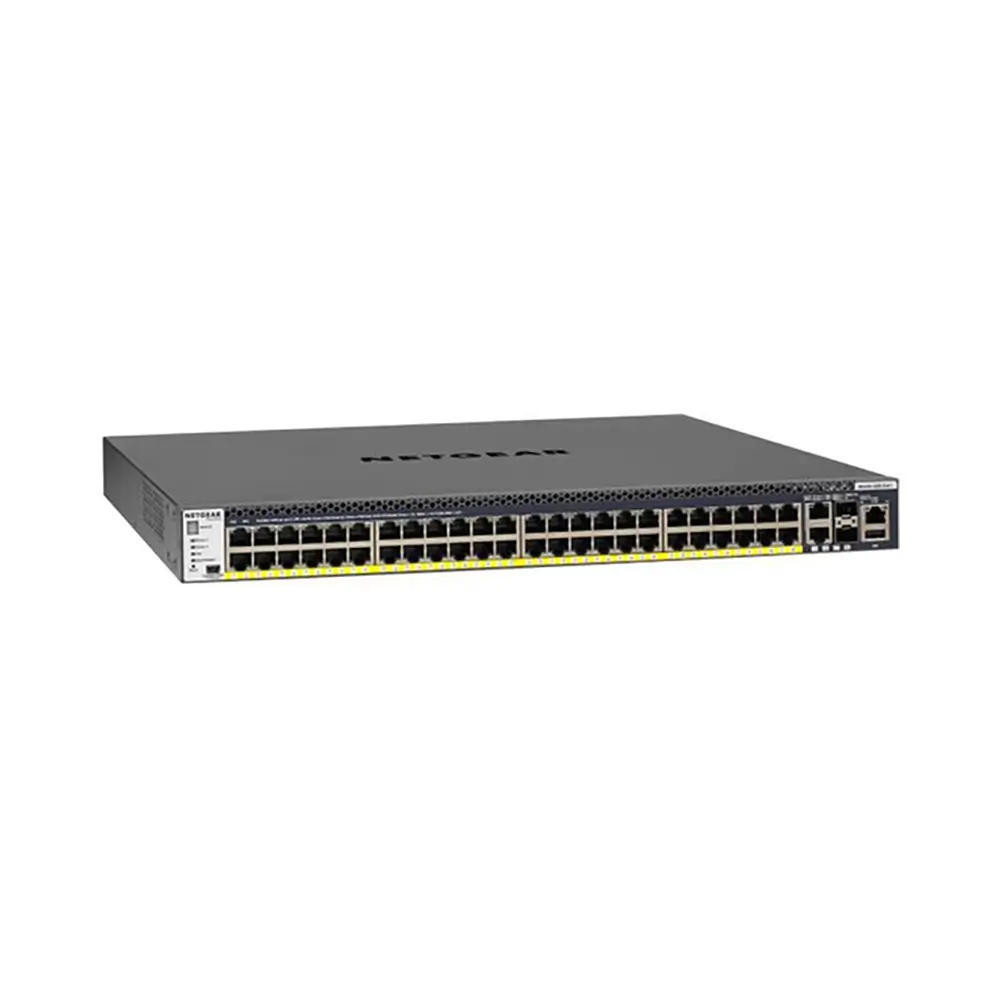

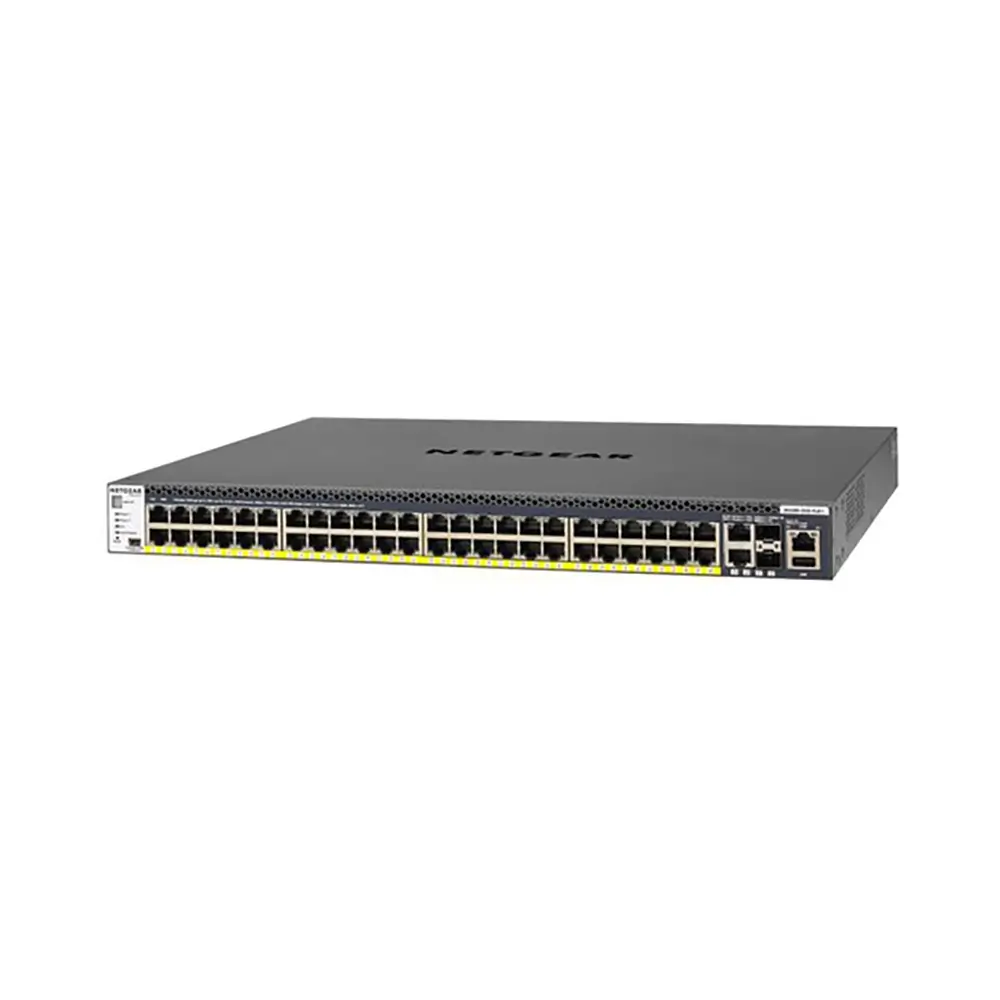

NETGEAR M4300-52G-PoE+ 48-Port Gigabit PoE+ Compliant Managed Network Switch with SFP+

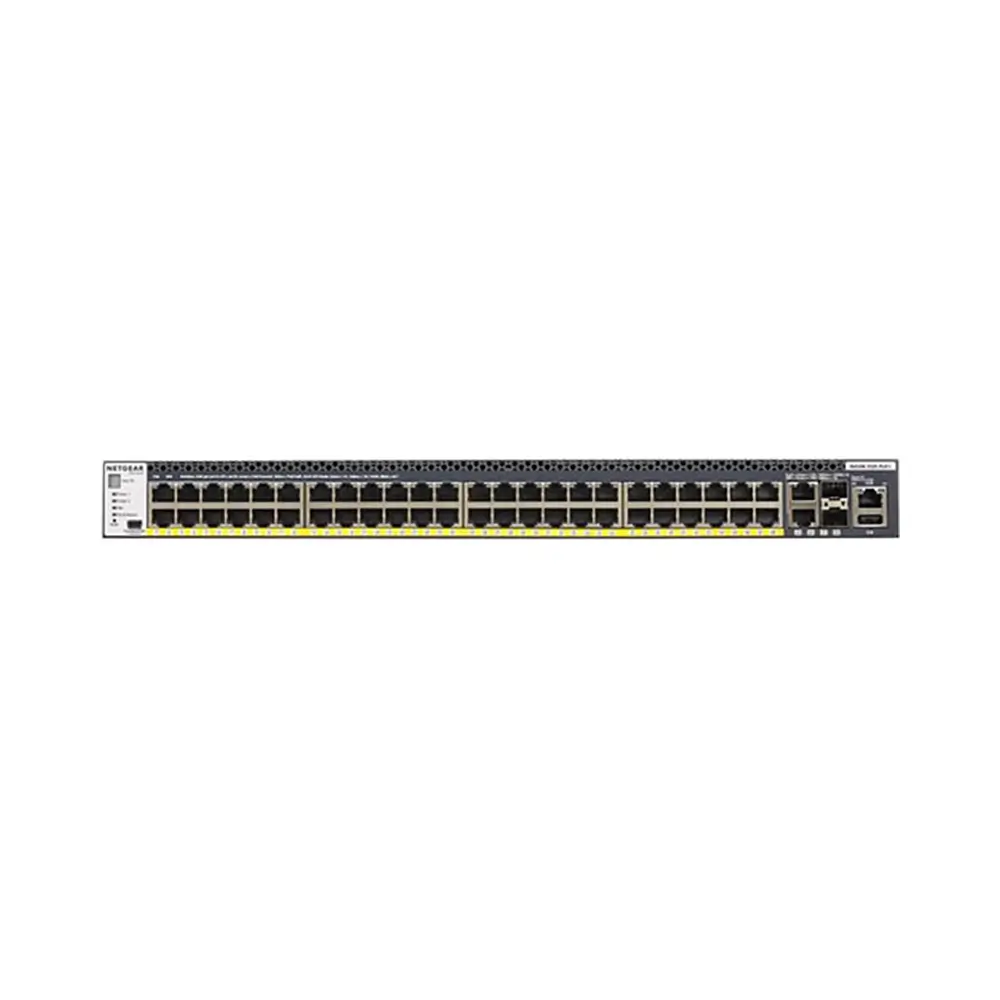

- 48 x Gigabit Ethernet PoE+ Ports
- 2 x 10G Ethernet Ports
- 2 x 10G SFP+ Ports
- 176 Gb/s Switching Capacity
- 130.9 Mpps Forwarding Rate
- 800 MHz Processor | 1GB RAM
- Rackmount Design
- 860W Power Budget

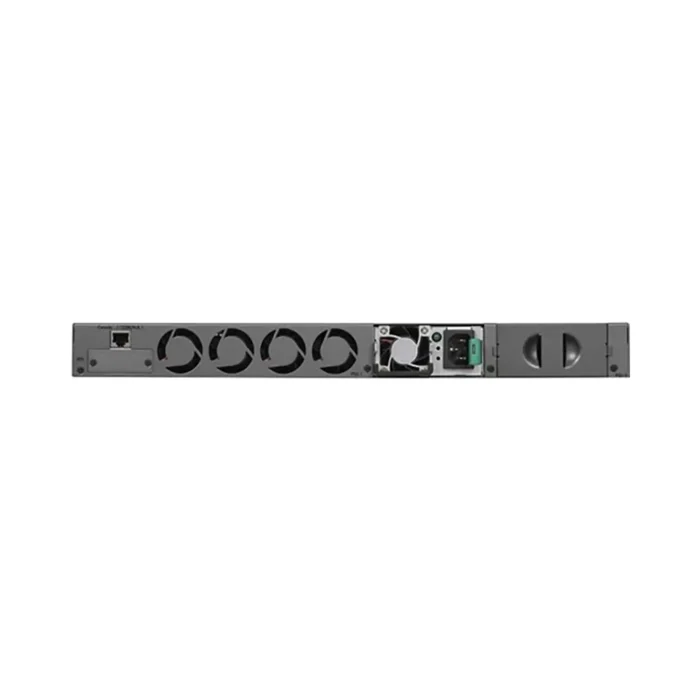

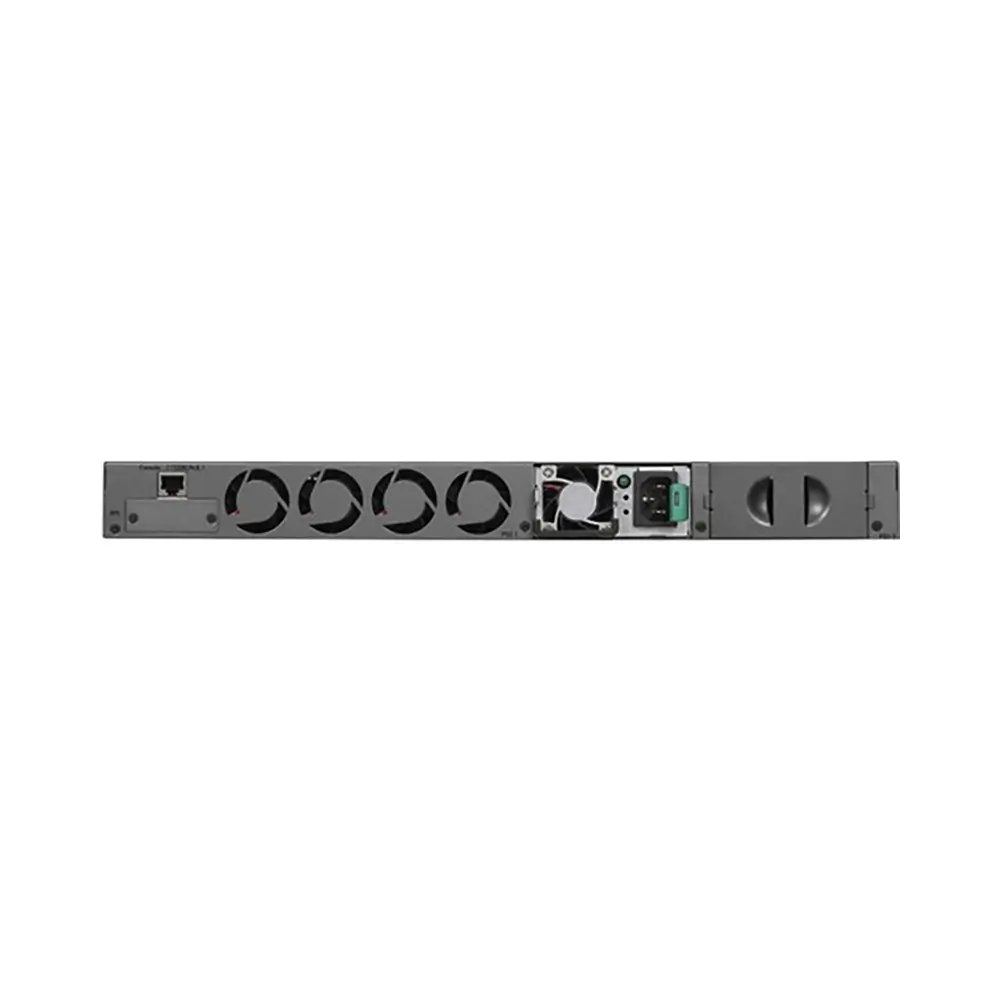

- 1000W Power Supply | Redundancy Support
Expand your small to medium-sized business’s network capacity with the M4300-52G-PoE+ 48-Port Gigabit PoE+ Compliant Managed Network Switch from Netgear. This fully managed rackmount network switch includes Layer 2, 3, and 4 feature sets, such as hot-swappable mixed stacking, with up to eight switches in a single logical switch, but no license requirements to support video broadcast and other high-bandwidth applications. With 48 PoE+ compliant Gigabit Ethernet ports and an 860W power budget, you can provide power and data to IP cameras, access points, VoIP phones, and more.
This switch includes a 1000W power supply with support for a second PSU for redundancy and increased PoE capacity. The M4300-52G-PoE+ also includes two 10G RJ45 ports alongside two 10G SFP+ ports for high-speed uplinks. The M4300-52G-PoE+ is designed to smoothly transfer data with a 176 Gb/s switching capacity and 130.9 Mpps forwarding rate. Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection.
- Reliability
- High Availability (HA)
- Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack.
- Multi-Resiliency
- Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities.
- PVST+ Interoperability
- Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP).
- Link Dependency
- Enables or disables ports based on link state of different ports.
- Advanced IPv4/IPv6 Security
- Malicious code detection, DHCP Snooping, IP Source Guard protection, and DoS attacks mitigation.
- Easy to Manage
- Simple GUI
- Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface.
- Flexible & Efficient
- Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
- Mix & Match Stacking
- Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit.
- Room to Grow
- With PoE+, plug-and-play ports, and hot-swap, you’re ready to grow whenever you need to.
- Ready for AV-over-IP
- Zero-Touch AV-over-IP
- Preconfigured for out-of-box L2 multicast (SDVoE-ready).
- No Delay
- Non-blocking fabric for near-zero switch latency.
- Netgear IGMP Plus
- Prevent network flooding with multicast implementation of Layer 2 multicast.
| Weight | 9.2 kg |
|---|---|
| Dimensions | 57.4 × 54.1 × 14.48 cm |
| Networking I/O: | 48x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 2x RJ45 10 GbE 2x SFP+ 10 GbE 1x RJ45 Gigabit Ethernet |
| Other I/O: | 1x Mini-USB 1x USB-A |
| Stackable: | No |
| Layer Services Supported: | Layer 2, Layer 3, Layer 4 |
| Supported Protocols: | TLS Link Aggregation Port Mirroring DHCP Server Auto-MDIX/MDI IGMP Snooping DoS IPv6 Auto-VoIP RADIUS IPv4 MAC Filtering |
| Queuing: | Strict Priority |
| Jumbo Frames Support: | 9000 Bytes |
| MAC Address Table Size: | 16K |
| Security Features: | DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control |
| Forwarding Rate: | 130.9 Mpps |
| Mean Time Between Failures (MTBF): | 0.6 Million Hours |
| Indicator Lights: | Yes |
| Rack Mountable: | Yes 1 U |
