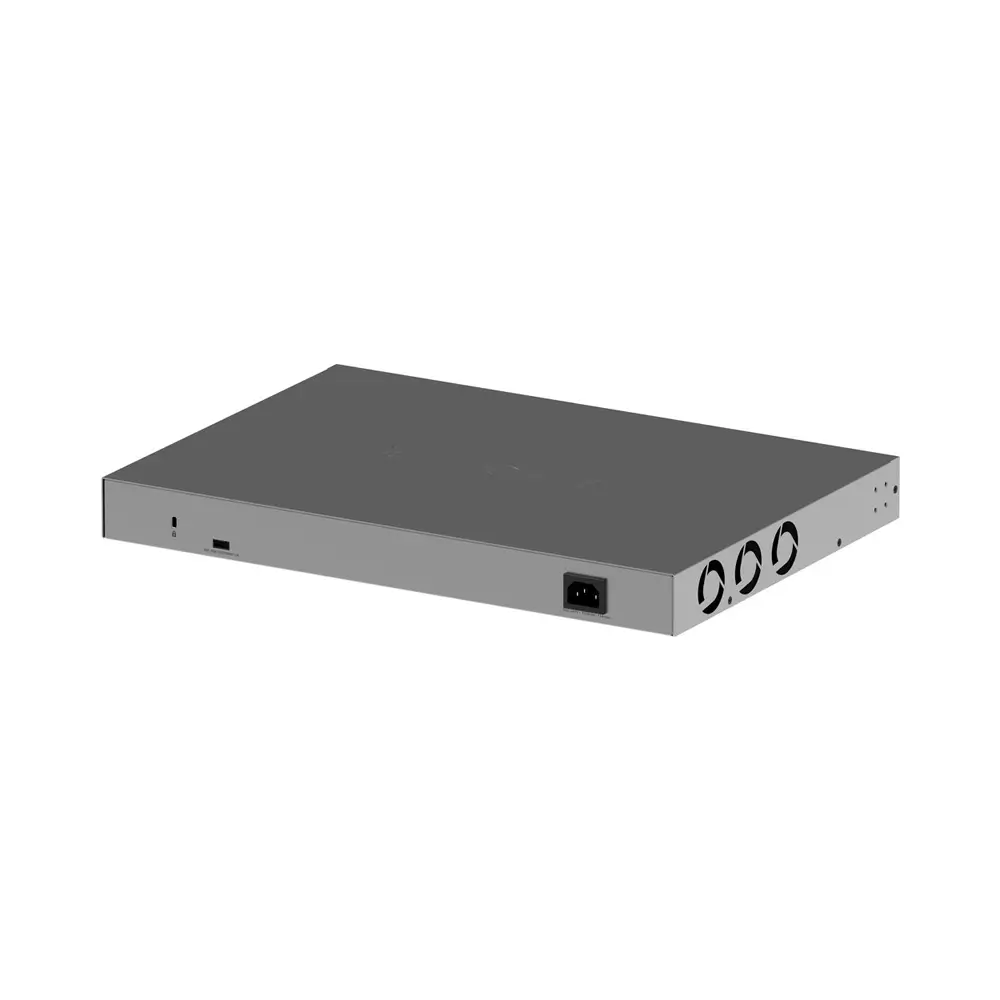

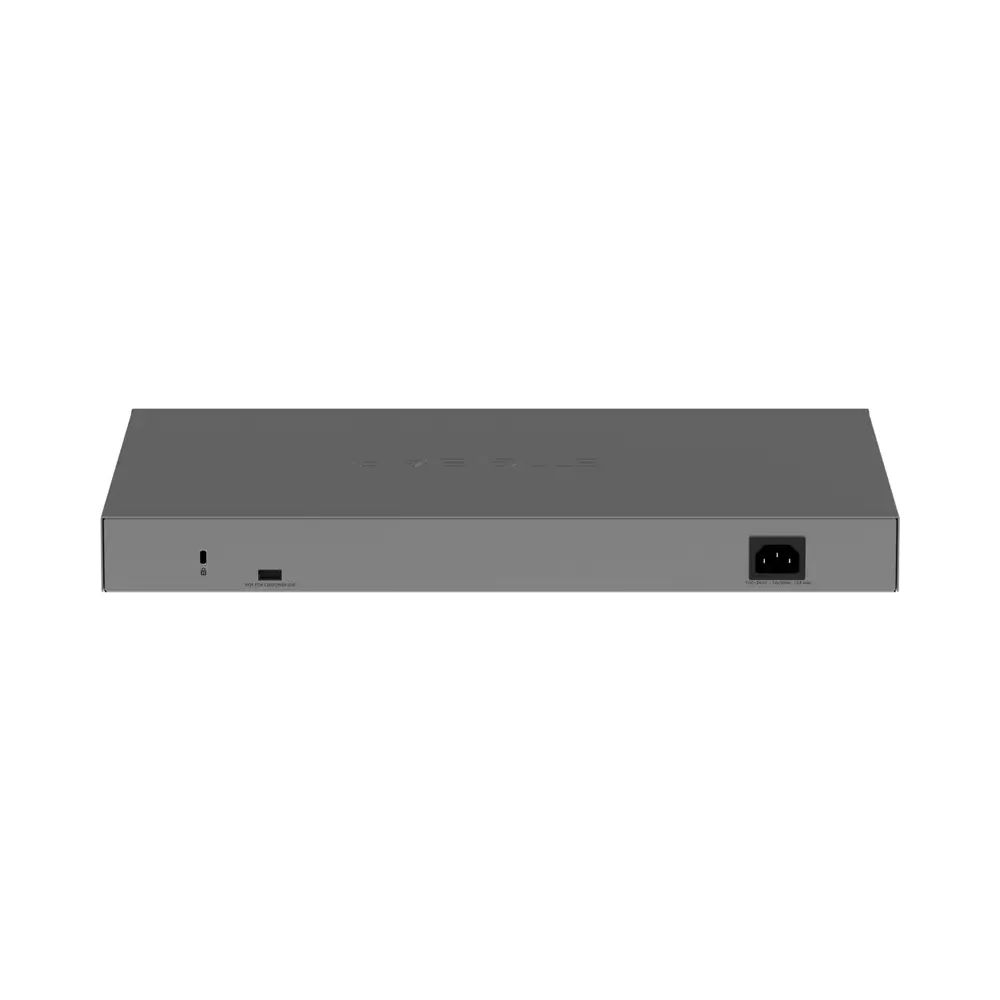

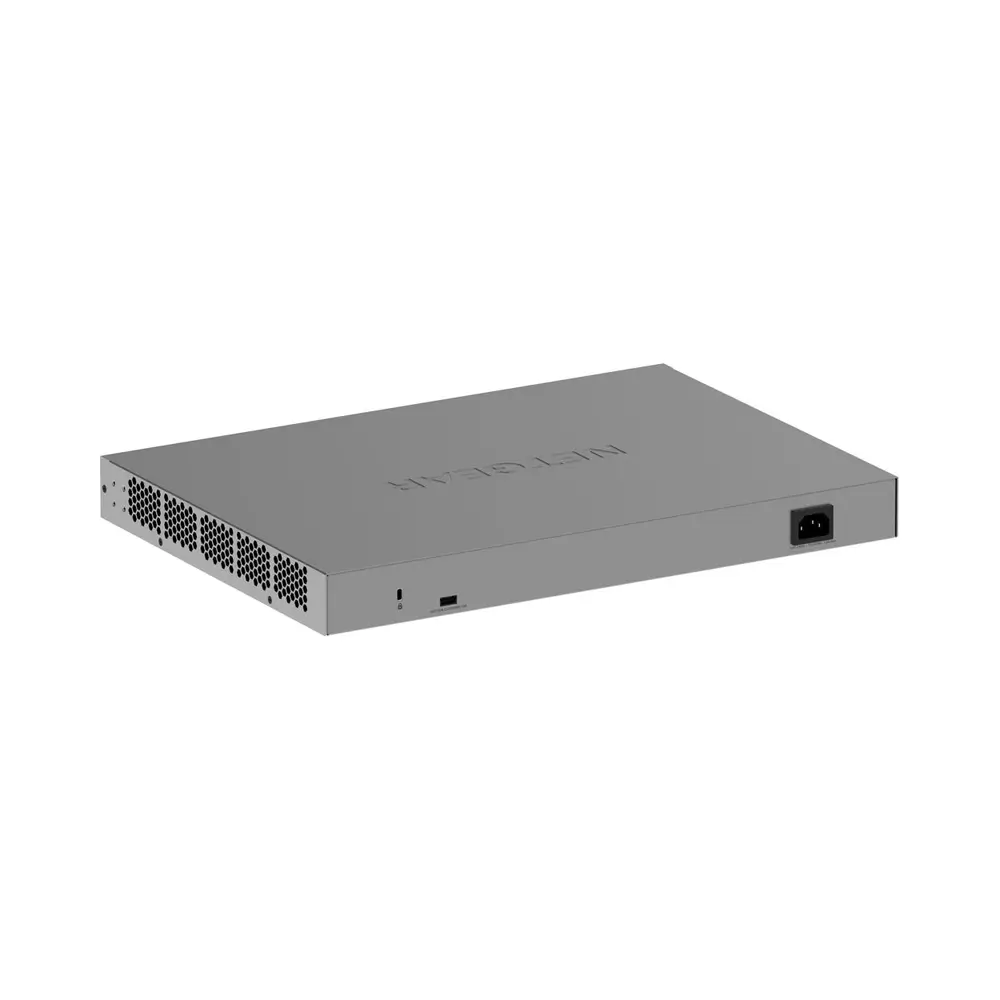

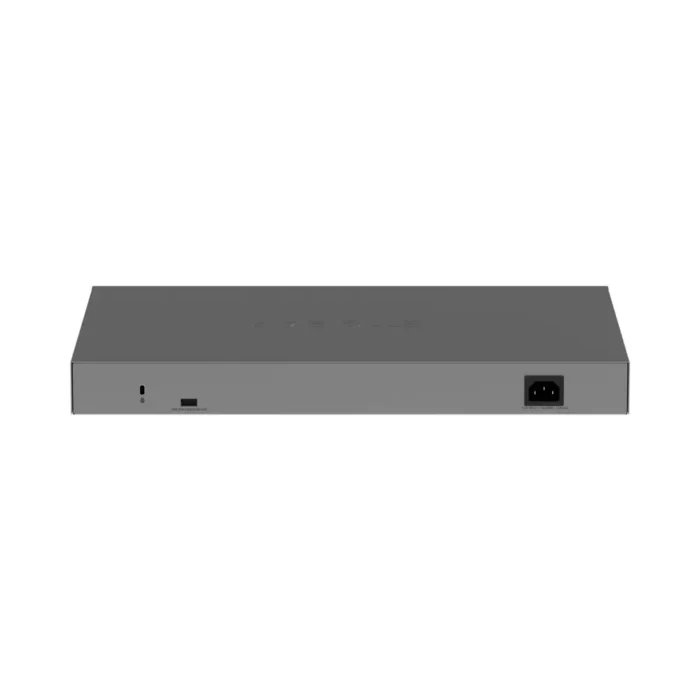

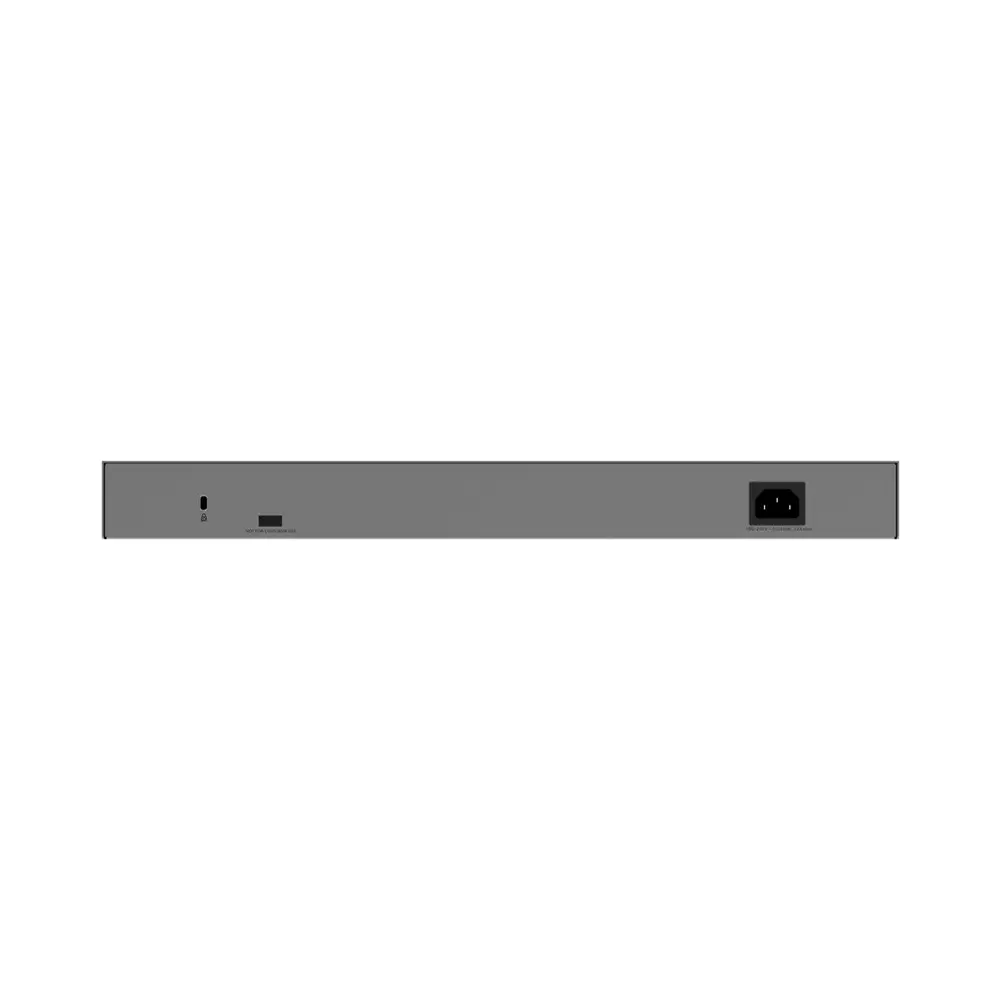

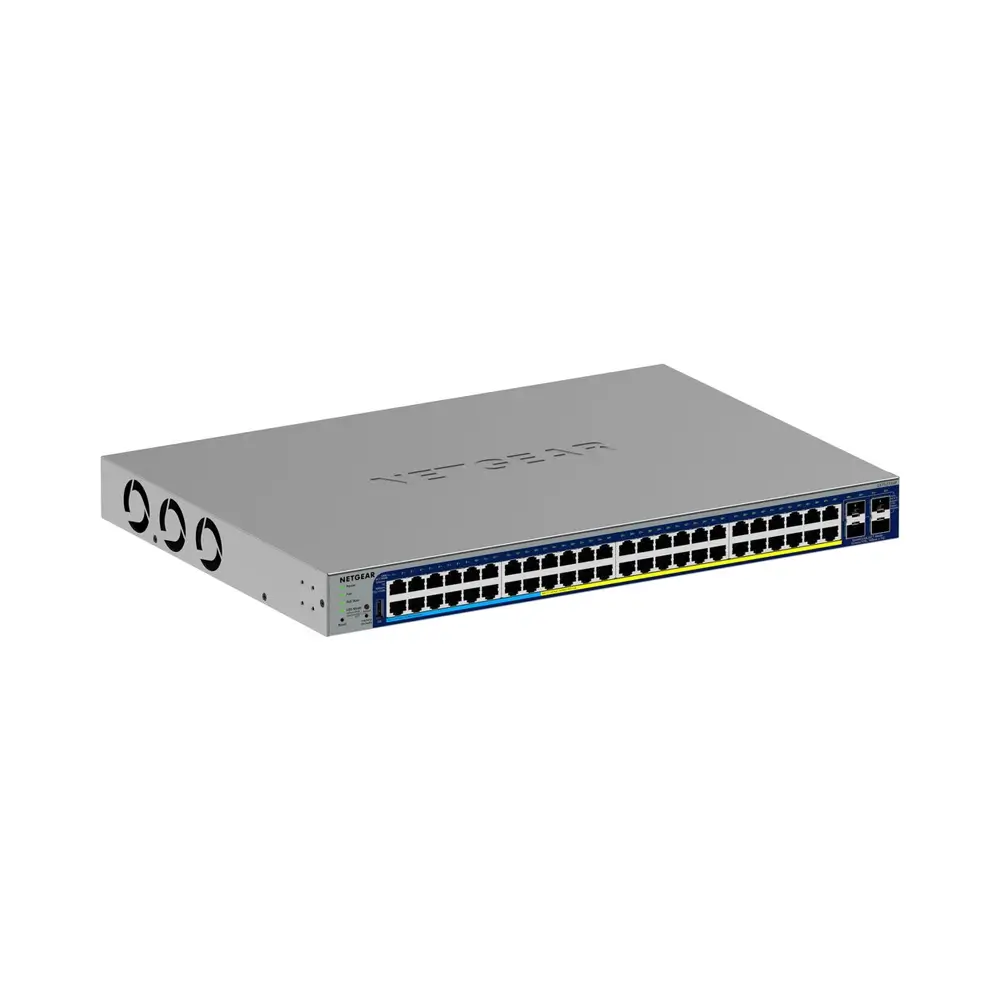

NETGEAR GS752TXupv3 – 48P GE POE++ Smart Switch W/10G SFP+
- 16 x Gigabit Ethernet PoE++ Ports (60W)
- 32 x Gigabit Ethernet PoE+ Ports (30W)
- 4 x 10G SFP+ Slots
- 176 Gb/s Switching Capacity
- 130.94 Mpps Forwarding Rate
- Rack Mountable Design
- 640W Power Budget
- Supports Up to 256 VLANs
- Layer 2+ & Layer 3 Lite Features
- Cloud Management
Grow your business with powered devices such as IP cameras, access points, and VoIP phones with the GS752TXUPv3 48-Port Gigabit PoE++ Managed Switch from Netgear. Designed for easy installation and flexible management, this switch features 48 Gigabit Ethernet ports, 16 of which supports up to 60W of power with compatible devices while the remaining 32 ports support up to 30W each with a 640W budget.
There are also four SFP+ ports that support up to 10 Gb/s fiber uplinks.With a 176 Gb/s non-blocking switching capacity and 130.94 Mpps forwarding rate, the GS752TXUPv3 delivers smooth and fast performance. It also supports up to 256 VLANs. Extensive Layer 2+ and Layer 3 Lite features add security, efficiency, and easy management.
Two cooling fans help to ensure optimal performance without disturbing your environment when mounted onto a rack or desktop.
A 1-year subscription to the Netgear Insight management platform is included, which allows you to configure and monitor your network using your mobile device from almost anywhere, anytime.
Netgear Insight Management
Gain simple yet powerful control of your network anytime and anywhere, even across multiple locations using a web-based interface or mobile app. NETGEAR Insight handles your network so you can focus on running your business.
Layer 2 / Layer 2+ Support
Powerful Layer 2+ / Layer 3 Lite features enhance performance, usability, and network efficiency.
Additional Features
- Advanced VLAN and Private VLAN support for better network segmentation
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
- Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling.
- Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
- Auto “denial-of-service” (DoS) prevention
- IGMP Snooping and Querier for multicast optimization
- Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
- Dynamic ARP for increased security targeting a class of Man in the Middle attack
- Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- Cable test to troubleshoot connection issues
- SNMP v1, v2c, v3 and RMON remote monitoring
| Weight | 6.02 kg |
|---|---|
| Dimensions | 52.58 × 40.13 × 10.67 cm |
| Connection Points | 10/100/1000Mbps Connection Point: 48 10G SFP+ Connection Point: 4 PoE+ (802.3 at) Number of Ports: 32 PoE++ (802.3bt) Number of Ports: 16 |
| PoE | Total PoE Power Budget (W att): 640W |
| Other | Maximum MAC Input port: 16K Buffer Size: 1.5MB MLD Snooping: Yes St atik rota: Yes Host ARP Table: 512 EEE: Yes DoS Prevention: Yes |
| VLAN | VLAN (Number of Designated): 512 VLAN Routing: Yes Dynamic VLAN Assignment: Yes |
| Power: | Included/External Power Supply/Adapter: includedi PoE without Maximum Power Consumption (W att): 47W FAN: 2 Acoustic Noise Level @25?C (dBA):37.3 dBA Operating Temperature: 0?to 50? C |
