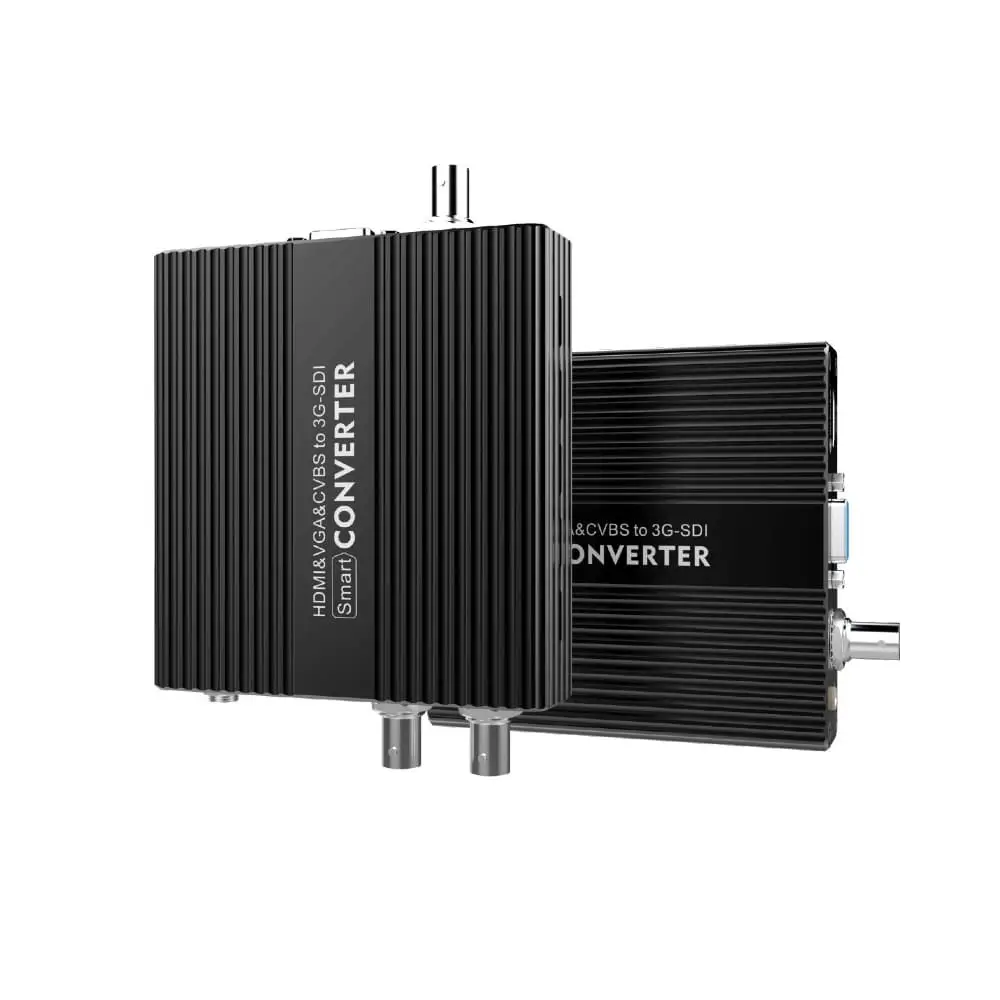

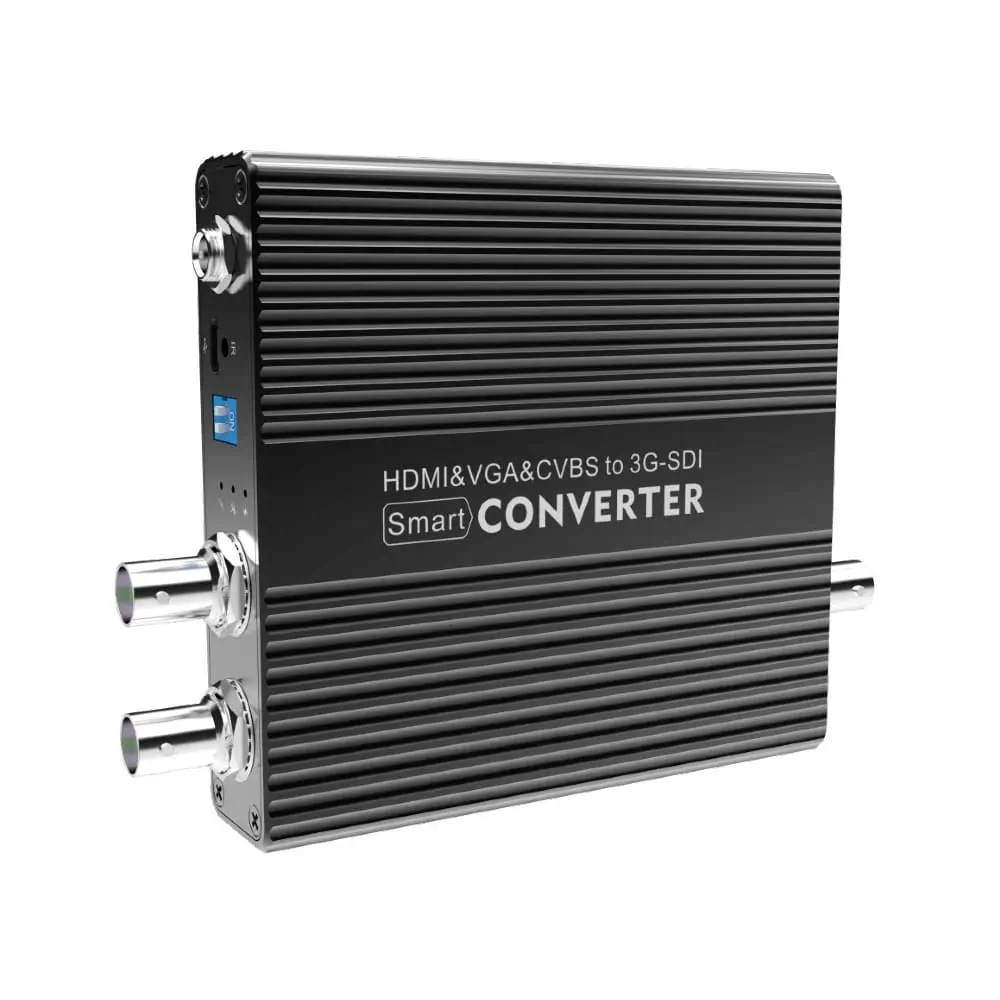

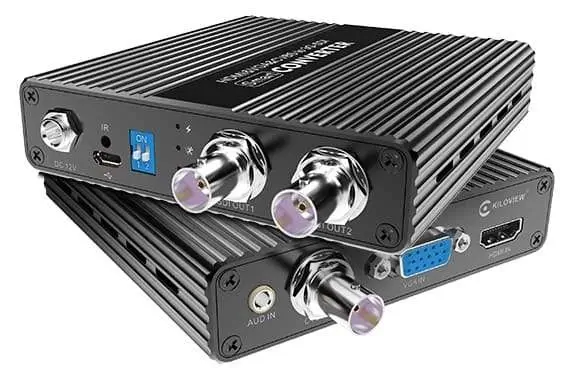

Kiloview CV190 Broadcast-Grade HDMI to SDI Video Converter
740.00 Excl. VAT
- Composite, Component, VGA, and HDMI 1.4
- Up to 1080p60 HDMI Input
- Simultaneous Dual 3G/HD/SD-SDI Outputs
- Up to 328′ SDI Cable Transmission
- Power Adapter Included
- LED Power Indicator
Available on backorder
CV190
Professional Video Converting Hardware
Broadcast-Grade HDMI to SDI Video Converter

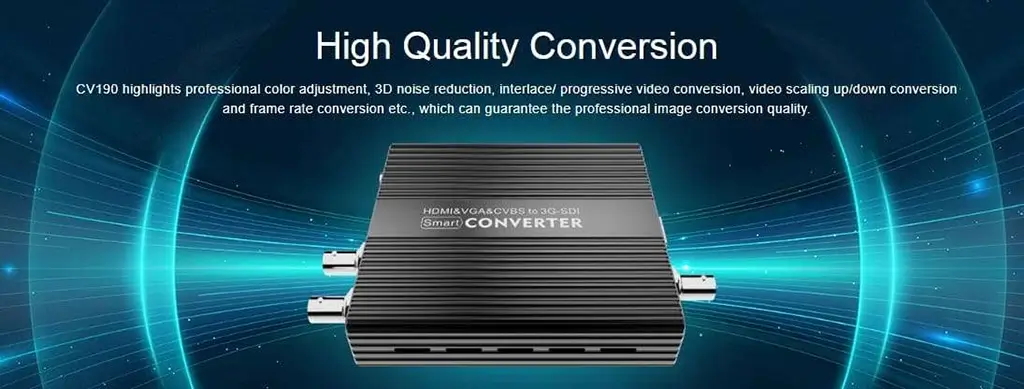

Kiloview KV-CV190 is a broadcast level multifunctional video converter which can convert HDMI, VGA and AV(CVBS) to SDI-based coax signal with functions of frame conversion, resolution conversion, image scale up/down, color conditioning, image enhancement and adjustment.
High Quality10bit YUV 4:2:2
Bitrate Exchange
Interlace/Progressive Conversion
scaling up/down
Undistorted Color
3D Noise Reduction
Applications

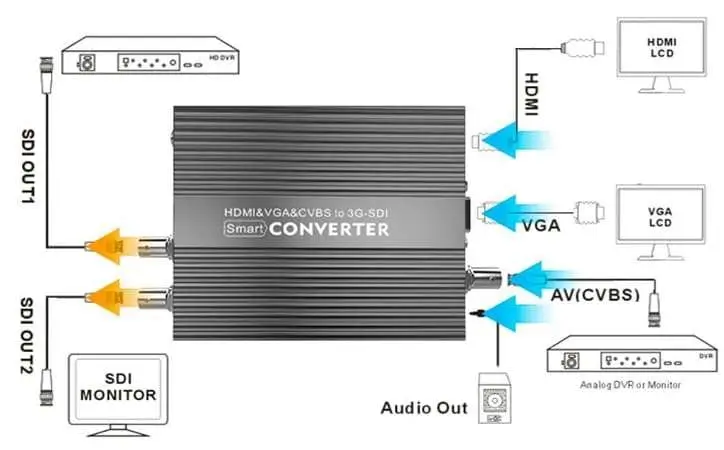

CV190 is suitable for all scenarios where HDMI, VGA, or AV (CVBS) signals need to be converted into SDI signal output, such as broadcast and television program editing, video teaching and training, high-definition video information release, high-definition video long-distance transmission, video conferencing, multimedia Advertising and video security monitoring and other fields.
| Weight | 0.63 kg |
|---|---|
| Dimensions | 19.81 × 16.76 × 8.38 cm |

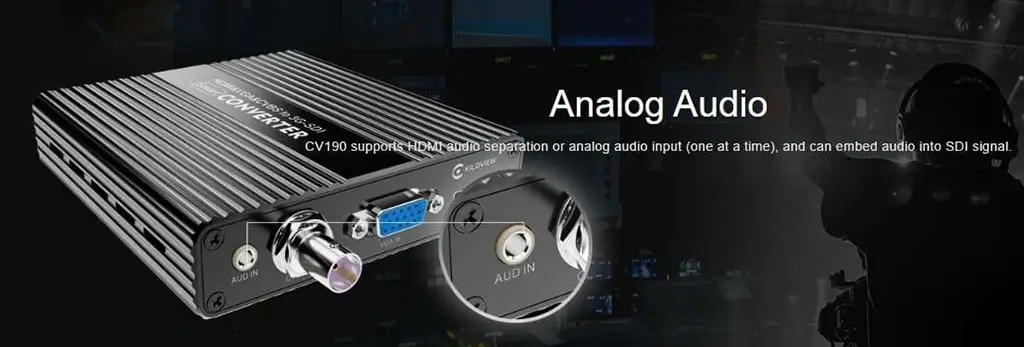

| Input | 1*HDMI, 1*VGA, 1*BNC AV(CVBS), 1*3.5mm dual-channel analog audio (1Vp-p) |
| Operating Temperature | -20℃~60℃ |
| Power Supply | 12V, 1A |

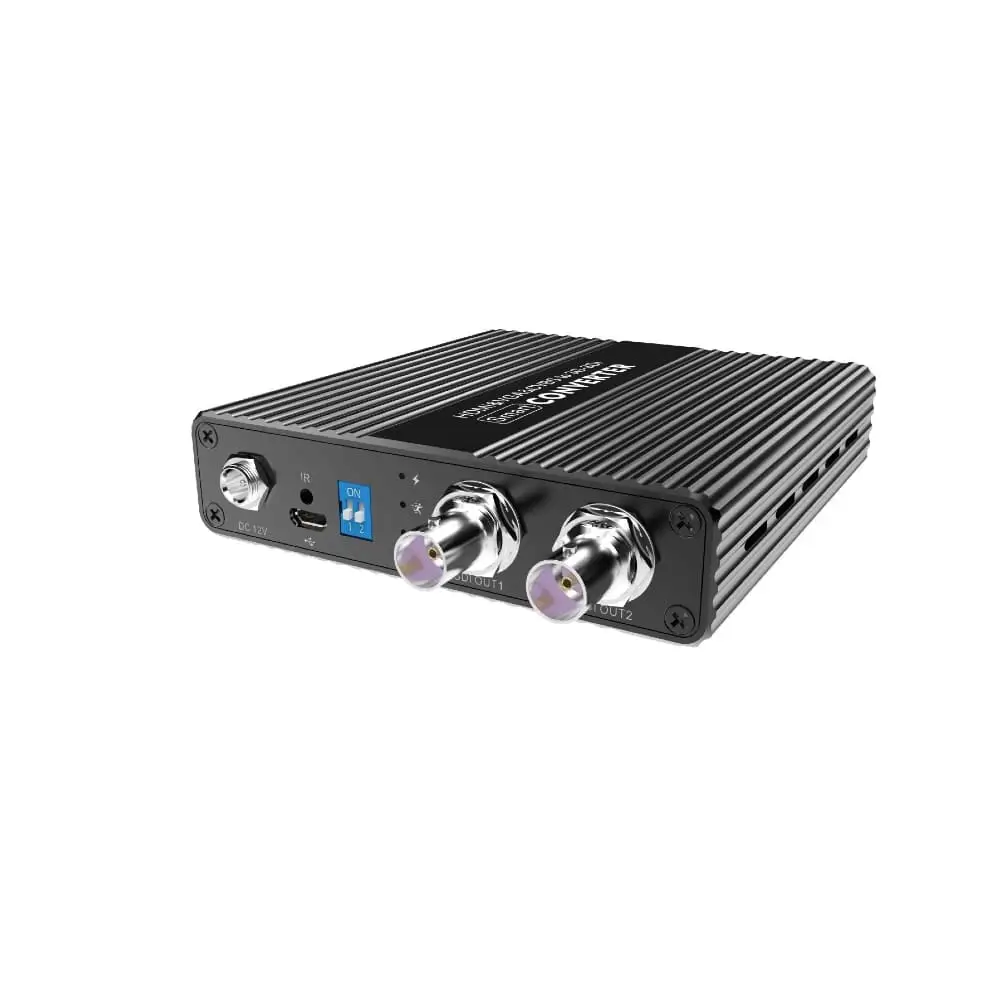

| Output | 2*BNC-SDI (SD/HD/3G) |
| Power Consumption | 4w |
| Management | Remote control/ PC connection with USB |
| Audio Formats | HDMI: 480i,576i,480p, 576p, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@24/25/29.97/30, 1080p50/59.94/60, compatible with VGA format, up to 1920×1080@60Hz; VGA: up to 1920×1080@60Hz, support all VESA standard resolution and common non-vesa resolution; YPbPr: (using VGA-YPbPr), support 720p50/59.94/60,1080i50/59.94/60 and 1080p24/25/29.97/30/50/59.94/60; AV(CVBS): PAL (576i)/NTSC (480i). |
| SDI transmitting distance | SDI transmitting distance Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m. |
| Framerate/resolution conversion | Support |
| Audio de-embedding | Support |
