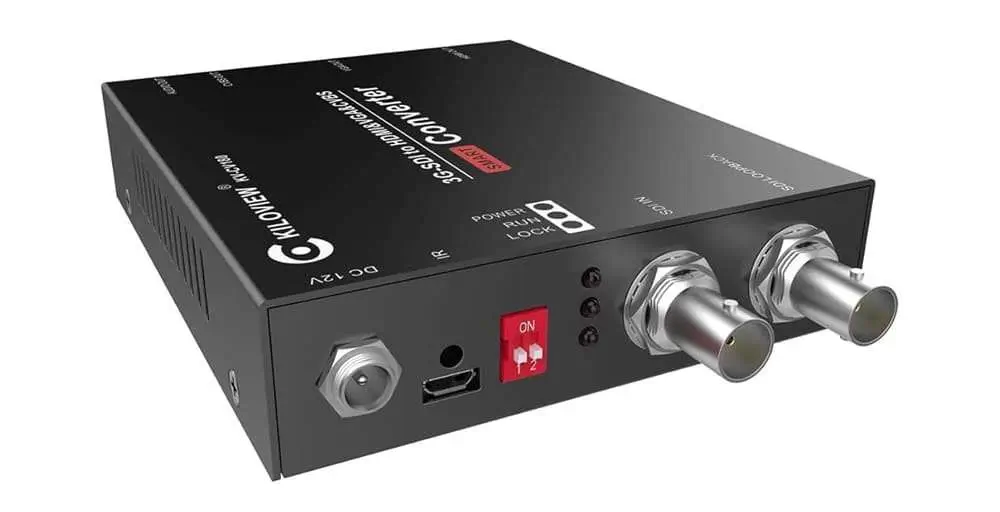

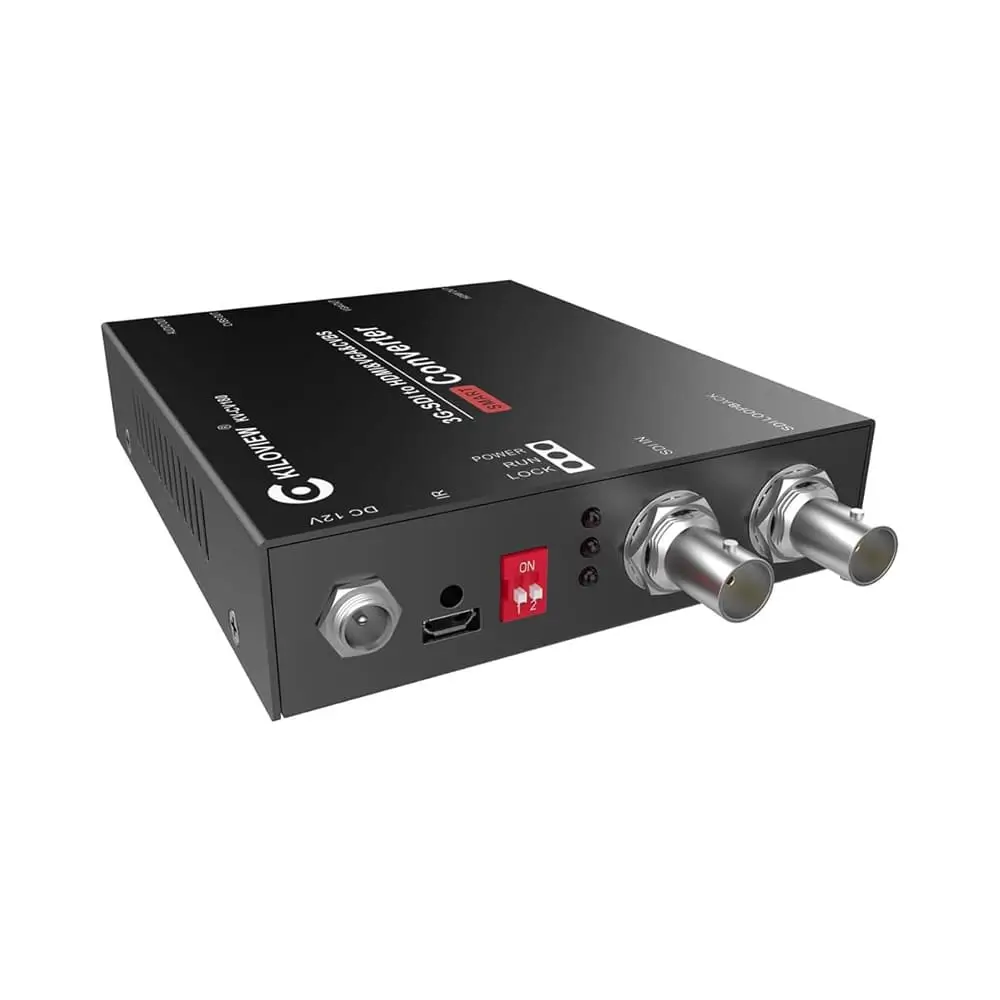

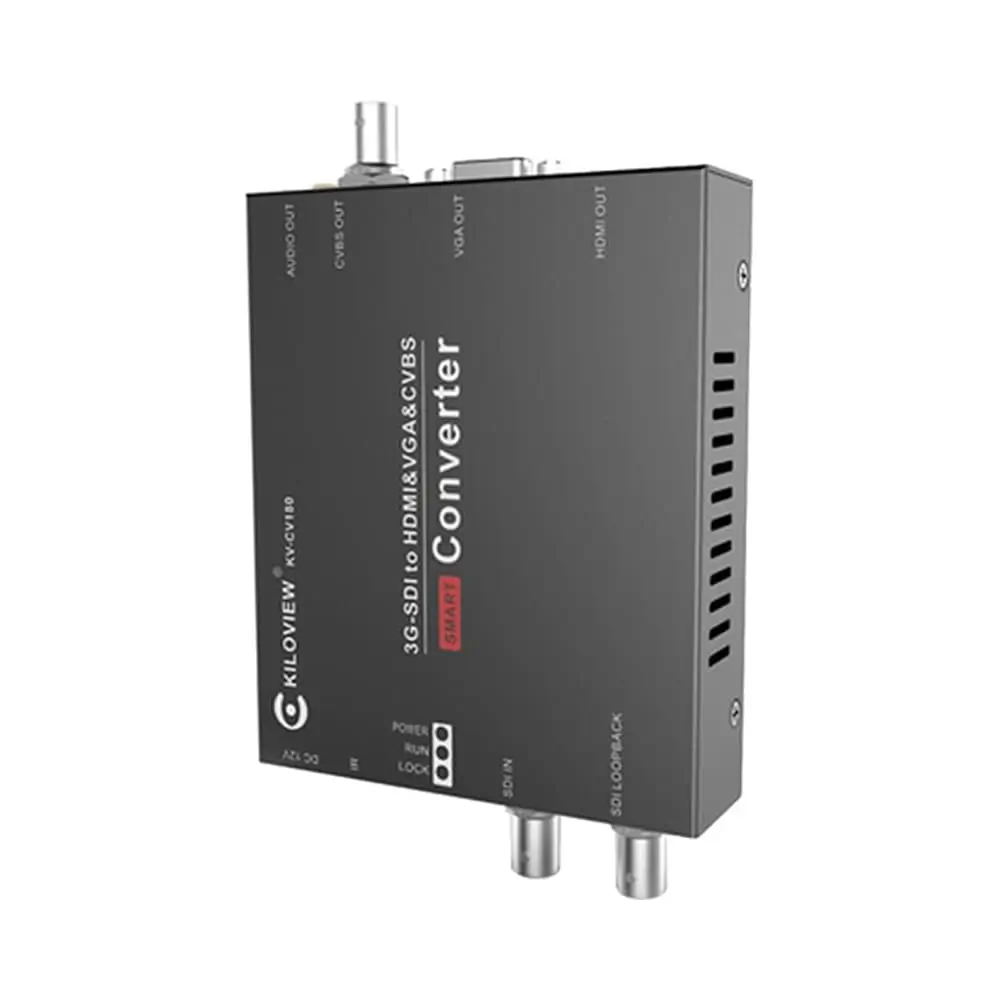

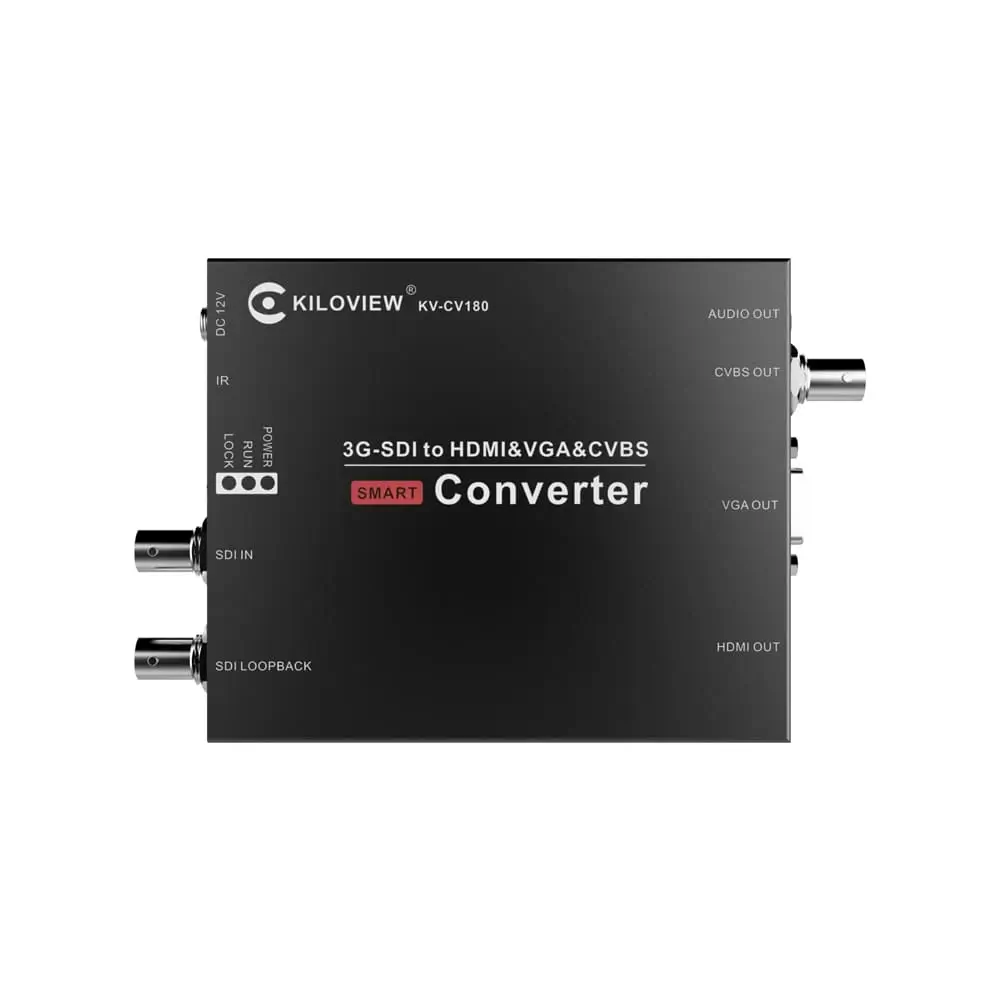

Kiloview CV180 Broadcast-Grade SDI to HDMI/VGA/AV Video Converter
665.00 Excl. VAT
- SD/HD/3G SDI to HDMI/VGA/AV (CVBS)
- Frame Rate/Resolution Conversion
- Supports 10-Bit YUV 4:2:2
- Remote Control
- Web Configuration Management
- 24/7 Continuous Operation
Available on backorder
CV180
SDI to HDMI (and VGA/AV/CVBS) Converter
Frame/Resolution Conversion
Powerful SDI/BNC to HDMI Video Converter
Greatly Compatible with Protocols
SD/HD/3G SDI input together with built-in SDI clock recovery circuit and line equalizer, it can recover attenuation and distortion SDI signal after long-distance transmission;
HDMI/VGA/AV(CVBS) output simultaneously supported with self-defined resolution, independent audio output available (either two of them can output at the same time);
HDMI/ VGA DDC function supported, it can self-adaptively output the best mode of HDMI/ VGA;
OSD menu operation interface supported;
Video Conversion & Enhancement
CV180 highlights professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.
High Quality10bit YUV 4:2:2
Bitrate Exchange
Interlace/Progressive Conversion
scaling up/down
Undistorted Color
3D Noise Reduction
| Weight | 0.59 kg |
|---|---|
| Dimensions | 18.8 × 15.49 × 8.89 cm |
| Input | 1*BNC SDI (SD/HD/3G SDI) |
| Operating Temperature | -20~60°C |
| Power Supply | 12V, 1A |
| Output | 1*SDI, 1*HDMI, 1*BNC AV(CVBS), 1*VGA (Either two signals output simultaneously) |
| Power Consumption | 4w |
| Management | Remote control/PC connection with USB |
| Video Formats | 525i 59.94，625i 50； 720p 23.98/24/25/29.97/30/50/59.94/60； 1080i 50/59.94/60; 1080p 23.98/24/25/29.97/30/50/59.94/60. |
| Loop out | 1*BNC SDI |
| SDI transmitting distance | Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m; Note: different cables have different transmission distances. |
| Framerate/resolution conversion | Support |
| Audio de-embedding | Support |
