Kiloview Kilolink Station Pro
6,495.00 Excl. VAT
- Decode IP Video & Output for Broadcast
- 8-Channel Bonding with P3 Encoders
- Broadcast Ready with Four 3G-SDI Outputs
- One HDMI Multiview Output
- Centralized Control of Media Devices
- NDI|HX, SRT, RTMP, RTP/RTSP, HLS Support
- Built-In SSD for Recording
In stock (can be backordered)
Plug & Play | Server-Free | Subscription-Free | Broadcast-Ready

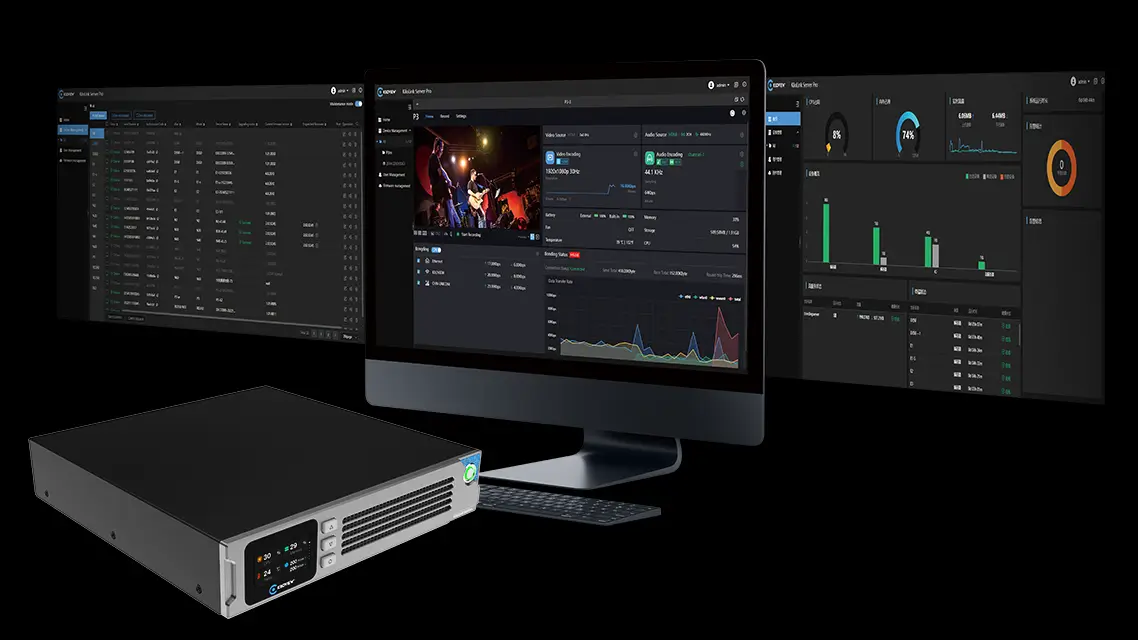

Your All-in-One Hardware Bonding Receiver & Device Management Platform

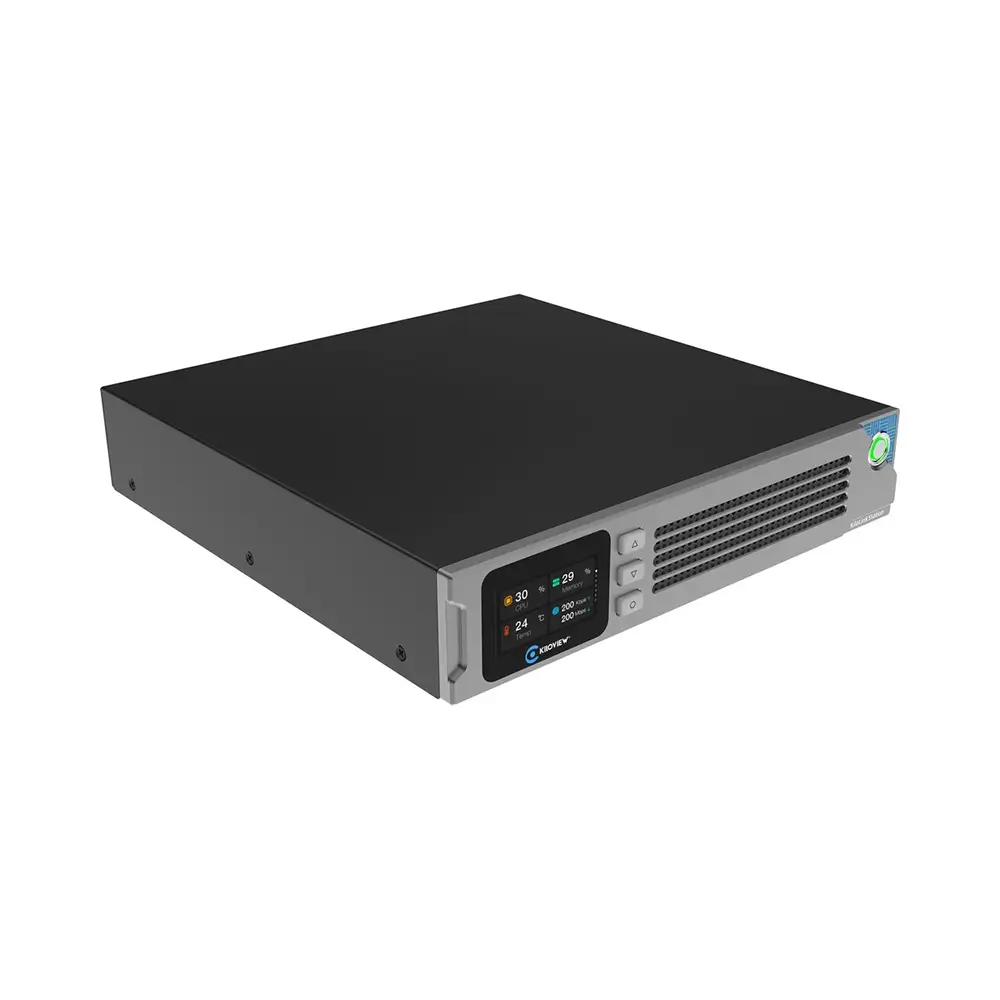

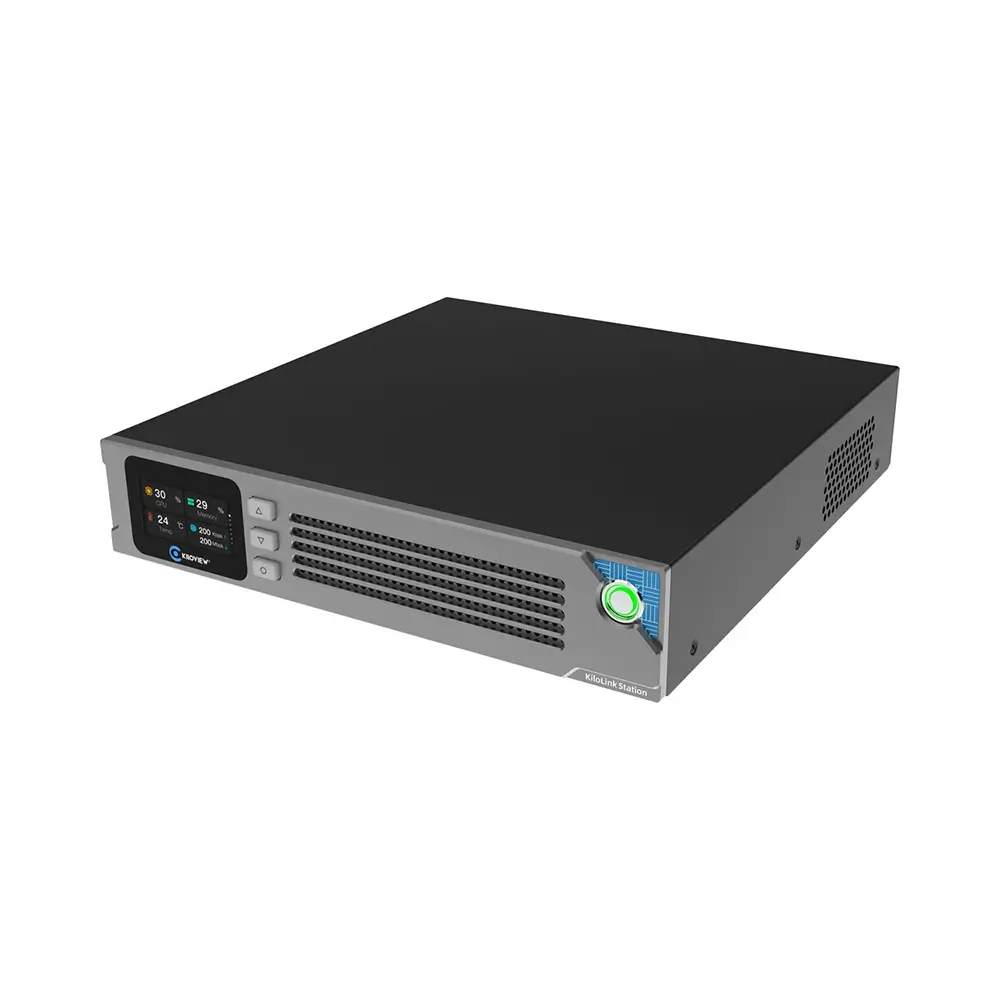

KiloLink Station Pro is Kiloview’s dedicated hardware designed for professional wireless bonding reception, centralized device management, and high-quality IP/SDI workflows. By integrating the full capabilities of KiloLink Server Pro into a compact, half-1U appliance, it delivers a true plug-and-play experience.
Professional, Powerful, and Cost-Effective
Forget complex server deployments, recurring cloud costs, or Linux environment optimizations. Whether you are managing multi-camera field reports, educational broadcasts, or mission-critical enterprise video, KiloLink Station provides synchronized reception, flexible outputs, and intuitive control in one reliable system.
Plug-and-Play: Professional Bonding with Zero Setup
KiloLink Station Pro comes pre-configured with KiloLink Server Pro. It can register KiloLink-enabled devices the moment they power on. No Docker, no commands, and no technical hurdles—just instant, secure connectivity that gets your workflow operational in minutes.
8-Channel High-Performance Wireless Bonding
Designed for the field, the system supports simultaneous reception from up to 8 P3 or P3 Mini wireless bonding encoders. Powered by Kiloview’s patented KiloLink technology, it ensures stable transmission across multiple cellular links, even in the most challenging network environments.

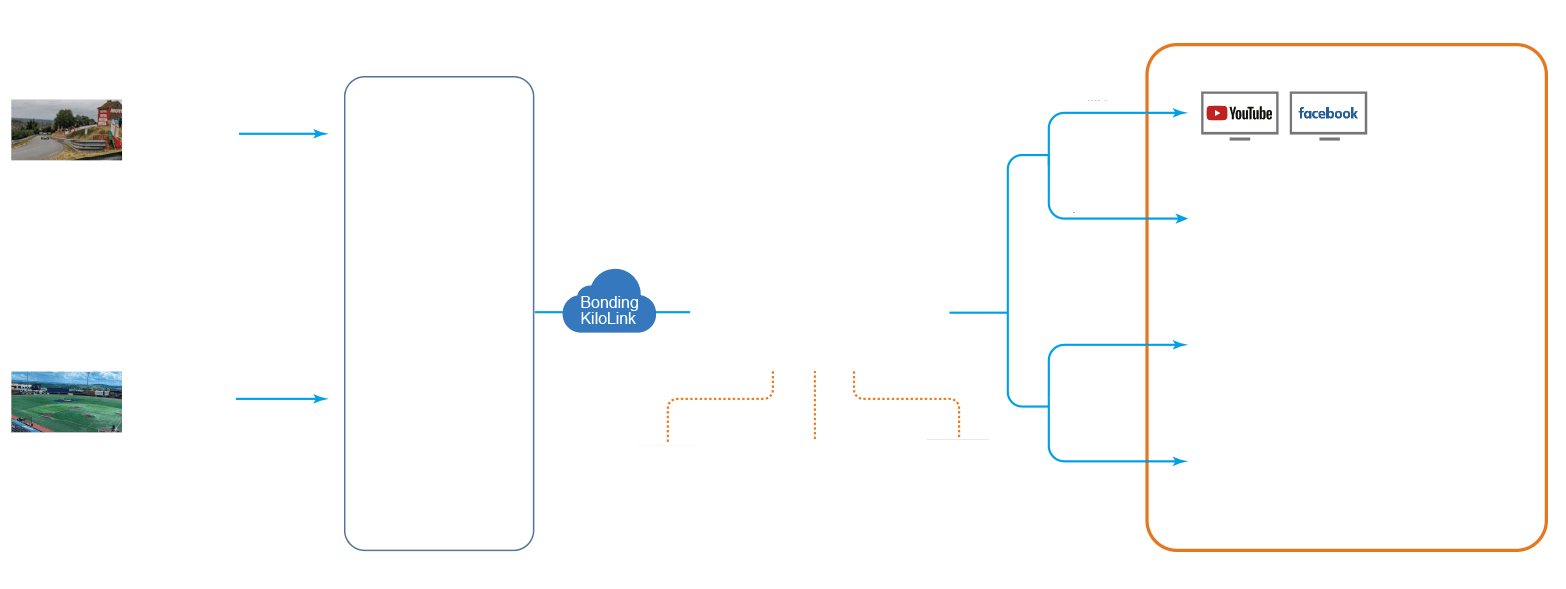

Broadcast-Ready Outputs with Video Synchronization

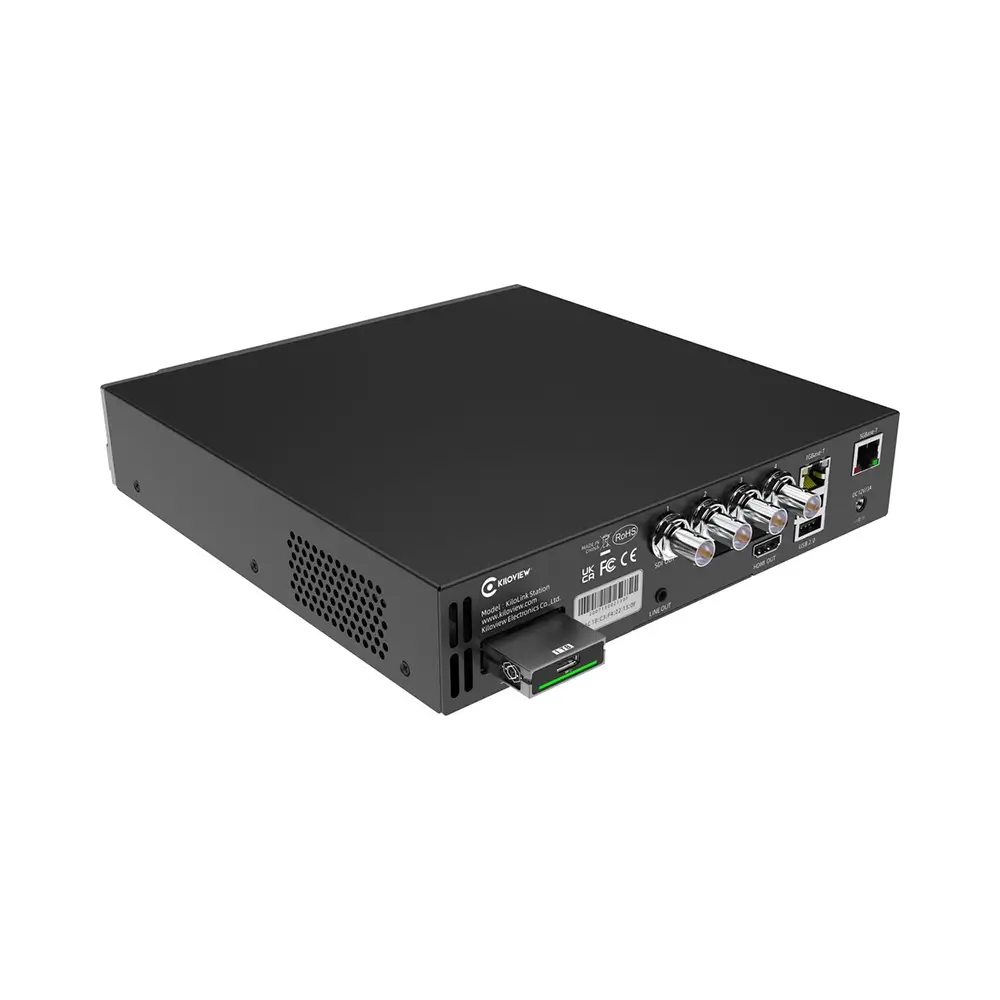

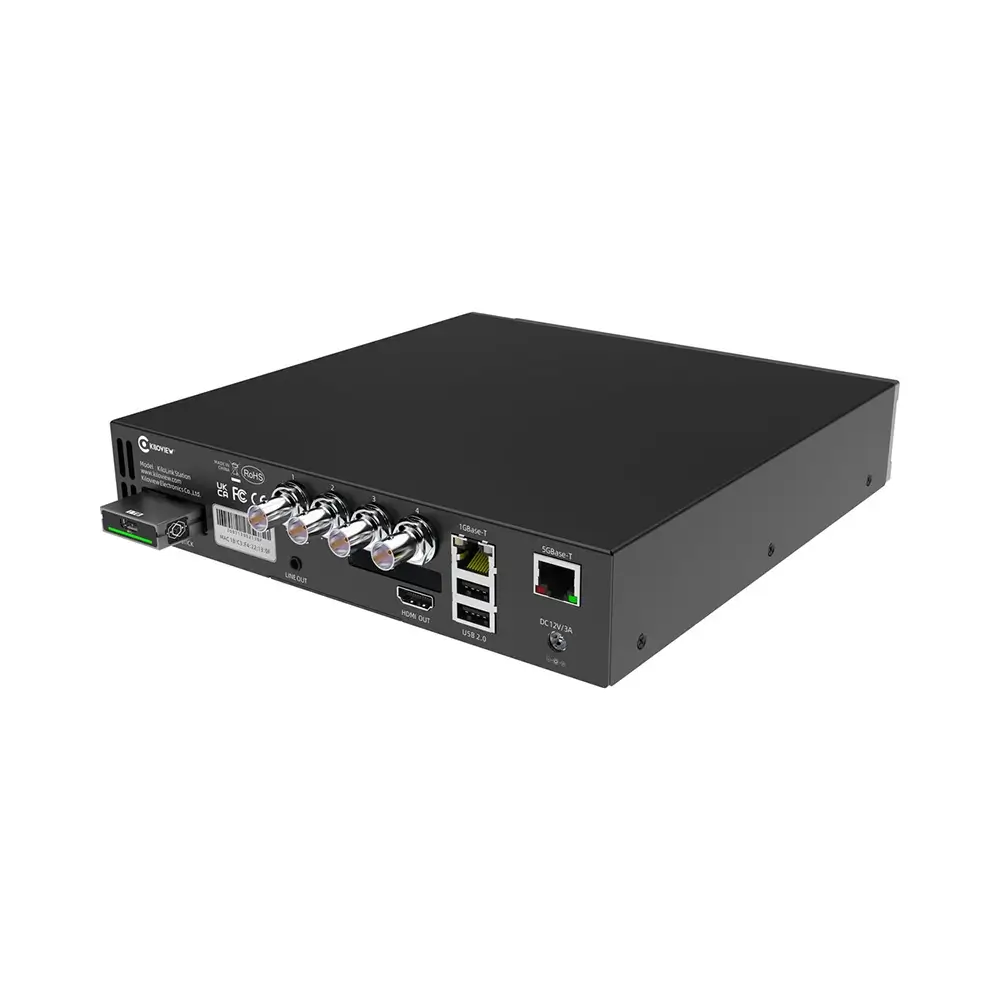

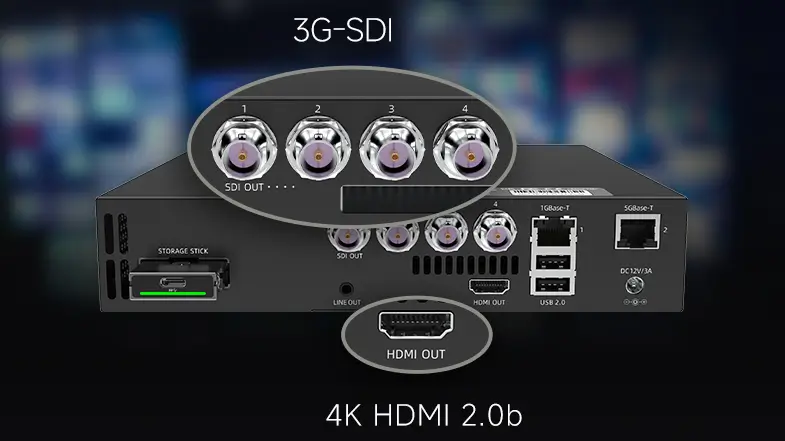

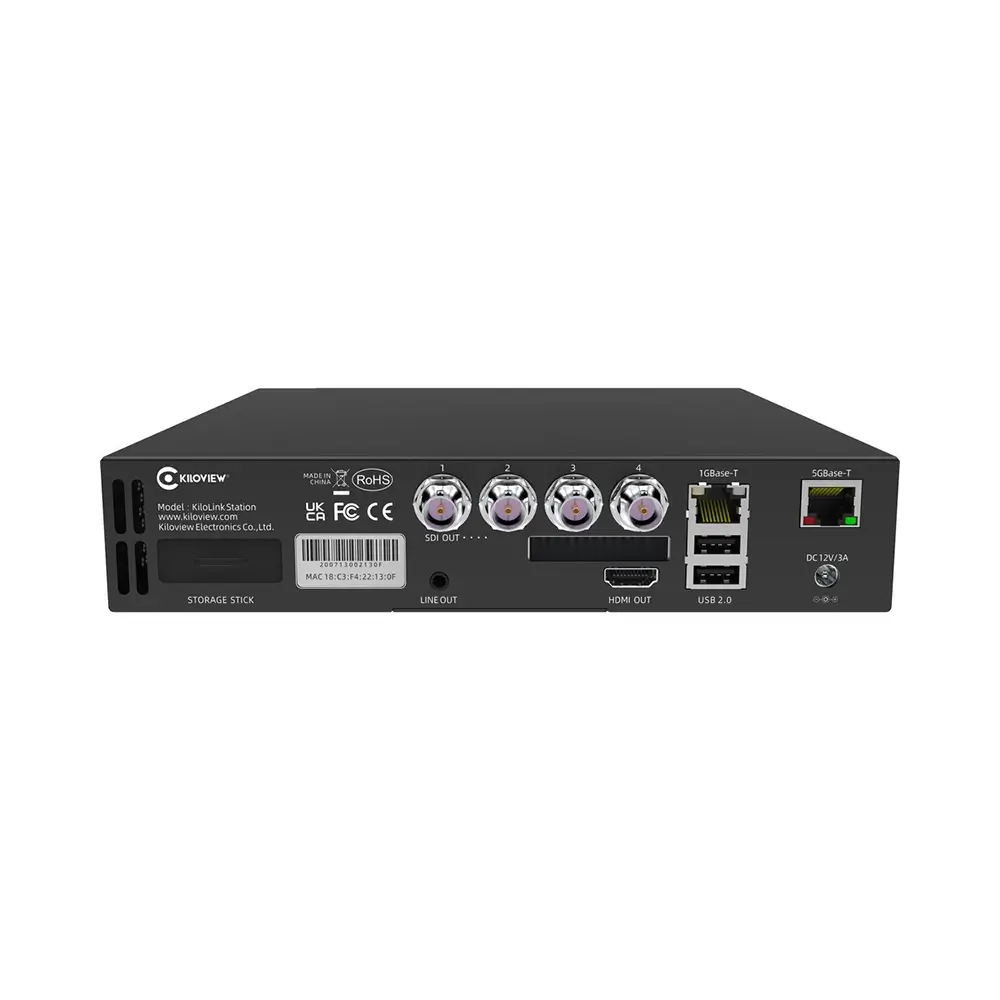

Integrate seamlessly with any studio or OB van. KiloLink Station Pro features:
- 4 × 3G-SDI Outputs: Supporting up to 1080p60 with precise synchronization.
- 1 × 4K HDMI 2.0b Output: Flexible monitoring in 2×2 max Multi-view or Single-output modes. Whether you’re feeding a professional switcher or a 4K monitor, your video remains fluid and aligned.
Visualized Network & Unified Management

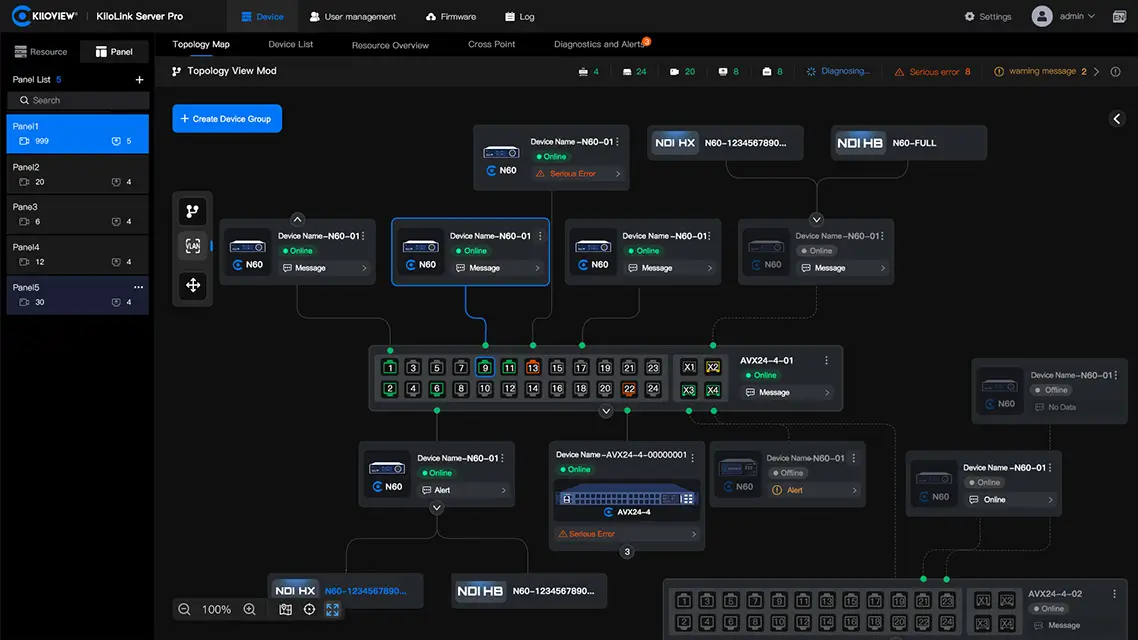

When paired with Kiloview’s AVX 24-4Media Hub, KiloLink Station Pro offers a Visualized Topology View, allowing you to monitor device health, connectivity, and signal flow in real-time.
- Centralized Control: Adjust parameters and push firmware updates to all field devices from one interface.
- Role-Based Security: Assign custom permissions to different team members for secure, accountable operations.
Multi-Protocol Versatility
KiloLink Station Pro supports a comprehensive suite of protocols— NDI HX, SRT, RTMP, RTP/RTSP, and HLS.
This versatility allows you to convert video streams coming from Kiloview wireless encoders P3 or P3 mini to any other IP protocols to fit your specific workflow, whether it’s for live streaming, remote point-to-point transmission or NDI production.
Applications
| Weight | 1.78 kg |
|---|---|
| Dimensions | 23.14 × 22.44 × 4.40 cm |
| Transport Protocols | HLS, NDI/HX, RTMP, RTP, RTSP, SRT, UDP |
| Embedded Audio: | HDMI/IP/LAN (RJ45)/NDI/SDI |
| Other I/O: | 2x USB-A 2.0 Input/Output 1x RJ45 (Gigabit Ethernet) Input/Output 1x RJ45 Input/Output |
| Video Encoding/Decoding: | via H.264/H.265: 1920 x 1080 to 3840 x 2160 at 60.00 fps |
| Audio Encoding/Decoding: | AAC |
| Simultaneous Streams: | 8 Streams |
| Storage Capacity: | 128 GB |
| Power I/O: | 1x IEC C13/C14 (12 VDC at 3 A) Input |
| Power Consumption: | Device: 12 W |
| Rack Form Factor: | 1 RU |
| Operating Conditions: | 14 to 122°F / -10 to 50°C at 5 to 90% Humidity |
| Storage Conditions: | -4 to 158°F / -20 to 70°C at 5 to 90% Humidity |
