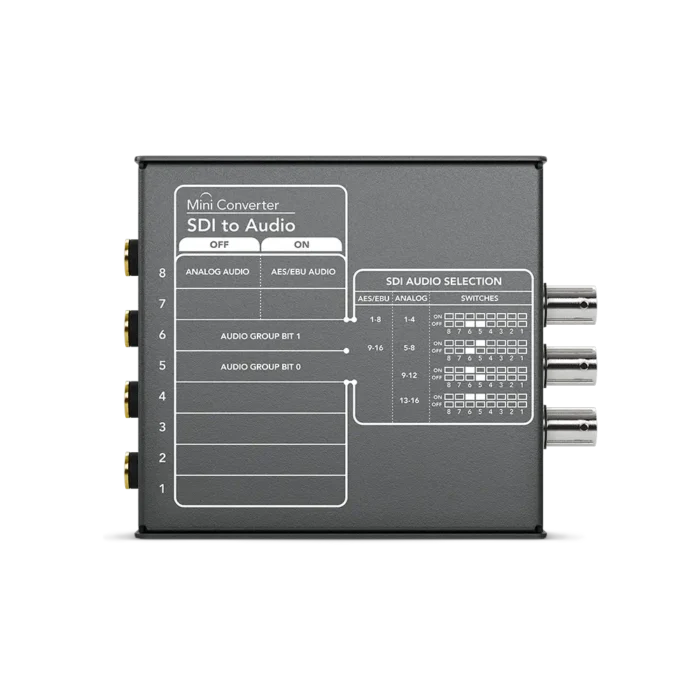

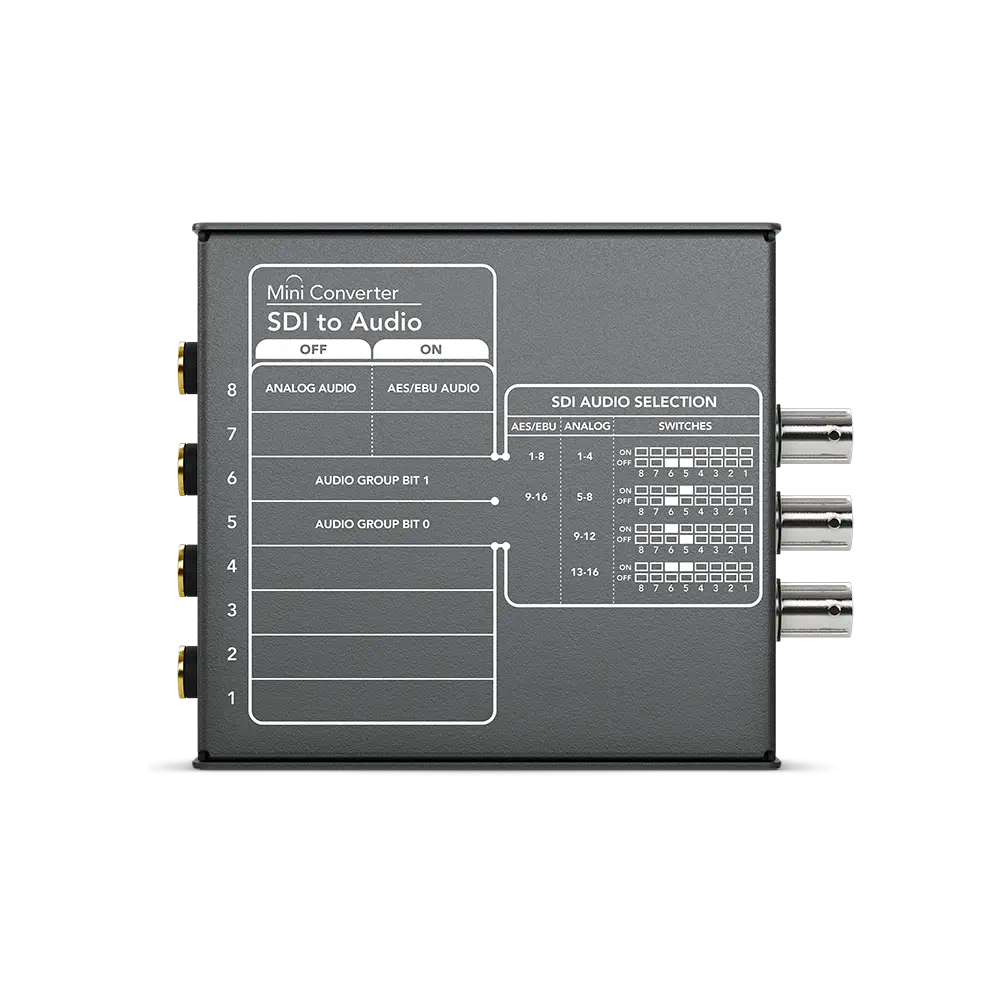

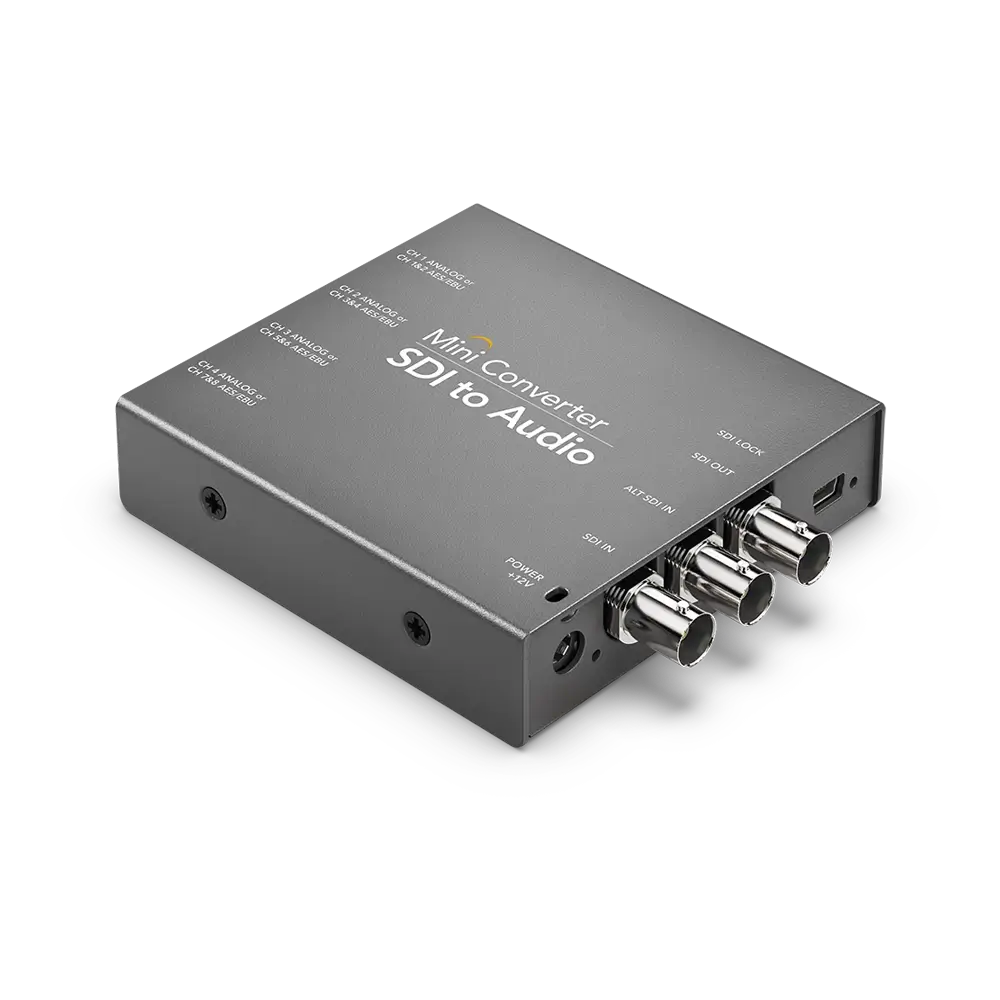

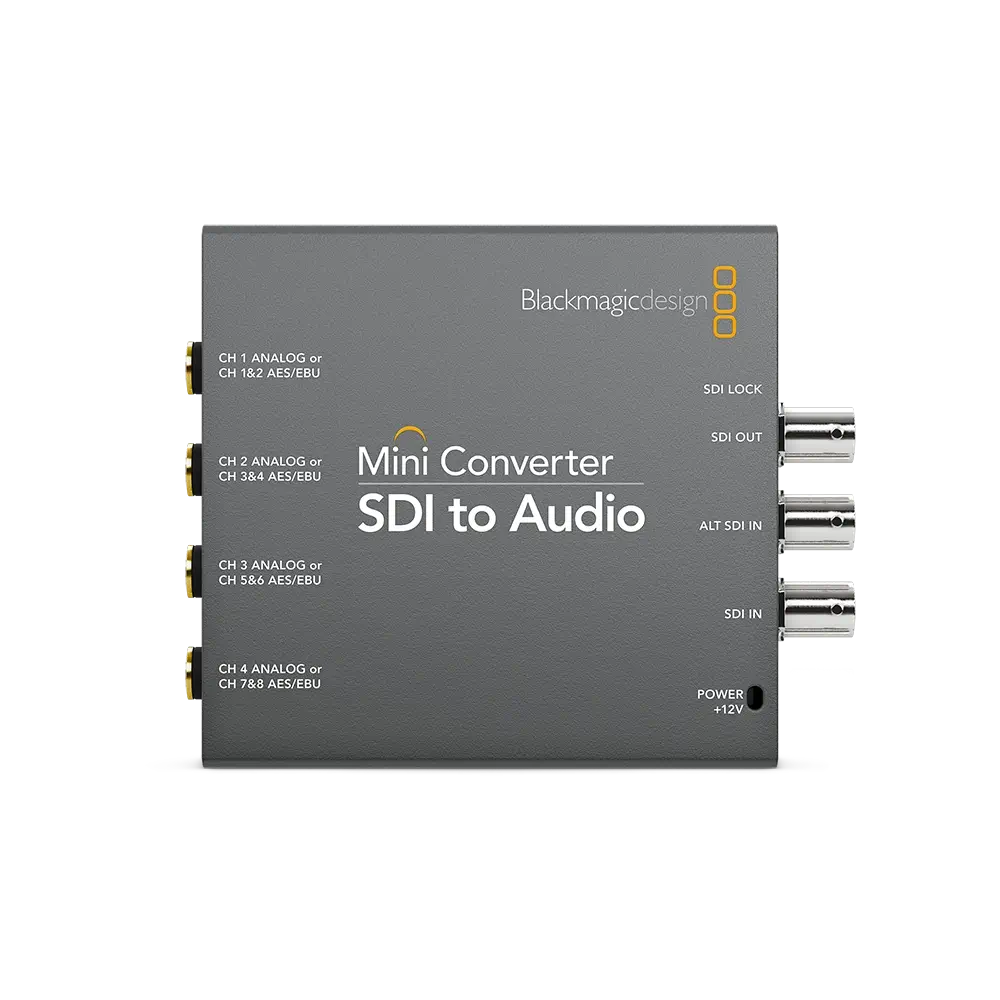

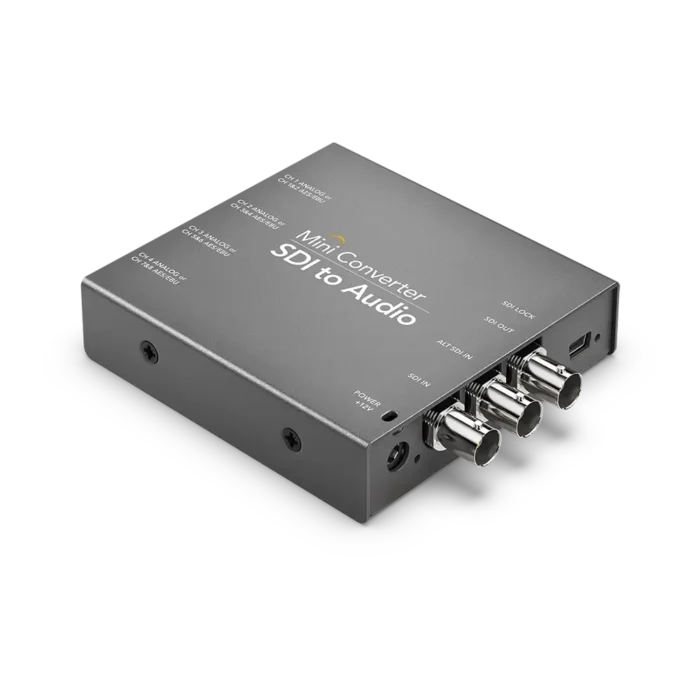

Blackmagic Mini Converter – SDI to Audio
975.00 Excl. VAT
- Auto SD/HD Switching
- 3GB/s Technology
- With Power Supply
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Description
Blackmagic Design Mini Converter – SDI to Audio Overview
The Blackmagic Design Mini Converter – SDI to Audio includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!
Auto Switching SD and HD
Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.
Advanced 3 Gb/s SDI Technology
Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.
International Power Supply
Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!
Additional information
| Weight | 0.469 kg |
|---|---|
| Dimensions | 14.61 × 14.1 × 6.6 cm |
| SDI Input: | SDI: Switchable between SD, HD and 3 Gb/s SDI SDI Redundant: Automatically switches over if main SDI input is lost |
| Analog Audio: | 4 channels of professional balanced analog audio with standard 1/4 inch jack connections |
| AES/EBU: | 8 channels of professional balanced digital with standard 1/4 inch jack connections |
| Format: | 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60 |
| Sampling: | 4:02:02 |
| Power Requirements: | 12VDC (includes power supply) |
