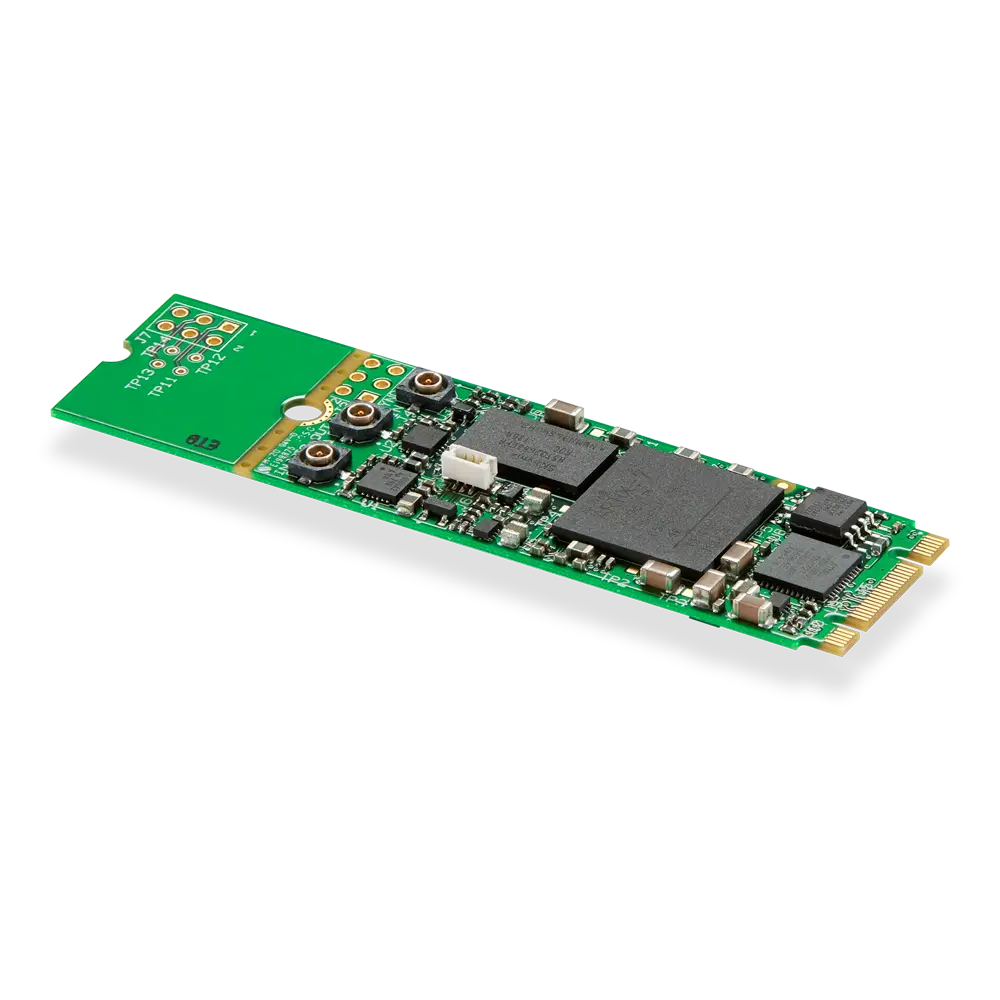

Blackmagic DeckLink SDI Micro
585.00 Excl. VAT
- 3G-SDI Capture Card for SD/HD Formats
- Supports Resolutions up to 1080p60
- 4:2:2 & 4:4:4 Color Sampling
- Black Burst & Tri-Sync Reference Input
- Fan & Heat Sink Assembly Kit Included
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Description
Description
Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
Additional information
| Weight | 0.43 kg |
|---|---|
| Dimensions | 24.51 × 16.26 × 8.13 cm |
| Host Connection: | M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280 |
| SD Video Standard | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| SDI Video Sampling: | 4:2:2, 4:4:4 |
| SDI Color Precision: | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601. |
| Operating Systems: | Windows 8.1 and 10, both 64-bit. Linux |
