Blackmagic 2110 IP Mini BiDirect 12G
1,527.00 Excl. VAT
- 12G-SDI to 2110 IP Converter
- Video Monitoring To/From Studio Camera
- Supports UHD 4K Video via SMPTE-2110 IP
- 5-Pin XLR Talkback Control
- Windows/macOS Software Utility
- PoE and 10G Ethernet Power
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Description

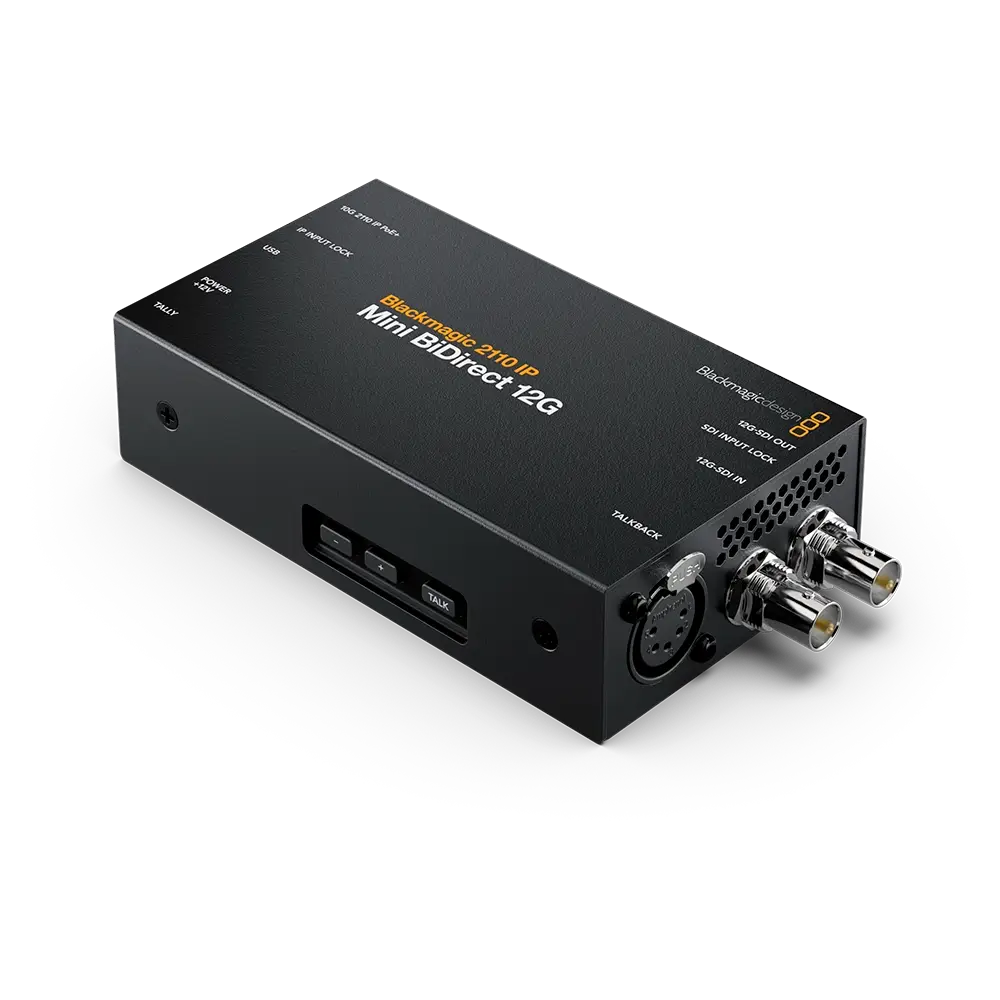

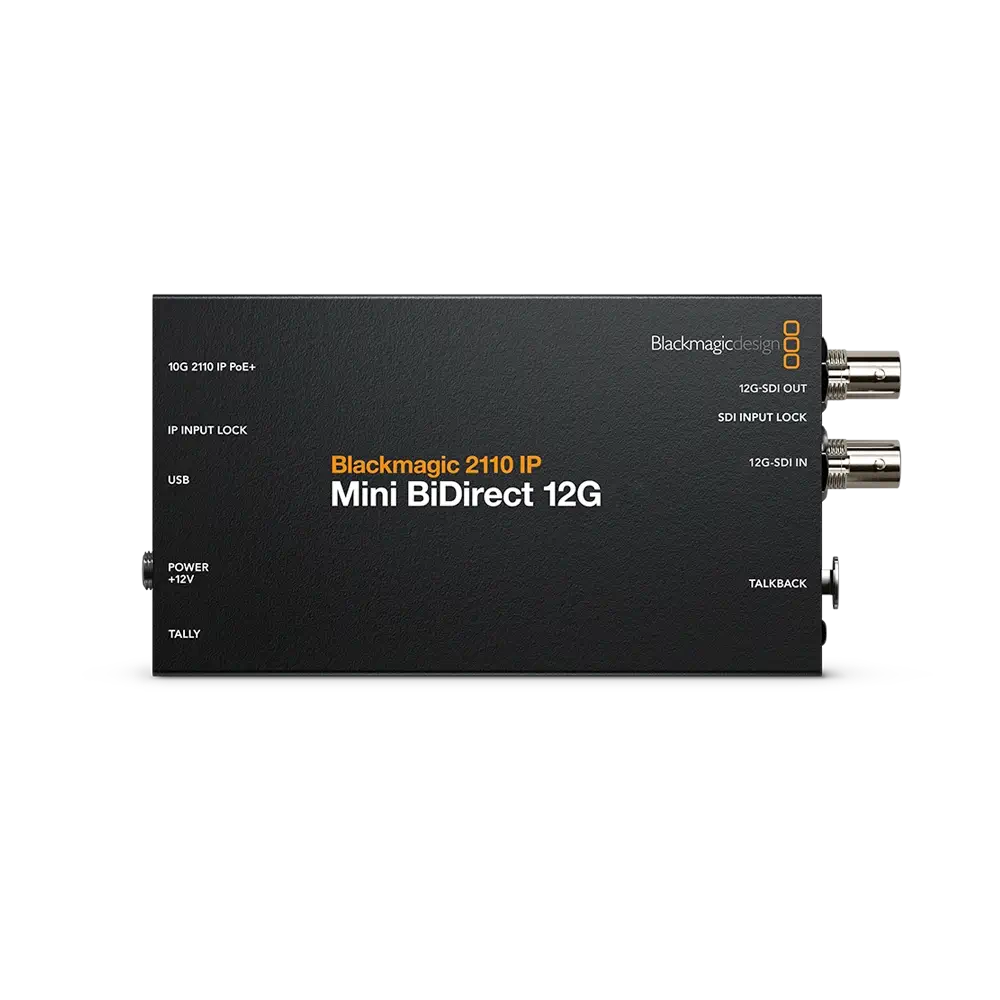

Blackmagic Design 2110 IP Mini BiDirect 12G Overview

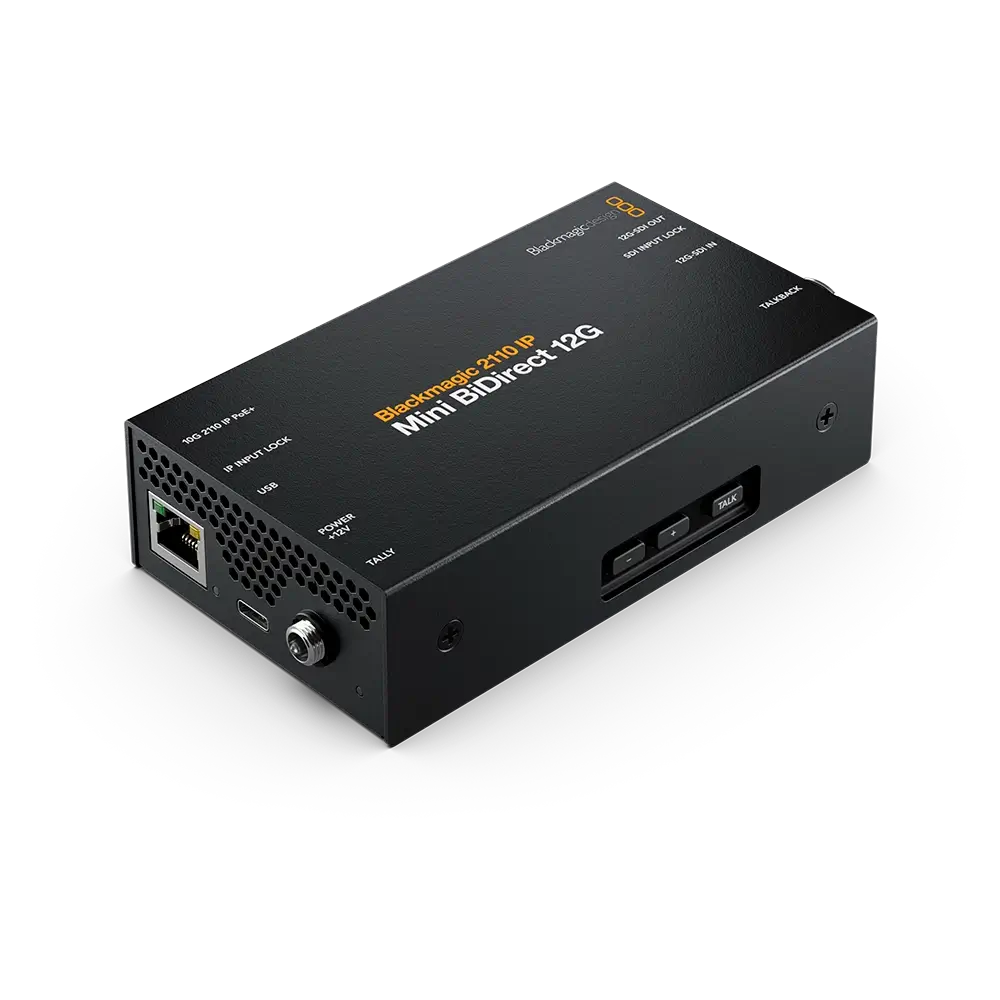

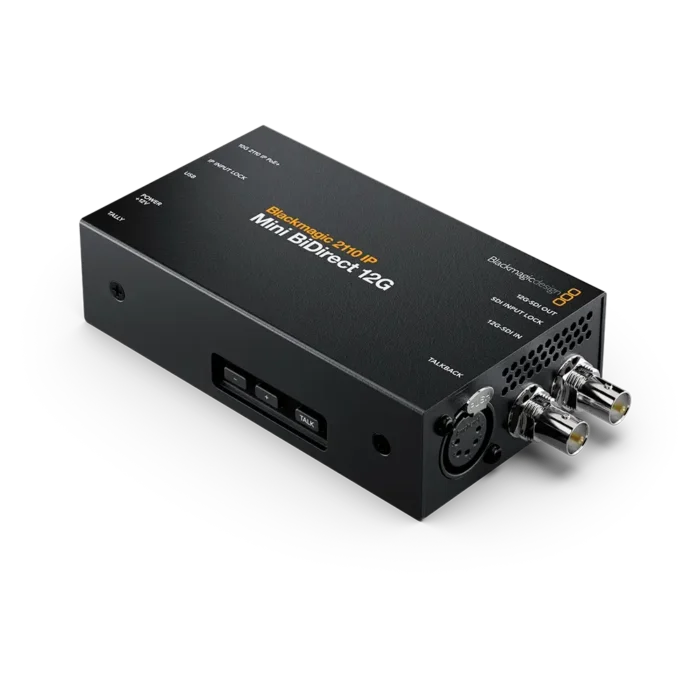

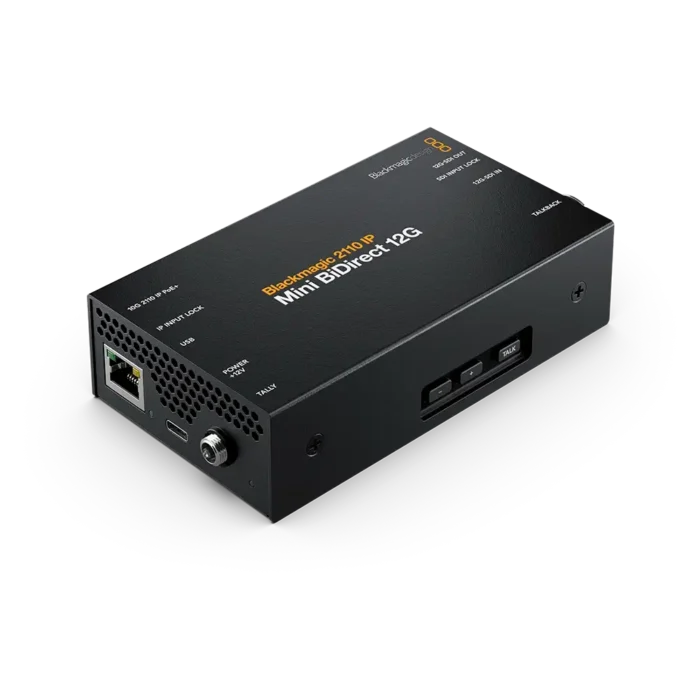

Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems with this 2110 IP Mini BiDirect 12G Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact that it can easily mount onto your camera rig. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.
Features
- This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems
- Handles the SDI camera feed and SDI program return in the one converter

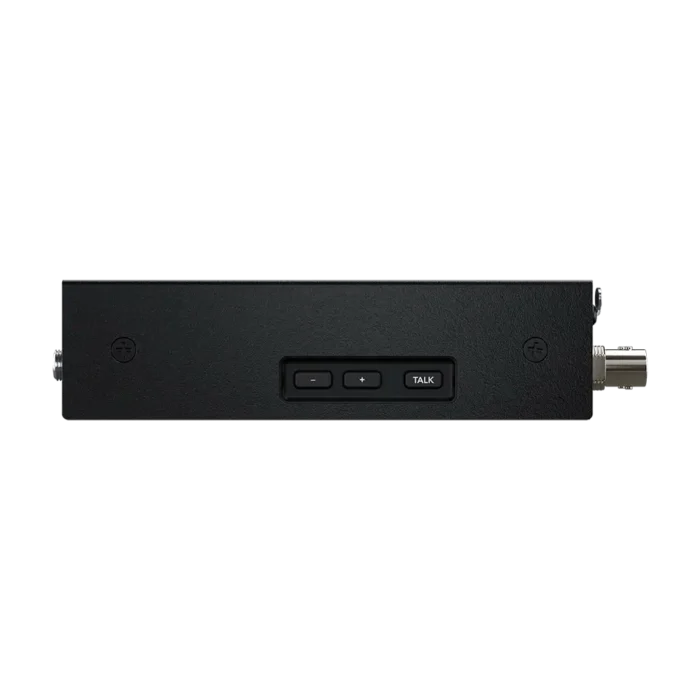

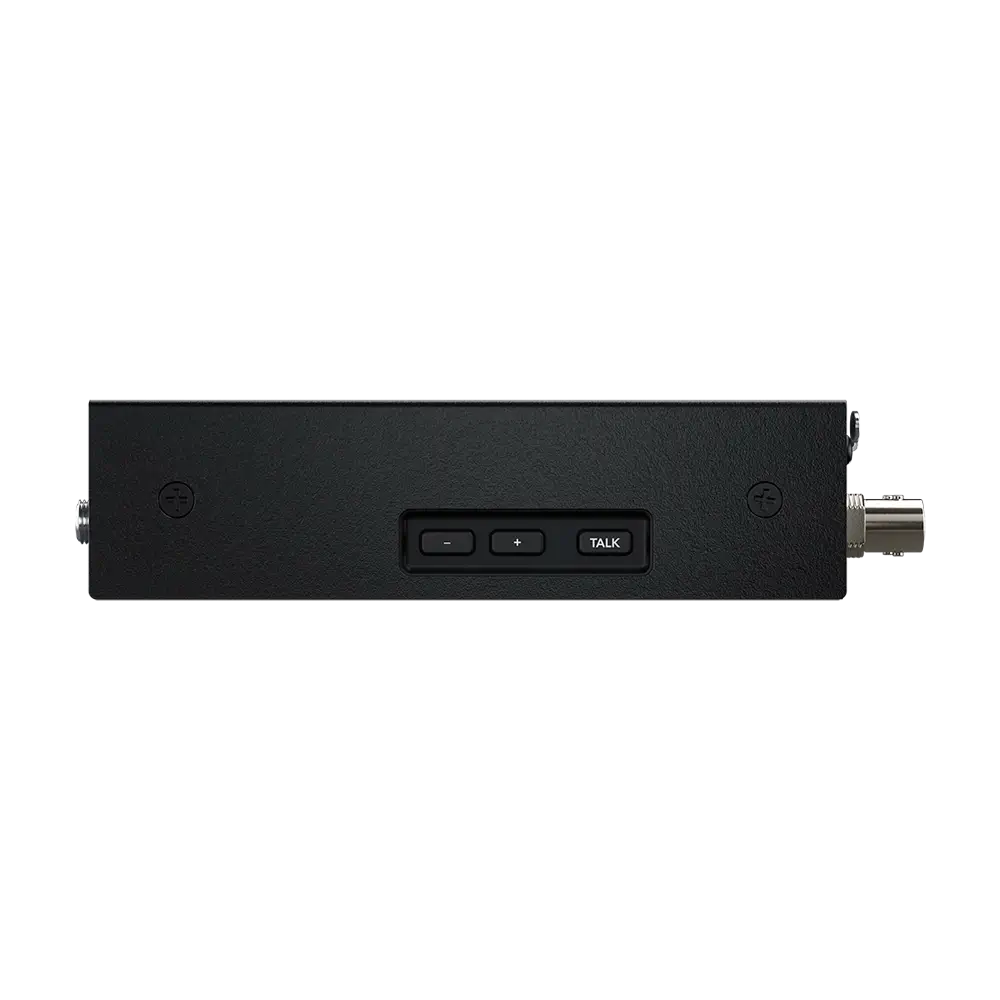

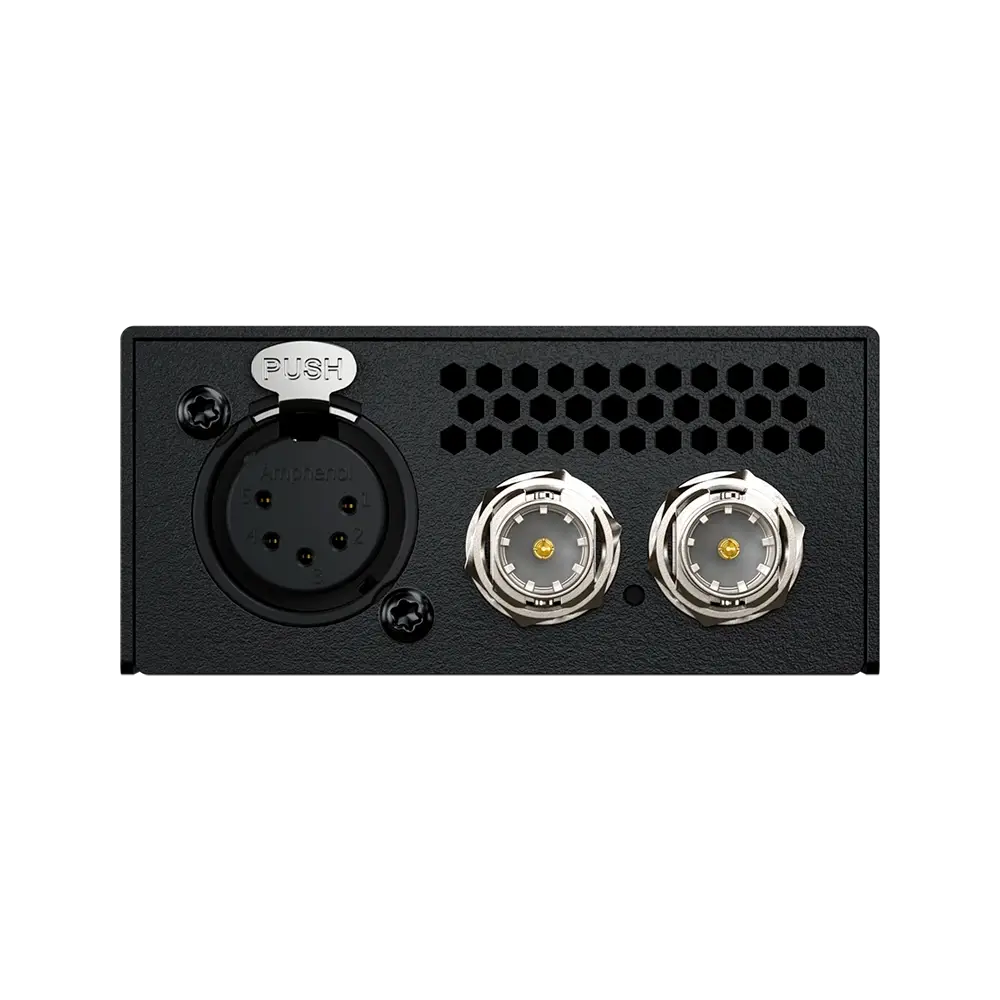

- 5-pin XLR talkback headset connection with volume and press to talk buttons
- Supports all SD, HD, and UHD standards up to 2160p60
- Includes a 12 VDC power supply
Additional information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 26.42 × 8.38 × 6.35 cm |

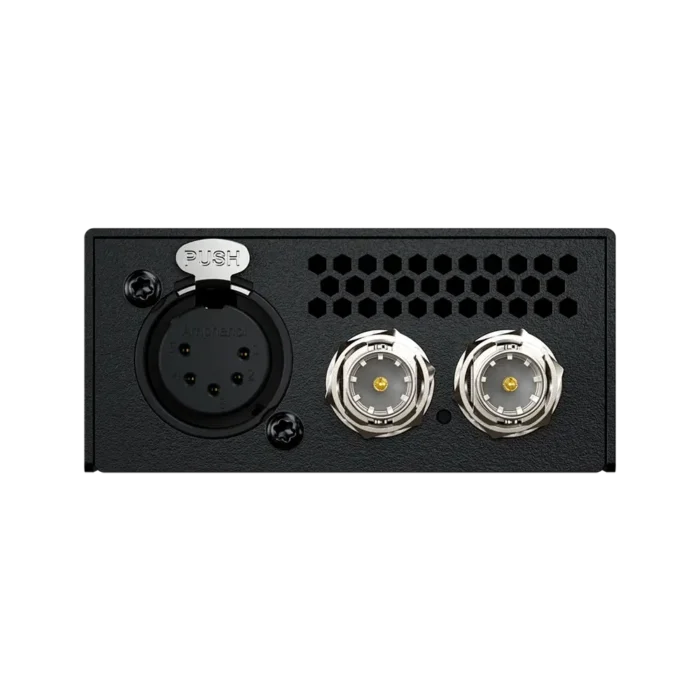

| Video I/O: | Input 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female |
| Audio I/O: | Input 1x XLR 5-Pin Analog Female Output 1x XLR 5-Pin Analog Female |
| Video Resolution: | BNC Input/Output (4:2:2) 4096 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |

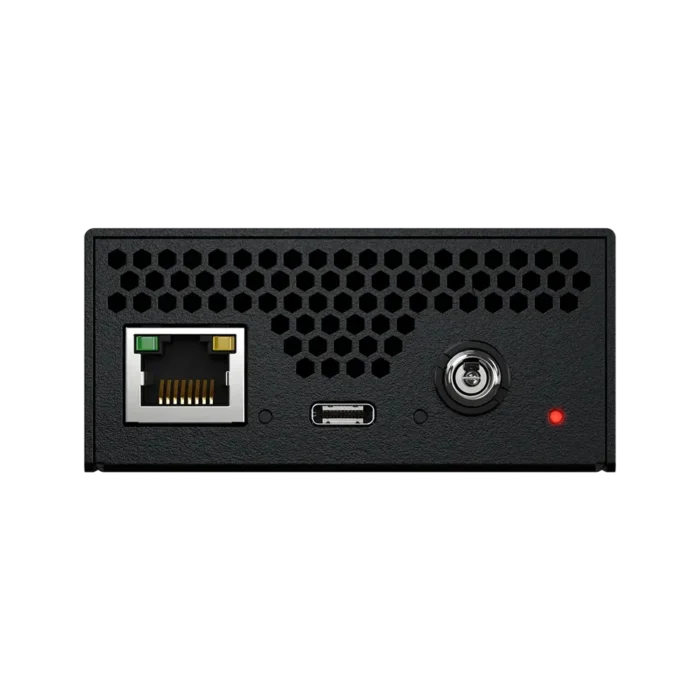

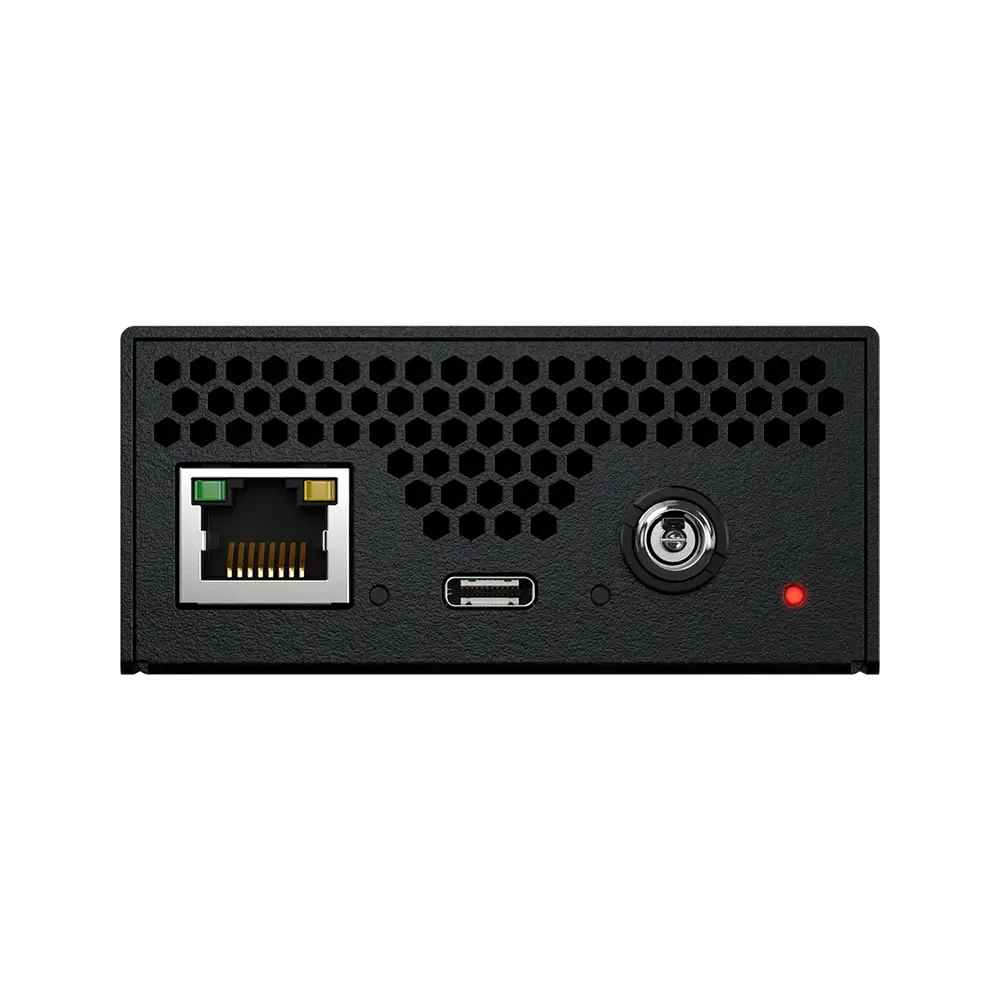

| Other I/O: | Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) 1x USB-C (Device) |
| Expansion Slots: | No |
| Embedded Audio: | LAN (RJ45)/SDI |
| HDCP Support: | No |
| Wireless: | No |
| Power I/O: | 1x Barrel (12 VDC ) Input |
| PoE Support: | Yes: PoE++ 802.3bt |
| Operating Conditions: | 41 to 104?F / 5 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C up to 90% Humidity |
