Blackmagic 2110 IP Converter 4x12G PWR
8,262.00 Excl. VAT
- Converts Four 2110 IP Devices to 12G-SDI
- Simultaneously Powers Devices
- UHD 4K Resolution Support
- One 12G-SDI Program Return Feed
- Redundant Power
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Description

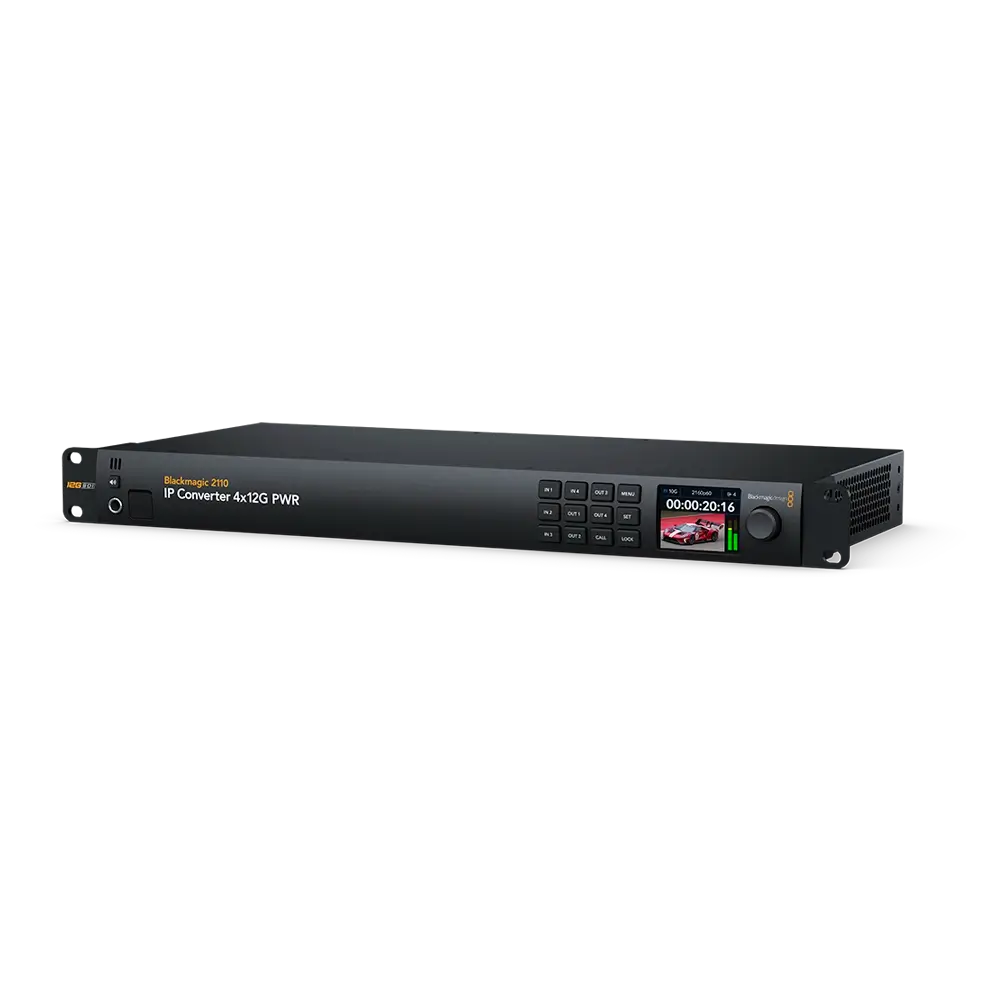

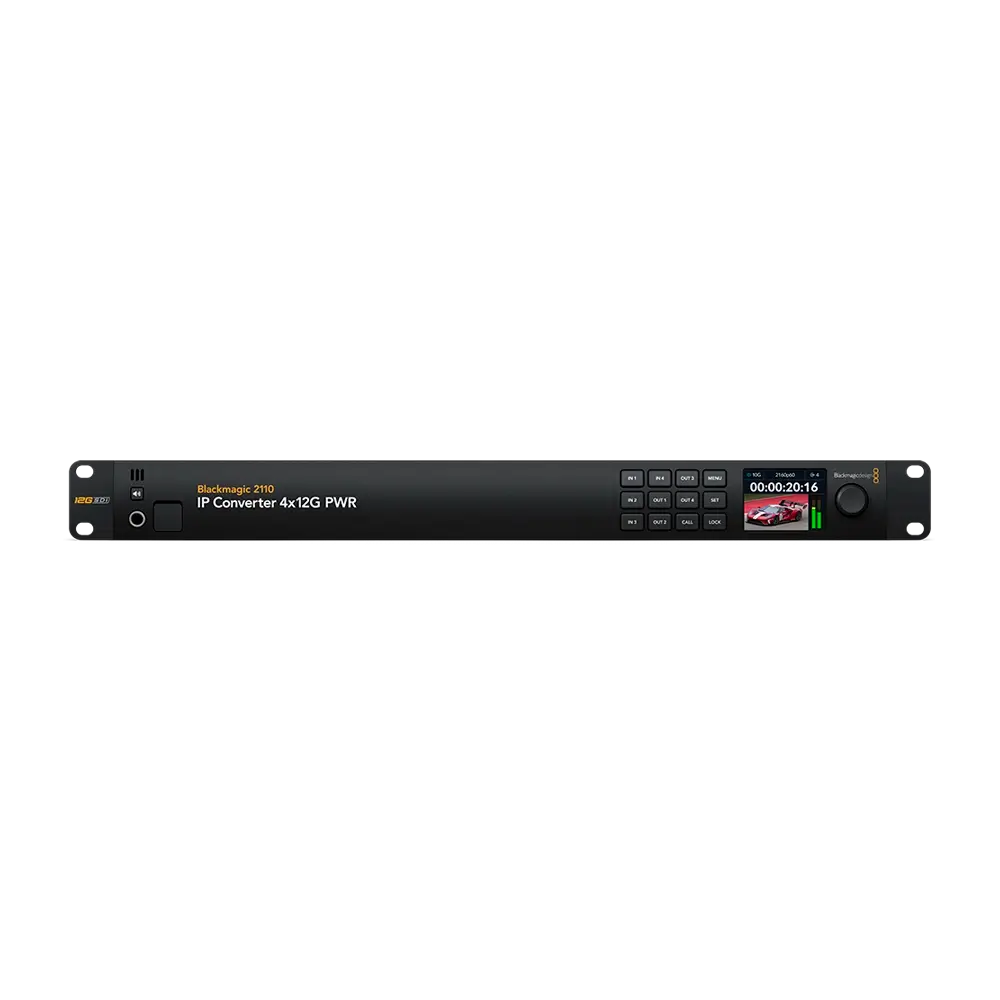

Blackmagic Design 2110 IP Converter 4x12G Overview
Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 4x12G PWR from Blackmagic Design. The converter provides bidirectional 12G-SDI to SMPTE-2110 IP video conversion connections, and it supports up to four Studio 6K Pro cameras via its 10G Ethernet connections with a 12G-SDI input for each connection. It also supports providing power to the Studio cameras over each 10G Ethernet connection via PoE. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input and redundant power.
Features
- This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment
- 1 RU design
- Four independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections
- It can supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time
- Each channel has a 12G-SDI input, and there’s even a 12G-SDI program return input that sends to all channels
Additional information
| Weight | 4.322 kg |
|---|---|
| Dimensions | 53.09 × 26.16 × 9.14 cm |

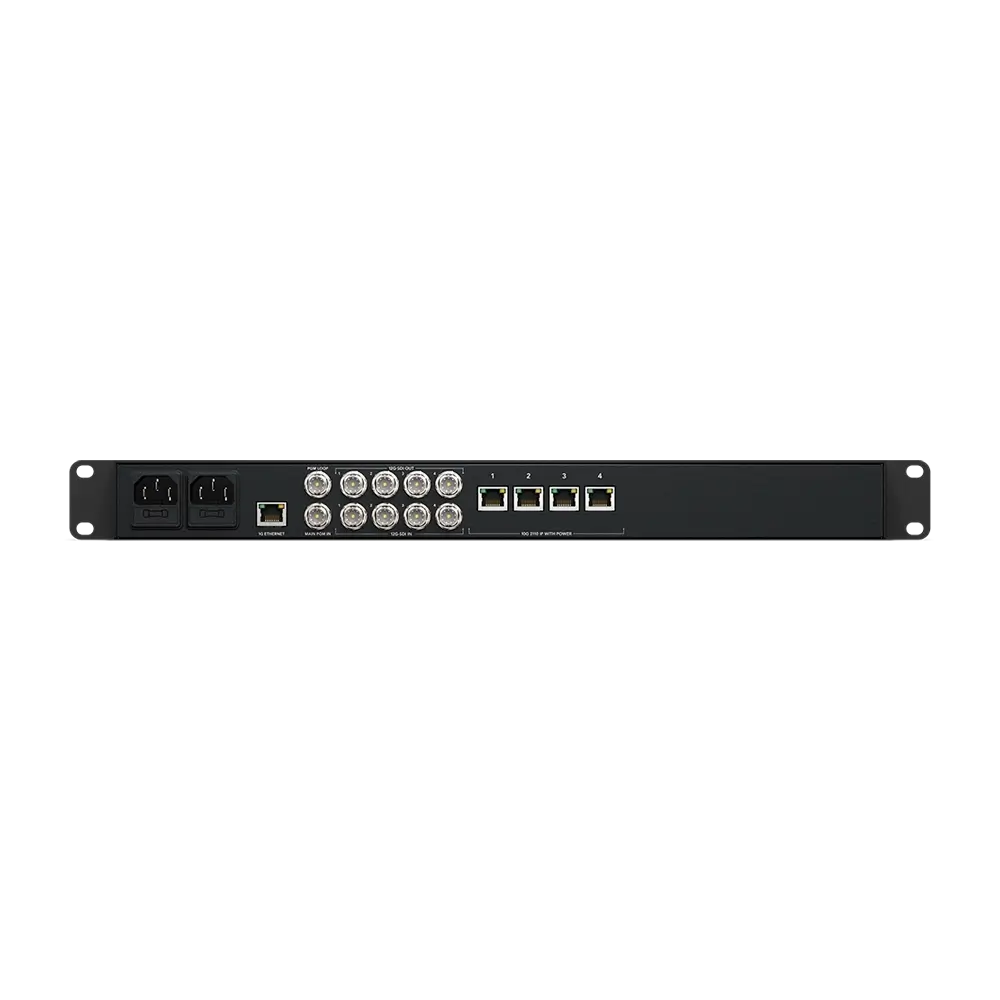

| Video I/O: | Input 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Program) Output 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Audio I/O: | Output 1x 1/4″ TRS Stereo Analog Female |
| Video Resolution: | BNC Input/Output 4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Expansion Slots: | No |
| Other I/O: | Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output 4x RJ45 (10 GbE) Input/Output 1x RJ45 (10/100/1000 Ethernet) |
| Embedded Audio: | LAN (RJ45)/SDI |
| Video Standard Compliance: | SMPTE: ST-2110 |
| HDCP Support: | No |
| HDR Support: | Yes |
| Wireless: | No |
| OS Compatibility: | macOS 13 or Later Windows 10 to 11 |
| Display: | 2.2″ LCD |
| Power I/O: | 2x IEC C14 (100 to 240 VAC ) Input |
| PoE Support: | Yes: PoE Proprietary |
| Operating Conditions: | 41 to 104?F / 5 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C up to 90% Humidity |
| Rack Form Factor: | 1 RU |
