Kiloview RF02
11,478.00 Excl. VAT
- Built-In Network Switch Module
- Configure up to 18 Service Cards
- Streamlines Data Flow
- NDI Support
- 3″ LCD Screen, Dual Power Supply
- 2 RU Rackmount Size
Available on backorder

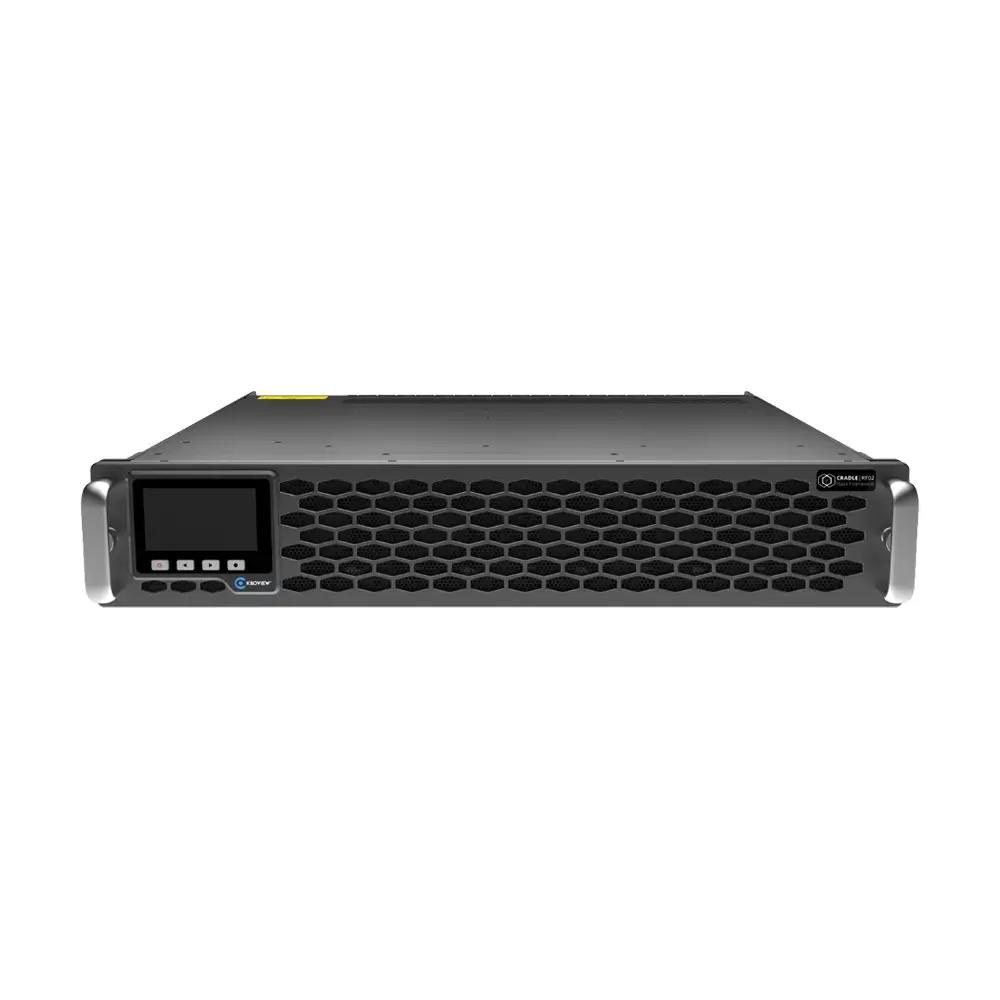

Kiloview RF02 Overview

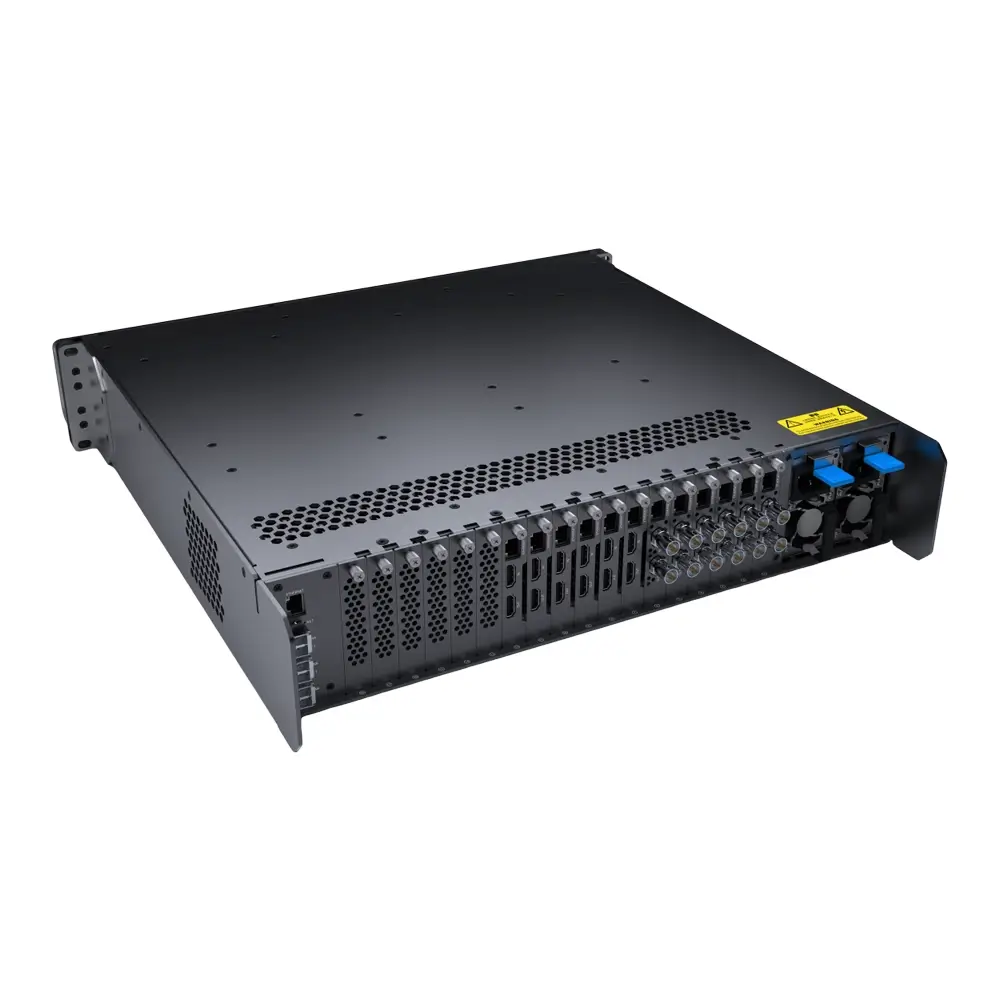

Maximize your AV-over-IP workflow with the RF02 Cradle Modular Media Platform from Kiloview, thanks to its customizable configuration. The device features a 2 RU frame with 18 slots for separately available service cards. A rear plug-in card structure offers 20-pin connectors for each card and 1 or 2.5 Gb/s adaptive Ethernet ports. A built-in network switch module connects the cards to one another, including encoding, decoding, media gateway, and bonding service functions. Three 10 Gb/s SFP+ fiber Ethernet interfaces and a 10 Gb/s RJ45 Ethernet connection ensure the RF02 can handle high-bandwidth NDI signals. Manage the device using the 3″ LCD screen and power the entire system with the included hot-swappable dual power supplies.
Additional Details
- RF02 streamlines the data flow, eliminating the need for external network switches
- Automatically identifies and categorizes media streams for real-time status monitoring and flexible adjustments
- Each service card operates independently, so a single card failure does not affect other cards
- Dual hot-swappable redundant power supplies and five adjustable speed fans ensure stable operation
- API support for integration, automation, and customization for specific operational needs
| Weight | 13.78 kg |
|---|---|
| Dimensions | 60.45 × 59.94 × 24.38 cm |
| CPU: | 8-Core ARM64 High-Performance Processor Cortex-A73 at 1.8 GHz |
| Memory: | 12 GB DDR4 |
| Storage: | 128 GB EMMC |
| Panel Type: | LCD |
| Video I/O: | 18x RJ45 Input ( Ethernet for Service Cards ) 3x SFP Input ( Fiber Ethernet ) 1x RJ45 Input ( Ethernet ) |
| Maximum I/O Expansion: | 18 x 20-Pin Connector |
| Wireless: | Wi-Fi |
| Power Source: | Proprietary Interface |
| Operating Conditions: | 32 to 104°F / 0 to 40°C at 5 to 90% Humidity |
| Storage Conditions: | -4 to 158°F / -20 to 70°C at 5 to 90% Humidity |
