Kiloview D260 HD IP to SDI/HDMI Video Decoder
1,910.00 Excl. VAT
- Decode up to H.264/H.265 IP Video
- 1 x 3G-SDI & 2 x HDMI 2.0 Outputs
- Dual Gigabit Ethernet, Up to 1080p60 Out
- 4-Channel Decoding, 16 x Preview Streams
- Built-In LCD Screen
- Independent, Multichannel, Replication
- 3.5mm Line Out, Audio On/Off
In stock
D260
4-Channel HD H.265 HDMI&SDI Decoder
D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.

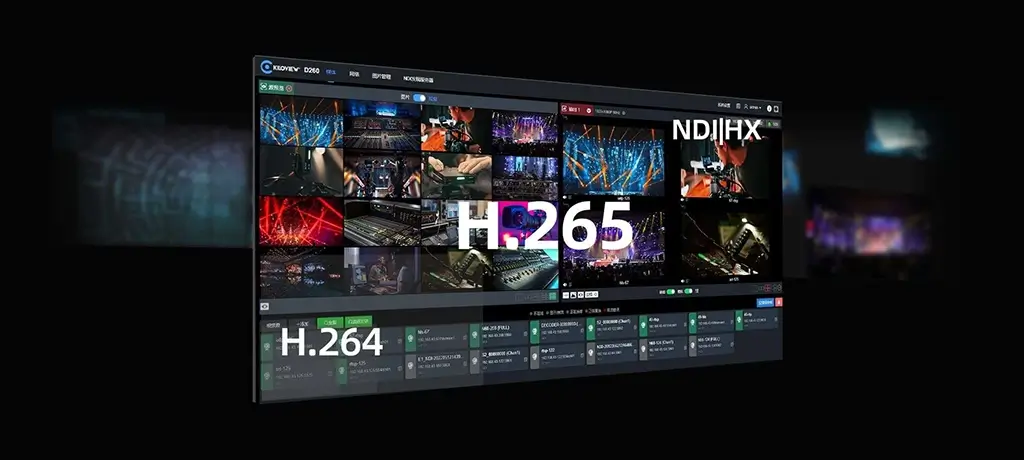

Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.
More Protocols Supported

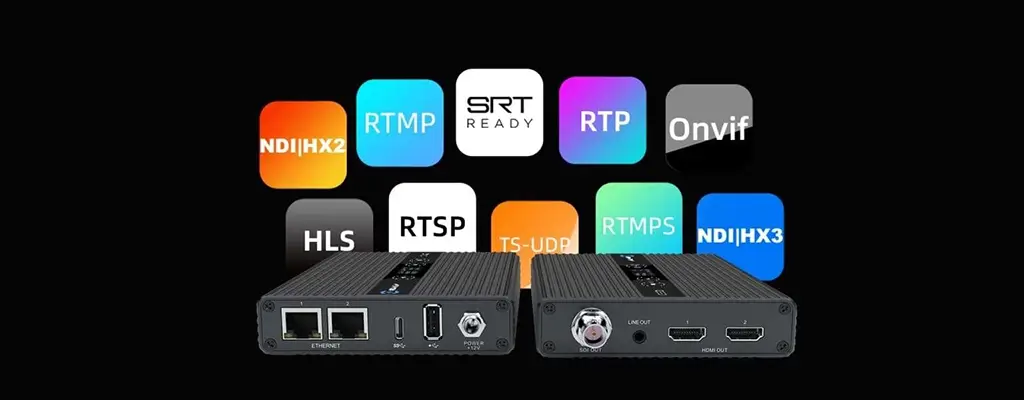

For all IP-based video transmission process, D260 supports the latest NDI technology – NDI HX3, NDI HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP

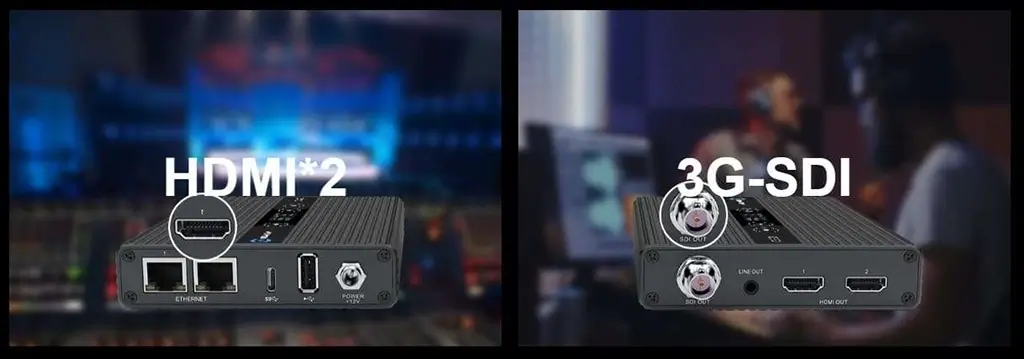

Extended Output Interfaces

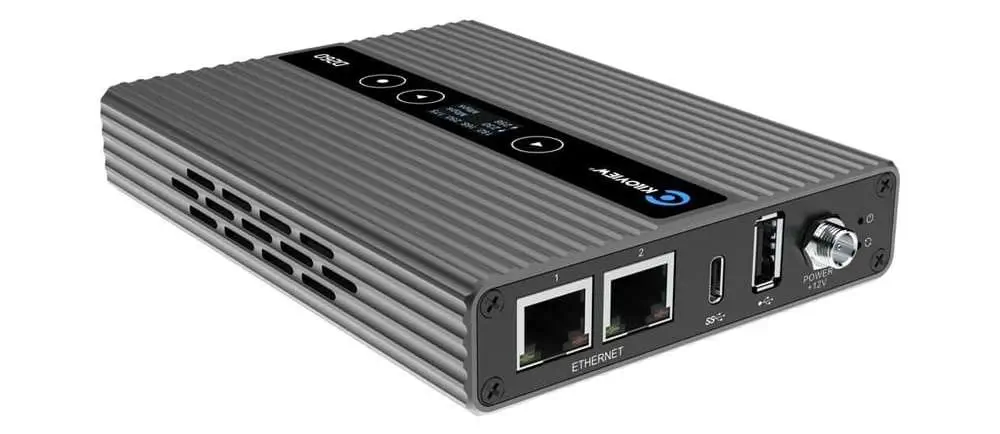

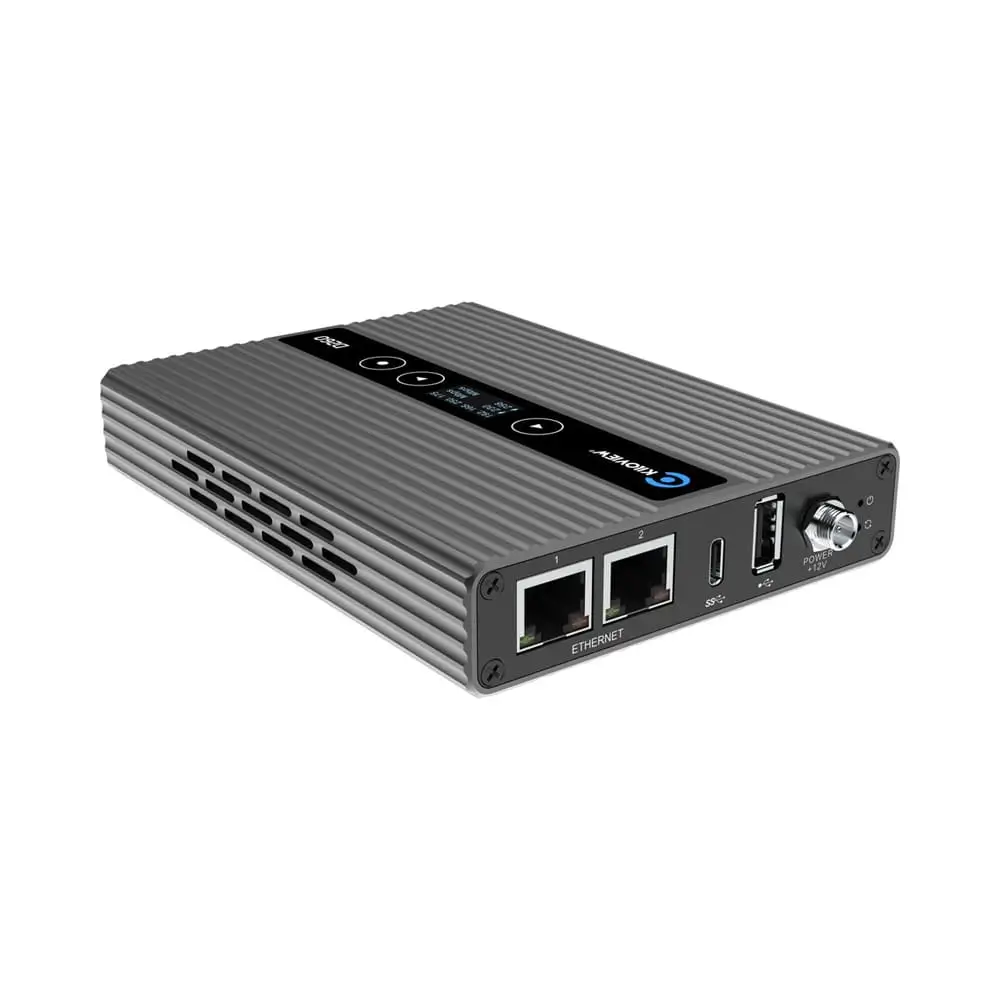

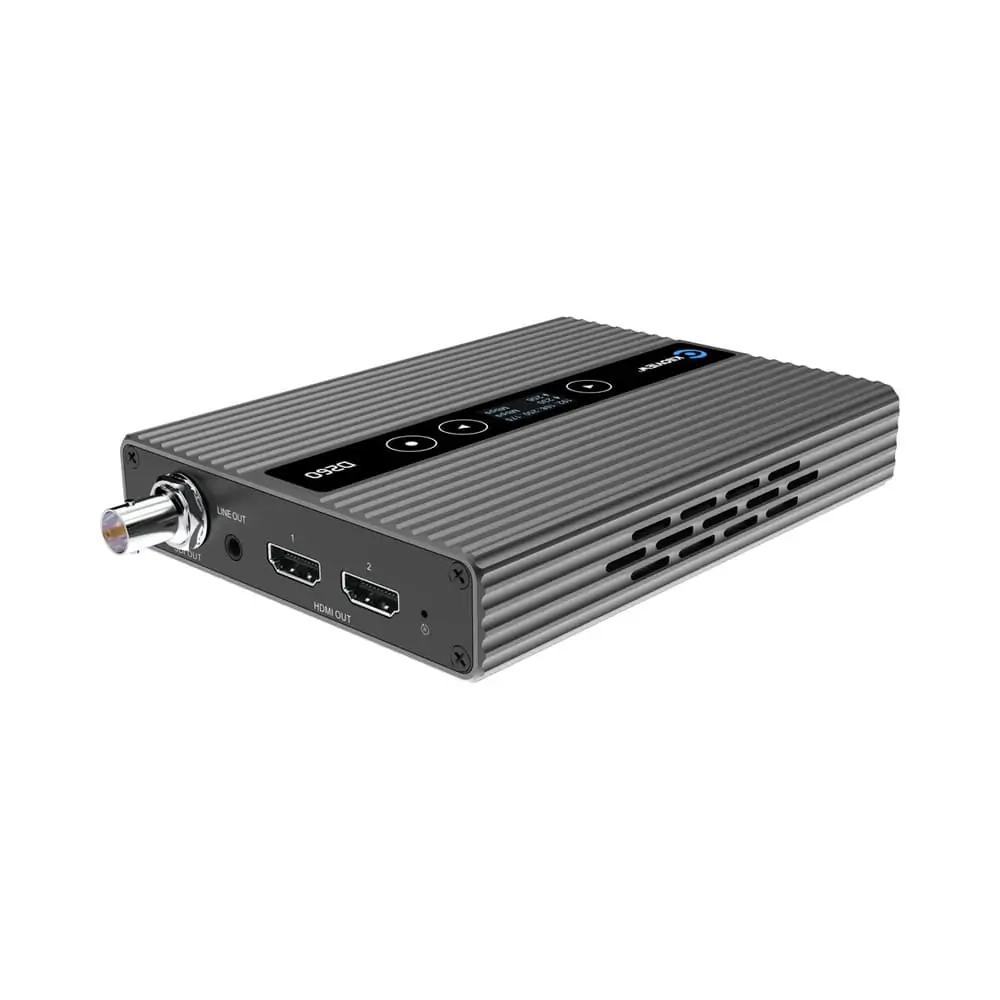

As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.
16 Preview + 4 Output

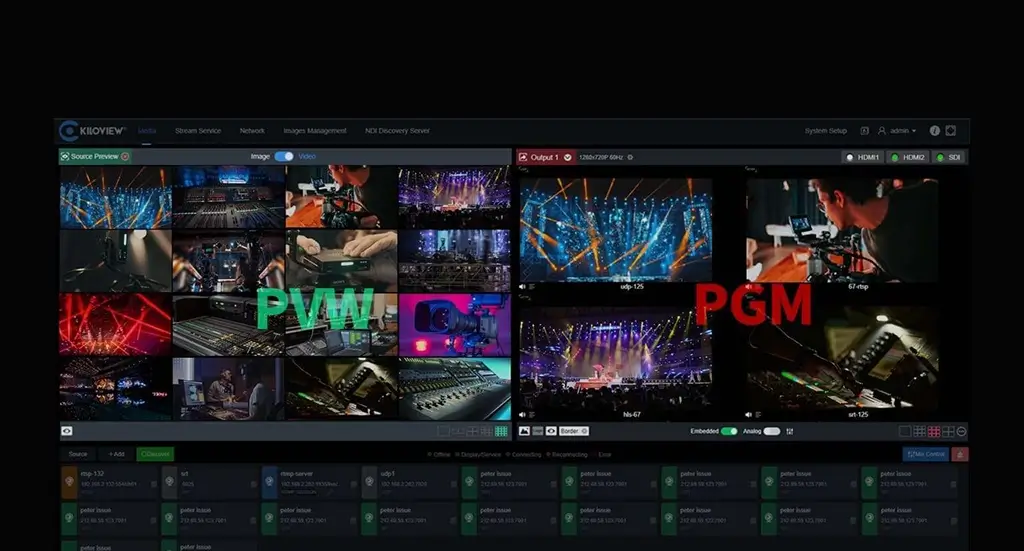

D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
Custom Layouts

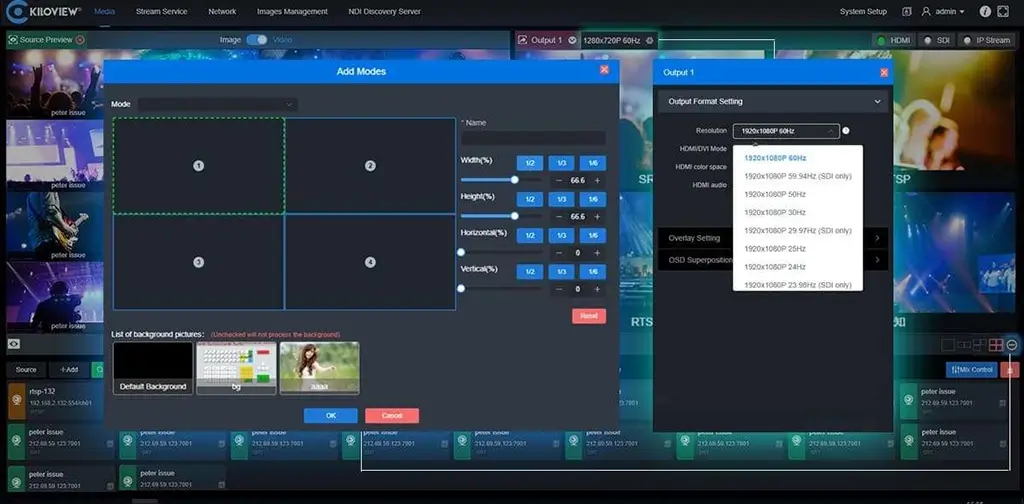

Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.

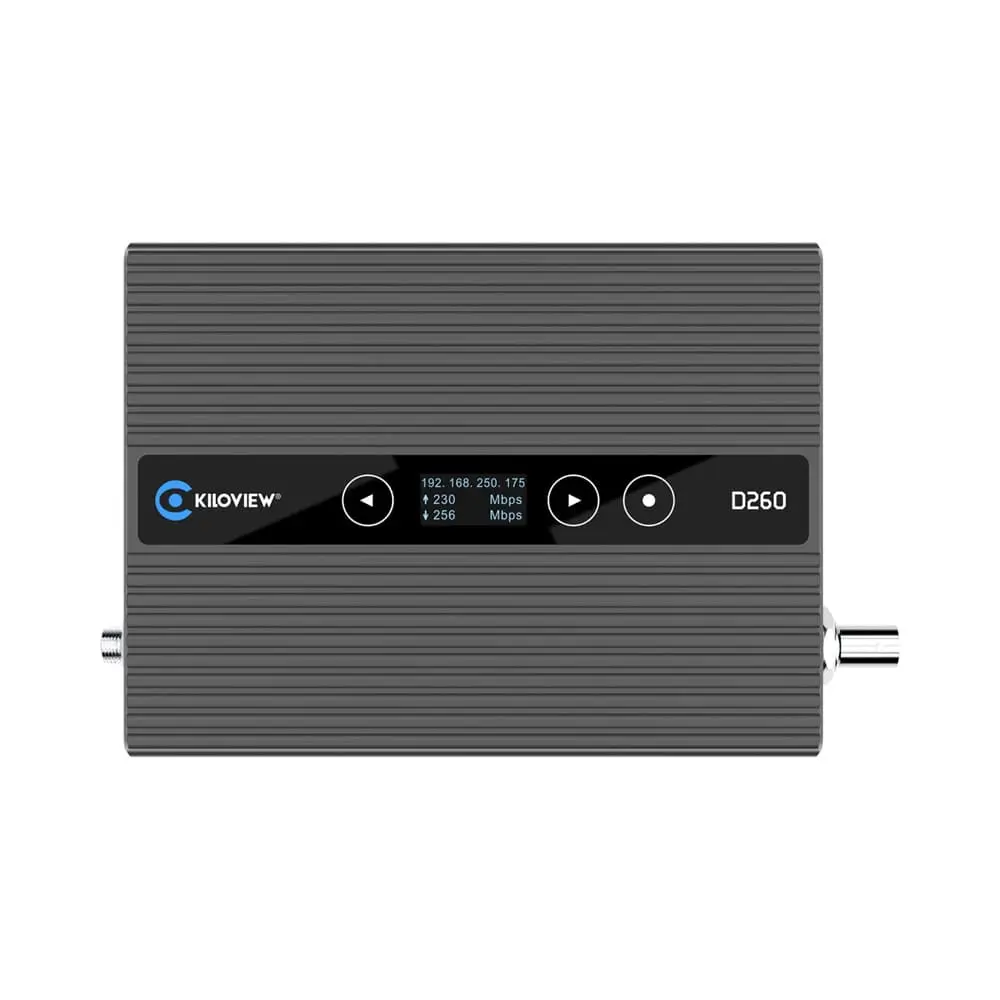

Display and Touch Button

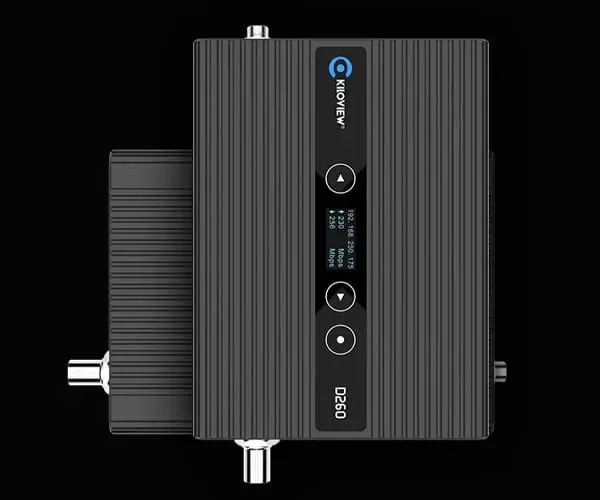

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

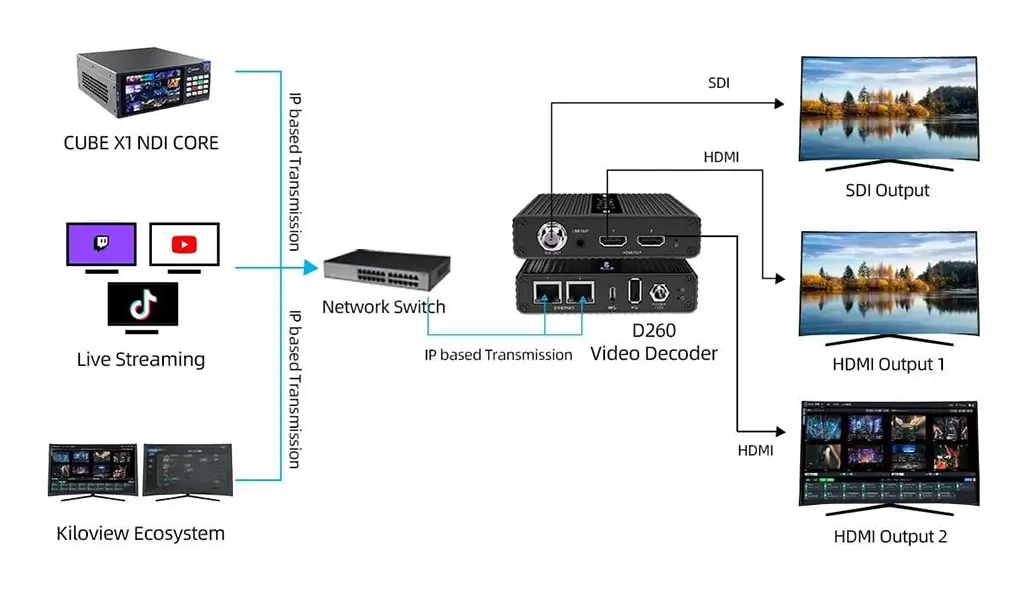

Applications
| Weight | 0.15 kg |
|---|---|
| Dimensions | 41.35 × 26.42 × 6.35 cm |
| Display | 0.96”OLED Display and Touch Button |
| Operating Temperature | -20℃~60℃ |
| Power Supply | DC 12V/1A |
| USB | 1*USB 2.0, Type-C 1*USB 2.0, Type-A |
| Output | 2*HDMI 1*3G-SDI |
| Audio ports | HDMI、SDI and 1*3.5mm Line out |
| Tally | Yes |
| OSD | Yes |
| Power Consumption | 7W(MAX) |
| Voice Intercom | Yes |
| Management | WebUI/KiloLink Server |
| Video Formats | H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2； H.265(HEVC)Compatible with Main Profile, up to Level 5.1 |
| Streaming Protocols | NDI, HX2/NDI, HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP |
| Network Connections | Ethernet Ports: 2*10/100M/1000M |
| Video Decoding Capability | 4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60 |
| Audio Formats | AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM |
| Layouts | Custom 1/2/3/4 layouts |
