Kiloview NDI Core Max 32 IN

NDI CORE MAX Distribution System is a hybrid hardware-software solution engineered for multi-scenario applications such as studios, OB vans, EFP systems, live production, and signal routing. It delivers comprehensive management, routing, and distribution of multi-channel NDI streams.

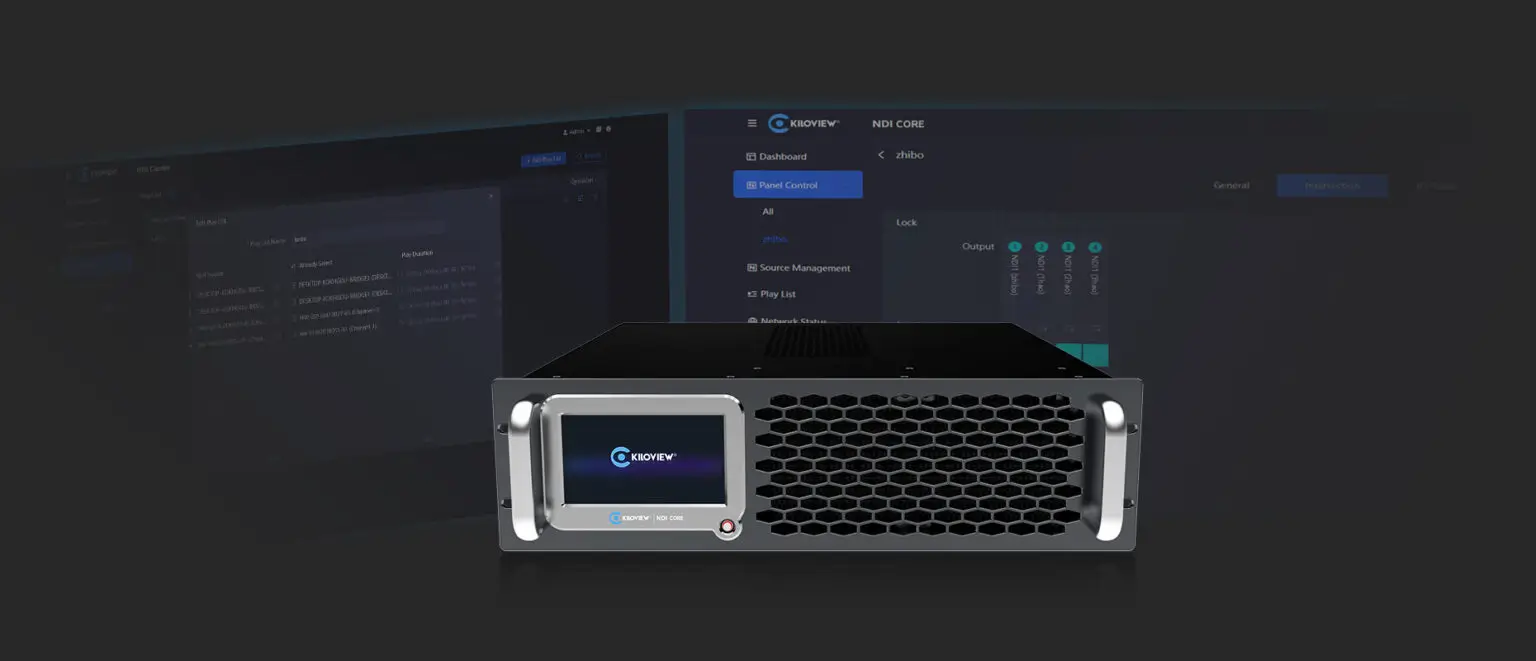

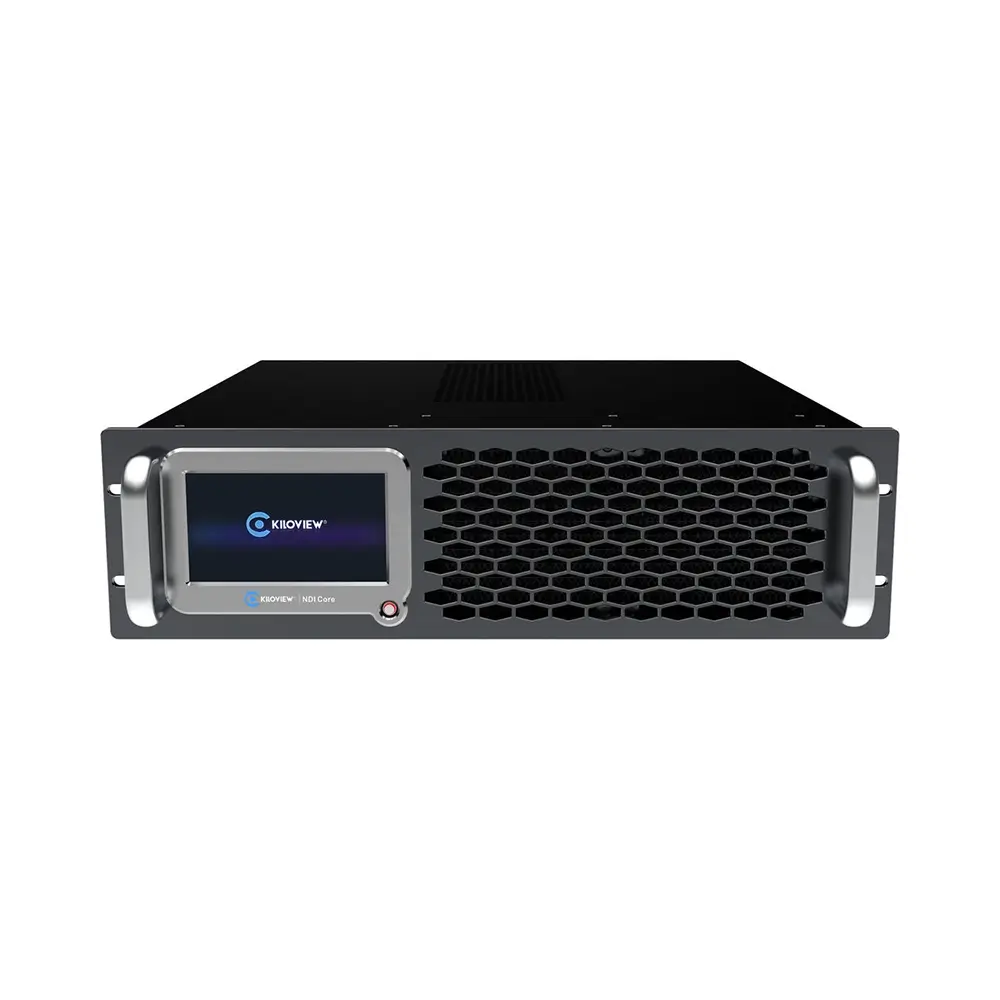

Built on a 3U server architecture, it features dual-port 10GbE or optional 40GbE fiber NICs, supporting resolutions up to 4Kp60. With robust processing power, the 40GbE NIC handles up to ​166 channels of 1080p60​ input/output, while the 10GbE NIC supports ​50 channels of 1080p60​ I/O.

Compatible with multiple formats—including NDI HB,NDI HX2 and NDI HX3—and resolutions (UHD/HD), it empowers diverse industries with high-performance video streaming, management, and workflow efficiency.

● All the NDI sources are connected one-to-one to the Distribution System for switching and distribution.
● Enable Router Mode to let decoders pull NDI streams directly from sources, bypassing Distribution System. Cuts bandwidth usage and maximizes device performance.
● Supports the creation of multiple virtual outputs internally, allows connection with any terminal device, and enables seamless input/output switching.

Seamless Switching, More Professional

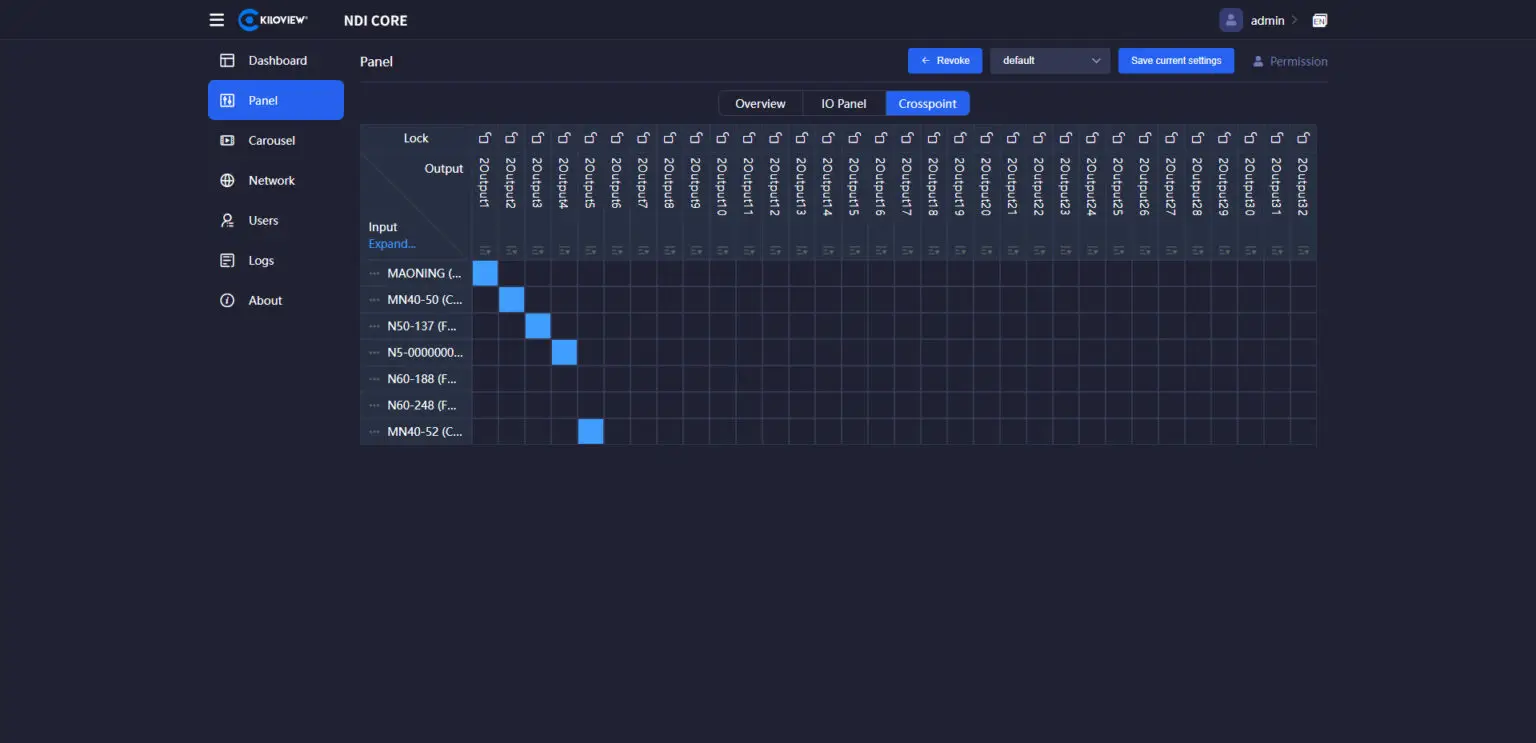

With an automatic discovery feature, NDI sources within the local network are easily identified by NDI CORE MAX, while the embedded NDI Discovery Server extends this capability to NDI sources in external networks. NDI CORE MAX supports up to 64CH of NDI signal inputs and 128CH of NDI signal outputs. It can achieve seamless switching of all NDI signals without lagging or black screen. There are two options for custom switching panels: the Crosspoint panel and the IO panel.Connection mode: It supports 1-to-1 input/output connection, 1 channel input + 1 channel output + multi-channel terminal, and 1 channel input + multi-channel output + multi-channel terminal.

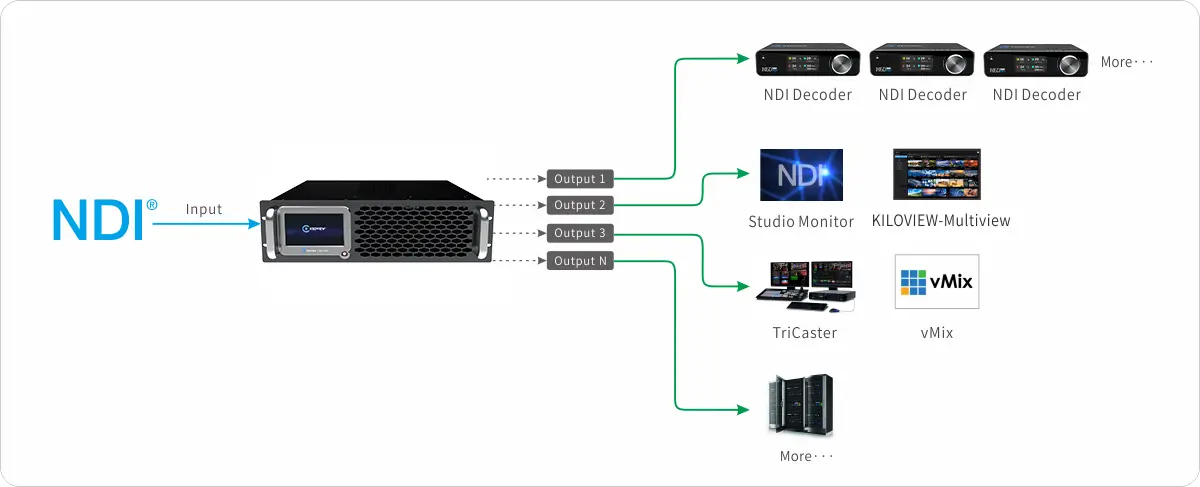

Multiplex Distribution of NDI Sources

Unlike simple routing mechanisms, NDI CORE MAX supports access to all NDI data sources, enabling seamless switching and replicated distribution of NDI signals.When the same NDI video source needs to be used for multiple destinations, the system can create multiple active NDI outputs as needed, or allow a single output to be connected to multiple targets simultaneously.

NDI Signal Round-Robin Playback

Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation.It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.

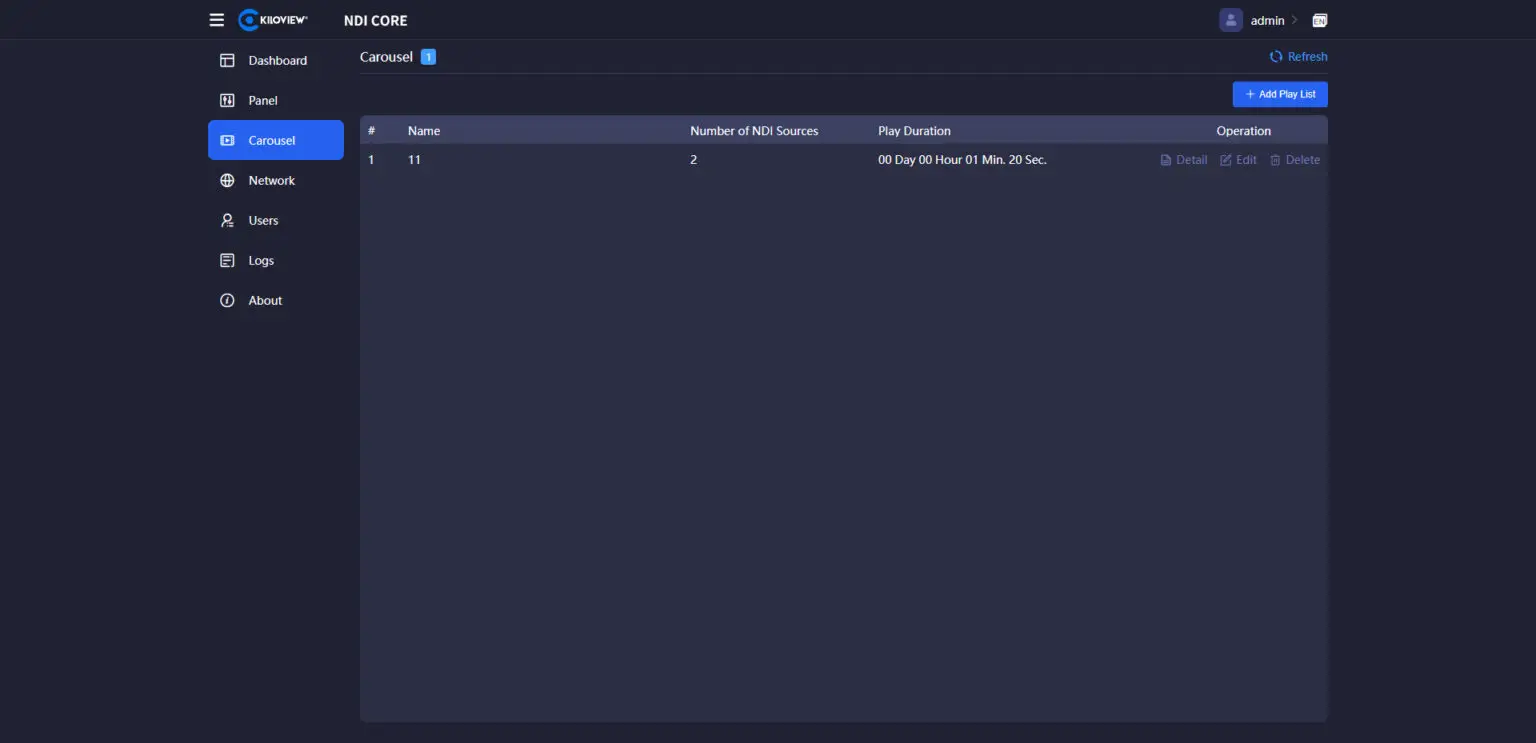

Customizable Playlist Playback

Users can add the NDI sources with dynamic order and duration.

NDI CORE MAX supports sequential and rotation playback modes which are suitable for a variety of scenarios, including conferences and digital signage.

Multi-Group Workflow Management​

Customize control panels to create dedicated groups, each with ​independent I/O configurations. Tailor workflows for distinct operational needs—all within a unified system.

Stable and Reliable Hardware Server with Customizable Solutions

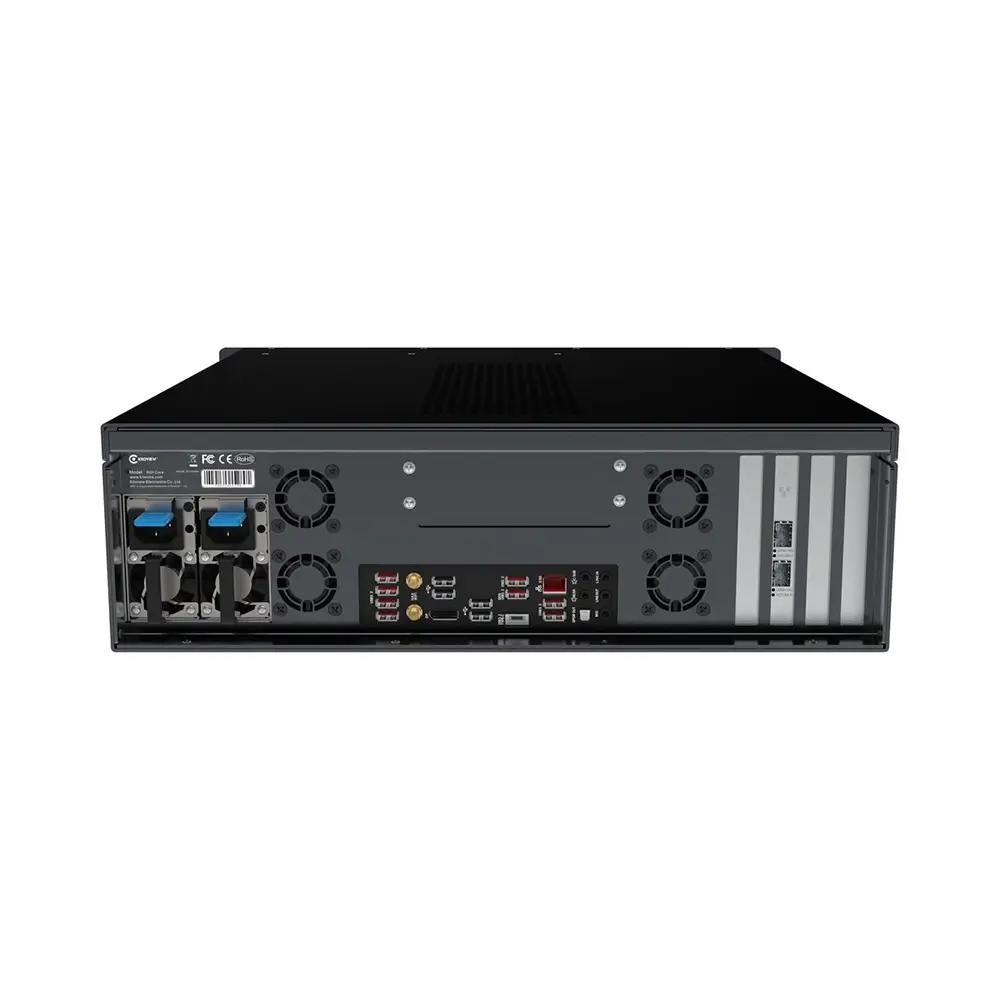

• 3U Server Architecture with Dual Redundant Power Supplies: Ensures uninterrupted power delivery for secure operation.

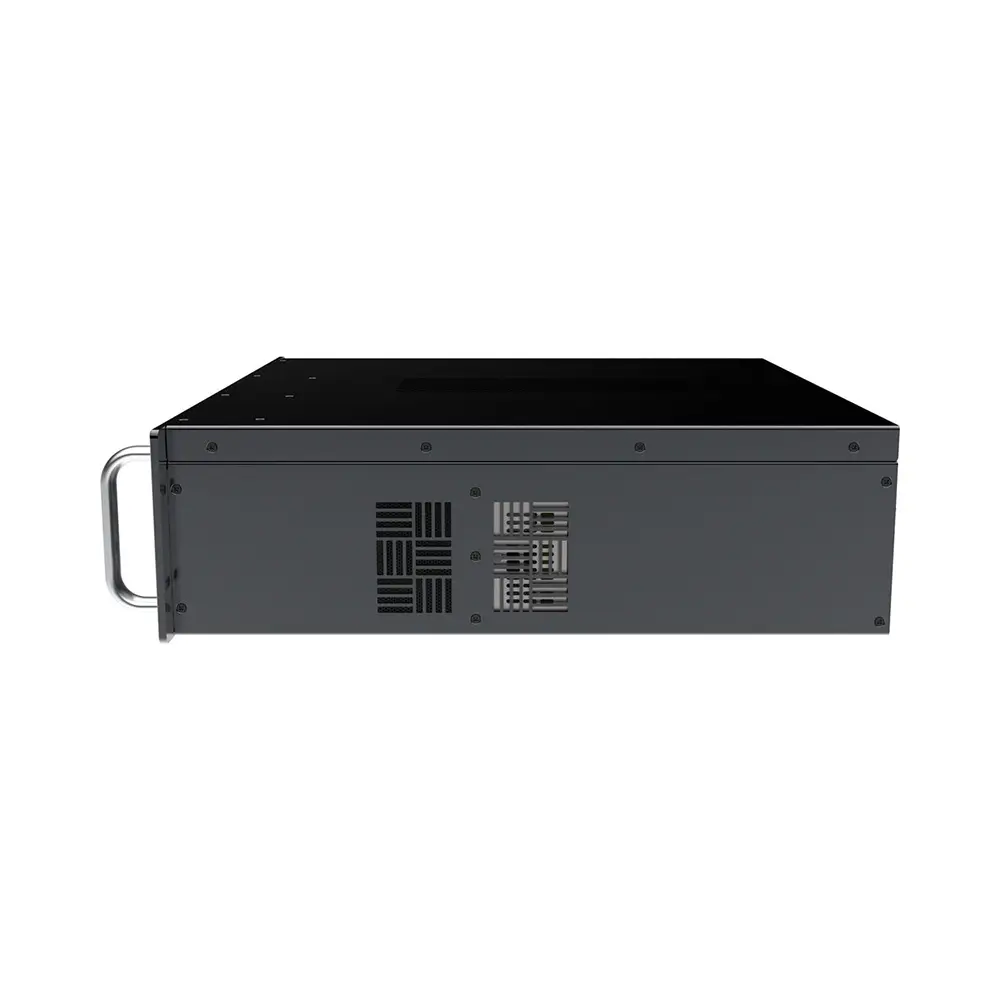

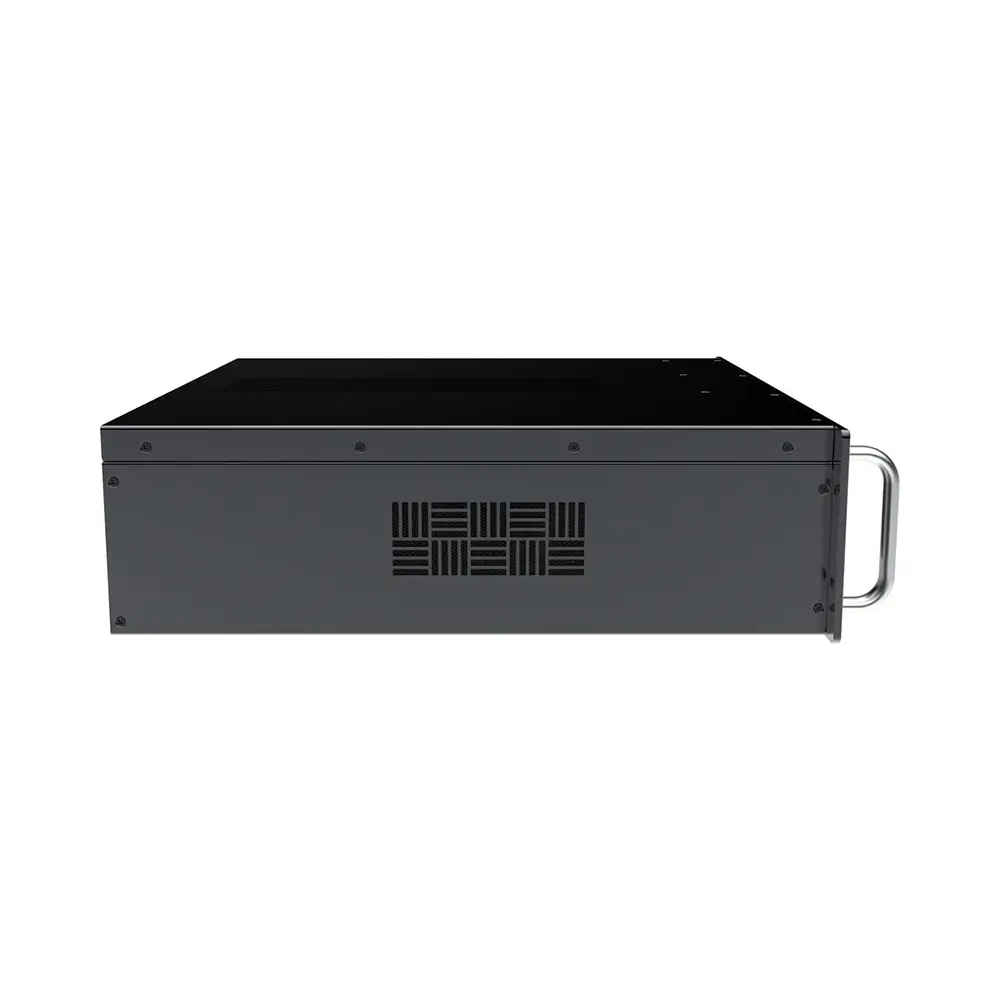

• Reinforced Chassis Design: Rigorously tested against drop impacts, offering exceptional shock and vibration resistance.

• ​Triple-Layer Cooling Mechanism: Equipped with built-in liquid cooling, four high-performance fans, and large-area ventilation mesh for optimal heat dissipation.

• ​Customizable Configuration: Tailored solutions available based on your specific NDI input/output channel requirements and other personalized needs.
