Kiloview E3 HDMI & SDI Dual Channel Video Encoder
1,910.00 Excl. VAT
- Up to UHD 4K30 via HDMI
- Supports Multiple Streaming Protocols
- H.265 and H.264 Support
- Streams to up to 16 Platforms
- Built-In LCD Screen
- Low <100ms Latency
- PoE Support
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
All Your Interfaces, One Professional 4K Encoder
E3 is a new-generation professional video encoder that combines powerful performance and flexibility in a compact unit. It supports HDMI input up to 4Kp30, 3G-SDI input up to 1080p60, and USB input, encoding in both H.264 (AVC) and H.265 (HEVC) formats. E3 can encode either HDMI or SDI video independently, or combine both in PIP (Picture-in-Picture) or PBP (Picture-by-Picture) modes.
Designed for professional IP-based workflows, E3 supports a comprehensive range of protocols including NDI HX3/HX2, SRT, RTMP/ RTMPS, RTSP, HLS, WHIP, TS over UDP, and RTP, with support for up to 8 concurrent streams.
H.265 Encoding with 50% Bandwidth Savings
E3 supports HEVC (H.265), enabling up to 50% lower bitrate compared to H.264 without sacrificing image quality. This reduces network load and ensures stable transmission, even under limited bandwidth conditions—while maintaining excellent visual fidelity.

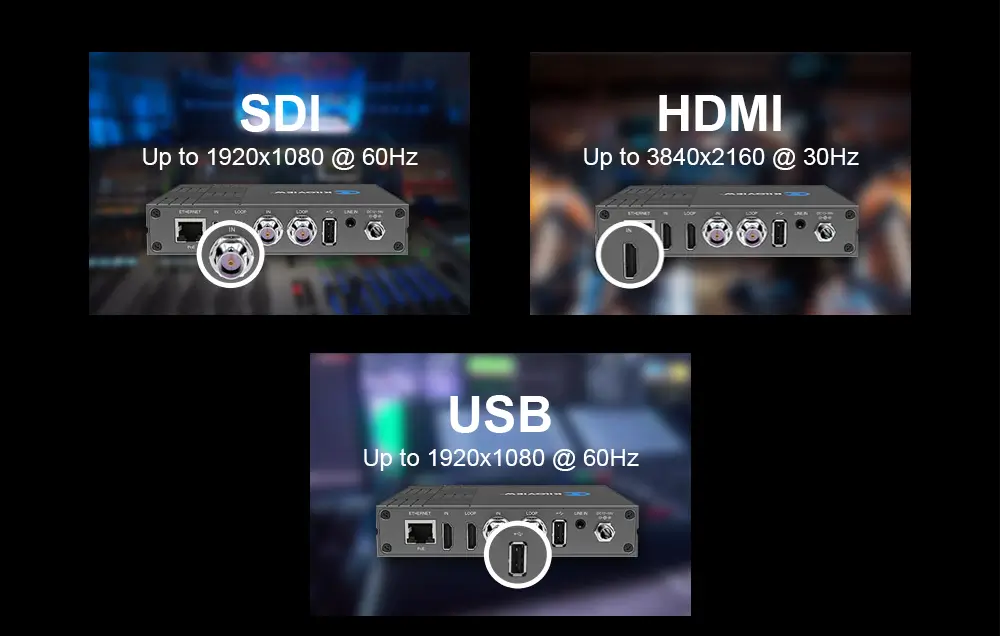

Multiple Inputs, Flexible Encoding
The E3 features 4K HDMI, 3G-SDI, and USB inputs (HDMI/SDI support loop through)，enabling it to be flexibly applied in either broadcast level production or pro-AV scenerios.
E3 can support seamless switching among three inputs and encode either source independently, or it supports simultaneous encoding from both inputs up to 1080p60, even it support for PIP (Picture-in-Picture) from HDMI and SDI inputs.

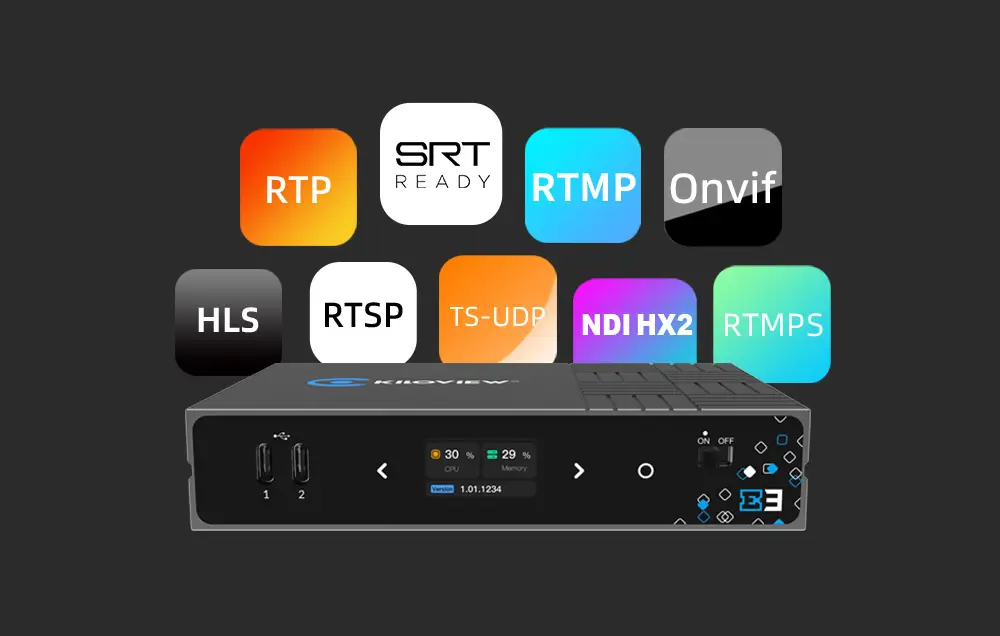

Multi-Protocols, More Streams Simultaneously
E3 supports a complete range of streaming protocols including NDI HX3 / NDI HX2, SRT, RTMP / RTMPS, HLS, TS over UDP, RTSP, WHIP, and RTP. It supports up to 8 destinations simultaneously, making it possible for live production with NDI HX, remote production with SRT, live streaming with RTMP or any transmission with all different protocols at the same time.

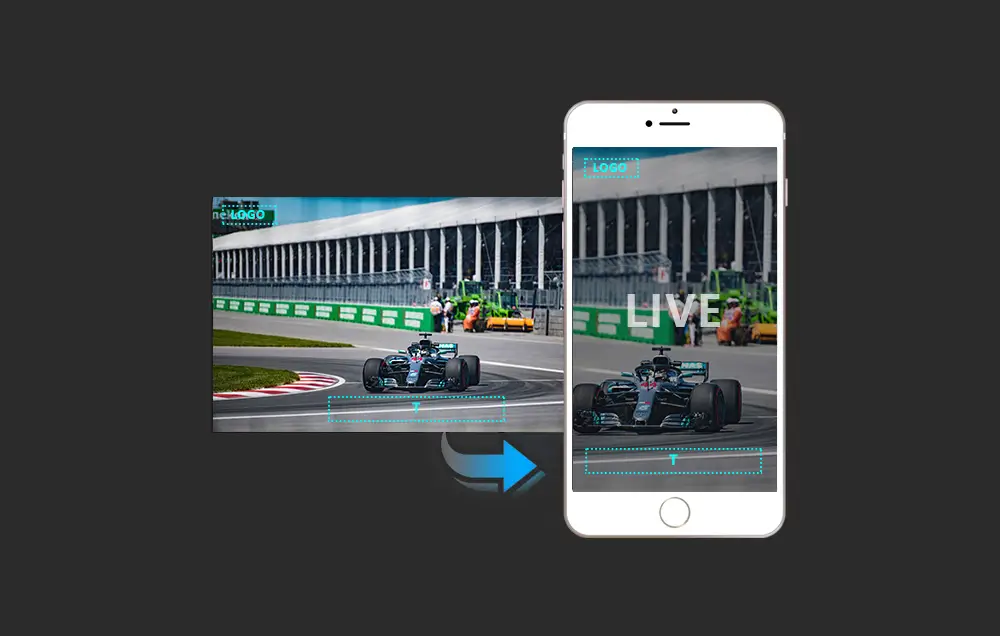

Pro-Level Video Processing
The E3 goes beyond basic encoding—you can crop and rotate your video, making it easy to adapt footage for portrait-mode live streaming or other mobile-phone friendly use cases. It also packs pro-level features like mirroring, VU meter displays, safety area, center line, color adjustments, OSD with text, image, logo etc. Whatever your workflow demands—the E3 has the tools to make it happen.
Reliable Recording While Streaming
All inputs of E3 can be recorded in MOV/MP4 through 3 USB ports or NAS storage. It supports streaming and recording simultaneously for post-production and redundancy.

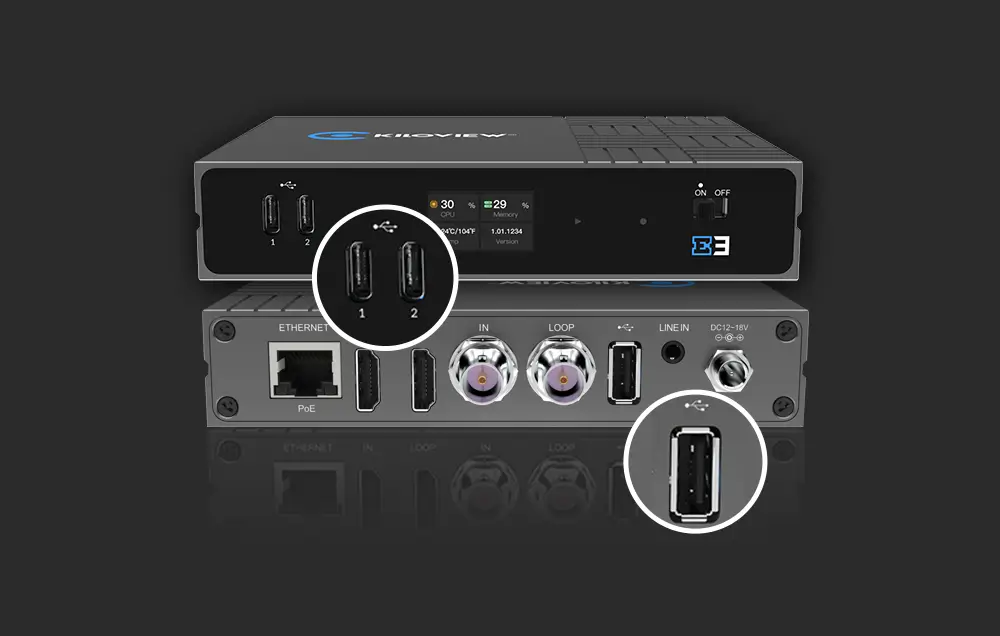

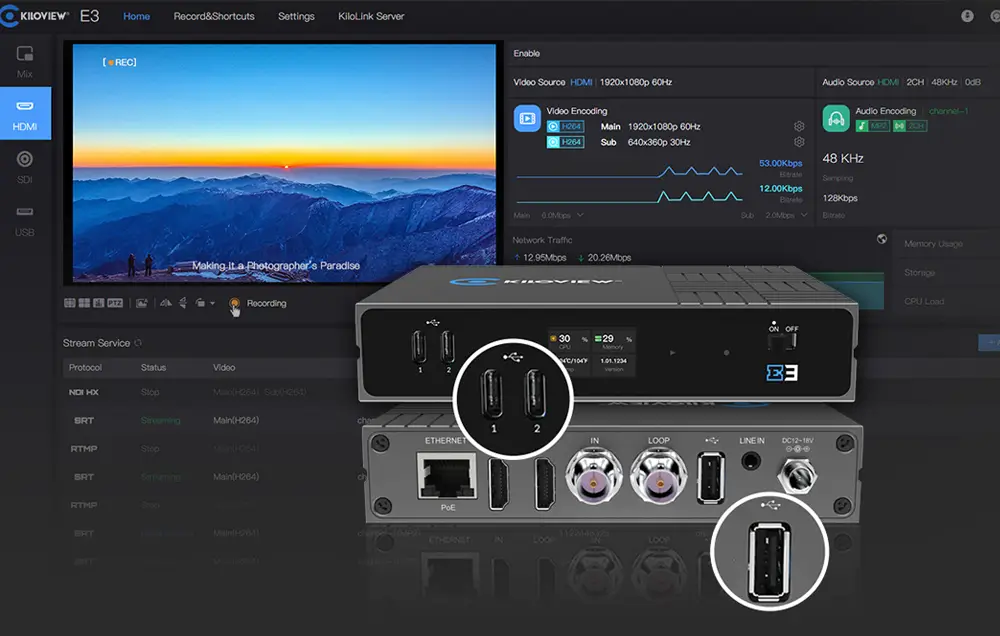

Rich USB Expanded Functionalities
In addition to accepting USB video input, E3 can also support a versatile expanded functions through USB including Tally, USB headset for Intercom, PTZ control， USB Storage or recording and other applications through its numerous USB interfaces.

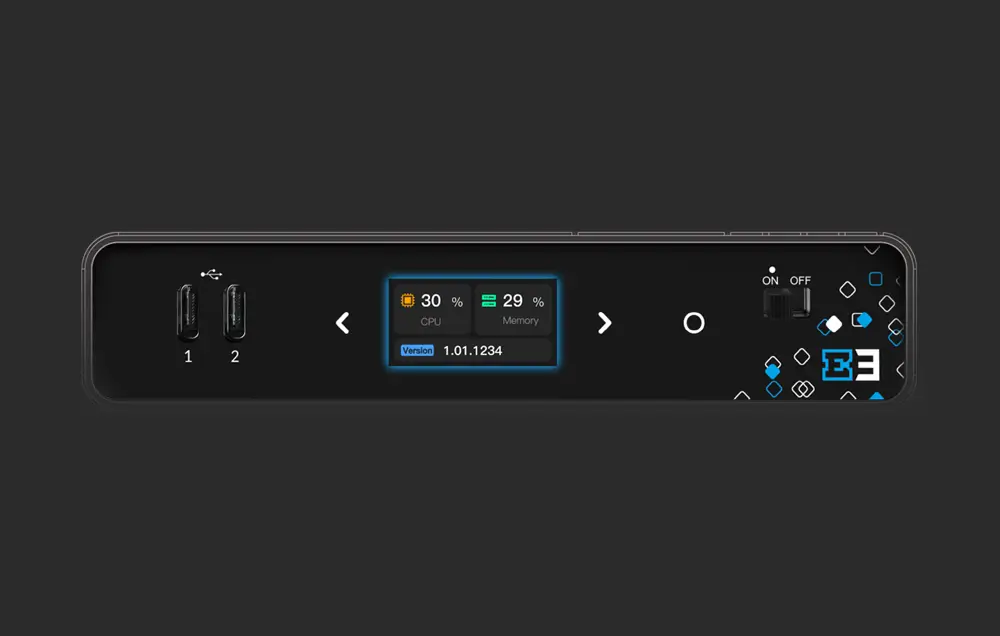

Built-in LCD Screen and Touch Controls
E3 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU usage, memory usage, resolution and tally status in real-time.
The LCD Screen is also a big-sized Tally to display the preview/program status.

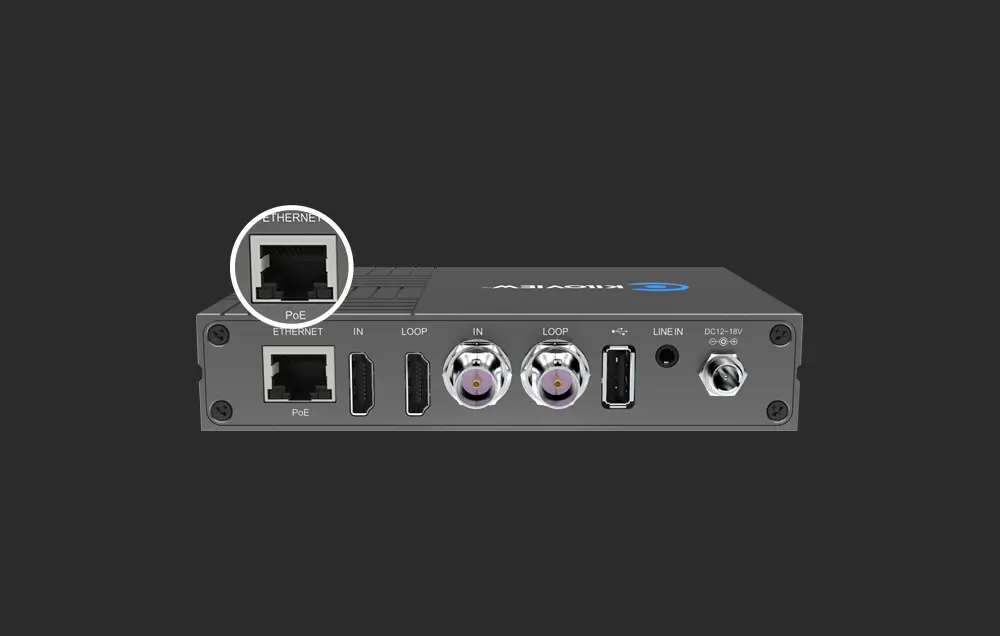

PoE Powered
E3 supports Gigabit Ethernet interface with PoE power supply, A single network cable that carries Power and data transmission as well as Tally and PTZ Control.
Real-time communication with KiloLink Intercom Server
With extend the headset via USB, it supports multi-party voice intercom, you can deploy Kiloview KIS System for real-time collaboration.

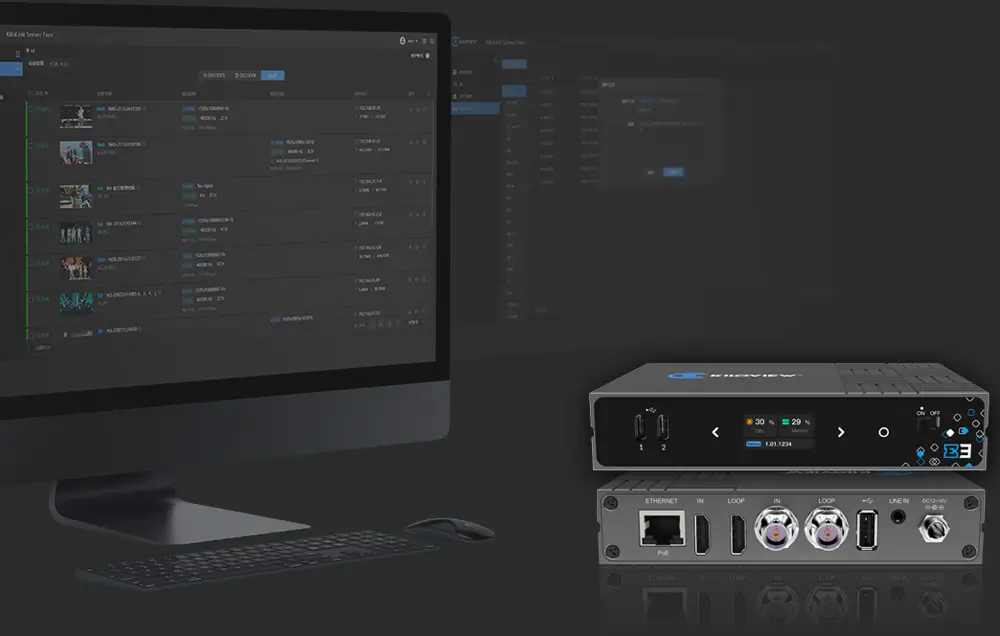

Remote Centralized Management
E3 can be seamlessly connected to the KiloLink Server Pro, as long as the device is registered to the KiloLink Server Pro platform and establishes a connection, you can carry out remote centralized management, remote monitoring and control of the device including online status detection, device configuration, firmware update etc.

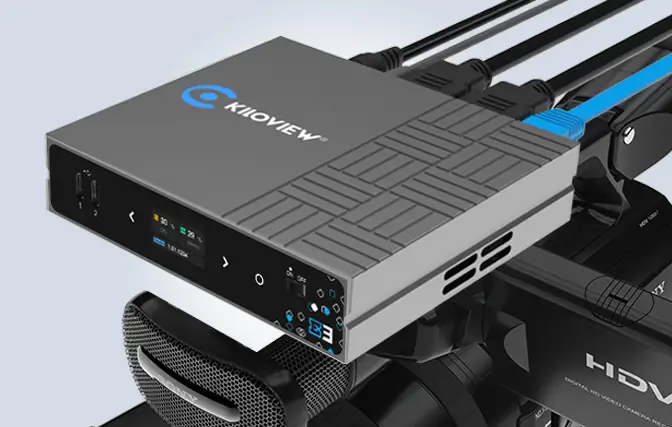

Lightweight, Portable and Easy to use
E3 is lightweight with compact design, it can be easily fixed on the camera with cold-shoe mount.
ts intuitive web-based UI allows for quick setup and real-time monitoring from any browser—no software installation needed..
Open API for Seamless Integration
E3 provides open API support, enabling easy integration with your existing workflows and systems

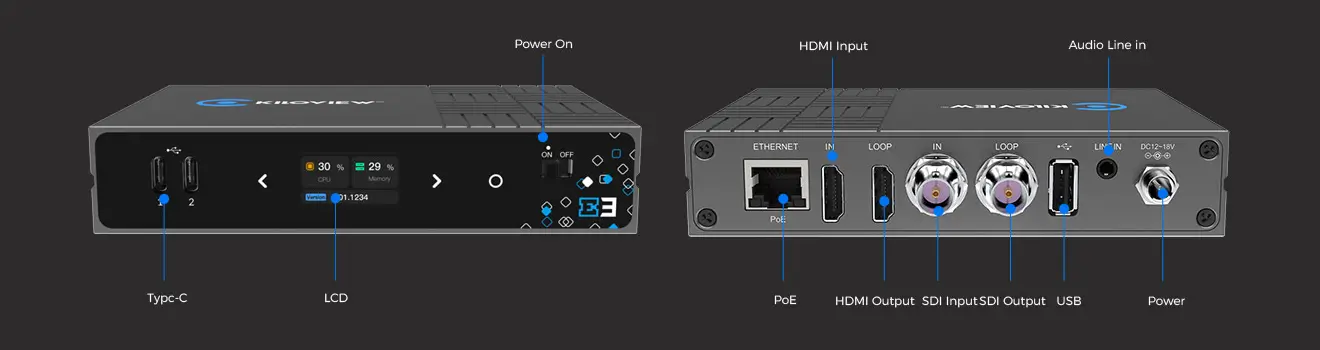

| Weight | 0.77 kg |
|---|---|
| Dimensions | 18.8 × 15.49 × 9.65 cm |
| Display | 1.14” LCD display and touch buttons |
| Input | 1*3G-SDI(SMPTE 424M), compatible with HD-SDI(SMPTE 292M) and SD-SDI(SMPTE 259M); 1*HDMI 1.4b |
| Operating Temperature | -20℃~45℃ |
| Power Supply | DC 12V/1A |
| Output | Loop-out: 1*3G-SDI(SMPTE 424M), compatible with HD-SDI(SMPTE 292M) and SD-SDI(SMPTE 259M) Loop-out: 1*HDMI 1.4b |
| Audio ports | 4-channel of HDMI & SDI embedded audio 1*3.5mm Line In |
| Power Consumption | ≤5W |
| Storage Temperature | -40℃~50℃ |
| Voice Intercom | Yes |
| Management | WebRTC/KiloLink Server |
| Video Formats | Supported in HDMI input&loop-out： 3840×2160p 30fps 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps 1920×1080i 50/59.94/60fps 1280×720p 29.97/30/50/59.94/60fps 720×576i 50fps (PAL SD) 720×480i 59.94fps (NTSC SD) Supported in SDI input&loop-out： 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps 1920×1080i 50/59.94/60fps 1280×720p 25/29.97/30/50/59.94/60fps 720×576i 50fps (PAL SD) 720×480i 59.94fps (NTSC SD) * NTSC standard frame rates support is in development. |
| Encoding Formats | H.264(AVC): Baseline/Main/High profile, Level 5.1 H.265(HEVC): Main profile, Level 5.0 |
| Streaming Protocols | NDI HX3/NDI HX2/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif(Extensible for SIP/GB-T2818) |
| Streamiing Performance | Supports streaming to 8 destinations with adjustable bitrate up to 120Mbps simultaneously. |
| PTZ Control | Yes |
| Network Connections | 1*10/100M/1000M RJ45 Ethernet Port PoE supported(802.3af class 3) |
| USB Interfaces | 2*USB 2.0 Type-C 1*USB 2.0 Type-A |
