Focusrite RedNet TNX Portable Thunderbolt 3 and Dante Interface
8,495.00 Excl. VAT
- Large Recording Session/Dolby Atmos Post
- For High-Channel-Count Dante Application
- 128×128 Channels (24-Bit / 192 kHz)
- Optional Upgrade to 256×256 Channels
- 2 Thunderbolt 3 Ports
- 2 Ethernet Ports, Switched & Redundant
- Ultralow Round-Trip Latency
Available on backorder
Estimated delivery: March 25, 2026 – April 4, 2026
Description

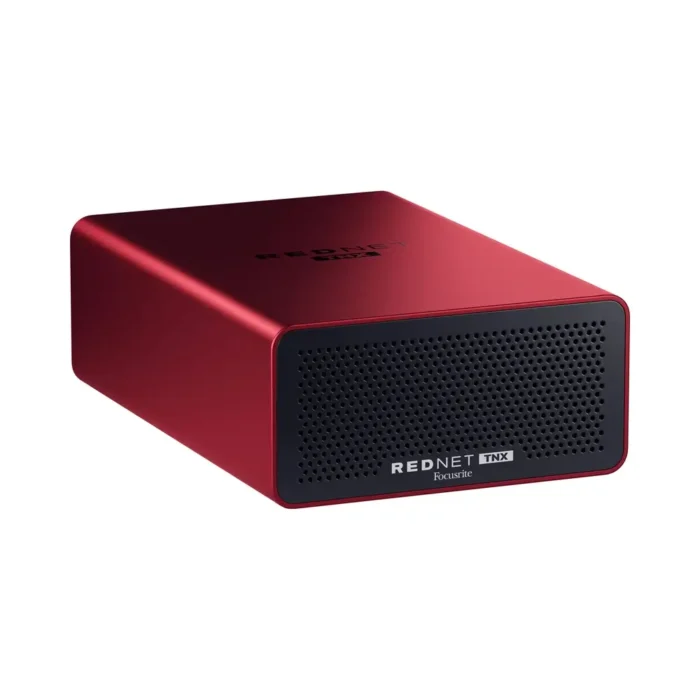

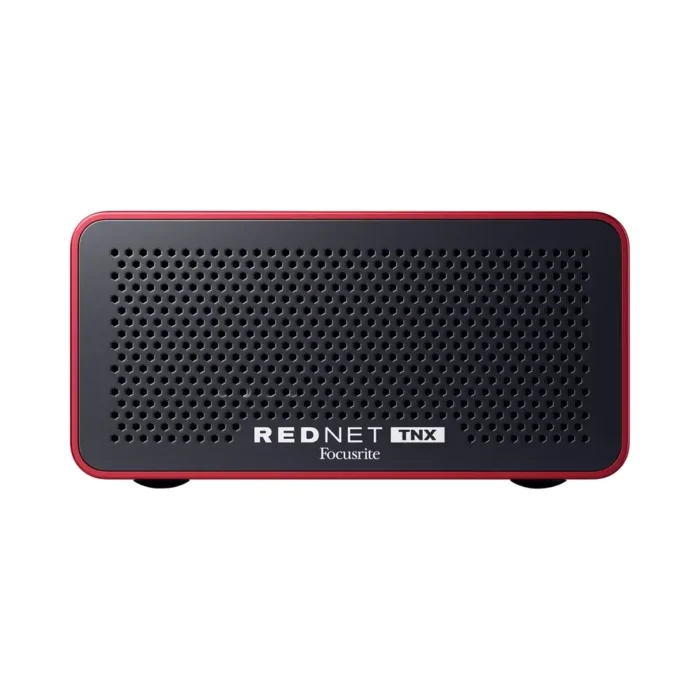

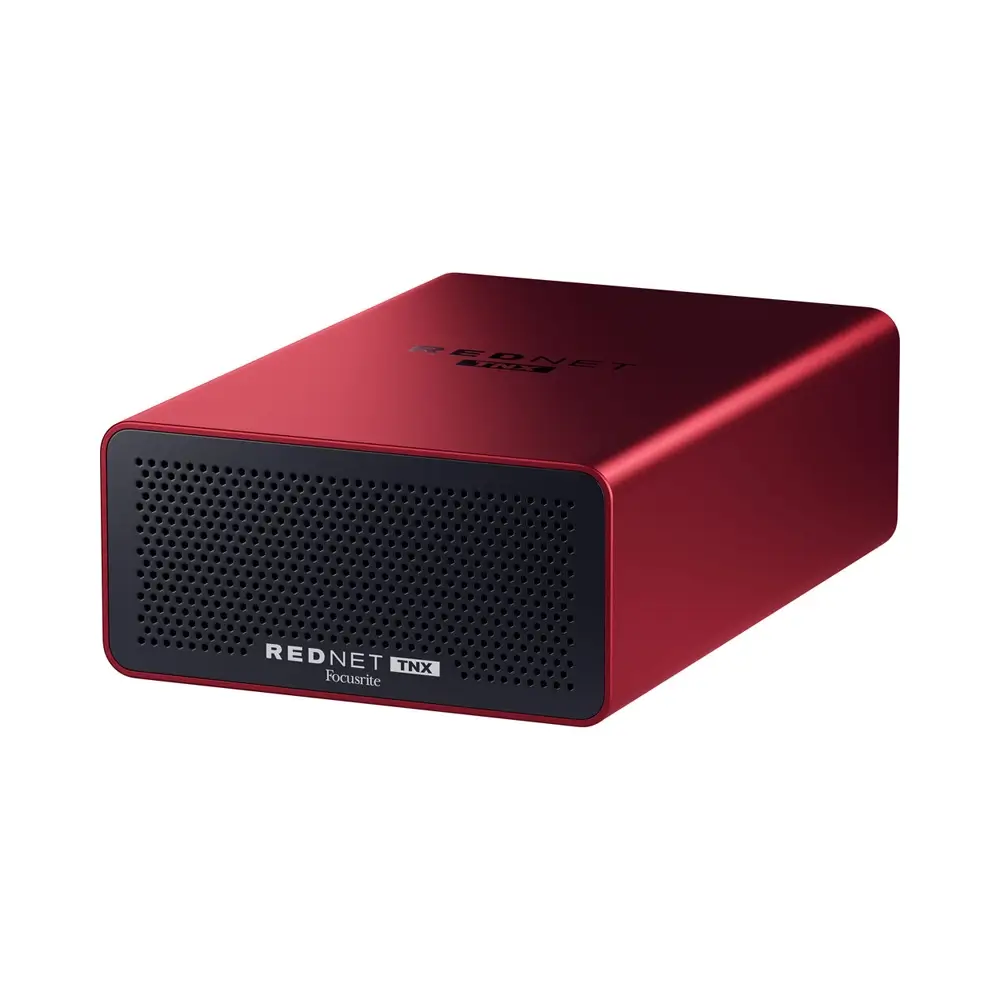

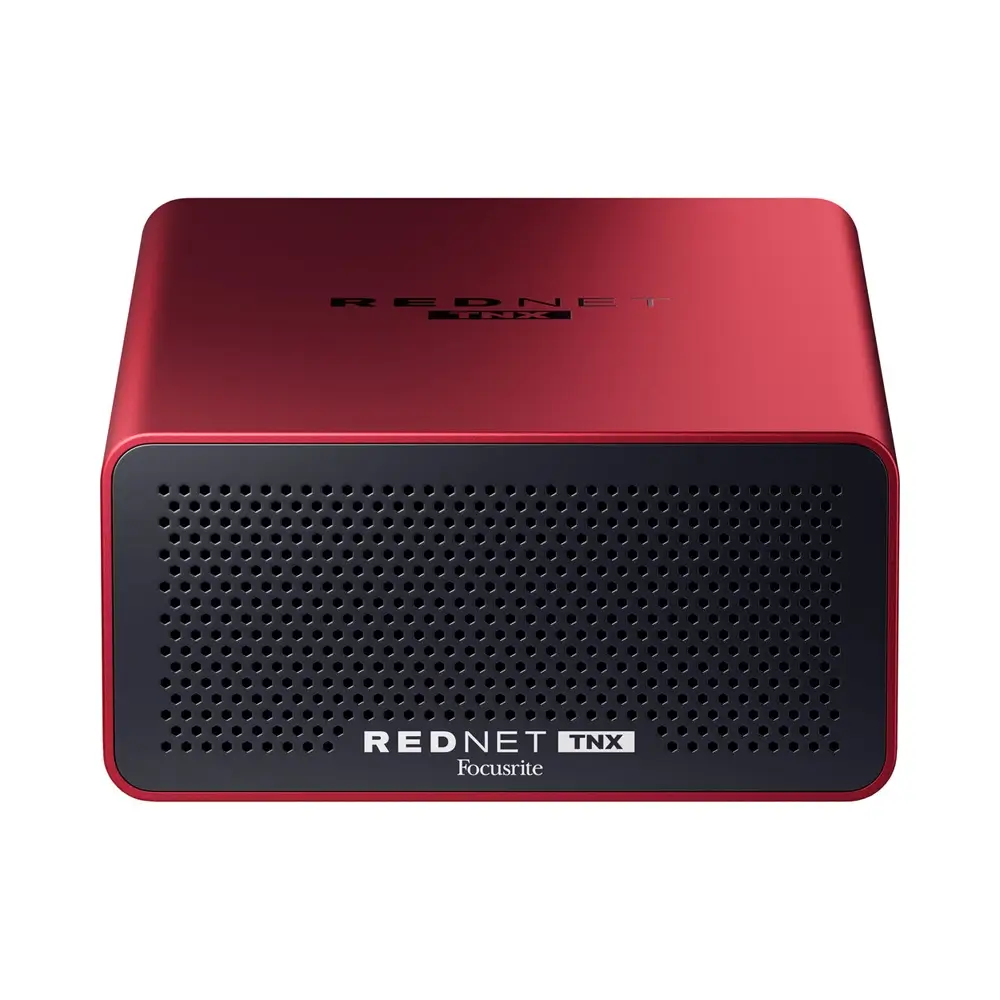

Focusrite RedNet TNX
RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128×128 channels at 24-bit/192kHz straight out of the box. With Dante Ready™, you can expand your system to 256×256 channels at 24-bit/96kHz — all via a single Thunderbolt™ connection for powerful and versatile audio workflows.
Designed for powerful workflows
Tap into the power of high-channel-count Dante workflows with 128×128 channels at up to 192 kHz with ultra-low latency — all via a single Thunderbolt™ connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.
Ready for recording
For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256×256 channels of uncompressed, high-resolution audio at ultra-low latency.
Integrated control with flexible connectivity
RedNet TNX integrates with RedNet Control for centralised monitoring and management of all RedNet devices. Dual Ethernet RJ-45 ports support switched and redundant modes, ensuring flexible, reliable connectivity for critical applications.
RedNet TNX workflows
Upgradable with Dante Ready™
RedNet TNX offers expandable connectivity with an optional upgrade to 256×256 audio channels at 24-bit/96 kHz with Dante Ready™.
Additional information
| Weight | 7.47 kg |
|---|---|
| Dimensions | 38.61 × 28.96 × 12.7 cm |
| Inputs/Outputs | 128 x 128, All Sample Rates 256 x 256, up to 96 kHz (Optional Upgrade Available Separately) |
| Dante | 2 x Ethernet Standard RJ45 Connectors (Compatible with Cat5e and Above) |

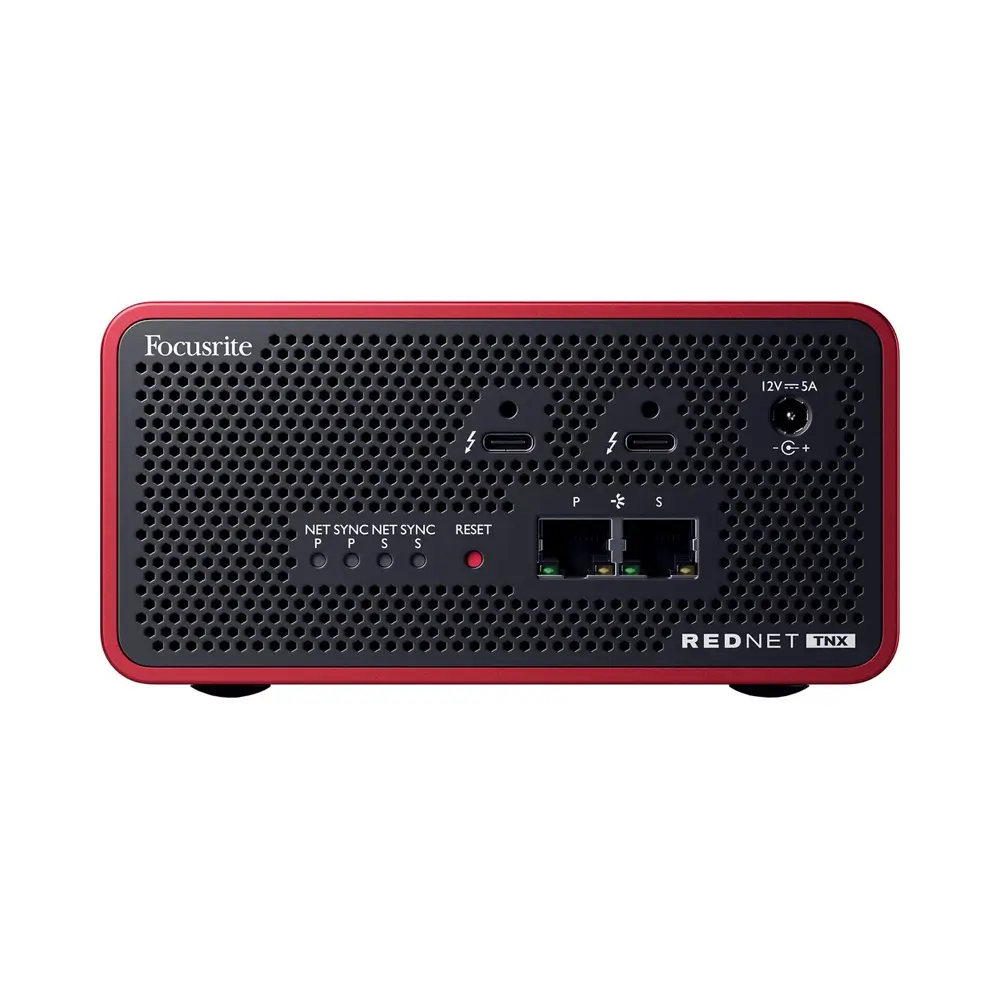

| Rear Panel | 2 x Thunderbolt 3 Ports (Provide 15W of Power) 2 x Sonnet ThunderLok-B 2 x Network Active LED Indicators (Primary/Secondary) 2 x Network Lock LED Indicators (Primary/Secondary) 1 x DC Power Input 1 x Factory-Reset Button |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-Bit |
| Drivers | Multi-Client ASIO and WDM (Windows) CoreAudio (Mac) |
| Operating Temperature | 122°F / 50°C, Maximum |
| Power | External DC Power Supply |
