Focusrite RedNet D64R 64-Channel MADI-Dante Bridge
14,495.00 Excl. VAT
- Connects a MADI system and a Dante network seamlessly together.
- Connect Dante to digital mixing consoles, interfaces and cards that use MADI
- Built-in redundancy
- Supports both coax and optical interfaces
- Slave either the Dante system or MADI streams to an external clock.
- Supports up to 64 channels of digital audio I/O
- Sample rate conversion (SRC) on each input and output
Available on backorder
RedNet D64R
MADI is widely used for large-scale digital audio systems such as audio consoles and conversion systems, allowing multiple channels to be carried along a single interface. RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet’s high quality interface products with a MADI system — or MADI components with a Dante system.
D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. Connect a Dante network to MADI-based digital consoles, computer cards, converters and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out.

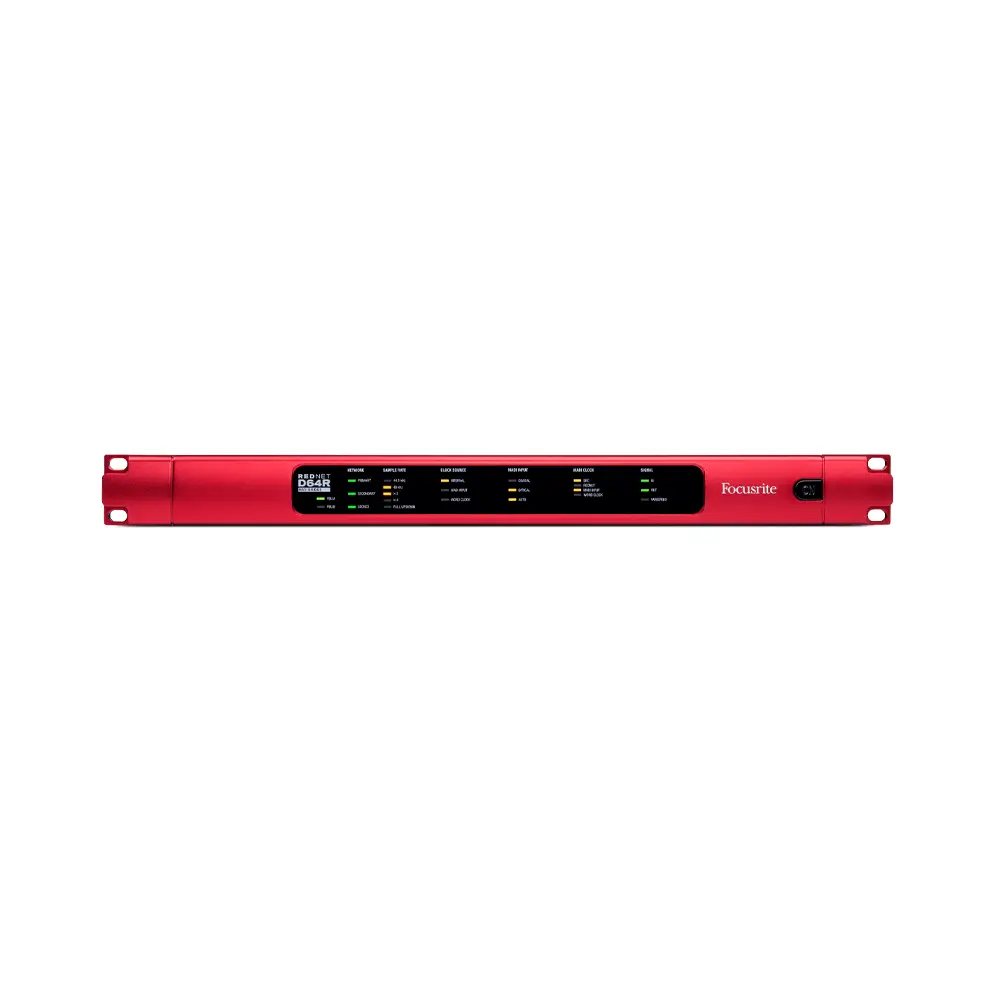

Dual Ethernet ports are provided, with locking etherCON connectors and several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (including retaining clips) on the rear of the unit. Power status is indicated both remotely and on the front panel. The D64R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 64 channels of I/O.
64×64 MADI I/O with dual PSUs
RedNet D64R is a 1U, 64×64 MADI interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D64R is the ideal choice for providing MADI I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

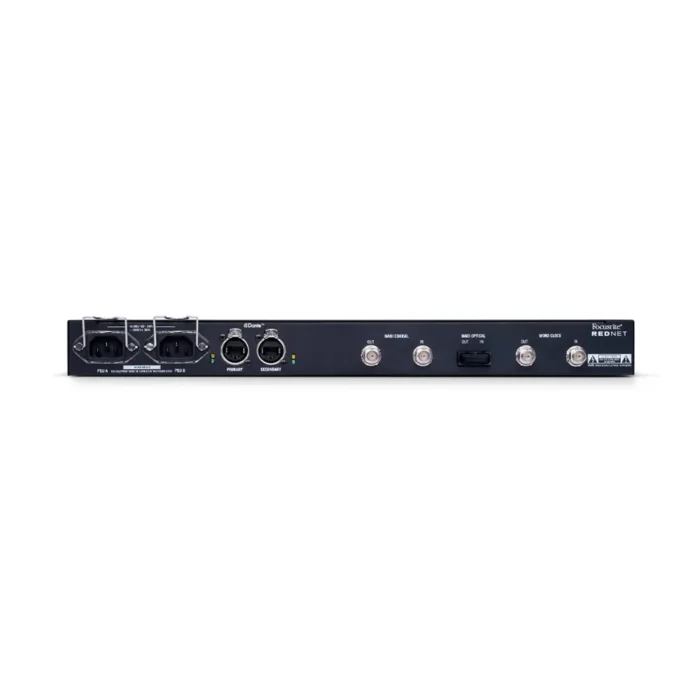

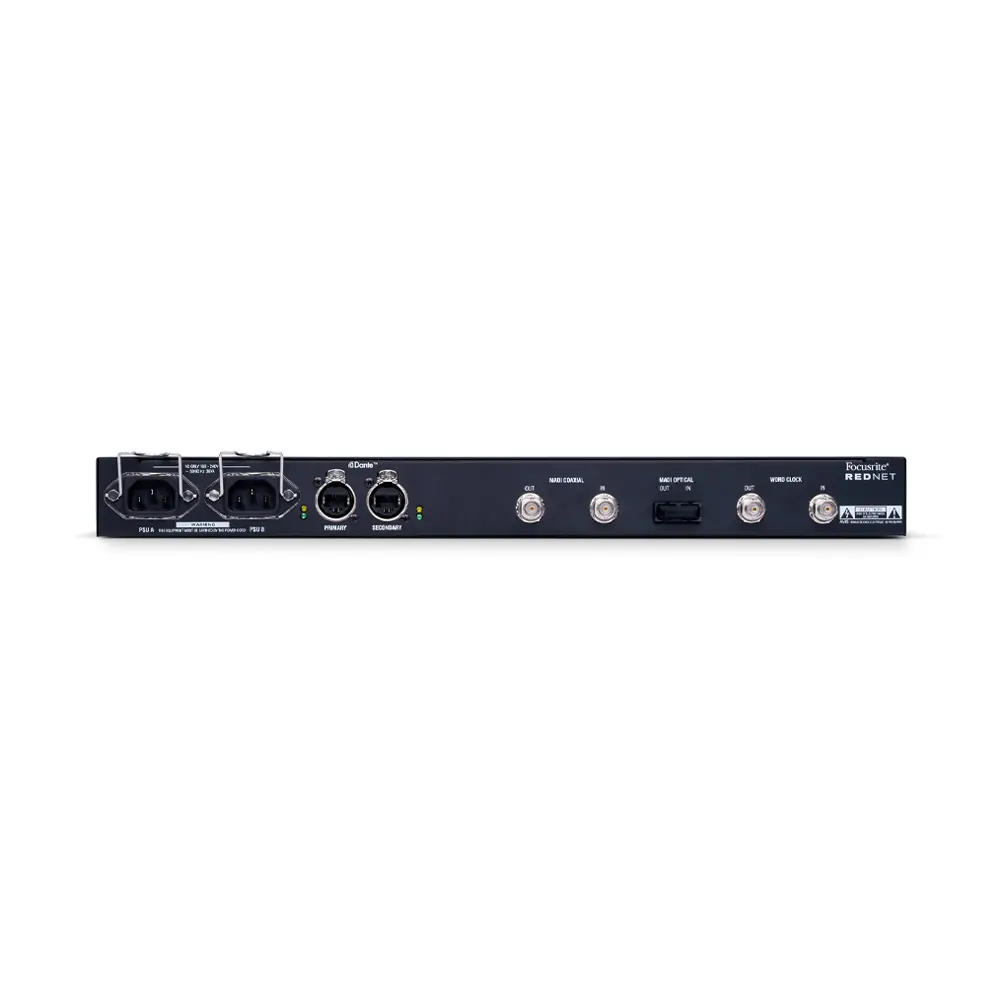

MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet D64R to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit’s sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LED
Brainworx bx_console
The Focusrite Studio Console reborn in your DAW
| Weight | 4.99 kg |
|---|---|
| Dimensions | 59.69 × 37.59 × 10.16 cm |
| A/D Resolution: |
Up to 24-bit/192kHz |
| Sample Rate Range: |
41 to 216kHz (MADI) |
| Gain Error: |
-0.01dB |
| Dynamic Range: |
> 139dB (-60 dBFS method) |
| THD N: |
< -130dB (0.00003); 0 dBFS input |
| Latency: |
43 to 196 samples (Network and MADI sample rate dependent) |
| MADI Clock Sources: |
RedNet, MADI Input and Word Clock |
| Clock Sources: |
Internal, MADI or from Dante Network Master |
| External Word Clock Range: |
Nominal sample rate ±7.5 |
| Connector: |
Duplex-SC |
| Optical Standard: |
as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166) |
| Word Clock Input: |
1 x BNC 75O port |
| Word Clock Output: |
1 x BNC 75O port |
| PSU: |
2 x IEC Inputs with retaining clips |
| Network: |
2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors |
