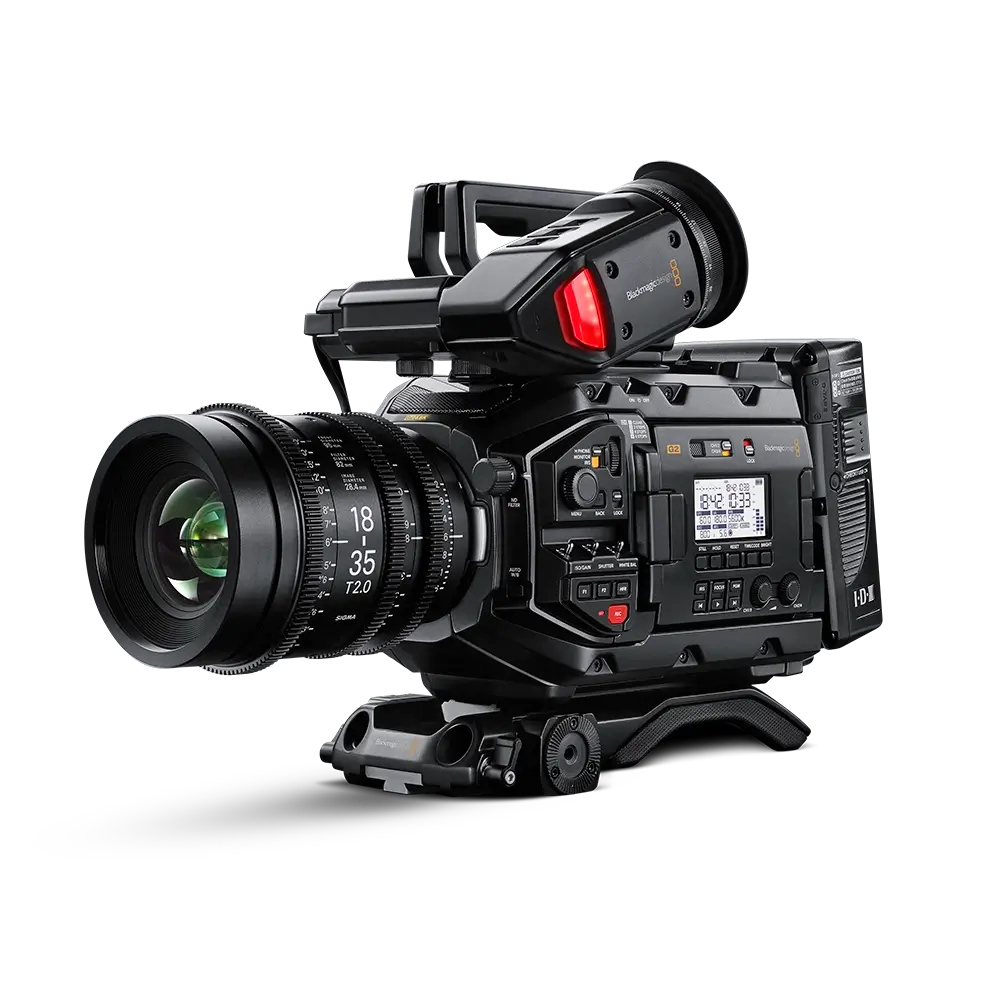

Blackmagic URSA Mini Pro 4.6K G2
25,131.00 Excl. VAT
- 4.6K Super 35 HDR CMOS Sensor
- 4.6K up to 120 fps, 300 fps at 1080p
- 15 Stops of Dynamic Range at 3200 ISO
- USB-C Expansion Port for External Disks
- Blackmagic RAW & ProRes 444/422 Support
- Dual CFast 2.0 and SD Memory Card Slots
- 12G-SDI Output, Timecode and REF Input
- 2 XLR Audio Inputs with Phantom Power
- 2-/4-/6-Stop ND Filter, Magnesium Body
- Interchangeable Lens Mount
Available on backorder
Blackmagic Design URSA Mini Pro 4.6K G2 Overview
Upping the electronics and recording capabilities of its Mini Pro predecessor, the Blackmagic Design‘s URSA Mini Pro 4.6K G2 Digital Cinema Camera brings expanded control set and even more functionality. The G2 introduces an updated Super 35 4.6K sensor featuring 15 stops of dynamic range at 3200 ISO, high frame rate recording up to 300 fps, and additional recording functionality.
First, the addition of external camera controls allows menus to be accessed to change exposure settings, activate slow/fast motion, or engage focus assist or other functions. The exterior of the camera also gains a monochrome LCD panel which displays essential shooting data at a glance. Another welcome pro feature is the built-in ND (neutral density) filter wheel. The four-position wheel switches between two, four, and six stops of neutral density, plus a clear filter for no exposure reduction.

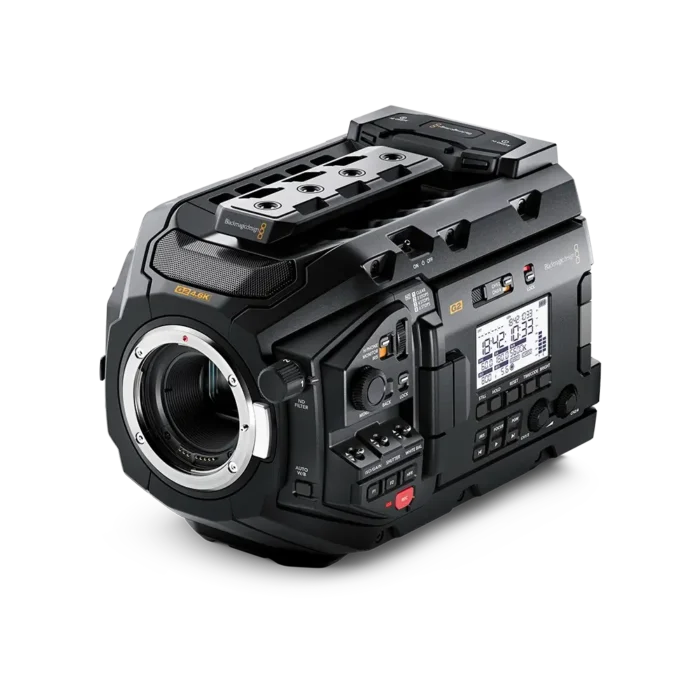

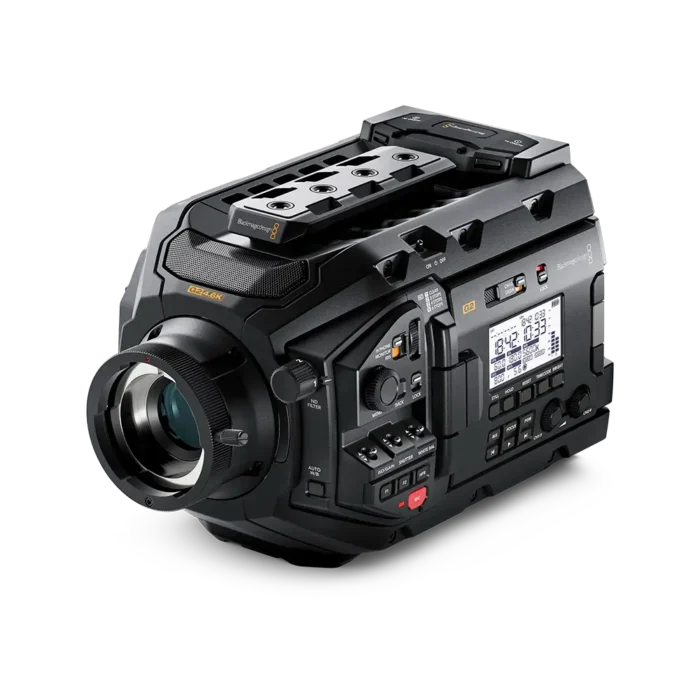

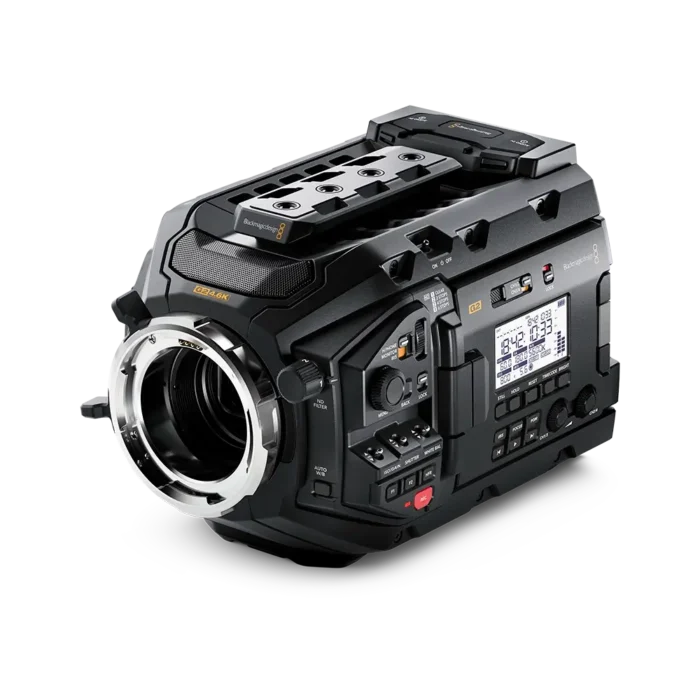

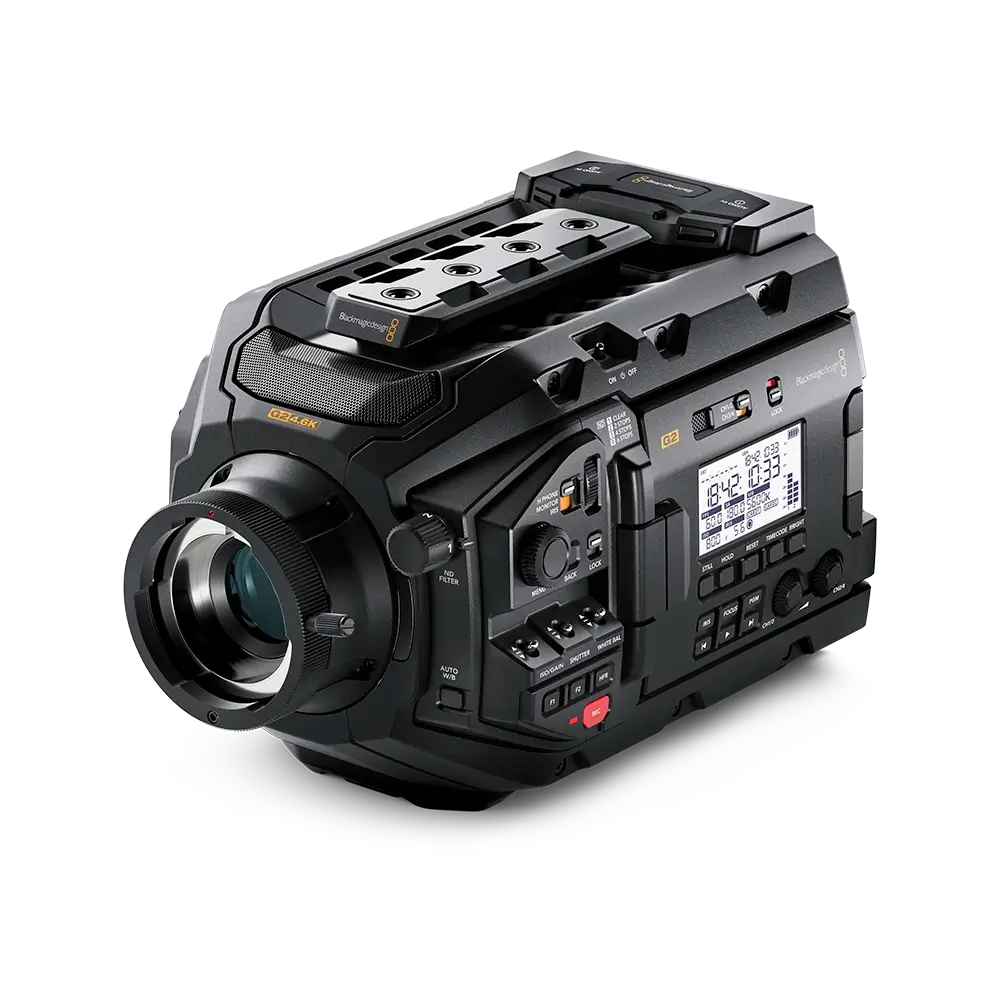

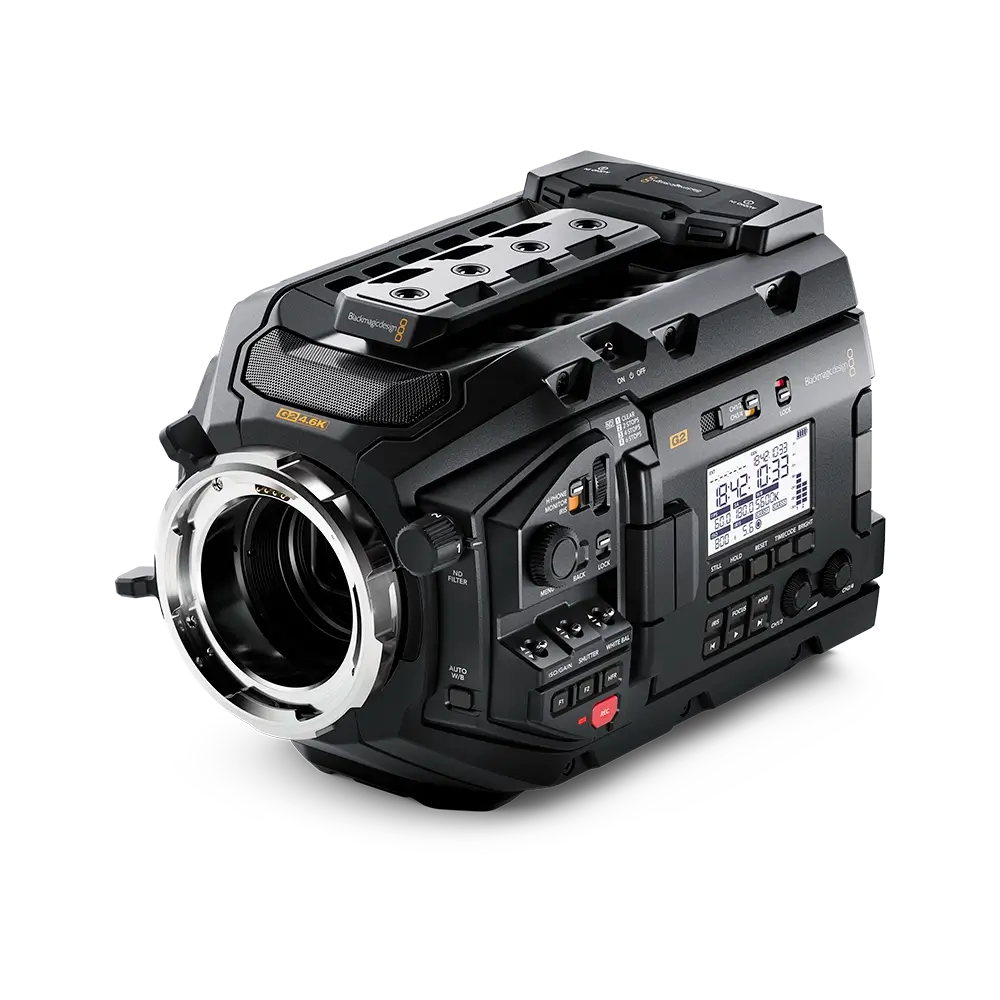

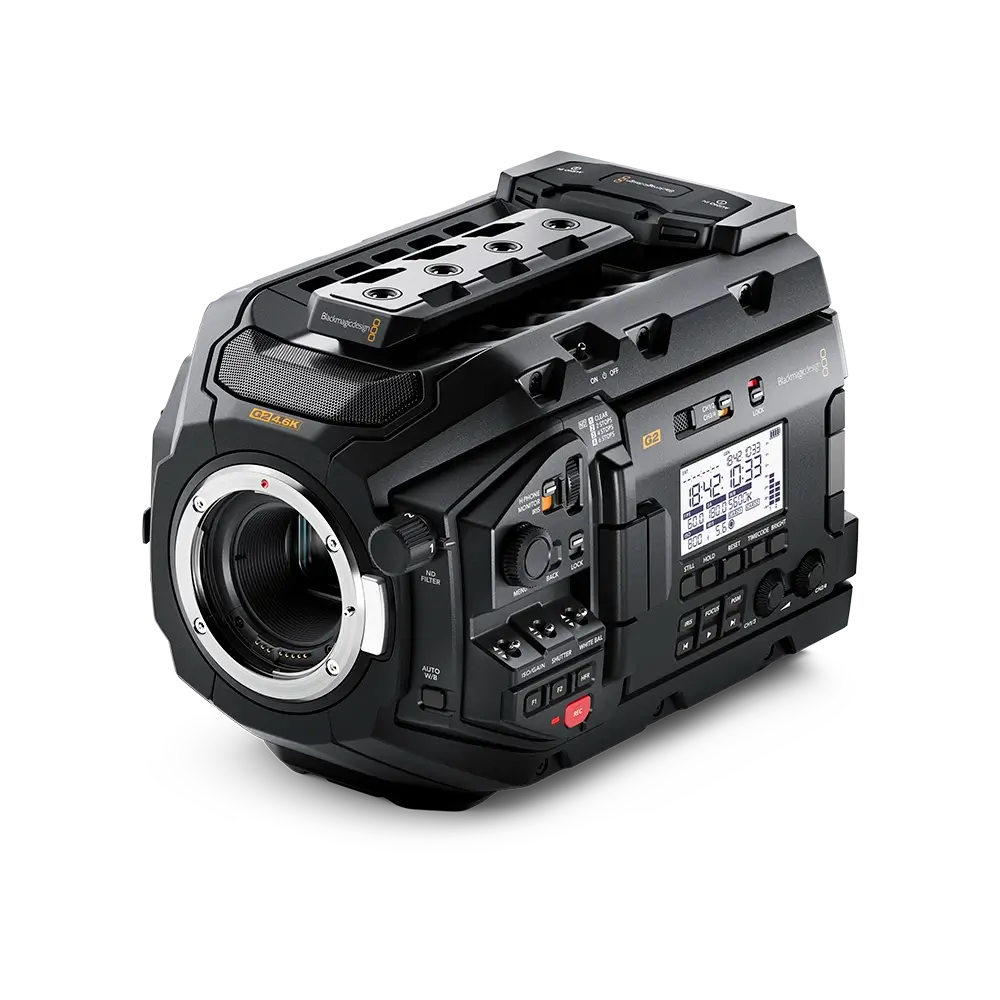

Behind the display, two SD card slots beside the CFast 2.0 slots enable more affordable media to be used for less intensive recording formats. The G2 introduces a USB-C expansion port so you can record directly to external drives. The default electronic EF lens mount is user-interchangeable and adjustable to ensure proper flange focal distance.
At the heart of the camera is Blackmagic Design’s acclaimed Super 35mm 4.6K sensor block, known for its ability to capture cinematic images with subtle gradients and large dynamic range rated at 15 stops. The G2 can now capture Blackmagic RAW footage in film and extended modes, which makes it more versatile to meet your production needs. Probably the most impressive update with the G2 is the ability to capture 4.6K footage at 120 fps, 4K DCI at 150 fps, or even 1080p footage at 300 fps which is well suited for fast-action shooting.
Like the URSA Mini, the URSA Mini Pro G2 can record high-resolution raw sensor data in Blackmagic RAW format onto CFast 2.0 or SD memory cards at up to 60 fps. The raw files preserve the full dynamic range and color tonality output from the sensor, so you can have greater control over the look in post-production. However, data-heavy uncompressed raw files aren’t always easy to deal with on set so in addition to uncompressed raw recording, the URSA Mini Pro provides compressed raw recording at 3:1 and 4:1 compression ratios to save space while retaining post-production flexibility.
If raw capture is not necessary for your production, the URSA Mini Pro G2 offers ready-to-edit industry-standard Apple ProRes files in many different flavors within the 444 and 422 chroma subsampling variations depending on your workflow. The 4.6K, 4K, 3K, 2K, and HD recording resolutions can be captured as ProRes files either using the “Film” dynamic range for a flatter image for grading in post-production, or “Video” dynamic range for a finished look right out of the camera. ProRes can be recorded to either CFast 2.0 or UHS-II SD cards (SD cards top out at UHD 4K; please check the Blackmagic Design website for updated card compatibility and limitations).

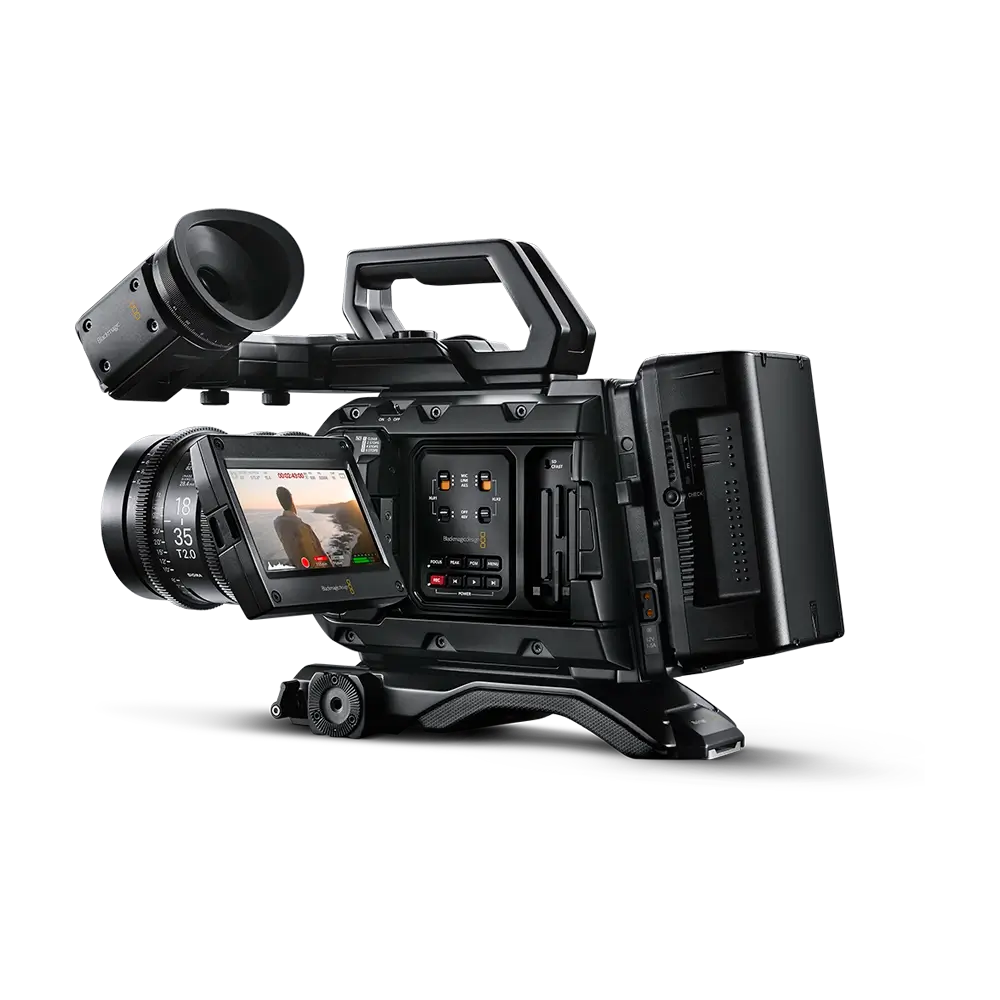

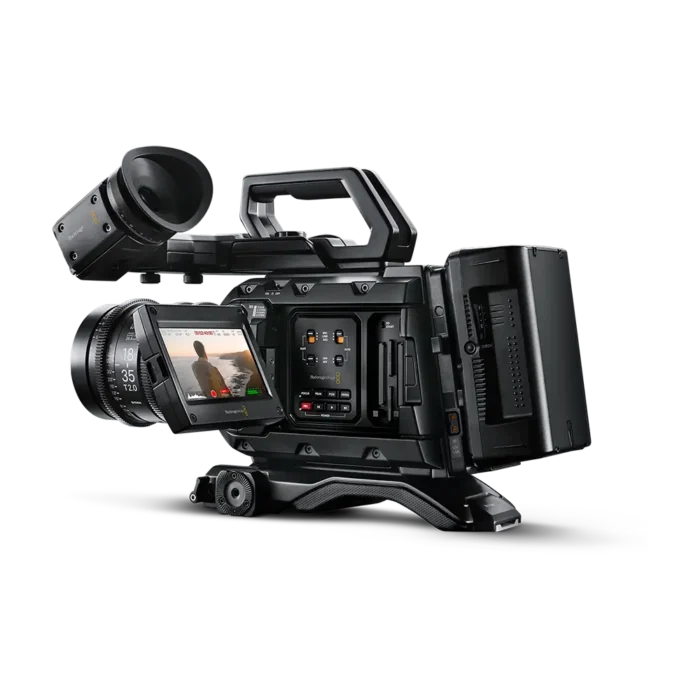

Since the form factor of the original URSA Mini has been adhered to, the ergonomic benefits have remained as well. With separately available accessories like the VCT shoulder pad, side handgrip, broadcast battery plate, and EVF, the camera can be kitted out for comfortable shooting over extended periods. For studio-style shooting, the same shoulder pad is compatible with 15mm LWS rods for mounting lens supports for long lenses, follow focuses, lens drive motors, matte boxes, and more.
- Updated Super 35 4.6K image sensor
- 4608 x 2592 with 15 stops of dynamic range at 3200 ISO
- 4.6K images at up to 120 frames per second
- Windowed 4K DCI at up to 150 frames per second
- Windowed 1080 HD at 300 frames per second
- Blackmagic RAW images in both film and extended video modes
- Raw compression levels up to 12:1
- USB-C expansion port for recording to external drives
Sizing down the original URSA shape enables the URSA Mini Pro G2 to fit into feature film, indie film, TV, commercial, documentary, and music video workflows with crews of any size. Using the optional shoulder mount with built-in quick release plate, the URSA Mini Pro G2 can go from handheld to shoulder to tripod in a matter of seconds. Despite its size, the URSA Mini Pro G2 still fits essential controls and I/O for professional workflows.
The body is made from magnesium alloys to keep the URSA Mini Pro G2 lightweight at just over five pounds. With the optional shoulder mount and optional side handgrip, the handgrip can be extended off the side of the camera to be used in a doc-style configuration.
With an effective resolution of 4608 x 2592, the sensor housed inside the URSA Mini Pro G2 can capture motion pictures that have greater than 4K resolution with a filmlike 15 stops of dynamic range at a very high 3200 ISO. A wide exposure latitude allows for greater control in post, enabling highlight recovery while keeping the shadows clean from artifacting.
The URSA Mini Pro G2 can record the entire sensor at up to 60 fps to fit television or other workflows which require higher frame rates. Using a smaller portion of the sensor, the URSA Mini Pro G2 can also record slow-motion footage at up to 300 fps in 1080p resolution. When recording high frame rates, the URSA Mini Pro G2 will conform captured footage to the set standard frame rate, resulting in smooth footage that doesn’t require post-processing before editing.
| Weight | 4 kg |
|---|---|
| Dimensions | 31.5 × 30.73 × 20.83 cm |
| Lens Mount: | Canon EF |
| Image Sensor: | Super35 |
| Effective Sensor Resolution: | 11.9 Megapixel (4608 x 2592) |
| Image Stabilization: | No |
| Max Recording Modes: | Blackmagic RAW 12-Bit Up to 4.6K up to 120 fps ProRes 422 HQ 4:2:2 10-Bit Up to 4.6K up to 80 fps ProRes 4444XQ 4:4:4 12-Bit Up to 4.6K up to 120 fps |
| Max Video Output: | Raw 12-Bit Up to 4K up to 59.94 fps |
| Media/Memory Card Slot: | Dual Slot: SD/SDHC/SDXC (UHS-II) Dual Slot: CFast (CFast 2.0) |

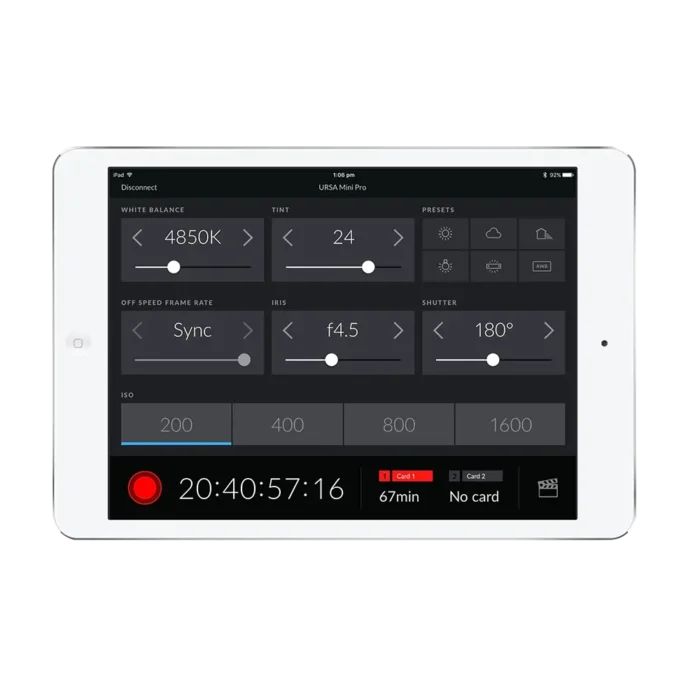

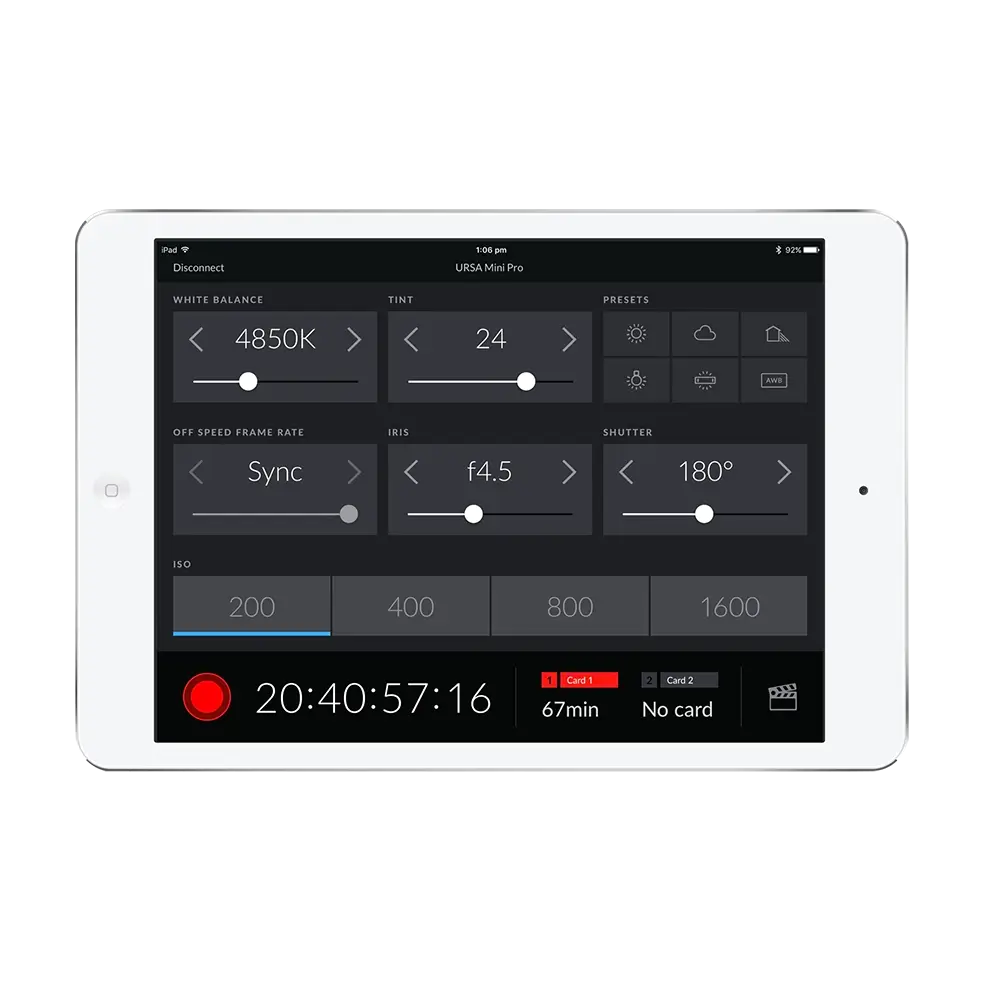

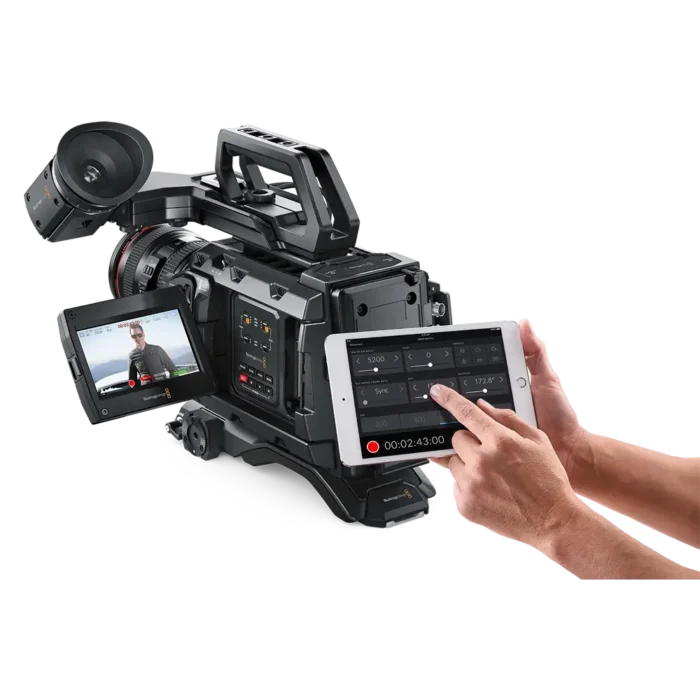

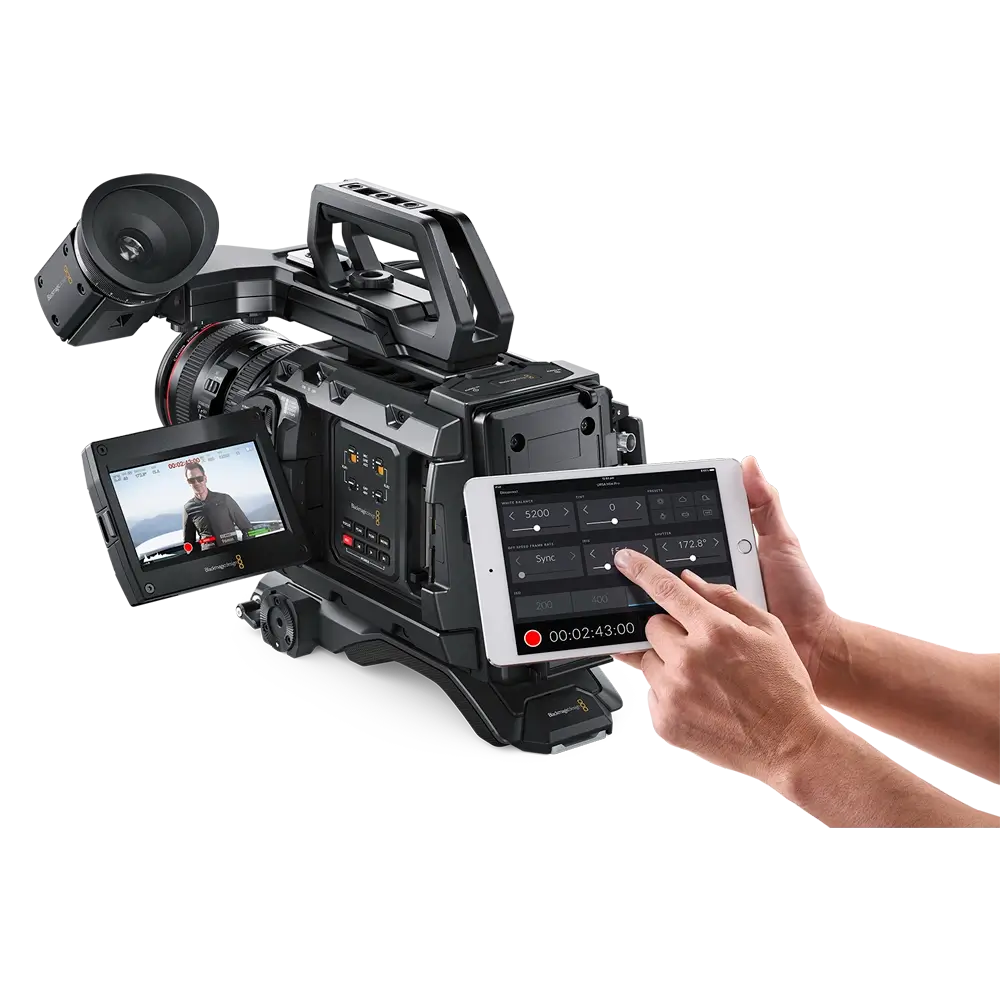

| Mobile App Compatible: | Yes: iPadOS Only Functionality: Remote Control |
| Lens Communication: | Yes |
| Built-In ND Filter: | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| White Balance: | Range: 2500 to 10, 000K Presets: AWB, Cloudy, Custom, Daylight, Fluorescent, Incandescent, Outdoors |
| Capture Type: | Stills & Video |
| Shutter Type: | Electronic Rolling Shutter |
| Advertised Dynamic Range: | 15 Stops |
| Internal Recording: | Blackmagic RAW 12-Bit 4608 x 2592 up to 120 fps 3072 x 2560 up to 120 fps 4096 x 2304 up to 120 fps 3840 x 2160 up to 150 fps 4608 x 1920 up to 150 fps 2048 x 1152 up to 240 fps 2048 x 1080 up to 300 fps 1920 x 1080 up to 300 fps ProRes 422 HQ 4:2:2 10-Bit 4608 x 2592 up to 80 fps 3072 x 2560 up to 120 fps 4096 x 2304 up to 100 fps 4096 x 2160 up to 120 fps 3840 x 2160 up to 120 fps (110 Mb/s) 4608 x 1920 up to 120 fps 2048 x 1152 up to 240 fps 1920 x 1080p up to 240 fps (27.5 Mb/s) 2048 x 1080 up to 240 fps ProRes 4444XQ 4:4:4 12-Bit 4608 x 2592 up to 120 fps 3072 x 2560 up to 120 fps 4096 x 2304 up to 120 fps 4096 x 2160 up to 150 fps 3840 x 2160 up to 60.00 fps (312.5 Mb/s) 4608 x 1920 up to 150 fps 2048 x 1152 up to 240 fps 2048 x 1080 up to 300 fps |
| Video Output: | Raw 12-Bit 4096 x 2592 up to 59.94 fps 3840 x 2160 up to 59.94 fps 1920 x 1080 up to 59.94 fps |
| Fast-/Slow-Motion Support: | Yes |
| Built-In Microphone: | Stereo |
| Video I/O: | 1x BNC (12G-SDI) Input 2x BNC (12G-SDI) Output |
| Power I/O: | 1x XLR 4-Pin Input 1x Molex 12-Pin Input/Output 1x XLR 4-Pin (12VDC) Output |
| Other I/O: | 1x USB-C Data 1x BNC (Timecode) Input 1x BNC (Reference) Input 2x 2.5 mm Sub-Mini (LANC) Control Input |
| Wireless: | Bluetooth LE |
| Display Type: | Primary Monitor: Articulating 4″ Touchscreen LCD Status Display: Fixed Non-Touchscreen LCD |
| Operating Conditions: | 32 to 104?F / 0 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C |
