Blackmagic Smart Videohub CleanSwitch 12×12
6,569.00 Excl. VAT
- Routing Switcher with Frame Syncing
- 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K, DCI 4K
- 4:2:2 and 4:4:4 Sampling
- 10-Bit Processing
- SDI Reclocking
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- Videohub Control Software Included
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Blackmagic Design Smart Videohub CleanSwitch 12×12 Overview
The Smart Videohub CleanSwitch 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. The CleanSwitch model allows for re-timing of SDI feeds, so all switches are timed to happen between frames. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub is ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.
Note: IEC power cable is not included.
- 12x 6G-SDI inputs / 12x 6G-SDI outputs
- Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards
- Built-in SDI reclocking on every SDI input
- Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals
- 4:2:2 or 4:4:4 color sampling with 10-bit processing
- UHD 4K (3840 x 2160) up to 30p
- Supports DCI 4K (4096 x 2160) at 24p
- HD Video Resolutions up to 1080p60
- Supports 16 channels of embedded audio on each SDI signal
- Genlock
- Reference input compatible with black burst and tri-sync

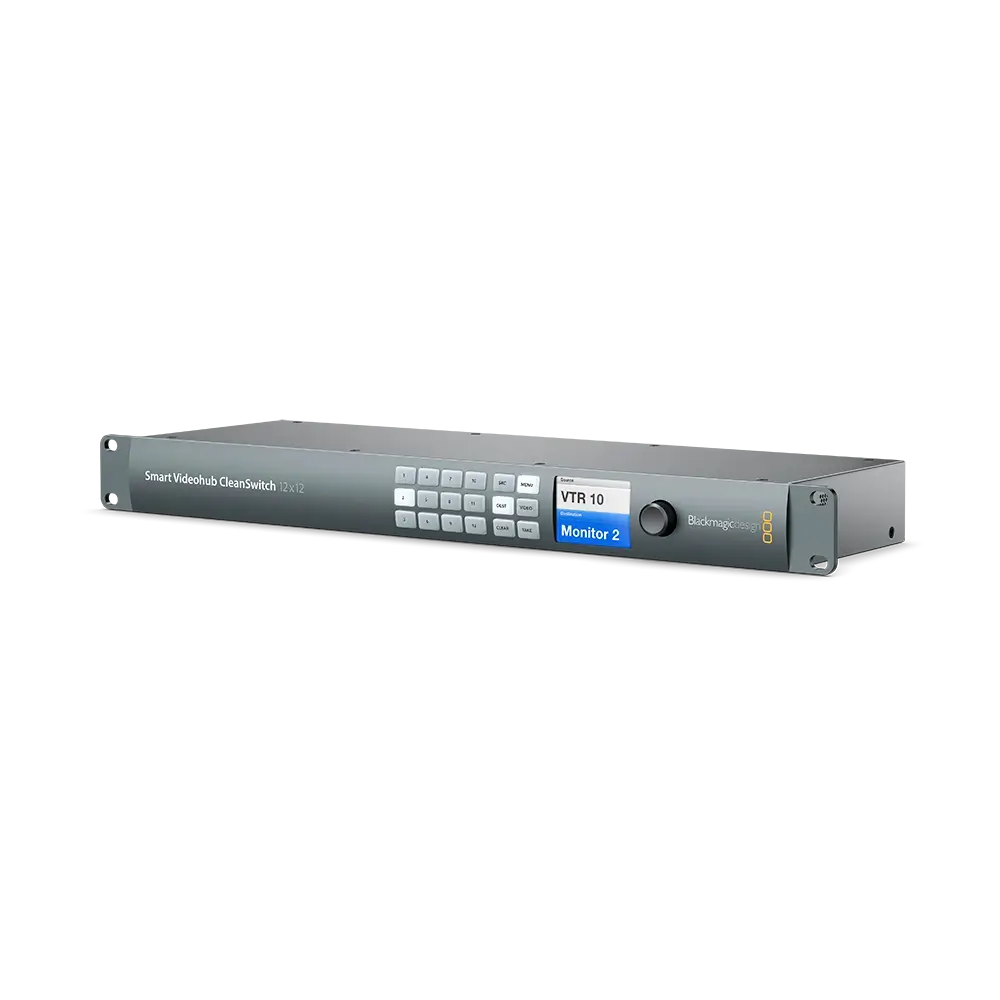

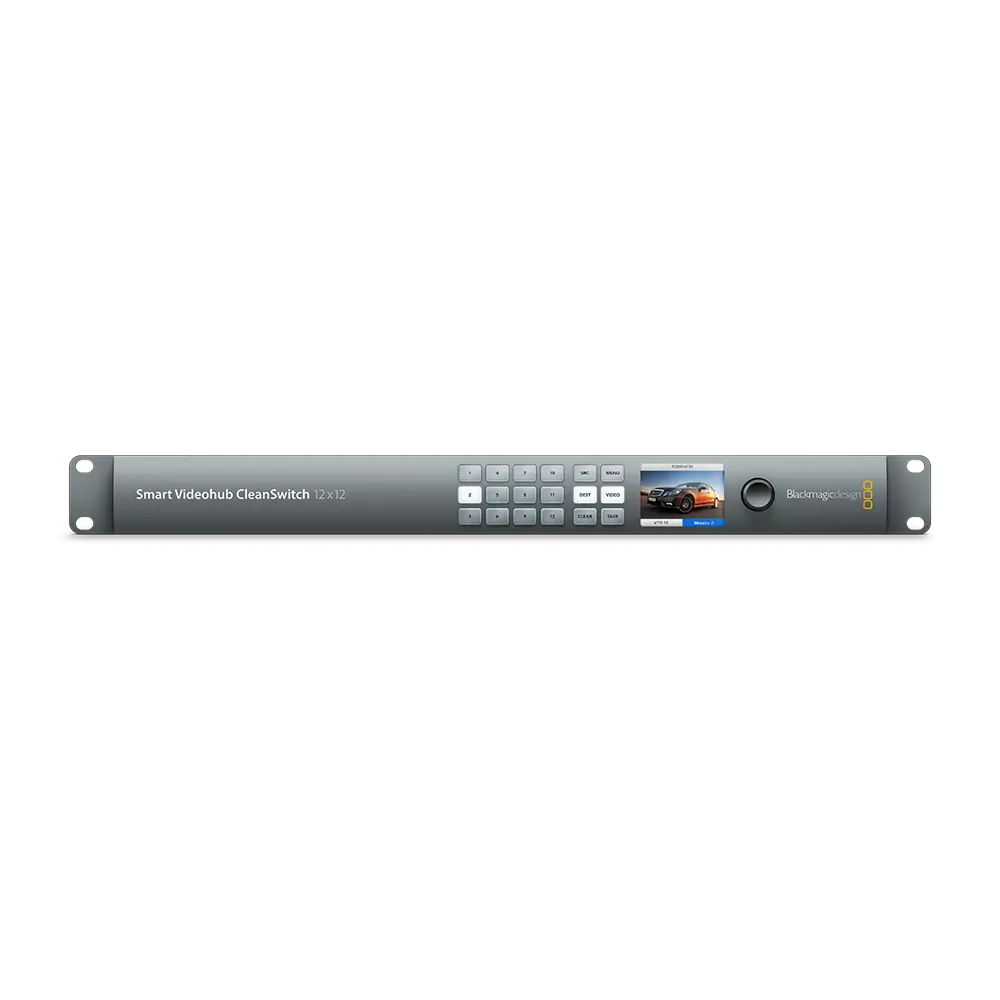

- Built-in video monitoring and spin knob control
- Push buttons on front panel
- On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more
- Videohub control software included for control over Ethernet
- Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels
- Apple iPad control panel app available
- Create your own custom router control with free software developer kit
- Machined aluminum 1 RU chassis
- IEC power cable required
| Weight | 2.347 kg |
|---|---|
| Dimensions | 48.51 × 19.3 × 8.64 cm |
| Switching Type: | Pushbutton, Software |
| Processing Resolution: | DCI 4K at 60 |
| Color Processing: | 8-Bit 4:2:2 10-Bit 4:2:2 12-Bit 4:4:4 |
| Audio Processing: | 48 kHz / 24-Bit |
| Video Inputs: | 12x BNC (6G-SDI) |
| Input Video Format: | SDI (10-Bit 4:4:4 RGB, YUV) DCI 4K at 24 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K at 24 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio Input: | SDI |
| Video Outputs: | 12x BNC (6G-SDI) |
| Output Video Format: | SDI (10-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio Output: | SDI |

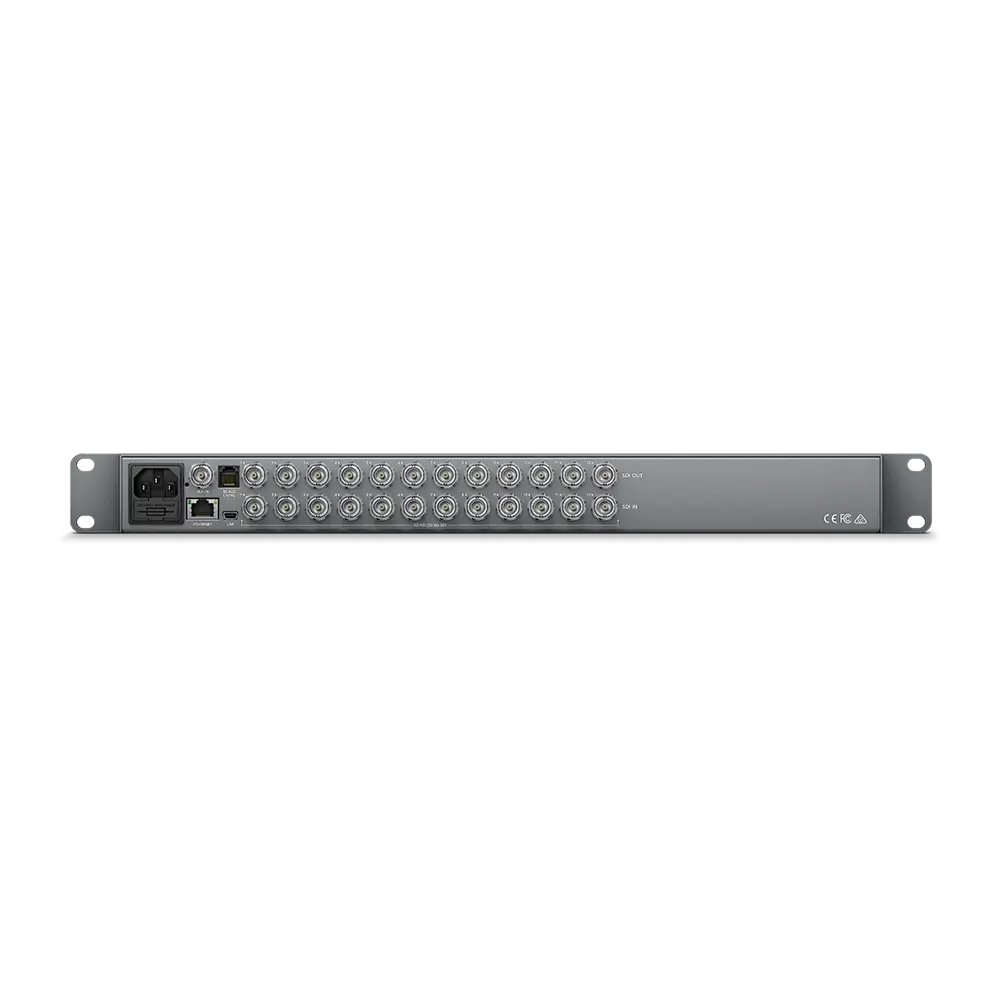

| Other I/O: | 1x BNC Reference 1x RJ11 RS-422 1x RJ45 LAN 1x Micro-USB RS-232 |
| Video Standard Compliance: | SMPTE 259M/292M/296M/310M/425M-B ITU -R BT.601/BT.656 |
| HDCP Support: | Yes |
| HDR Support: | YES |
| Display Size: | 2.2″ |
| OS Compatibility: | macOS / Windows |
| Wireless: | No |
| Power I/O: | 1x IEC C14 (100 to 240 VAC ) Input |
| Operating Conditions: | 32 to 72?F / 0 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C |
| Rack Form Factor: | 1 RU |
