Blackmagic Micro Converter SDI to HDMI 3G wPSU
313.00 Excl. VAT
- 1x SD/HD/3G-SDI Input & 1 x Loop Output
- 1 x HDMI Type A Output
- DCI 2K SDI In/Out | 1080p60 HDMI Out
- AC Power Supply & Socket Adapters
- 3D LUT for Calibrating or Loop Output
- SDI A/B Selection | USB Power
- Embedded Audio
- Compact, Rugged Design
In stock

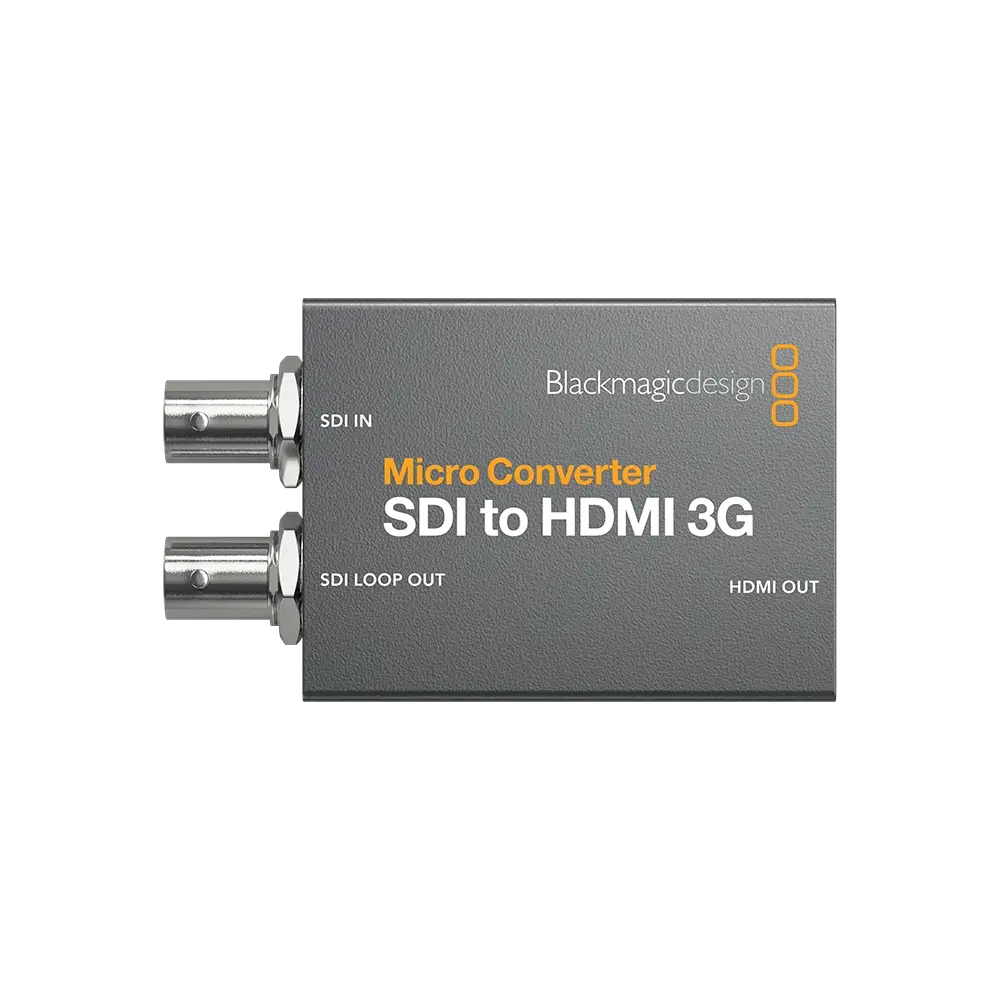

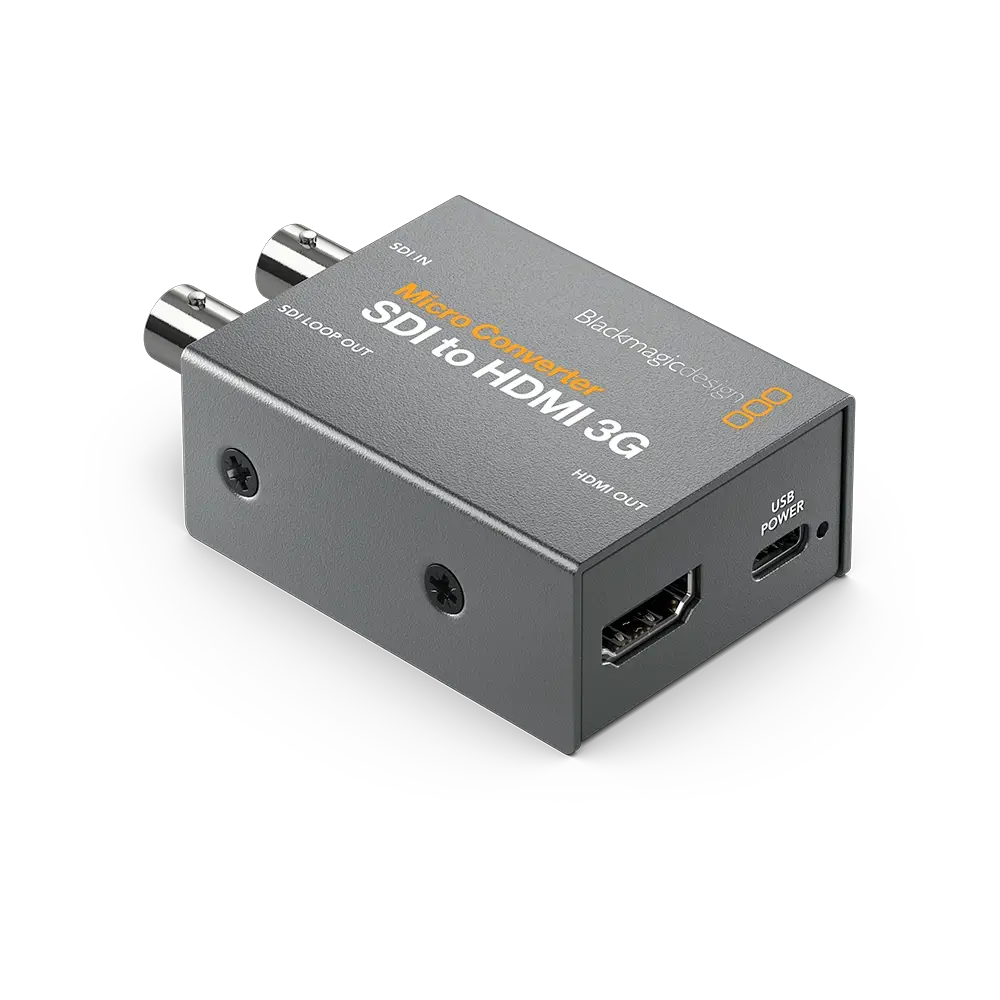

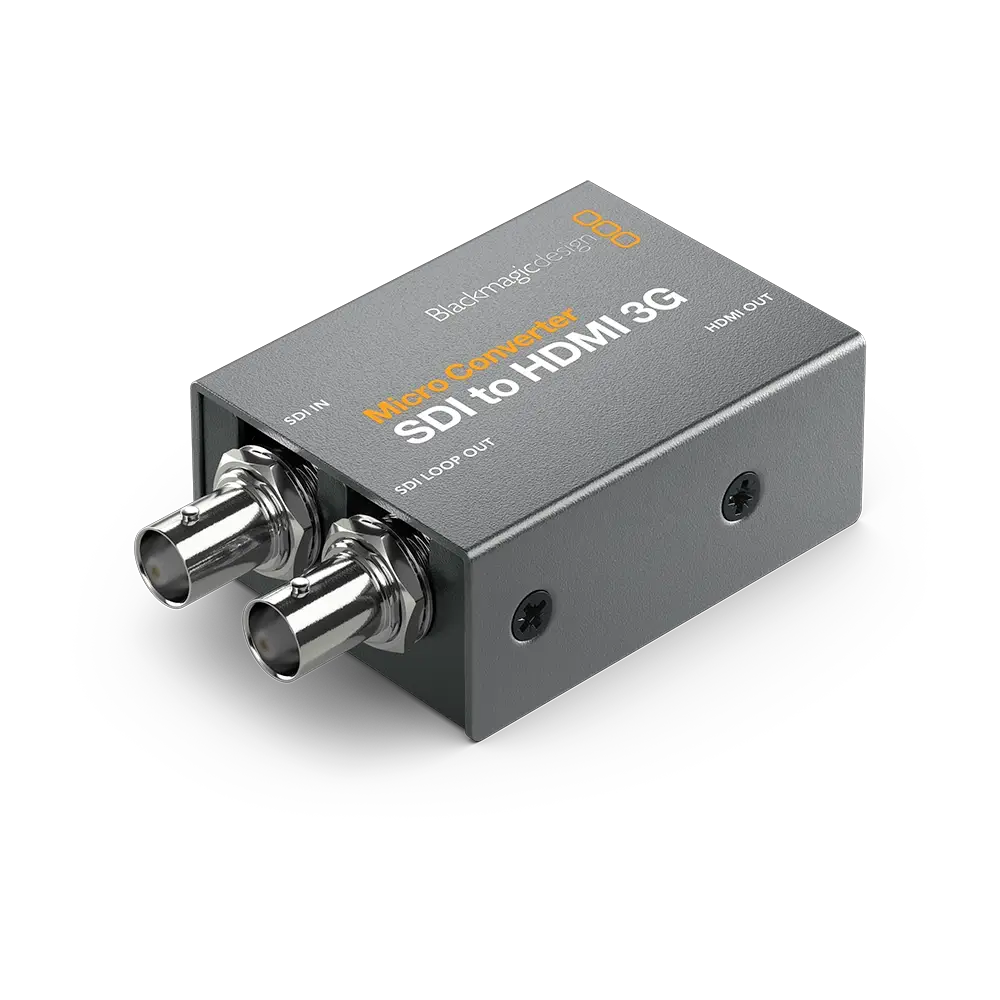

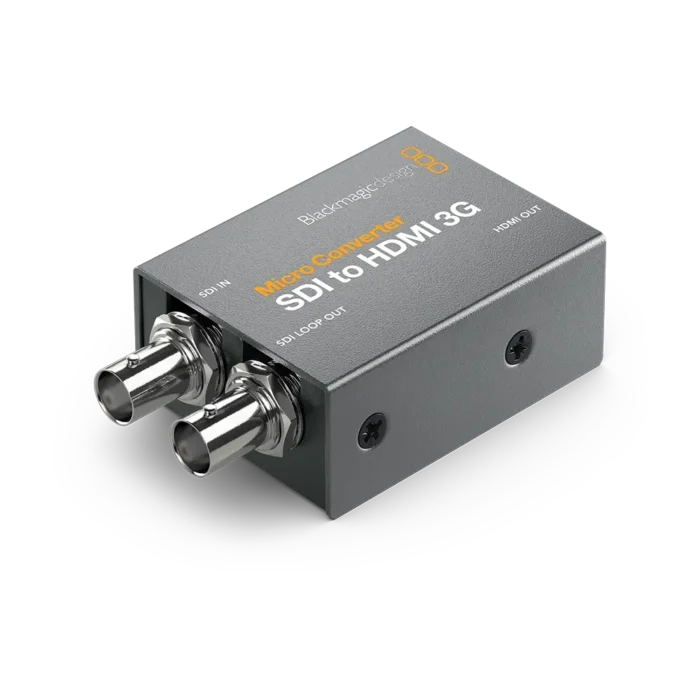

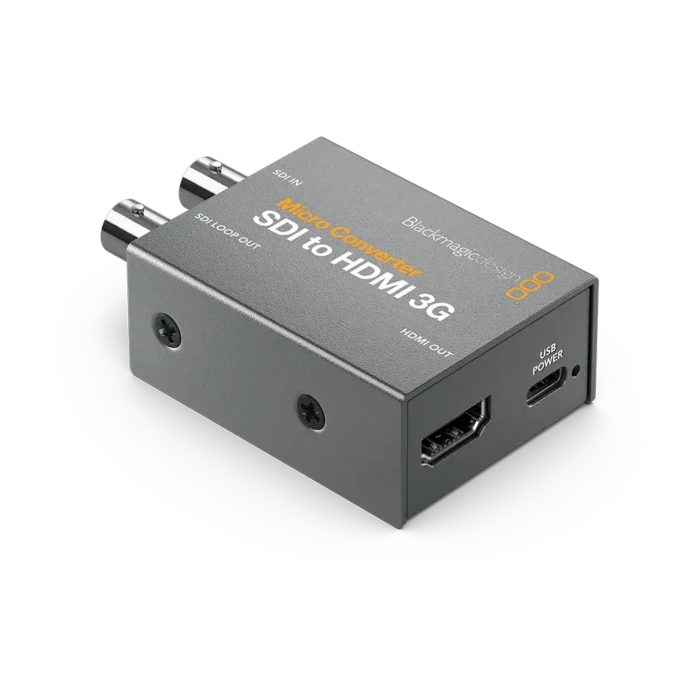

Blackmagic Design Micro Converter SDI to HDMI 3G wPSU Overview
Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.
This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.
- One SD/HD/3G-SDIÂ input
- One HDMI output and one SD/HD/3G-SDI loop output
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or PC
- Supports a 7-point 3D LUT for color calibrating your monitor, television, or projector
- Outputs LUT for monitoring via SDI loop output
- SDI support up to DCI 2Kp60
- HDMI support up to 1080p60
- Supports embedded HDMI input and embedded SDI output
- LED indicators for video and power signals
- Power from a monitor, laptop, or other component using the USB Type-C port
- Includes a 100-240 AC power supply with four socket adapters
| Weight | 0.351 kg |
|---|---|
| Dimensions | 15.49 × 10.41 × 7.11 cm |
| Video Inputs: | 1x BNC (3G-SDI) |
| Audio Inputs: | No |
| Video Outputs: | 1x BNC (3G-SDI) (Loop Output) 1x HDMI 2.0 |
| Audio Outputs: | No |
| Video Resolution: | BNC Input (8/10-Bit 4:2:2 RGB, YUV) 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080PsF at 25/29.97/30 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 768 x 576i at 50 fps 720 x 480i at 59.94 fps SDI Output 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080PsF at 25/29.97/30 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 768 x 576i at 25 fps 720 x 480i at 29.97 fps HDMI Output (4:2:2 YUV) 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 768 x 576i at 25 fps 720 x 480i at 29.97 fps |
| Broadcast System Compatibility: | NTSC, PAL |
| Wireless: | No |
| Other I/O: | Input/Output 1x USB-C |
| Embedded Audio: | HDMI/SDI |
| Reclocking: | No |
| Video Standard Compliance: | SMPTE: 259M/292M/296M/424M/425M-A/425M-B |
| OS Compatibility: | macOS 10.14.15 or Later Windows 10 |
| Power I/O: | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption: | 2.5 W |
| Operating Temperature: | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Temperature: | -4 to 140°F / -20 to 60°C |
