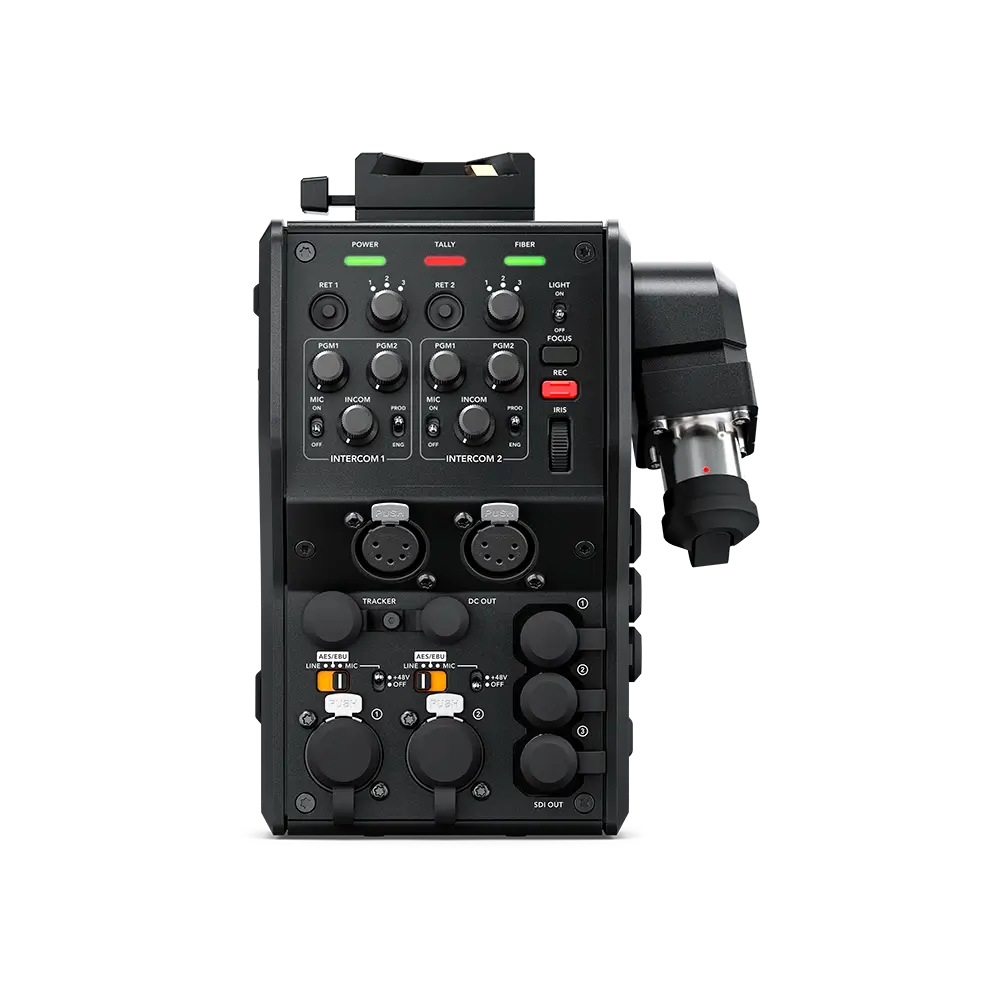

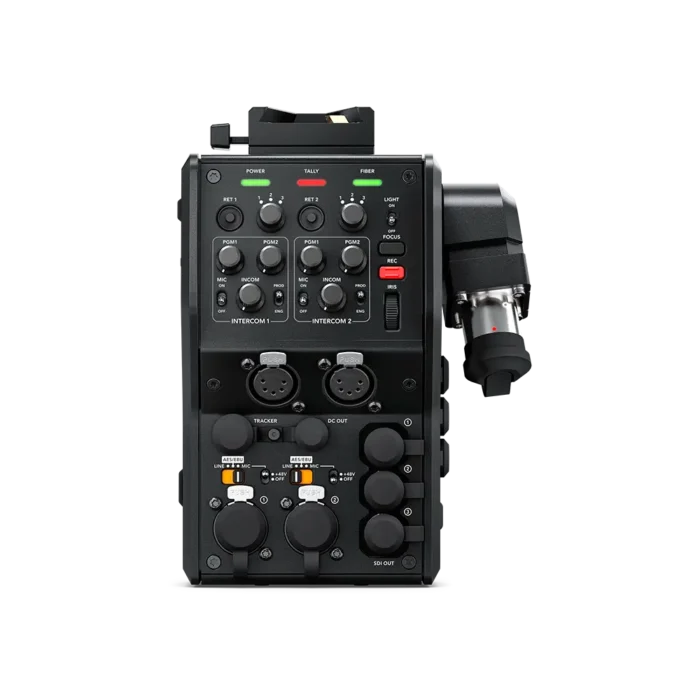

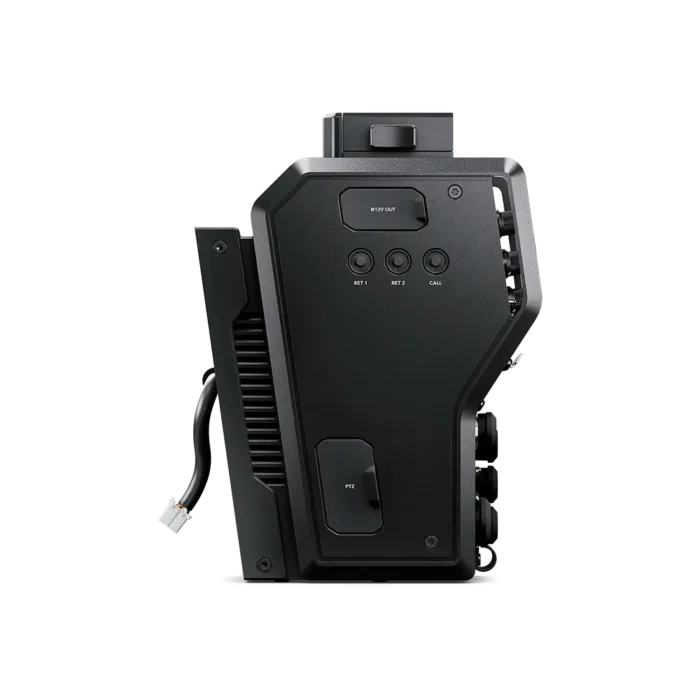

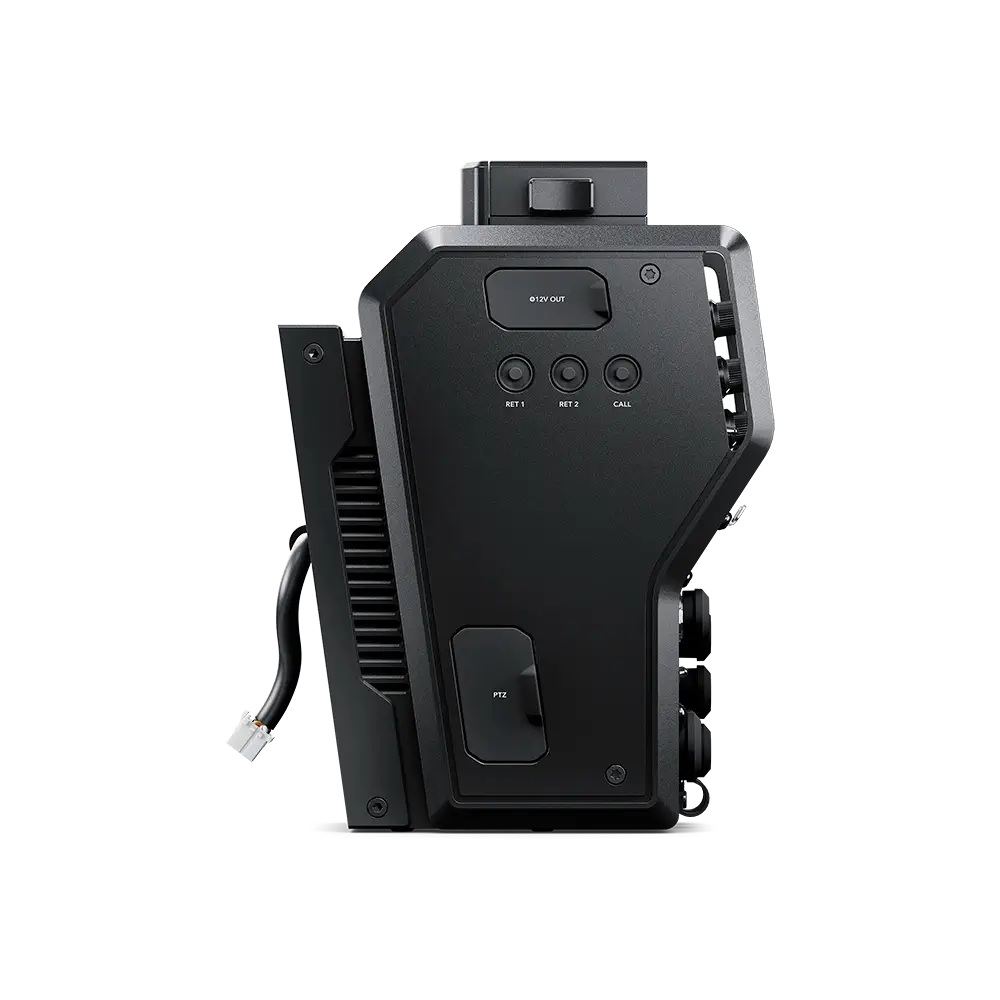

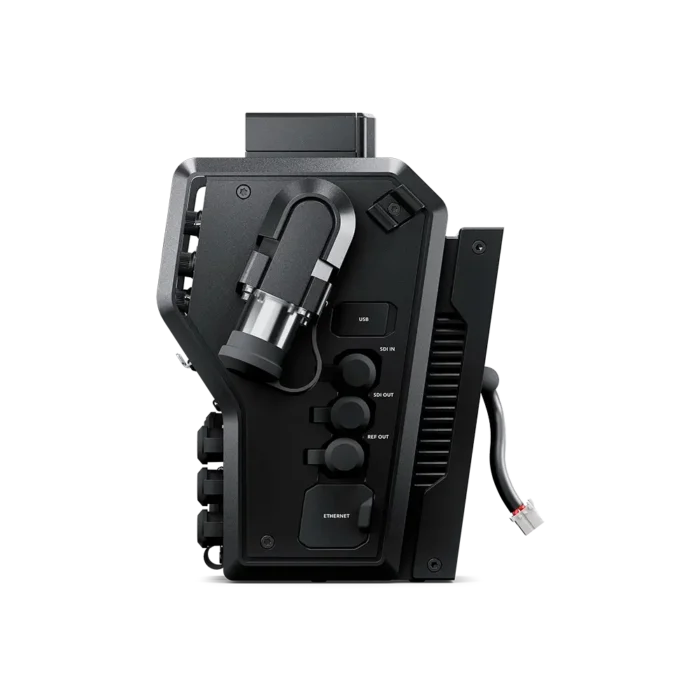

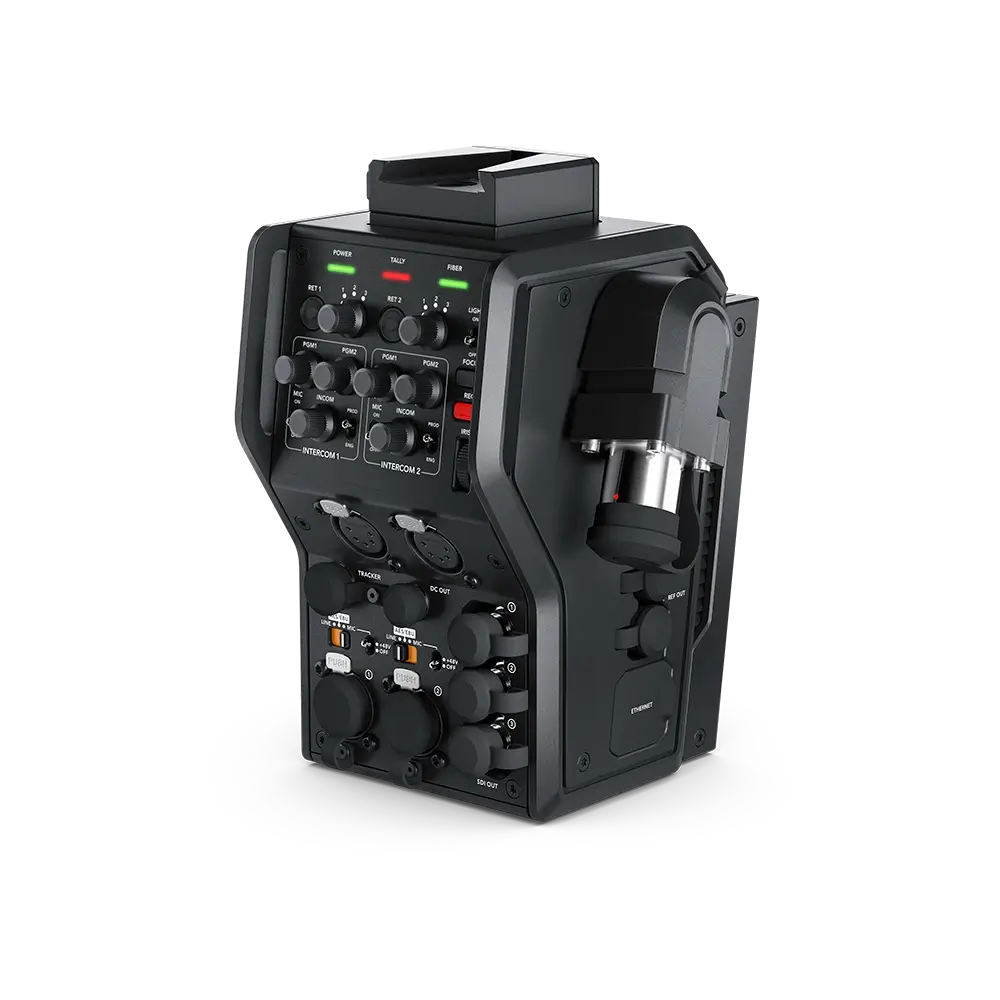

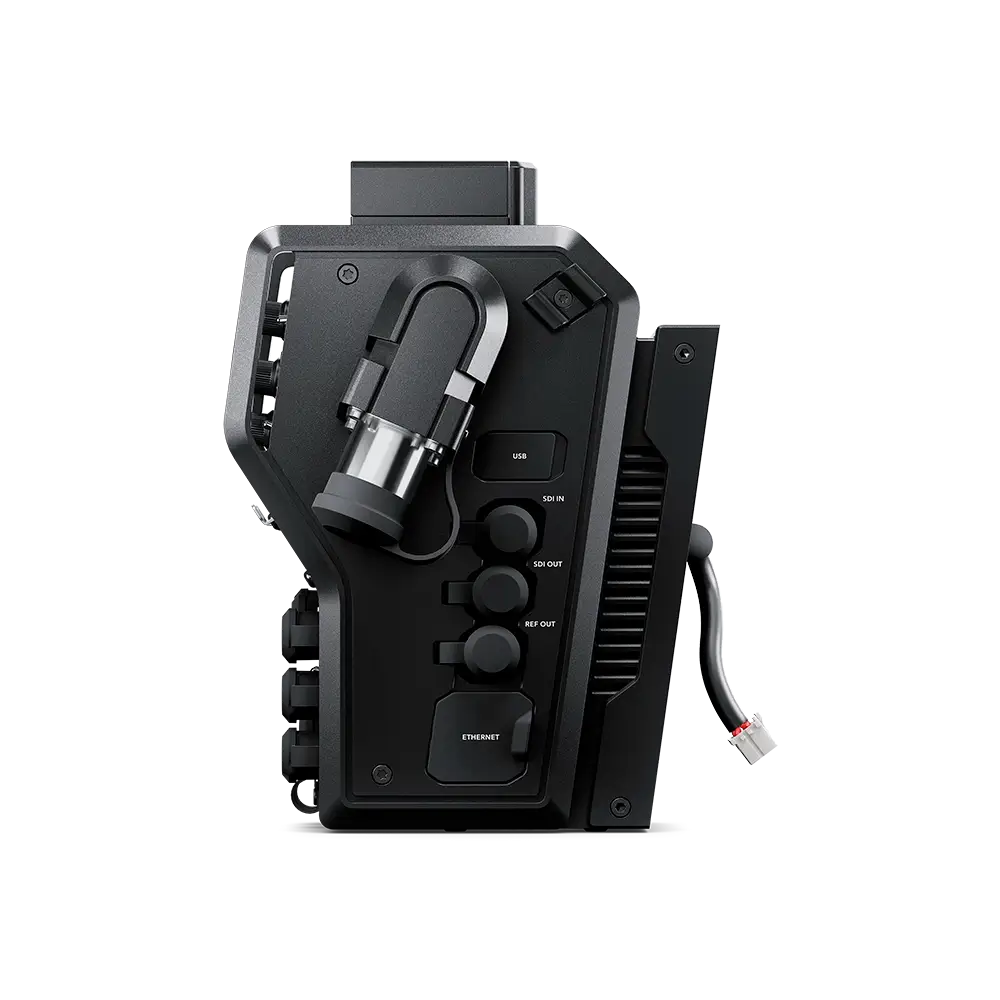

Blackmagic Camera Fiber Converter
13,156.00 Excl. VAT
- For URSA Broadcast
- Full Studio Connectivity
- SMPTE Fiber Interface
- 12G-SDI Output
- 3 x 3G-SDI Return Feeds
- 5-Pin XLR Talkback Headset Connections
- Camera Controls Moved to Camera Rear
Available on backorder
Blackmagic Design Camera Fiber Converter Overview
Secure the Blackmagic Design Camera Fiber Converter to your URSA Broadcast camera to interface with studio infrastructure via SMPTE fiber optic cable and a separately available Studio Fiber Converter for breakout up to 1.6 miles away. The converter moves the most common camera controls to the rear of the camera assembly for ease of operator access. Studio-standard connectivity includes talkback headset 5-pin XLR ports, as well as SDI video for monitor output. In total, the Camera Fiber Converter has a single outgoing 12G-SDI connection for HD or UHD 4K video and three incoming 3G-SDI connections for monitoring with a separate studio viewfinder. Use the V-lock at the top to secure the studio viewfinder. All mounting hardware is included for securing the converter to the camera.
| Weight | 2.85 kg |
|---|---|
| Dimensions | 26.29 × 21.46 × 20.7 cm |
| Connections: | SMPTE Optical Fiber: 1 x SMPTE 304 12G-SDI Input: 1 x BNC 12G-SDI Output: 1 x BNC 3G-SDI Return Output: 3 x BNC Talkback Headset: 2 x 5-pin XLR Analog Audio Input: 2 x XLR (AES/mic/line) Computer: 1 x USB Type-C |
| Video Standards: | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.9 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| SDI Standards: | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
| Audio Sampling: | 24-bit, 48 kHz |
| Video Sampling: | 4:2:2 |
| Bit Depth: | 10-bit |
| Color Space: | REC 709, REC 2020 |
