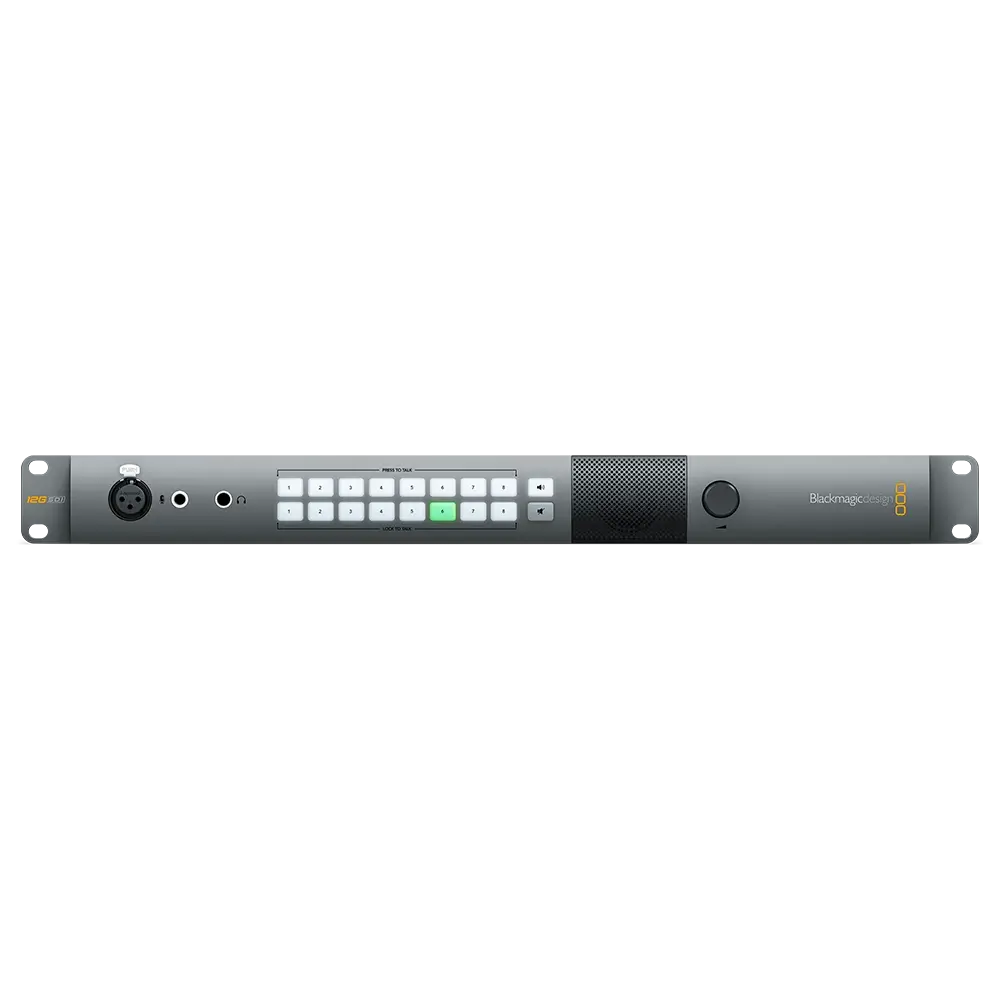

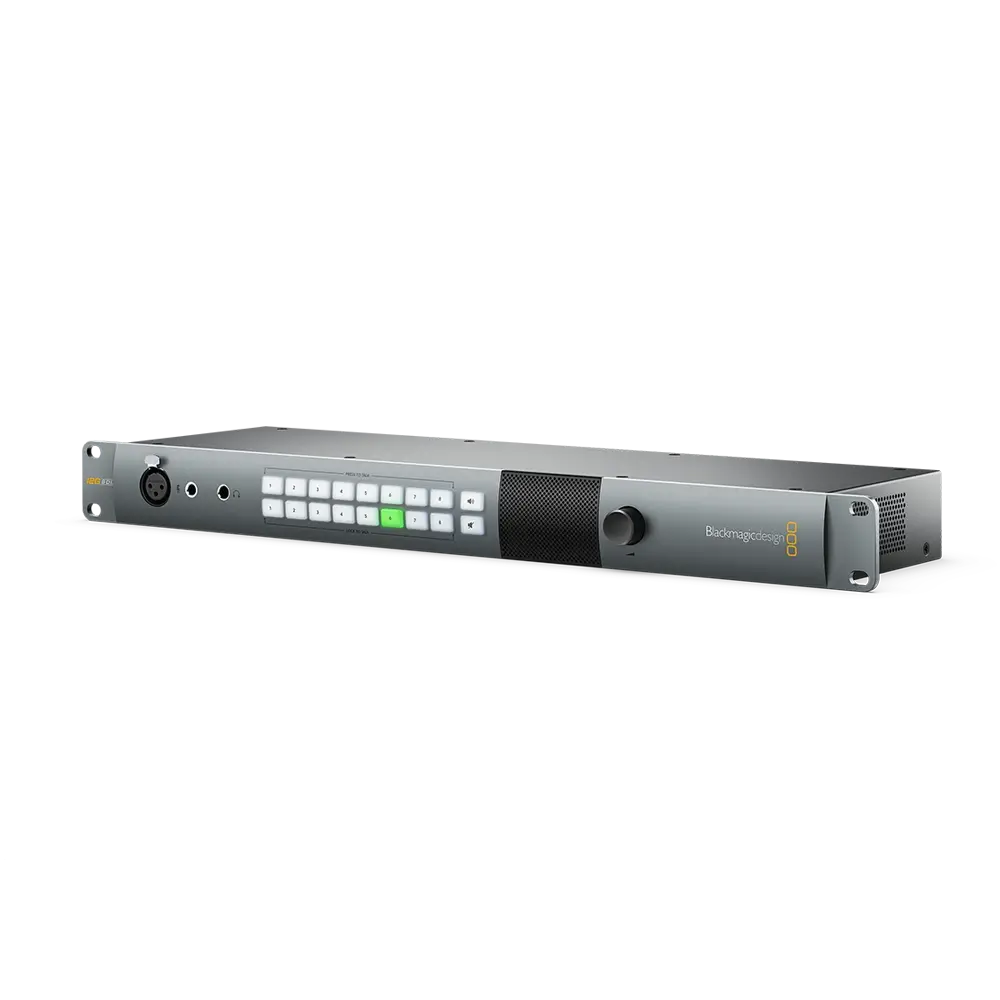

Blackmagic ATEM Talkback Converter 4K
10,595.00 Excl. VAT
Available on backorder
Estimated delivery: October 28, 2026 – November 7, 2026
Additional information
| Weight | 2.2 kg |
|---|---|
| Dimensions | 48.26 × 19.05 × 8.64 cm |

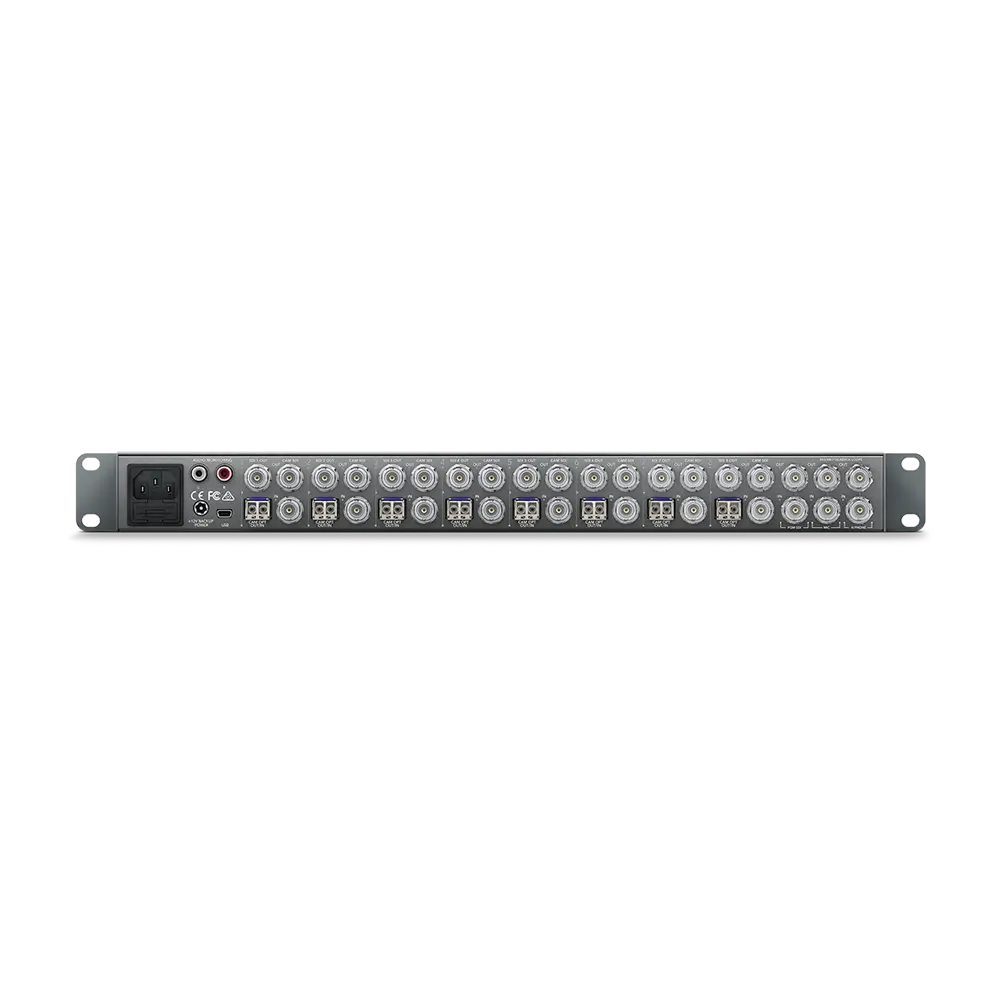

| I/O: | 1 x SDI Program Input 1 x SDI Program Output 1 x XLR for Talkback Microphone 1 x 1/4″ TRS Headset Connector 1 x 3/16″ TRS Microphone Connector 1 x Stereo RCA Monitoring Output 8 x 10-Bit SD/HD/UHD 4K Camera Input 8 x 10-Bit SD/HD/UHD 4K Camera Output 8 x 10-Bit SD/HD/UHD 4K Output With Optional Connectors 8 x LC Fiber SD/HD/UHD I/O with Audio |
| Computer Interface: | 1 x USB Mini-B Connector (for Firmware Updates) |
| SD Format Support: | 525/29.97 NTSC 625/25 PAL |
| HD Format Support: | 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080PsF: 23.98/24/25/29.97/30 1920 x 1080i: 50/59.94/60 1280 x 720p: 50/59.94/60 |
| 2K Format Support: | 2048 x 1080p: 23.98/24/25 2048 x 1080PsF: 23.98/24/25 |
| 4K Format Support: | 4096 x 2160p: 23.98/24/25/29.97/30/50/60 3840 x 2160p: 23.98/24/25/29.97/30/50/60 |
| SDI Compliance: | SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M |
| Video Processing: | Sampling: 4:4:4, 4:2:2 Color Precision: 10-Bit Color Space: REC 601, REC 709 Rate Support: SDI Automatically Switches Between SD, HD, and UHD 4K |
| Audio Sampling: | 24-Bit, 48 kHz A/D Conversion |
| Compatible Operating Systems: | Mac OS X 10.9 and Newer Windows 7 and 8 |
| Environmental: | Operating Temperature: 41 to 104?F / 5 to 40?C Storage Temperature: -4 to 113?F / -20 to 45?C Relative Humidity: 0 to 90% Non-Condensing |
| Certifications: | EMC, UL, FCC, CE, C-Tick, KCC |
| Power Supply: | 110 to 240 VAC Input with Redundant 12 to 31 VDC Input |
| Power Usage: | 60 W |
