Blackmagic ATEM Micro Panel
2,815.00 Excl. VAT
- For ATEM Constellation Switchers
- Works with ATEM Software Control
- Connects via Bluetooth, USB
- 2 x 10 Input Buttons for Program/Preview
- Transition Control, Fader
- Macro Key
Available on backorder
Blackmagic Design ATEM Micro Panel Overview

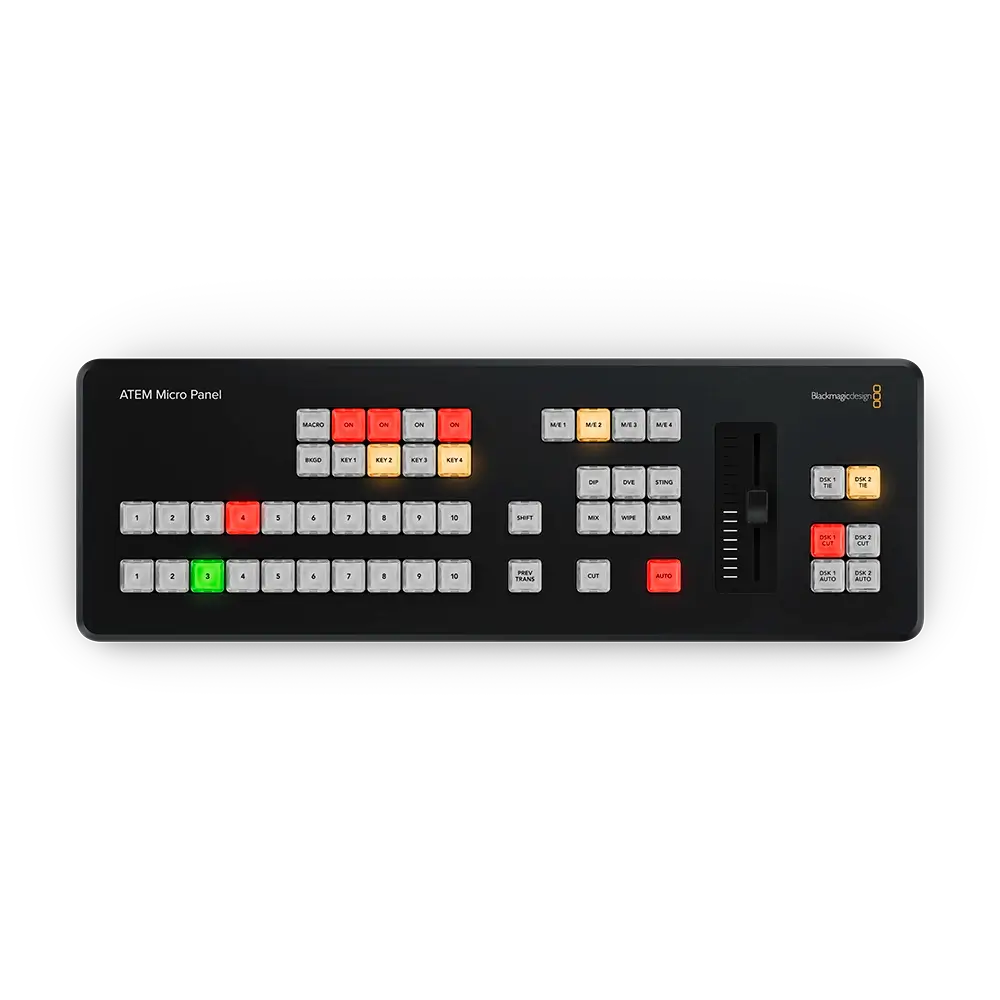

Take the ATEM Software Control interface and turn it into a physical switcher with the Blackmagic Design ATEM Micro Live Stream Switcher Panel. The panel is designed to emulate the exact layout of the software with two rows of ten input buttons for both preview and program, transition controls, a macro key, and an onboard fader. This allows you to facilitate both manual and automatic control over your broadcast.

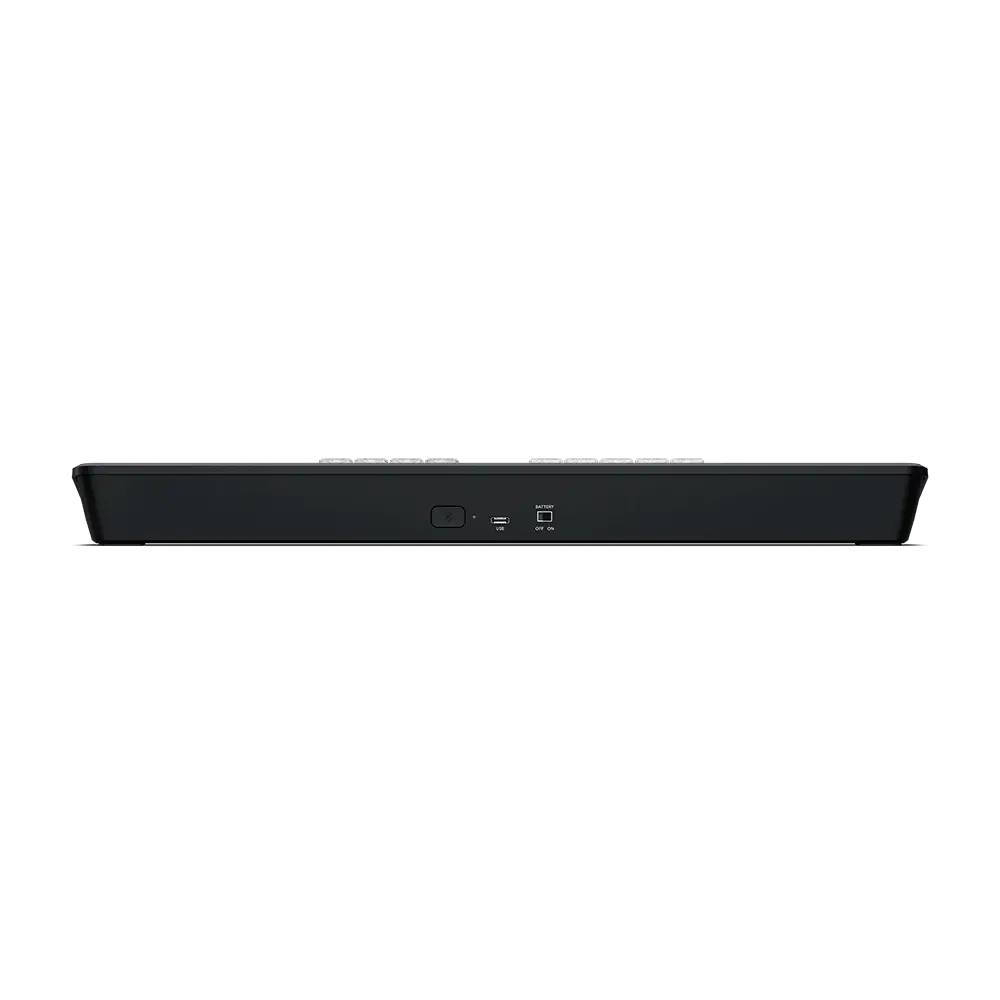

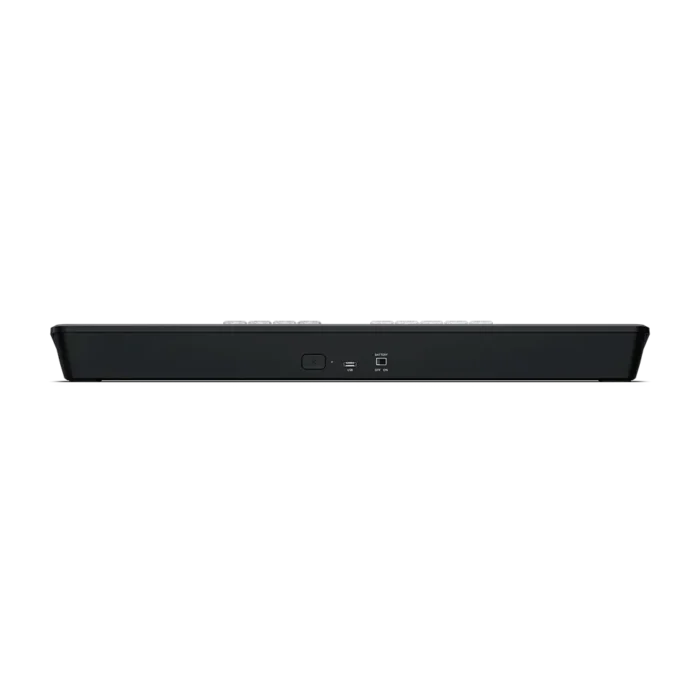

High-quality backlit buttons and a low-profile manual transition fader emulate the design of the larger ATEM Advanced Panels. The Micro Panel features a USB-C port to connect to your personal computer with ATEM Software Control. You can even wirelessly connect using the internal Bluetooth 5.1 LE signal. A large internal battery keeps the panel going for long production days and can be turned on and off with an onboard switch.
- 1 mix effect row
- 10 direct cross-points
- 20 shifted cross-points
- 1 preview transition
- 4 M/E select buttons
- 4 upstream key buttons
- 2 downstream key buttons
- 1 transition slider
- CUT and AUTO switching-type buttons
- DIP, DVE, STINGER, MIX, and WIPE transition-type buttons
| Weight | 0.77 kg |
|---|---|
| Dimensions | 53.09 × 19.3 × 6.86 cm |
| Controls: | 50x Pre-Labeled Key |
| Display: | No |
| OS Compatibility: | macOS 13.0 to 14.0 Windows 10 to 11 |
| USB I/O: | 1x USB-C Female Input (System Connection) |
| Power Source: | Battery |
| Operating Conditions: | 41 to 104?F / 5 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C |
