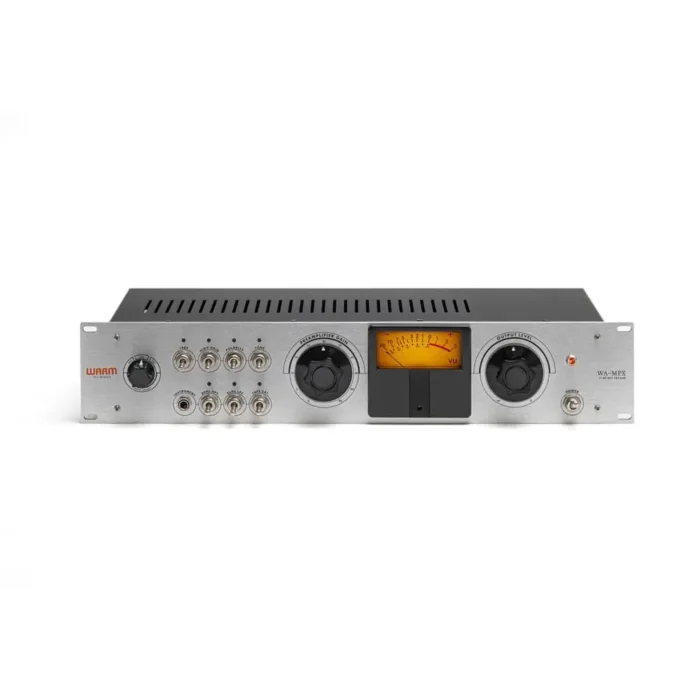

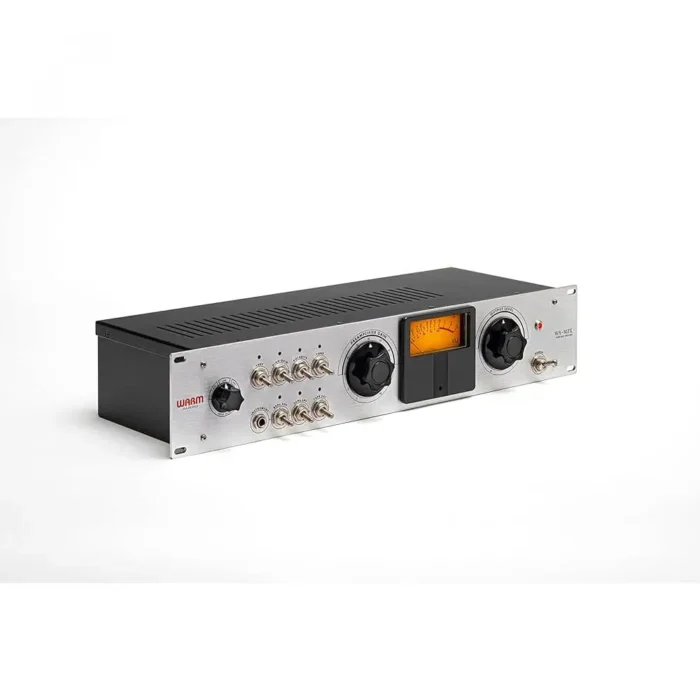

Warm Audio WA-MPX 1-channel Tube Mic/Line/Instrument Preamp
AED 2,784.000 Excl. VAT
- 1-channel Tube Mic/Line/Instrument Preamp with 90dB of Gain
- Authentic reproduction of the coveted “351” tape machine tube preamp
- Fully discrete, handwired and handbuilt construction
- Selectable Tape saturation adds harmonic distortion and natural compression
- Custom-wound, large-core CineMag USA transformers
- Tone switch modifies mic input transformer impedance
- 600Ω output attenuator
Available on backorder
WA-MPX
Single-Channel Tube Microphone Preamp
Authentic Reproduction Of The Most Revered Tape-Era Tube Mic Preamp
Tape-Era Tube Warmth
The WA-MPX & WA-2MPX are authentic reproductions of the most revered microphone tube preamps that pioneered the birth of rock ‘n’ roll & radio-ready hits. During the golden era of tape recording, the original 351-style tube preamps were the kings of studio tech delivering pure analog warmth; the signature sound in the signal chain of hit recordings for artists including Elvis Presley, Bing Crosby, Les Paul, Nat King Cole, and Roy Orbison.
An Authentic Vintage Experience

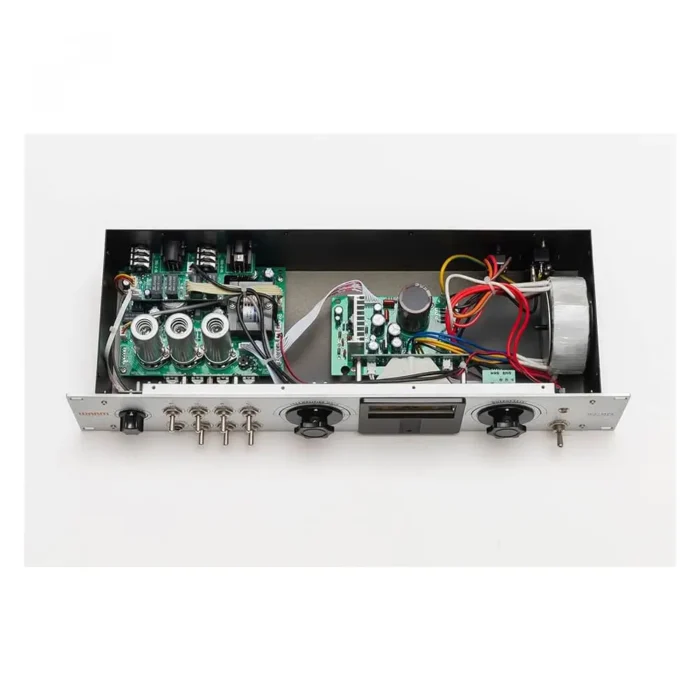

The WA-MPX preamps deliver the same sonic signature as their vintage inspiration, imparting high-headroom analog warmth that goes from ultra clean to rude and saturated. Each channel boasts a handwired circuit containing custom CineMag transformers and three tubes that, with the high-gain switch engaged, bring the WA-MPX up to an incredible 90dB of gain. The WA-MPX not only delivers the sound of a legendary tape-era tube preamp but one of the best values in an all-tube mic preamp on the market today.
The classic Warm Audio “tone” control alters the input transformer impedance from 600Ω to 150Ω,, adding “air” or “sheen” to the top end – great for ribbons or “darker” mics.
The “high gain” switch engages an extra 20dB of tube gain to take the WA-MPX all the way to 90dB – very useful on lower output dynamic and ribbon mics
The Tape Saturation control engages a discrete circuit in the signal that adds focused tone filtering to emulate the sound of tape machines running at 15IPS, adding just enough imperfection to the signal, especially when used on program material for mixing and mastering.
The switchable 80 Hz high pass filter makes it easy to remove unruly bass noise from sources before you even hit record. The 2 kHz low pass filter allows you to chop off upper-mids and harsh highs for a uniquely Lo-Fi sound.
| Weight | 5.36 kg |
|---|---|
| Dimensions | 61.72 × 30.48 × 13.97 cm |
| Preamp Type: |
Tube |
| Number of Channels: |
1 |
| Phantom Power: |
Yes |
| Polarity Switch: |
Yes |
| EQ: |
80Hz highpass filter, 2kHz lowpass filter |
| Tubes: |
2 x 12AX7, 1 x 12AU7 |
| Analog Inputs: |
1 x XLR, 1 x 1/4" TRS, 1 x 1/4" Hi-Z (front) |
| Analog Outputs: |
1 x XLR, 1 x 1/4" TRS |
| Frequency Response: |
20Hz-20kHz |
| Rack Spaces: |
2U |
| Power Source: |
Standard IEC AC cable |
