UltraStudio Recorder 3G
AED 497.000 Excl. VAT

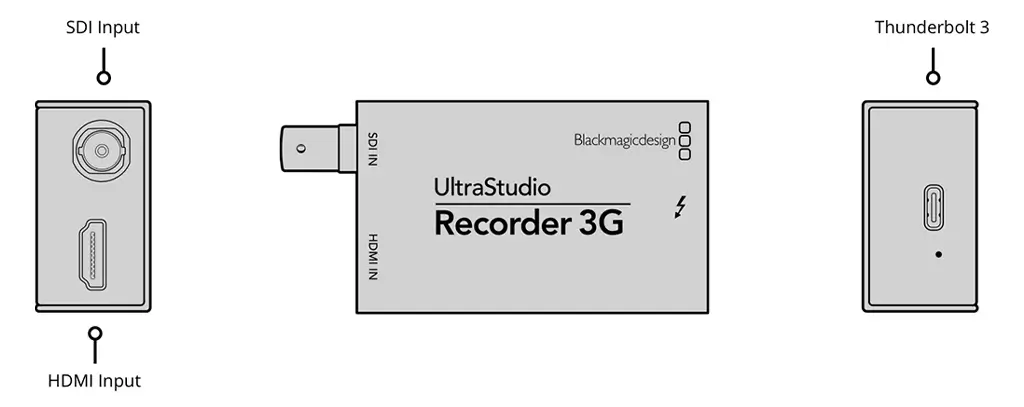

- 3G-SDI and HDMI Inputs
- Thunderbolt 3 Output
- Supports Resolutions up to 1080p60
- Supports YUV and RGB Video
- Compact Design
In stock

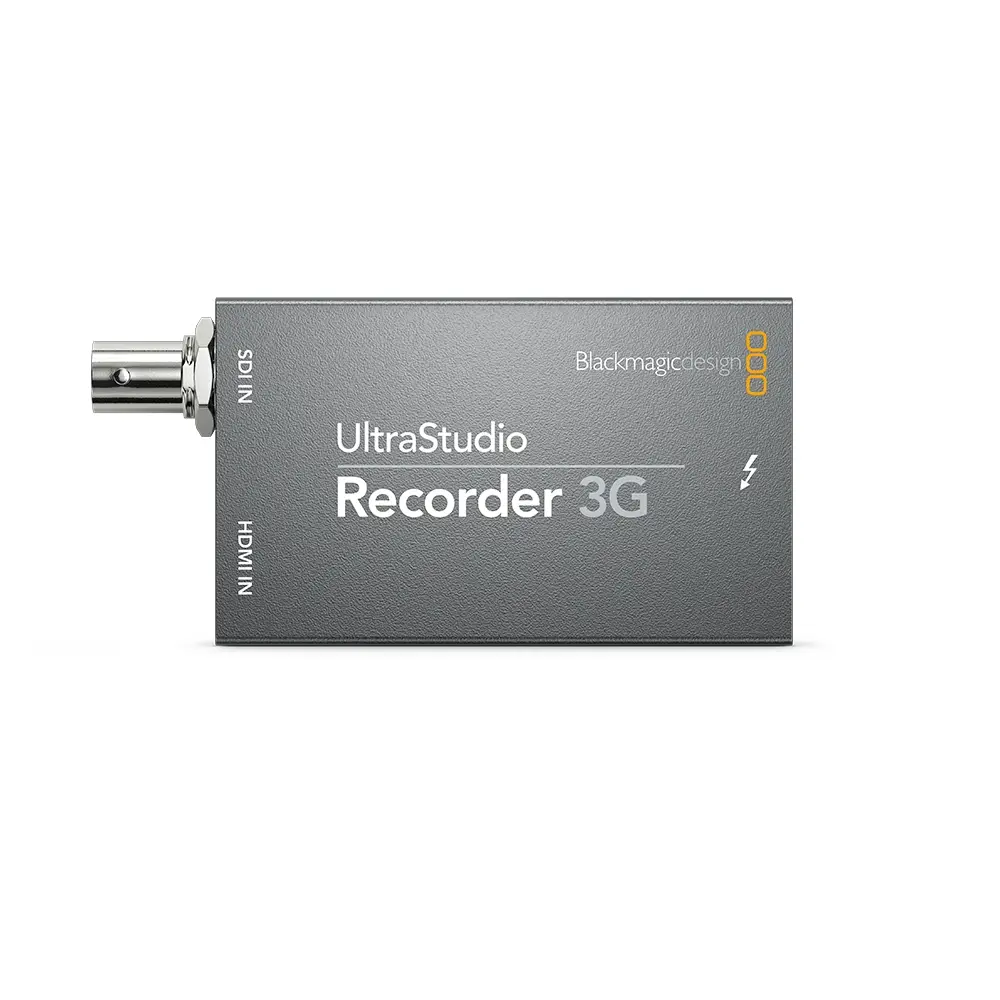

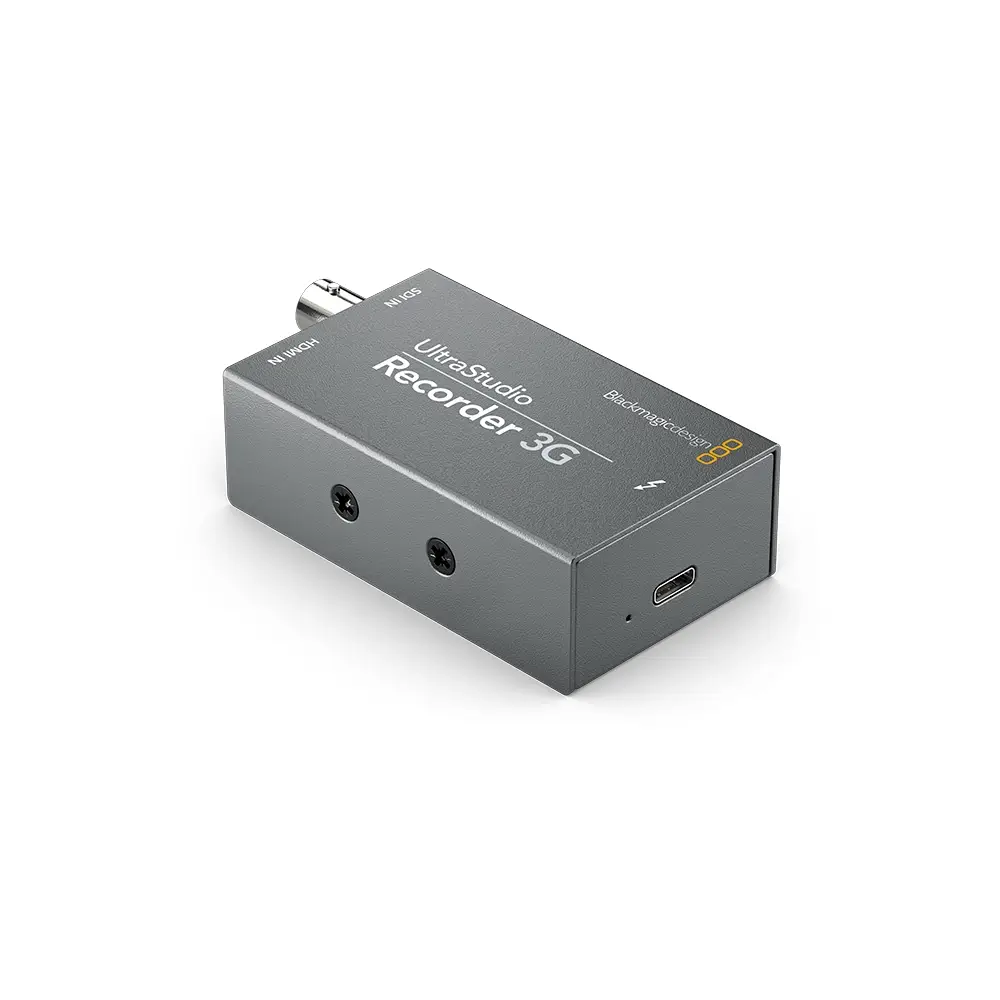

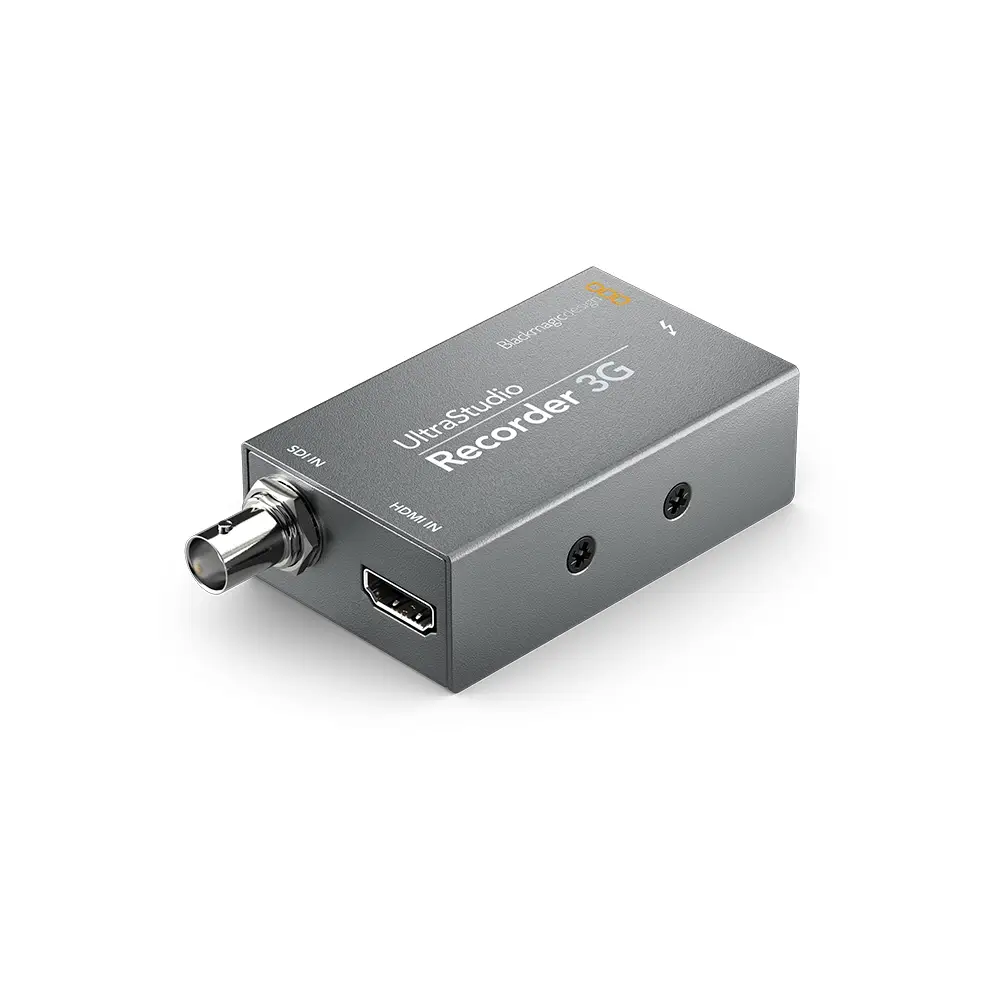

The compact UltraStudio 3G Recorder from Blackmagic Design with Thunderbolt 3 output enables you to capture or stream video from your camera or other SDI or HDMI source using your computer’s Thunderbolt connection. This recorder supports both YUV and RGB video resolutions up to 1080p60 via 3G-SDI or HDMI.
Key Features
Ultrafast Thunderbolt 3
Video editing: DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, and Avid Media Composer
VF/X: Fusion, After Effects CC, and Photoshop CC
Audio: ProTools, Steinberg Nuendo, and Cubase
Live streaming: OBS, Wirecast, and Livestream Producer
| Weight | 0.16 kg |
|---|---|
| Dimensions | 9.19 × 0.45 × 2.49 cm |
| Software |
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
| Connections |
SDI Video Inputs 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Inputs 16 Channels embedded in SD/HD HDMI Video Inputs 1 x HDMI 2.0 type A connector HDMI Audio Inputs 8 Channels embedded in SD/HD Computer Interface Thunderbolt™ 3 (Mac OS, Windows and Linux) |
| Supported Codecs |
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| Software Application |
WireCast OBS Vmix |
| Other supported applications |
Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom. These are third party applications and support may vary, check with your software vendor. |
| SDI Video Standards |
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support SDI video connection is switchable between SD and HD. |
| HDMI Video Standards |
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0 supports Deep Color. HDMI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support HDMI video connection is switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Hardware Frame Buffer |
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). |
| Processing |
Colorspace Conversion Hardware based real time. Physical Installation Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements. |
| Operating Systems |
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11. Linux |
| What's Included? |
UltraStudio Recorder 3G |
