Sonnet Twin25G Thunderbolt Dual Port 25Gb Ethernet Adapter(SFP28 modules included)

Thunderbolt 3 Host Connection
2 x SFP28 Ports
Up to 25 Gb/s Throughput
Includes SFP28 Transceivers
1 x 15W Thunderbolt 3 Passthrough Port
Quiet Operation
Works with Windows 10/11, Mac & Linux

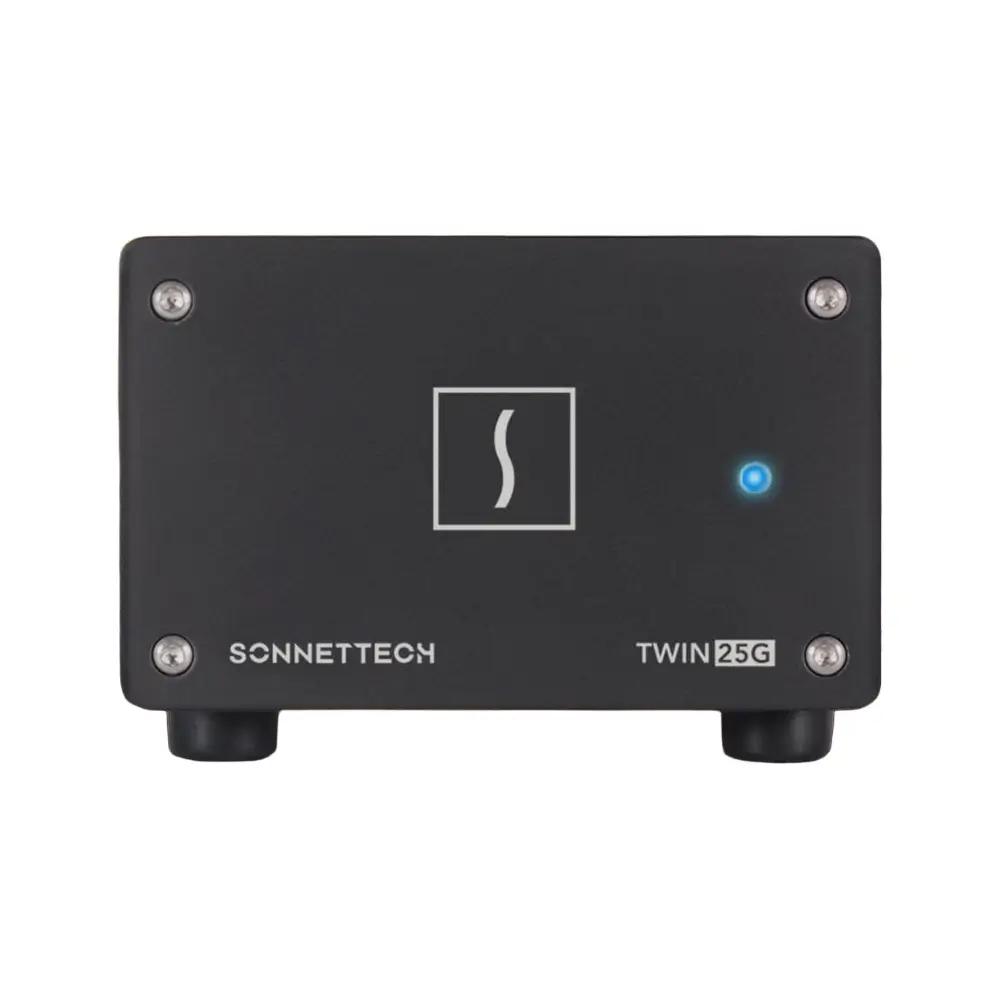

Twin25G

25 Gigabit Ethernet Thunderbolt Adapter with Two SFP28 Transceivers

compatible with Mac, Windows, and Linux

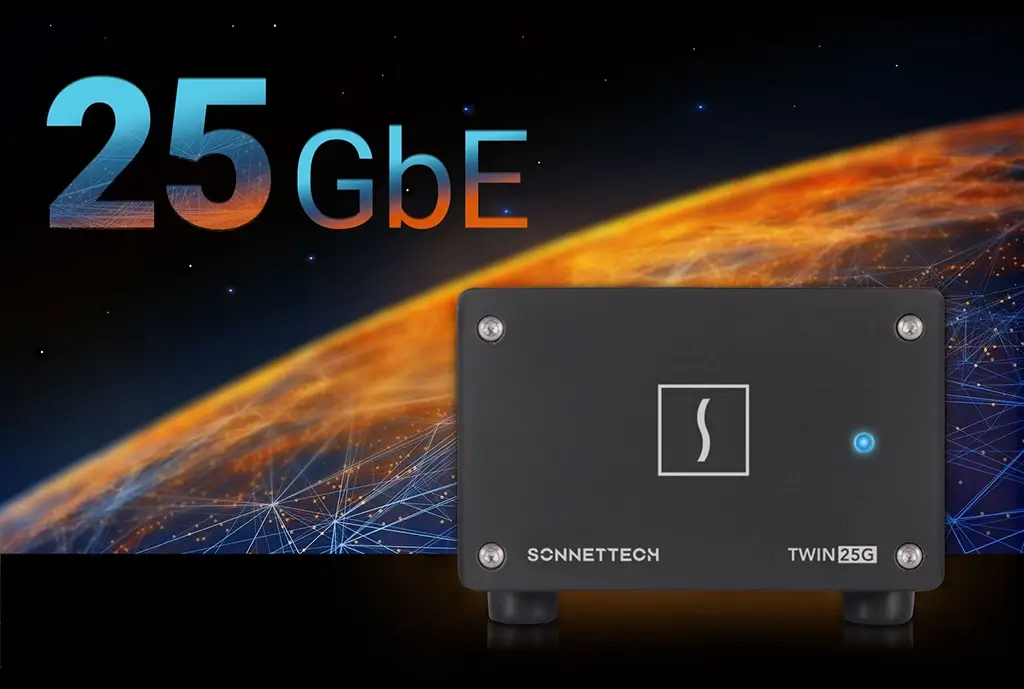

Incredible 25GbE Connectivity Over Thunderbolt

Many post-production shared storage teams and other bandwidth-heavy workflows have outgrown the capabilities of 10 Gigabit Ethernet (10GbE), which no longer delivers the speed and bandwidth needed for optimal performance. Upgrading to 25 Gigabit Ethernet (25GbE) is a smart move — it delivers significantly higher performance and often utilizes the same optical infrastructure as 10GbE. For these demanding environments, Sonnet’s Twin25G™ Thunderbolt Adapter offers a cost-effective and high-performance solution for adding ultra-fast 25GbE fiber optic network connectivity to Apple M series Macs, Intel Macs with Thunderbolt 3 ports, and Windows or Linux PCs with Thunderbolt 5 or Thunderbolt 4 ports.
‍
Twin25G Thunderbolt Adapter is a pre-configured bundle of Sonnet’s Twin25G PCIe Card and Echo Express SEL Thunderbolt Expansion System.

Affordable 25GbE Networking

Make the Switch

Post-production workflows’ needs for speed and increased network bandwidth beyond the current 10Gb standard have increased more quickly than the availability of affordable higher speed network components. Recently, extremely affordable 25Gb Ethernet switches have become available, but connecting a computer with Thunderbolt ports, such as a Mac Studio, to a 25GbE infrastructure has remained expensive — until now. Twin25G Thunderbolt Adapter is the most cost-effective and powerfully simple solution for adding incredible 25GbE network connectivity to your computer without PCIe card slots.

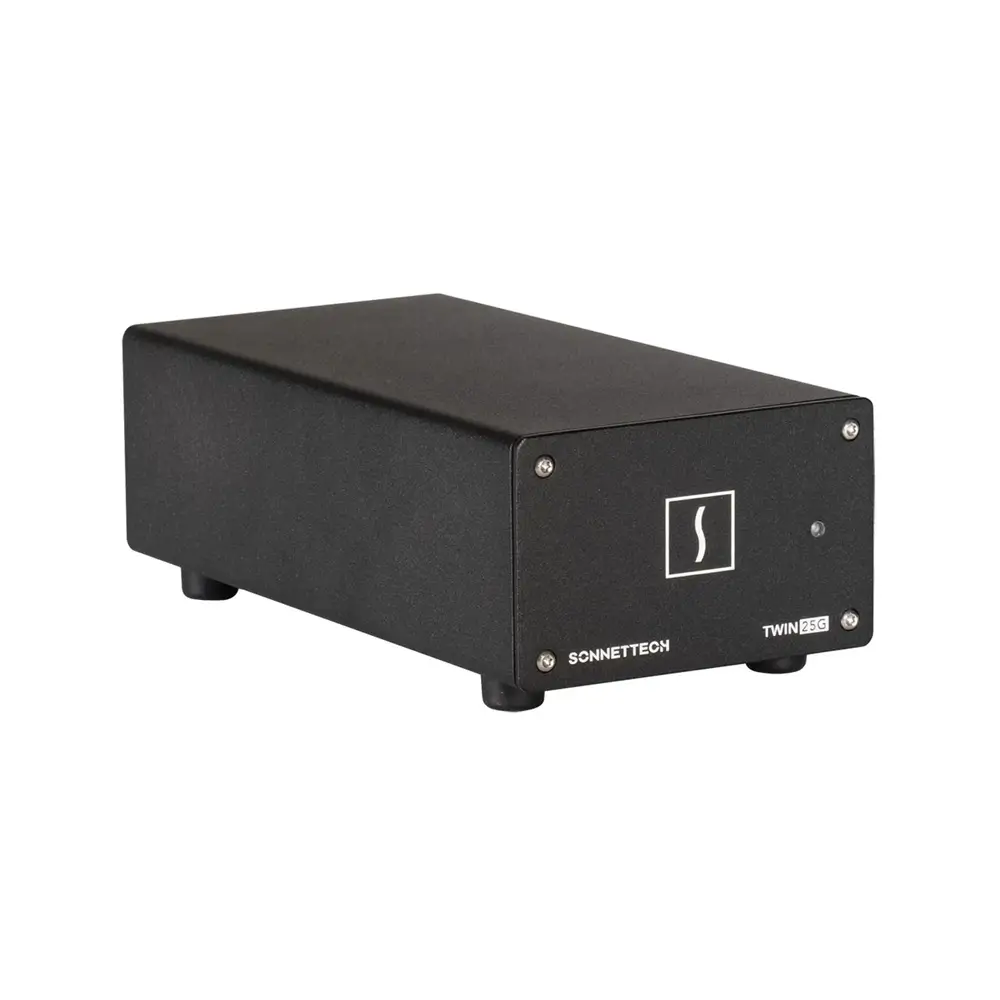

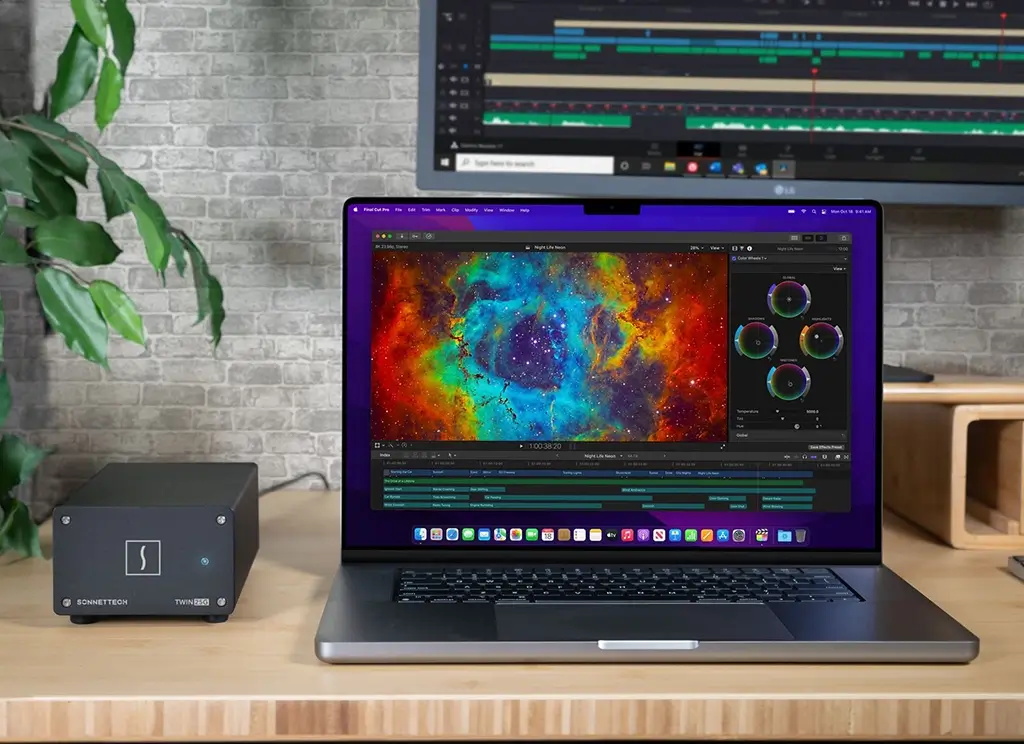

Compact and Nearly Noiseless

Cool Running

Small enough to easily fit in most workspaces, Twin25G is still large enough to support proper airflow inside its case to enable the adapter’s temperature-controlled, variable-speed fan to keep the adapter always running cool and quiet.

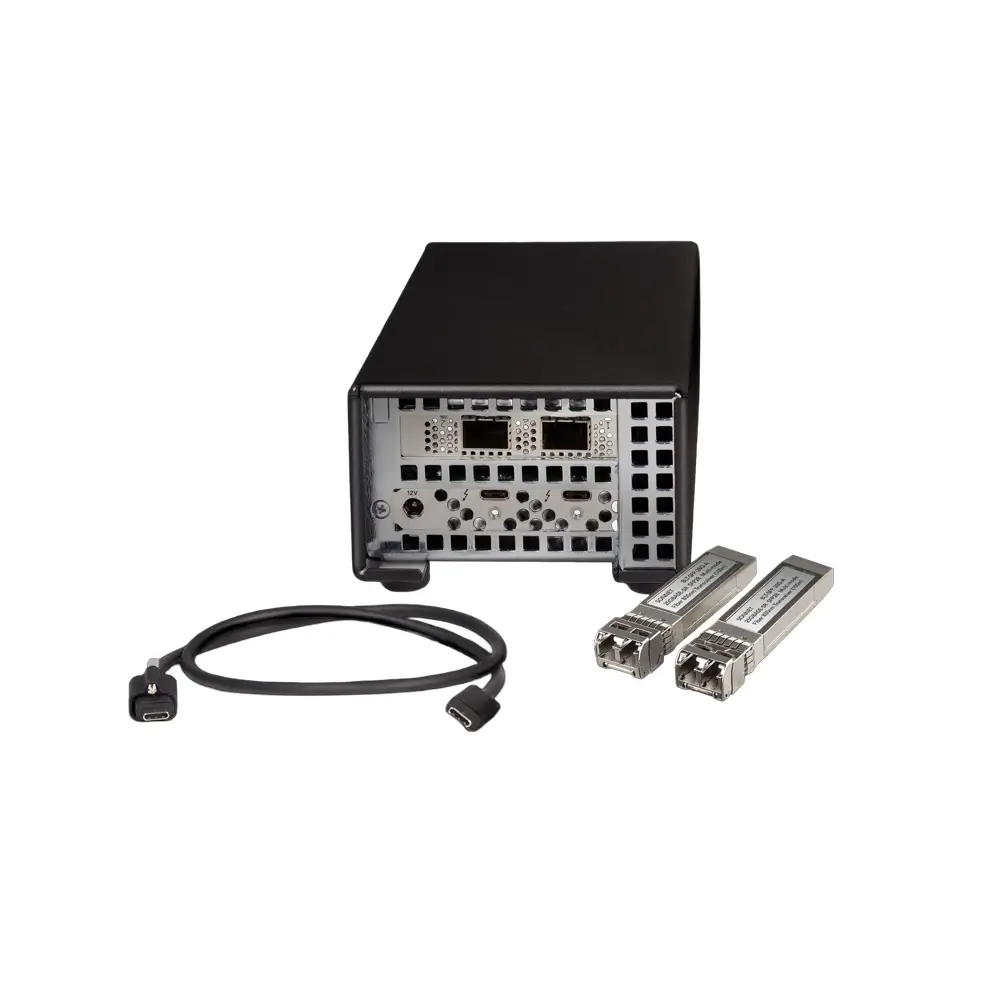

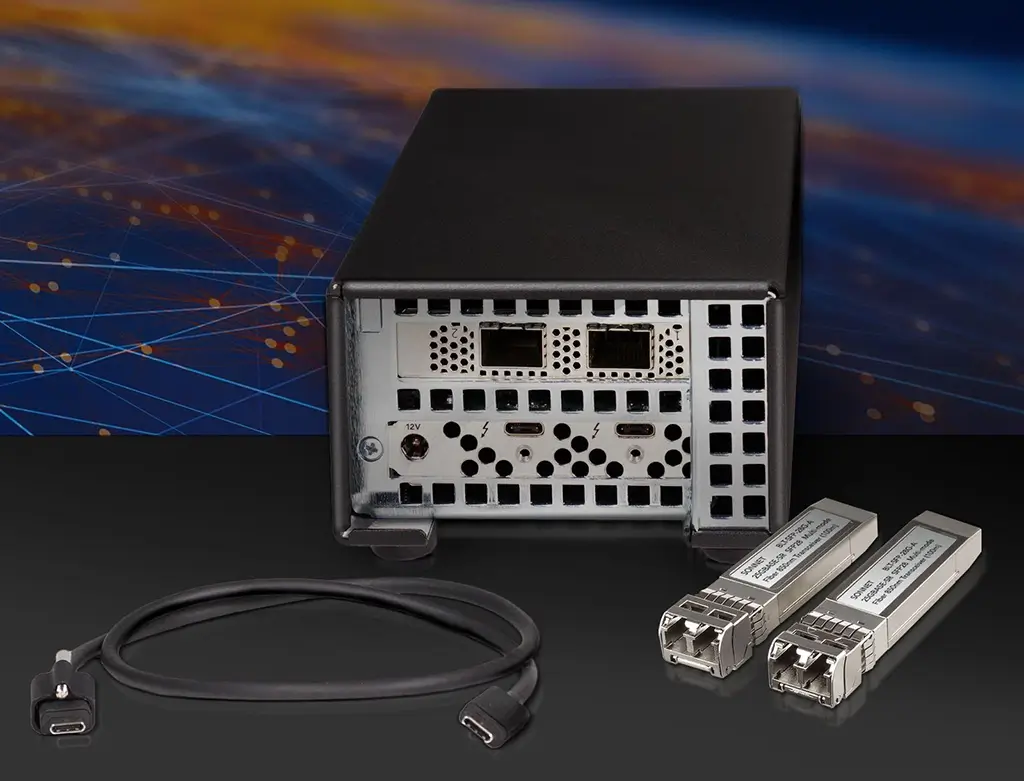

Everything You Need to Connect Is Included

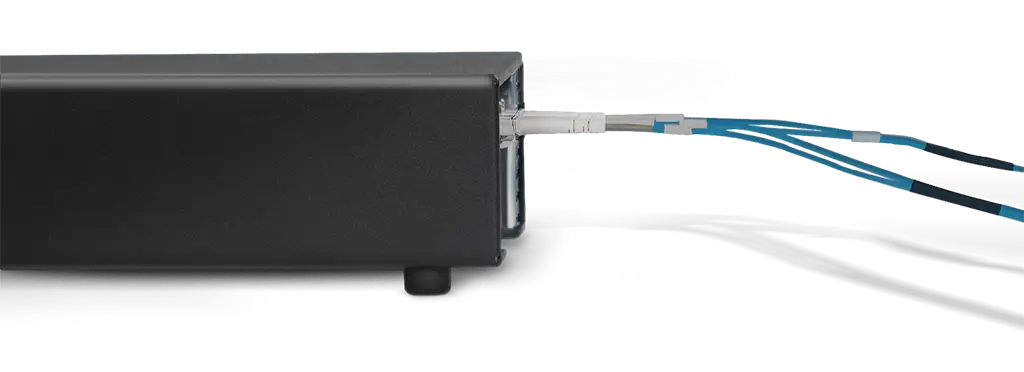

Simply connect the Twin25G Thunderbolt Adapter to your computer via the included 40Gbps Thunderbolt cable, install a driver, install the included SFP28 modules, connect the adapter to the network switch or directly to 25GbE-enabled storage, and then configure the adapter’s settings through the macOS Network control panel, Windows Device Manager, or Linux command line (or graphical utility).

Intelligent Operation

Efficient Performance

Twin25G attains high throughput performance with minimal host CPU load. The adapter’s smart controller has its own internal processing system with onboard memory to process TX/RX data while using few CPU resources. Once data appears in queues, TX checksums are computed on the fly as data is transmitted; RX checksums are quickly verified, and data is immediately passed directly to main memory. This independent controller action minimizes latency and avoids packet drops. The CPU is freed for other tasks.

Secure Connections for High Performance

Thunderbolt Cable and ThunderLok Included

Sonnet includes a Thunderbolt cable that supports Thunderbolt’s maximum bandwidth and is fully compatible with Thunderbolt 5, 4, and 3 computers. Sonnet also provides ThunderLok, a Thunderbolt connector cable lock, that prevents accidental cable disconnections.

Thunderbolt Technology

Fastest External Interface Available

Sonnet Thunderbolt products feature a high-speed Thunderbolt interface that delivers PCIe bandwidth needed to support data transfers at full speed.

Weight

1.9 kg

Dimensions

20.9 × 10.16 × 6.9 cm

Networking I/O

2x 25Gb LC

OS Compatibility

macOS 13 or Later Windows 10 to 11 Windows Server 2019 to 2022 Linux 5 or Later

Power Source

AC Adapter

System Connection

USB-C (Thunderbolt 3)

Transceiver Slot

2x Small Form-factor Pluggable (SFP)
