Sonnet Twin10G Dual Port SFP28 10Gb Ethernet PCIe Card (Mellanox) (SFP28s included)

Adds High-performance 10GbE Fibre Connectivity
SFP28 Transceivers Included
Supports Teaming on Windows and Linux
Increased Throughput
Great for Use in Thunderbolt Expansion Systems
Twin10G SFP28 10GbE PCIe Card; two SFP28 transceivers; two PCIe mounting brackets

SKU: G10E-SFP-2XM-E3 Categories: PCIe Cards, Sonnet

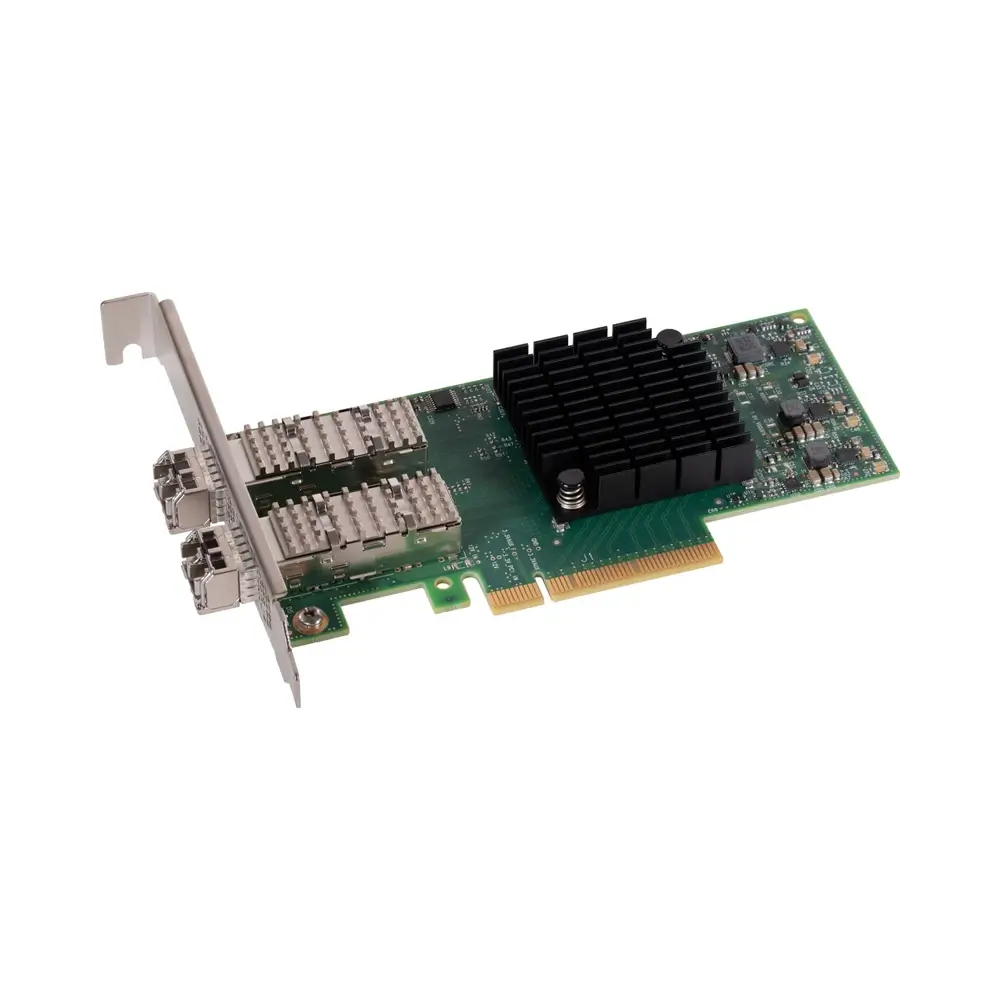

Twin10G SFP28 PCIe Card

Name: Sonnet Twin10G Dual Port SFP28 10Gb Ethernet PCIe Card (Mellanox) (SFP28s included) - MCX Store
SKU: G10E-SFP-2XM-E3

Dual-port Optical 10 Gigabit Ethernet PCIe Card with Two SFP28 Transceivers

Compatible with Mac®, Windows®, and Linux® computers with PCIe Slots

Ultra-fast Optical 10GbE Network Connectivity

With increasing demands for greater data transfer speeds and more bandwidth over shared networks, and with specialized applications such as 4K video editing using high-performance shared storage systems, it’s no wonder that 10 Gigabit Ethernet (10GbE) use has skyrocketed —this high-speed cabled networking standard offers ten times the performance of Gigabit Ethernet, the most common wired network connection included with most computers today. Sonnet offers a powerfully simple way to add dual-port 10GbE fiber optic connectivity to your Mac Pro® tower, Windows or Linux PC or server — Twin10G™ SFP28 PCIe Card.

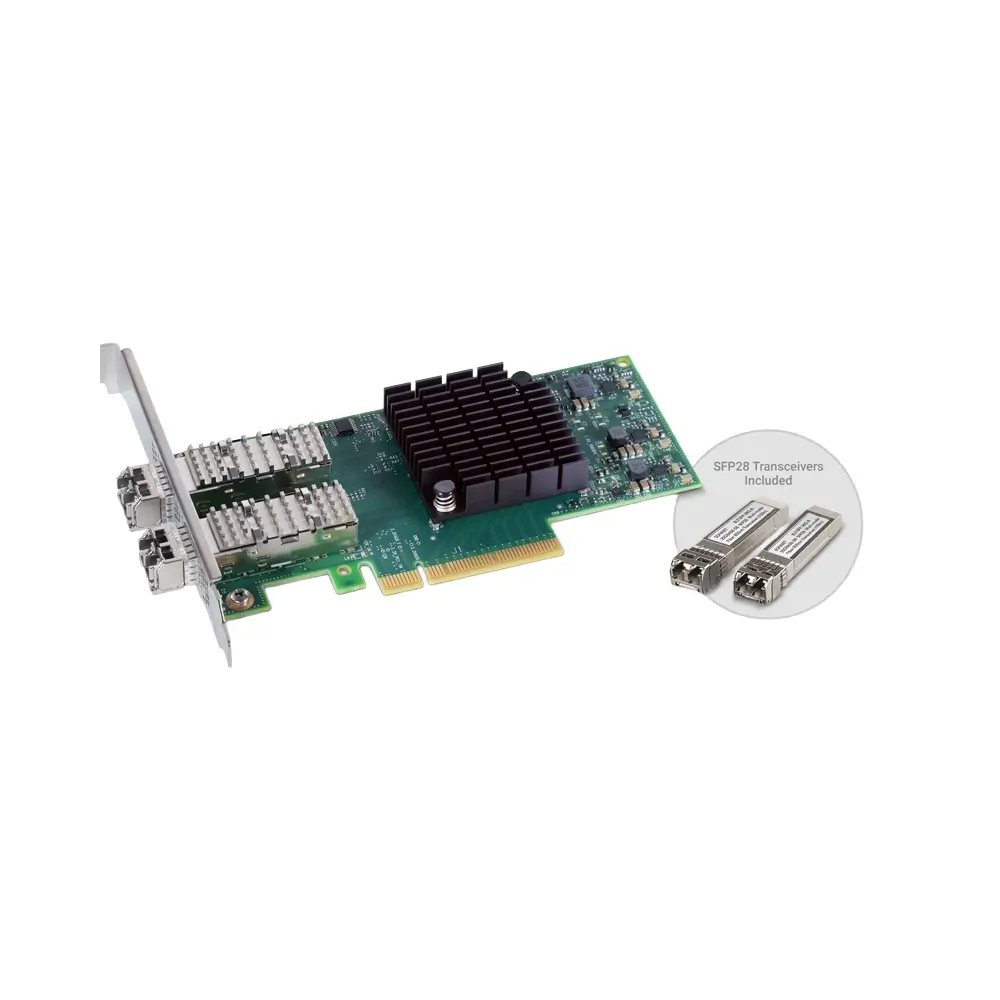

Includes Two SFP28 Transceivers

Easy Network Connection

To enable easy connection to your 10GbE optical network, Twin10G SFP28 PCIe Card includes two short-range multi-mode fiber SFP28 transceivers (up to 300 meters).

The SFP28 transceivers are compatible with network switches equipped with SFP+ transceivers – and connect via the same LC/LC cables – ensuring the same optical 10GbE connectivity as an SFP+ card.

10x Performance

More Bandwidth

10x the Performance of Gigabit Ethernet

Each Twin10G port supports ten times the performance of Gigabit Ethernet with even more bandwidth when combining ports.

SMB Multichannel Support

Maximizes Throughput and Reliability with SMB Multichannel

Harness the full potential of Sever Message Block (SMB) Multichannel support with our Twin10G SFP28 PCIe Card. When both ports are connected to your SMB server, you can combine their bandwidth to achieve significantly higher data transfer speeds, and more. SMB Multichannel support brings several key benefits:

Increased Throughput: By utilizing two network connections, the bandwidth of each port can be combined to deliver twice the data transfer rate.

Increased Scalability: Easily expand your network’s capabilities. As your infrastructure grows, connect the additional Twin10G port to scale throughput without complex reconfiguration.

Improved Fault Tolerance: Seamlessly keeps your computer connected in case a single cable is disconnected or one of the ports fails.

Enhanced Load Balancing: Network traffic is dynamically distributed across available connections to prevent congestion and optimize performance under varying network demands.

Reduced Latency: Minimizes delays by balancing traffic paths to enhance responsiveness in real-time operations.

Perfect Companion

for Echo and xMac Thunderbolt Expansion Systems

Use a free slot in a Sonnet multi-slot Sonnet Thunderbolt expansion system to add dual-port optical 10Gb Ethernet to your computer without card slots; see Tech Specs for important details.

Got Thunderbolt?

But Need Only Optical 10Gb Ethernet?

Check out Sonnet Twin10G SFP28 Thunderbolt Adapter for computers with Thunderbolt ports. It’s compact, offers the same connectivity, and gives you the performance you need.

Install and Connect

Simple Installation

Simply download and install a driver, install the Twin10G SFP28 PCIe Card into a PCIe slot in your computer or Sonnet Thunderbolt expansion system, install the included SFP28 modules, and then connect the card to the network switch or directly to 10GbE-enabled storage. Configure the adapter’s settings through macOS Network control panel, Windows Device Manager, or Linux command line (or graphical utility).

Sonnet Twin10G Dual Port SFP28 10Gb Ethernet PCIe Card (Mellanox) (SFP28s included)

Twin10G SFP28 PCIe Card

Dual-port Optical 10 Gigabit Ethernet PCIe Card with Two SFP28 Transceivers
