Great 2-Drive Hardware RAID 0 Performance

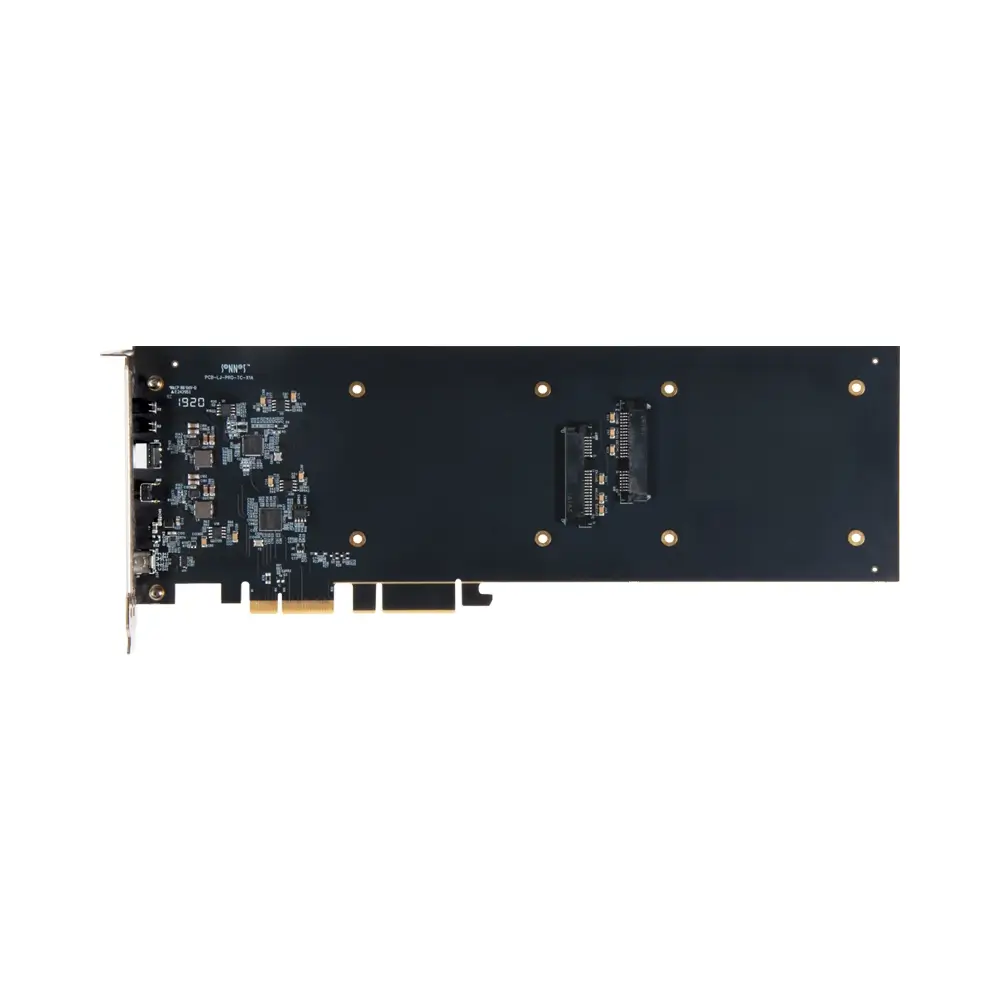

Install the Sonnet Fusion card into a PCIe 3.0 slot of a computer or Thunderbolt 3 expansion system and achieve great transfer speeds up to 1000 MB/s!

Still use a Mac Pro® 5,1 tower? Enjoy performance up to 800 MB/s now, and migrate the Sonnet card to the new Mac Pro (2019) to enjoy even better performance.

Disk Striping

Increases performance by interleaving data into blocks (stripes) across two or more drives simultaneously to increase speed.

Fast RAID 1 Performance

Looking for the safety of a simultaneous backup? RAID 1 performance of up to 560 MB/s may be obtained with any compatible computer or expansion system.

100% Redundancy

If primary drive crashes, the mirrored drive will automatically replace the primary drive.

A high performance RAID controller manages the SSDs you install, supporting Fast (RAID 0), Safe (RAID 1), Volume (Span) and, particularly important to pro audio users, JBOD (Just a Bunch of Disks) configurations, so you can choose the mode that best suits your needs:

Fast

Choose RAID 0 for the best performance.

Volume

Choose Span to create a single large volume bridging both drives.

Safe

Choose RAID 1 for a mirrored backup of your data.

JBOD

Choose JBOD (Just a Bunch of Disks) to work with twice as many audio tracks.

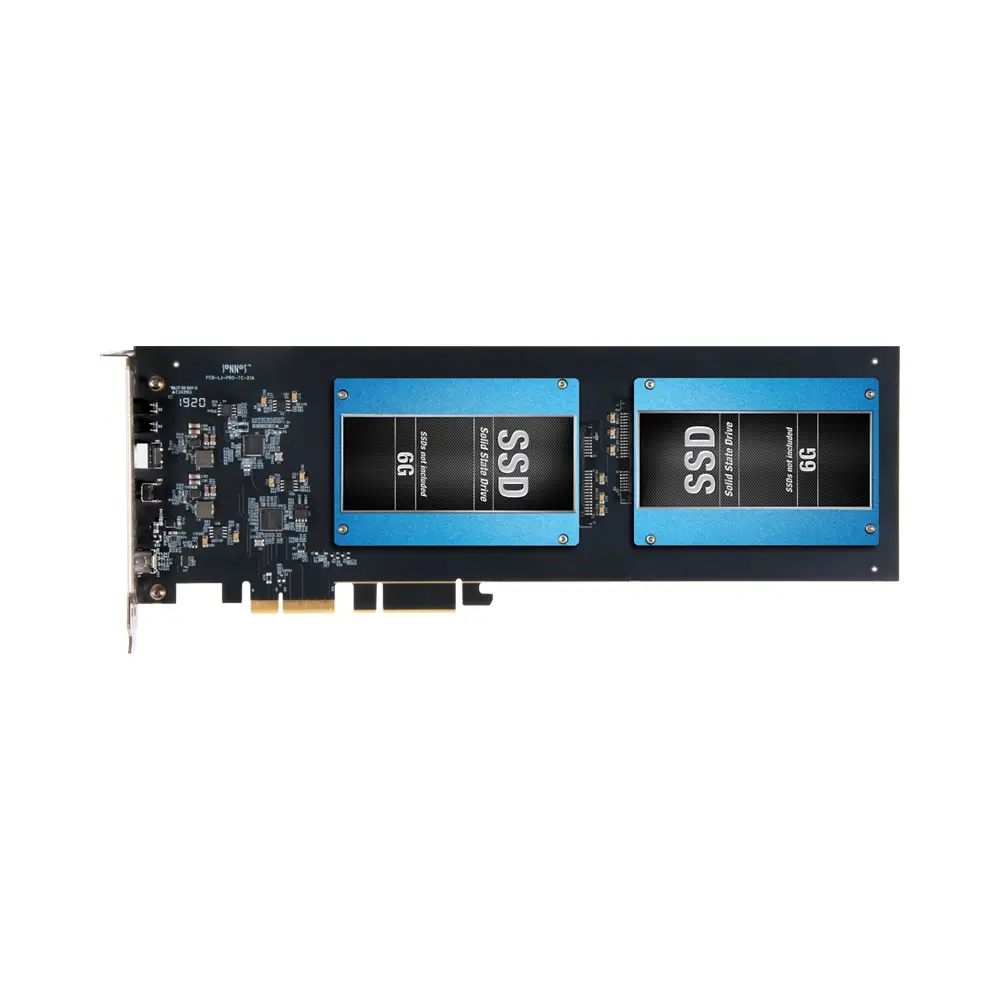

Sonnet’s Fusion Dual 2.5-inch SSD RAID card also includes a SuperSpeed USB-C (USB 3.2 Gen 2) port that supports data transfers of up to 1000 MB/s, and provides up to 15W of power to support bus-powered devices—you can connect a fast external drive without installing another card.

Got a Thunderbolt connection, but no PCIe card slot? Fusion Dual 2.5-inch SSD RAID card provides full performance and is ideal for use in a Sonnet Thunderbolt expansion systems. The combo enables you to add two SSDs plus a USB-C port to any Mac (M series and Intel), Windows, and Linux computer with Thunderbolt ports.
