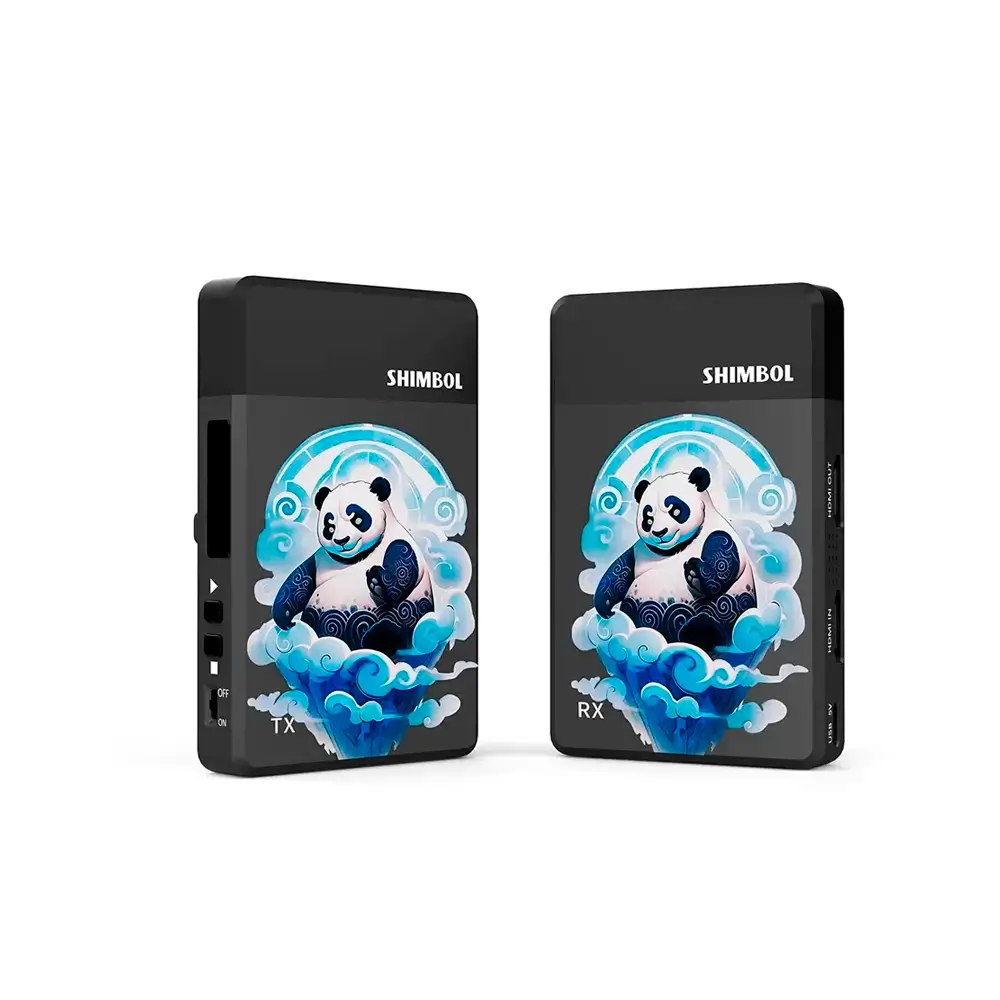

Shimbol TP Max 1000′ HDMI Wireless Transmission System
515.00 Excl. VAT

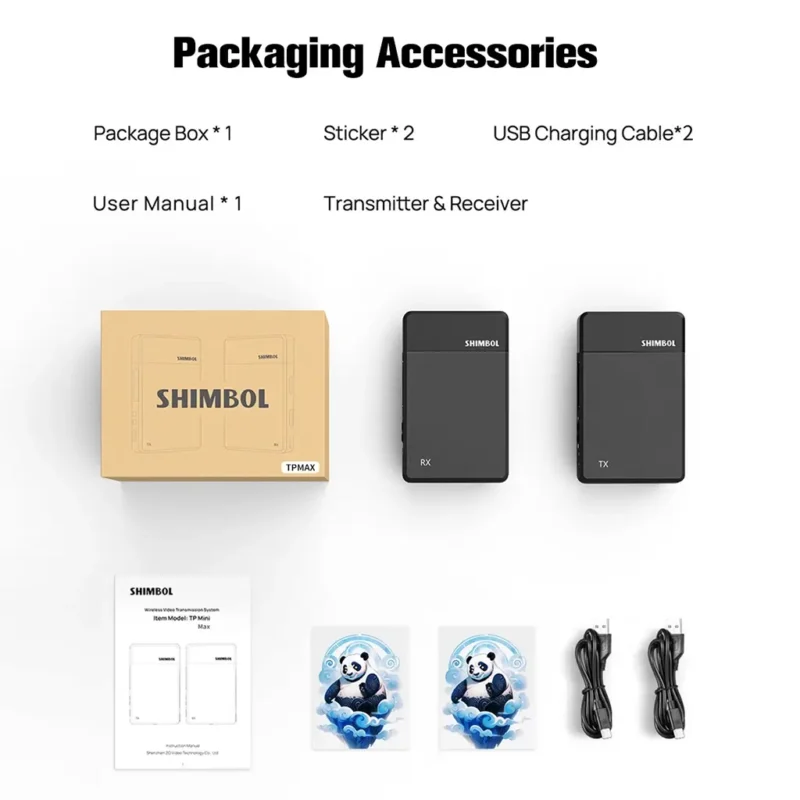

- Transmitter and Receiver Set

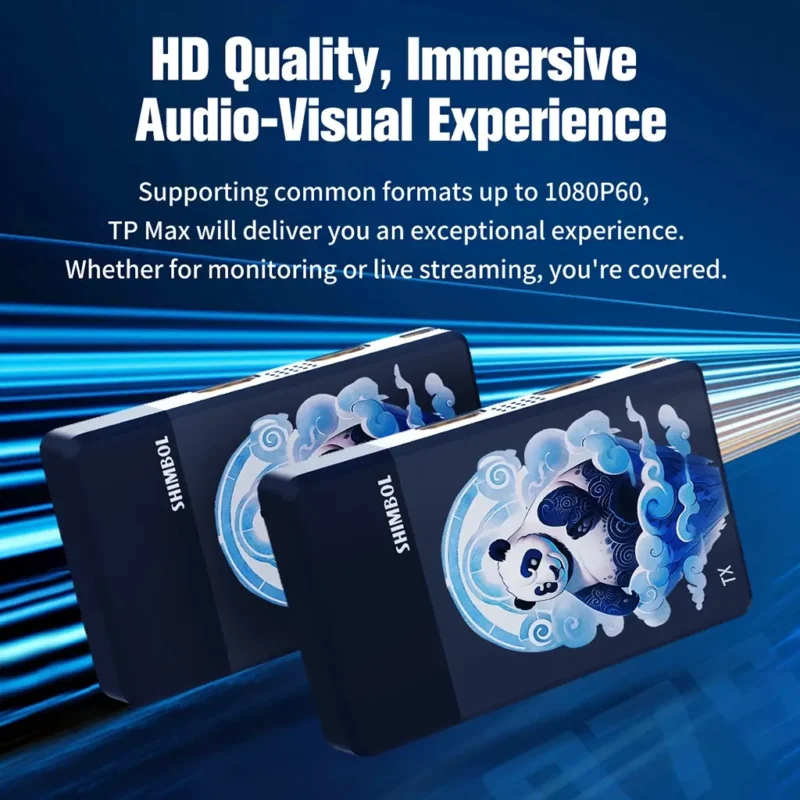

- Transmit up to 1080p60 Video
- Transmit up to 1000′ Line of Sight

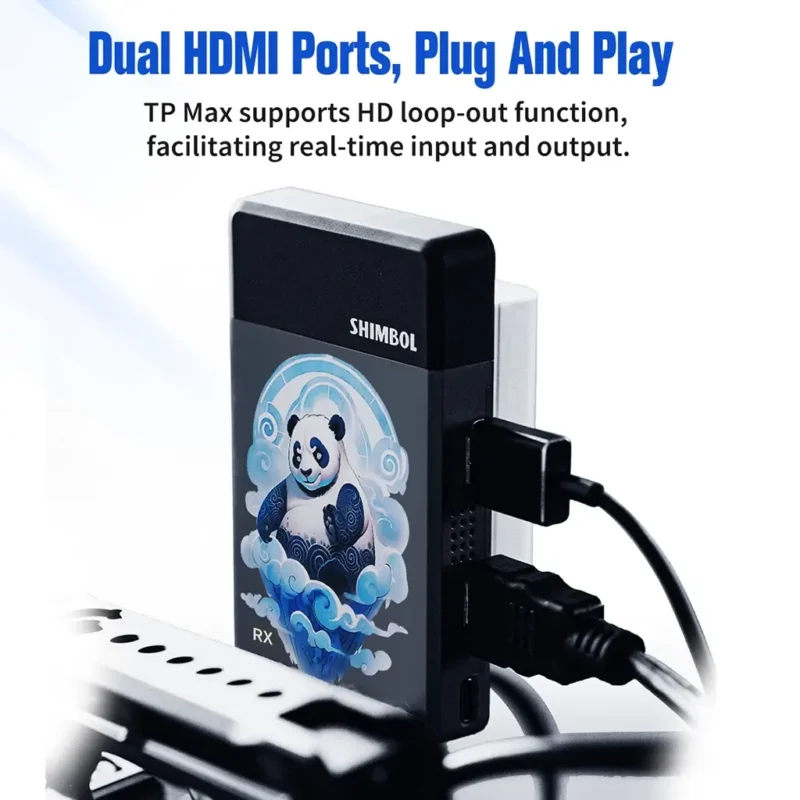

- HDMI Input and Output
- L-Series Battery Plate on Each Unit
- OLED Display, USB-C Power Input
Available on backorder
Description
SHIMBOL
TP MAX
Additional information
| Weight | .200 kg |
|---|---|
| Dimensions | 12.9 × 9.7 × 8.2 cm |
| Interface: | Transmitter: HDMI Input/HDMI Output Receiver: HDMI Output*2 |

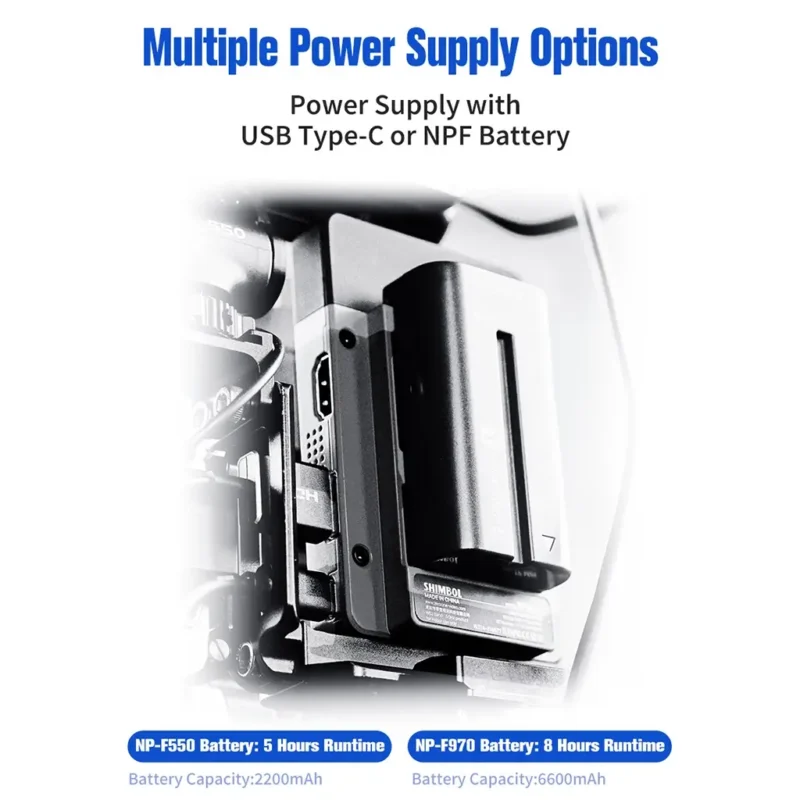

| Power Supply Method: | Transmitter: USB 5V / NP-F Battery Receiver: USB 5V / NP-F Battery |
| Power Consumption: | Transmitter: <3W Receiver: <2.5W |
| HDMI Input: | Transmitter: 720P@50/60Hz, 1080I@50/60Hz, 1080P@24/25/30/50/60Hz Receiver: / |
| HDMI Output: | Transmitter: 720P@50/60Hz, 1080I@50/60Hz, 1080P@24/25/30/50/60Hz Receiver: 720P@50/60Hz, 1080I@50/60Hz, 1080P@24/25/30/50/60Hz |
| Transmission Frequency Band: | Transmitter: 5GHz Receiver: 5GHz |
| Transmit Power: | Transmitter: 20dBm Max Receiver: 17dBm |
| Transmission Delay: | Transmitter: 70ms Receiver: 70ms |
| Receiving Sensitivity: | Transmitter: / Receiver: -85dBm |
