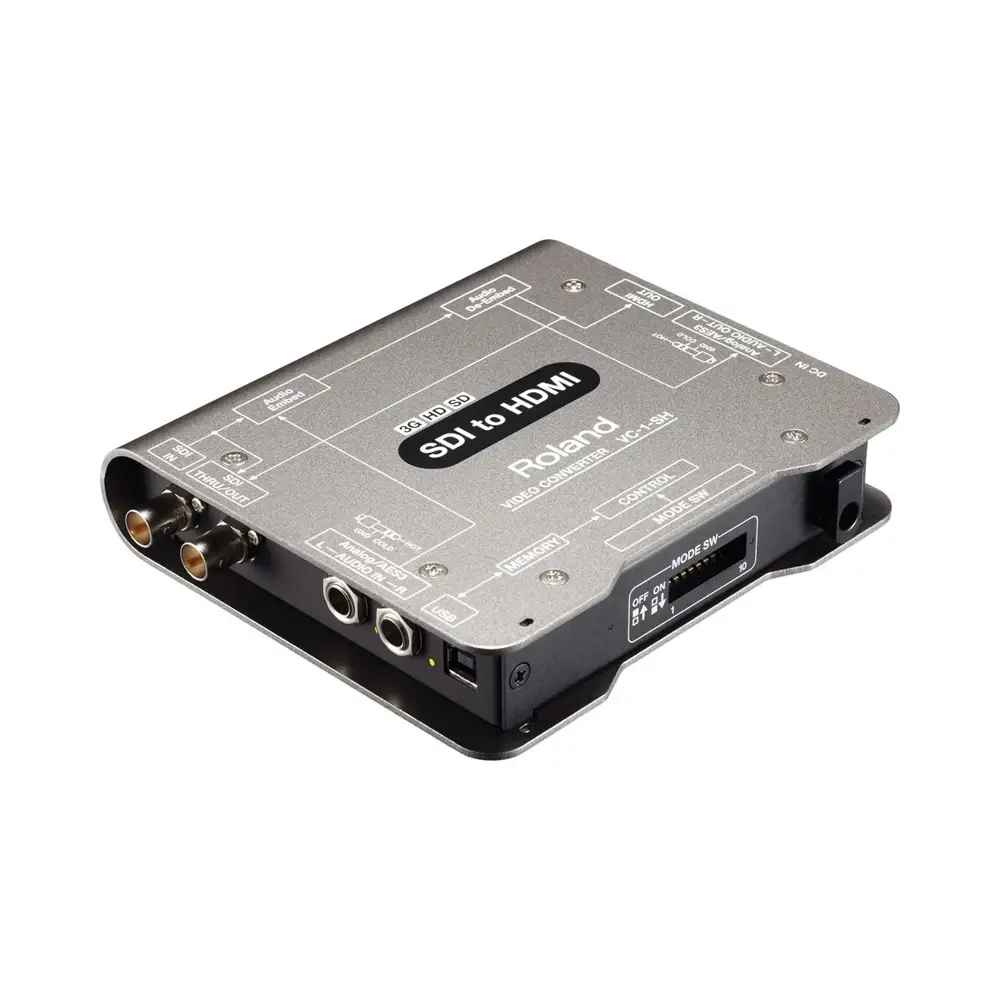

Roland VC-1-SH SDI to HDMI Video Converter
- Converts 3G, HD, or SD-SDI to HDMI
- Supports Resolutions up to 1080p60
- Digital and Analog Audio In and Out
- Audio Embedding and De-Embedding
- SDI Re-Clocking to Combat Signal Loss
- 3G-SDI Level A and Level B Support
- Mac and Windows Configurable
Conversion of video and audio signals from SDI input to HDMI output
Roland’s new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

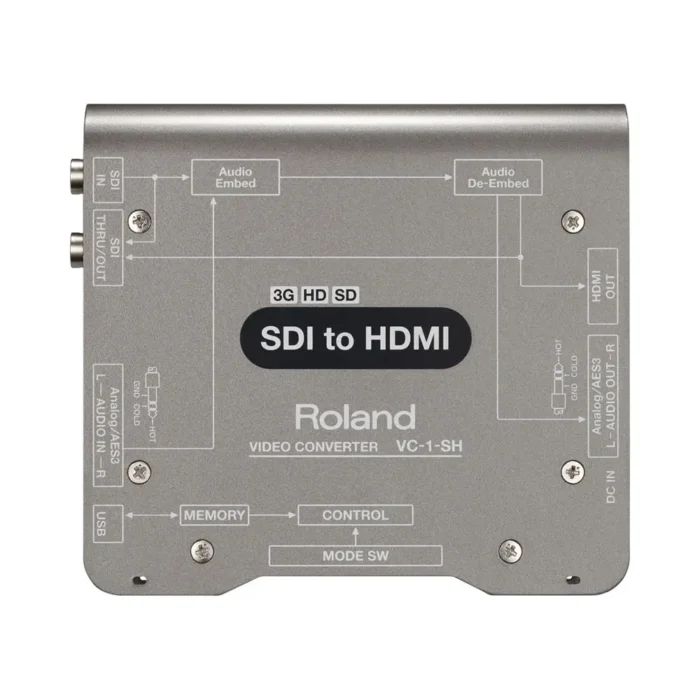

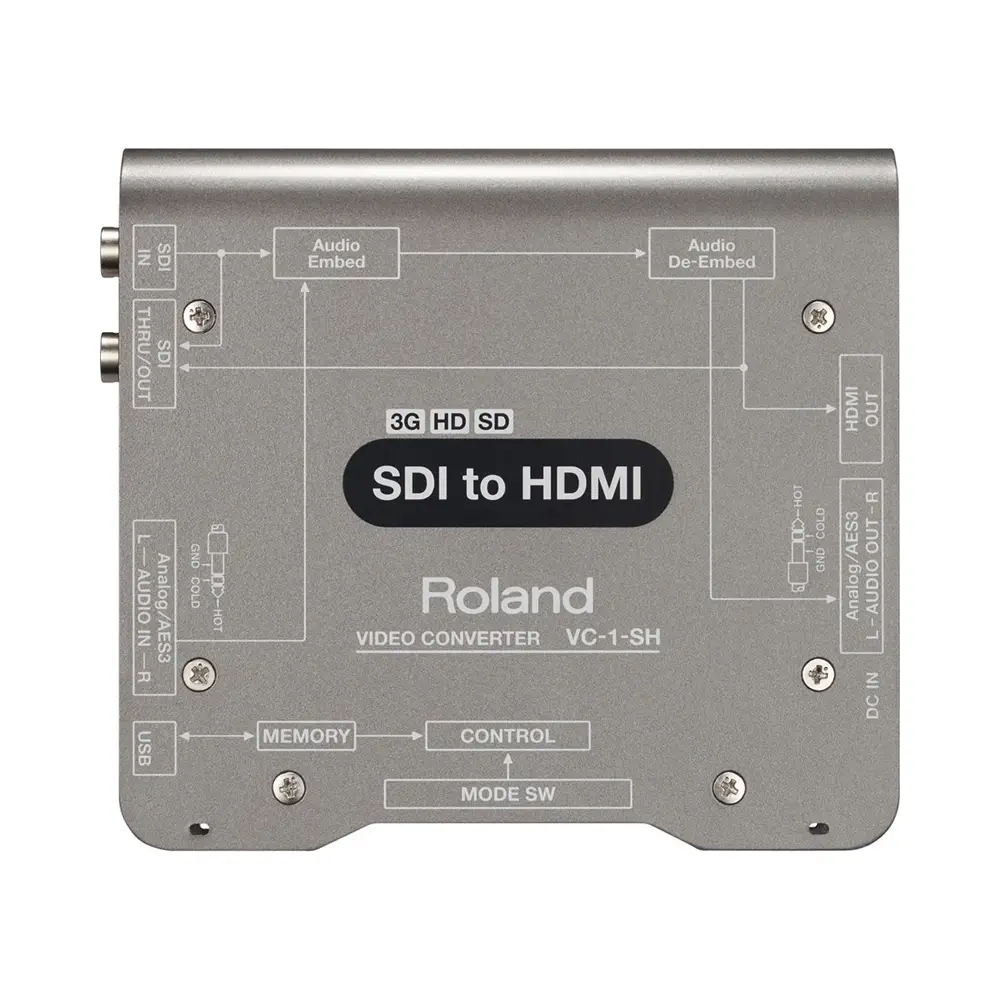

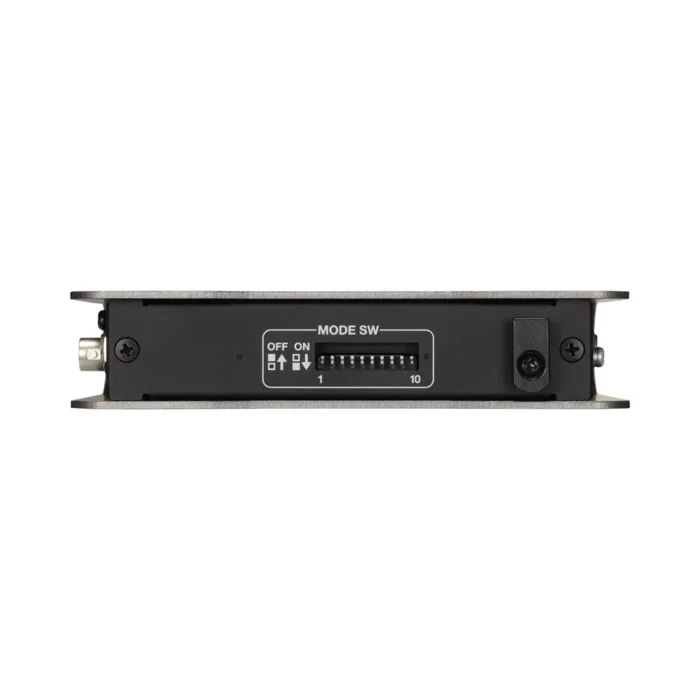

Roland VC-1-SH
The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 15.1 × 13 × 3 cm |

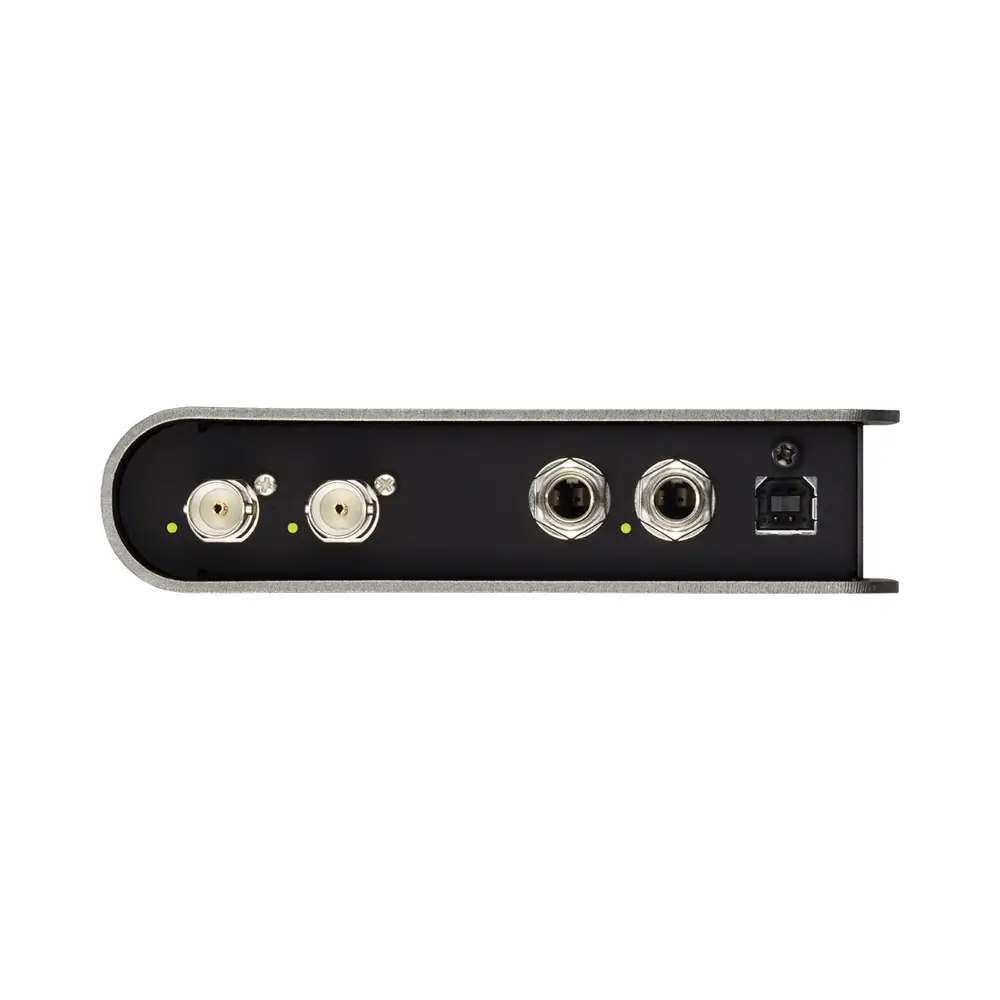

| Inputs |
1 x 3G-SDI on BNC female |
| Output |
1 x 3G-SDI loop-out on BNC female |
| SDI Standards |
SMPTE 424M (Level A and B), 425M-AB, 299M, 296M, 292M, 274M, 272M-C, 259M-C; ITU-R BT.601-5 |
| Audio Formats |
SDI: Linear PCM; 24-bit, 48 kHz, 16 channels |
| Supported Resolutions |
1920 x 1080: 60p, 59.94p, 50p, 30p/29.97p, 25p, 24p, 23.98p, 60i, 59.94i, 50i |
| USB |
1 x USB 2.0 type B |
